Zanussi ZCFF7/5W Bedienungsanleitung

214.3675.70

REFRIGERATOR - FREEZER

ZCFF7/5W

INSTRUCTION BOOKLET

Contents

Instructions for the User

Safety Instructions 2

Description of the Appliance 3

Control Panel 4

Using the Appliance 5

Before Use 5

Starting the Appliance 5

Freezer Compartment 5

Freezing Fresh Food 5

Frozen Food Storage 5

Refrigerator Compartment 5

Chill Compartment 5

Food Storage 6

Energy Saving Advice 6

In the Event of a Power Failure 6

Maintenance and Cleaning 7

Something Not Working 8

Normal Operating Sounds 9

Service & Spare Parts 9

Customer Care Department 9

Guarantee Conditions 10

Instructions for the Installer

Technical Specifications 11

Installation 12

Unpacking 12

Positioning 12

Ventilation 12

Levelling 12

Electrical Connection 13

Electrical Requirements 13

Door Reversal 14

Bottles and cans must not be placed in the fre-

ezer compartment as they can burst as the con-

tents freeze.

 Manufacturers recommended food storage

times should be adhered to. Refer to the rele-

vant instructions.

 Do not use electrical appliances inside the frid-

ge / freezer.

Maintenance and Cleaning

Before cleaning, always switch off the applian-

ce and disconnect from the electrical supply.

When unplugging always pull the plug from the

mains socket, do not pull on the cable.

Servicing

This product should be serviced by an authori-

sed engineer and only genuine spare parts

should be used.

Under no circumstances should you attempt to

repair the appliance yourself. Repairs carried

out by inexperienced persons may cause injury

or serious malfunction. Contact your local

Zanussi Service Force Centre.

Disposing of Old Appliances

Remove the doors to prevent small children

being trapped in side. Cut off and dispose of

the plug and cable.

Use an authorised disposal site.

Safety Instructions

Installation

This appliance is heavy. Care should be taken

when moving it.

It is dangerous to alter the specifications or attempt

to modify this product in any way.

Ensure that the appliance does not stand on the

electrical supply cable. If the supply cable is dama-

ged, it must be replaced by a cable available from

your local Service Force Centre.

Any electrical work required to install this appliance

should be carried out by a qualified electrician or

competent person.

Parts which heat up should not be exposed. Whe-

never possible, the back of the appliance should be

close to a wall, but leaving the required distance for

ventilation, as stated in the installation instructions.

The appliance should be left for 2 hours after insta-

llation before it is turned on, in order to allow the

refrigerant to settle.

Child Safety

Do not allow children to tamper with the controls or

play with the product.

Keep all packaging material away from children.

During Use

This appliance is designed for domestic use only,

specifically for the storage of edible foodstuffs only.

It is not intended for commercial or industrial use.

Containers with flammable gases or liquids can

leak at low temperatures. Do not store any contai-

ners with flammable materials, such as spray cans,

fire extinguisher refill cartridges etc. in the refrige-

rator.

Frozen food should not be refrozen once it has tha-

wed out.

Do not place carbonated or fizzy drinks in the free-

zer compartment.

Ice lollies can cause frost/freezer burns if consu-

med straight from the freezer compartment.

Do not remove items from the freezer compartment

if your hands are damp/wet, as this could cause

skin abrasions or frost/freezer burns.

These warnings are provided in the interests of your safety. Ensure that you unders-

tand them all before installing or using this appliance. If you are unsure of the mea-

nings of these warnings contact the Customer Care Department.

Keep this instruction book

for future reference and

ensure it is passed on to

any new owner

Description of Appliance

COLLECTION

Control Panel

1 Freezer Temperature Control 4 Door Alarm

2 Fridge Temperature Control 5 Temperature Alarm

3 ON/OFF Button 6 Fast Freezer Button

Control Panel

The appliance controls are located in the top panel insi-

de the refrigerator compartment.

Thermostat Control

The freezer and fridge thermostats control the tempe-

rature inside the freezer and refrigerator respectively.

1. The Freezer Temperature Control

The freezer temperature control, regulates the tempe-

rature within the freezer compartment. A change in the

control setting in the freezer compartment could affect

the temperature in the refrigerator compartment under

certain circumstances.

7 Maximum coldness

1 Minimum coldness

An intermediate position is usually the most suitable,

although the temperature will be affected by:

Room temperature

How often the door is opened

How much food is stored

Position of the appliance

In determining the correct temperature control setting

all these factors have to be considered and some

experimentation may be necessary.

When altering the temperature settings, allow 24 hours

for the temperature to stablise before making further

changes.

2. The Fridge Temperature Control

The fridge temperature control regulates the tempera-

ture within the fridge compartment, by regulating the

cold airflow. An intermediate setting is usually the most

suitable, although some experimentation may be

necessary to obtain the correct temperature.

5 Maximum coldness

1 Minimum coldness

Standby

Turn the control knob to the standby position if you

wish to switch off the fridge, but leave the freezer in

operation (for example, when on holiday). Leave the

doors shut when in Standby operation.

3. ON/OFF Button

To switch the appliance on or off, press the

ON/OFF button continuously for 3 seconds. When

the appliance is switched on, the ON/OFF button

will illuminate.

4. The Door Alarm

If either of the doors are left open, the door alarm

will sound and the alarm button will flash red. Press

the alarm button to switch off the alarm, the light

will stop flashing but will remain red. To switch off

the alarm and the light shut the doors.

5. Temperature Alarm

If the internal temperature inside the appliance is

too high for the safe storage of frozen food, an

alarm will sound and the temperature alarm button

light will start to flash. The temperature may rise for

the following reasons:

The doors have been left open

There has been a power failure

A large quantity of food has been added to the

appliance.

The thermostat controls may be incorrectly set.

There is a fault.

To switch off the alarm, press the alarm button. The

audible signal will stop. The light will stop flashing,

but will remain on until the internal temperature has

reached the correct storage temperature for frozen

food.

6. Fast Freeze Button

Press the fast freeze button approximately 3 hours

before freezing fresh food. Once the food is frozen,

switch off the fast freeze function by pressing the

fast freeze button. The fast freeze function will

automatically switch off after 36 hours.

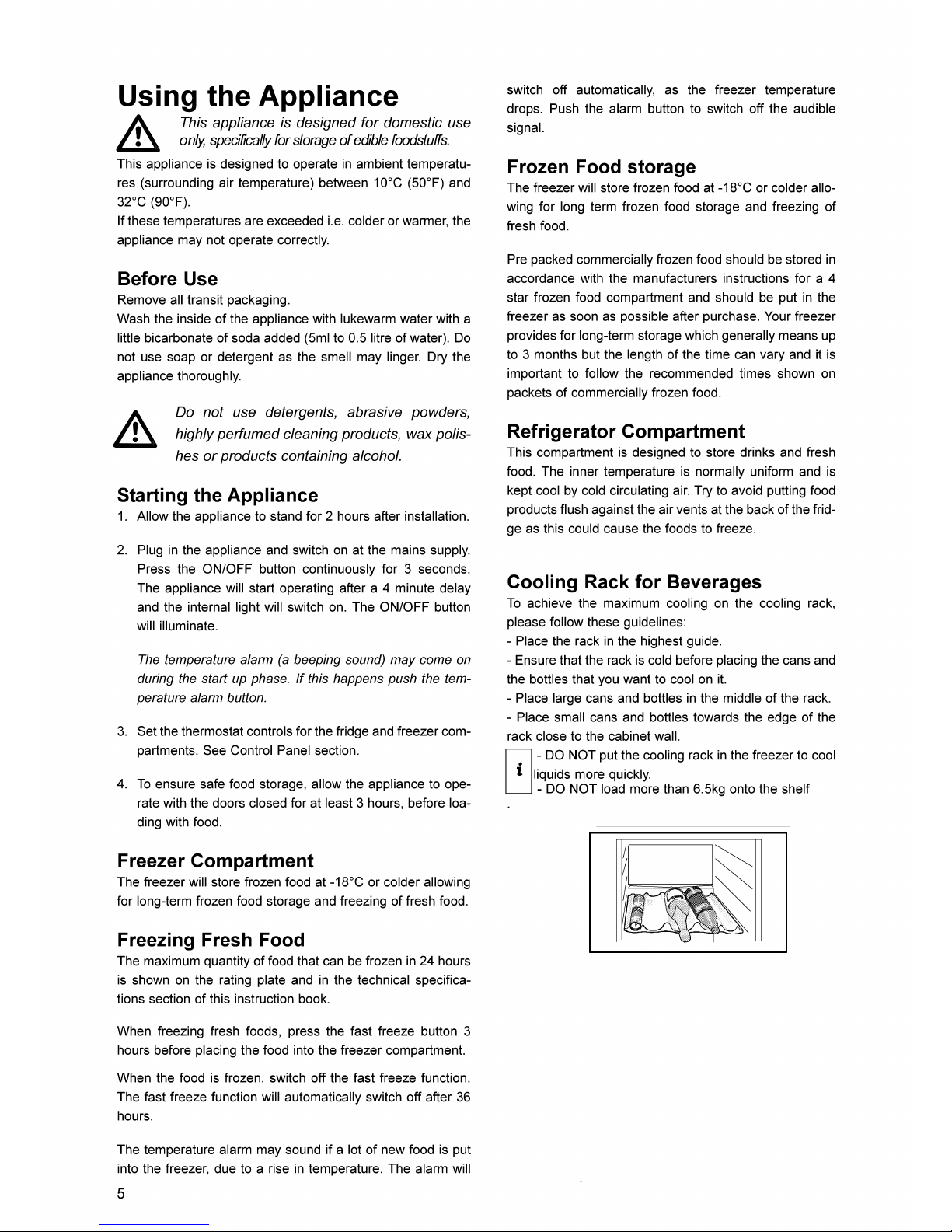

Food Storage

Energy Saving Advice

Do not install the cabinet close to sources of heat,

such as a cooker, dishwasher or radiator.

Locate the appliance in a cool well-ventilated room

and make sure that the air openings of the cabinet

are not obstructed.

Avoid unnecessary frosting in the cabinet by pac-

king all foodstuffs into airtight packages before pla-

cing them in the freezer.

Always leave warm food to cool down to room tem-

perature before placing in the fridge or freezer.

Food that is to be frozen (when cool) should be pla-

ced in the fridge before being transferred to the fre-

ezer.

Do not put any hot food into the fridge or freezer.

Thaw frozen food in the fridge. This will ensure

safer defrosting of foods and reduce the work of the

refrigeration unit.

Try to avoid keeping the door open for long periods,

or opening the door too frequently as warm air will

enter the cabinet, and cause the compressor to

switch on unnecessarily often.

Ensure there are no obstructions preventing the

door from closing properly.

To obtain the best results from your appliance, neit-

her hot foods nor liquids, which may evaporate

should be placed in the larder compartment.

Avoid buying frozen food if you cannot store it

straight away. The use of an insulated container is

advisable. When you arrive home place the frozen

food in the freezer immediately.

Keep the time between buying chilled food and pla-

cing it in your fridge as short as possible.

Do not push food together too much; try to allow air

to circulate around each item.

Do not store food uncovered.

Wrap the food up properly or place it in airtight con-

tainers before putting it into the fridge freezer.

Ensure that food placed in the freezer is dated

and labeled and used in date order to ensure

that food is consumed at its best.

Remove suspect food from your fridge freezer

and clean, refer to Maintenance and Cleaning.

Do not put any newly introduced food for free-

zing near to already frozen food

Food and drinks, which have a strong odor,

may affect other foods and drinks if not stored

correctly.

In the Event of a Power

Failure

If there is a power failure during the storage of fro-

zen foods, keep the door closed. If the temperatu-

re within your freezer should rise do not refreeze

the food without checking its condition. The follo-

wing guidelines should assist you.

Ice Cream: Once thawed should be discarded.

Fruit and Vegetables: If soft should be cooked

and used up.

Bread and Cakes: Can be refrozen without dan-

ger.

Shellfish: Should be refrigerated and used up

quickly.

Cooked Dishes: i.e. casseroles should be refrige-

rated and used up.

Large Pieces of Meat: Can be re-frozen providing

there are ice crystals remaining within them.

Small Joints: Should be cooked and then re-fro-

zen as cooked dishes.

Chicken:

Should be cooked and re-frozen as a fresh dish.

Defrosting

Your appliance is frost free, which means there is

no need to manually defrost your appliance, as this

will be carried out automatically.

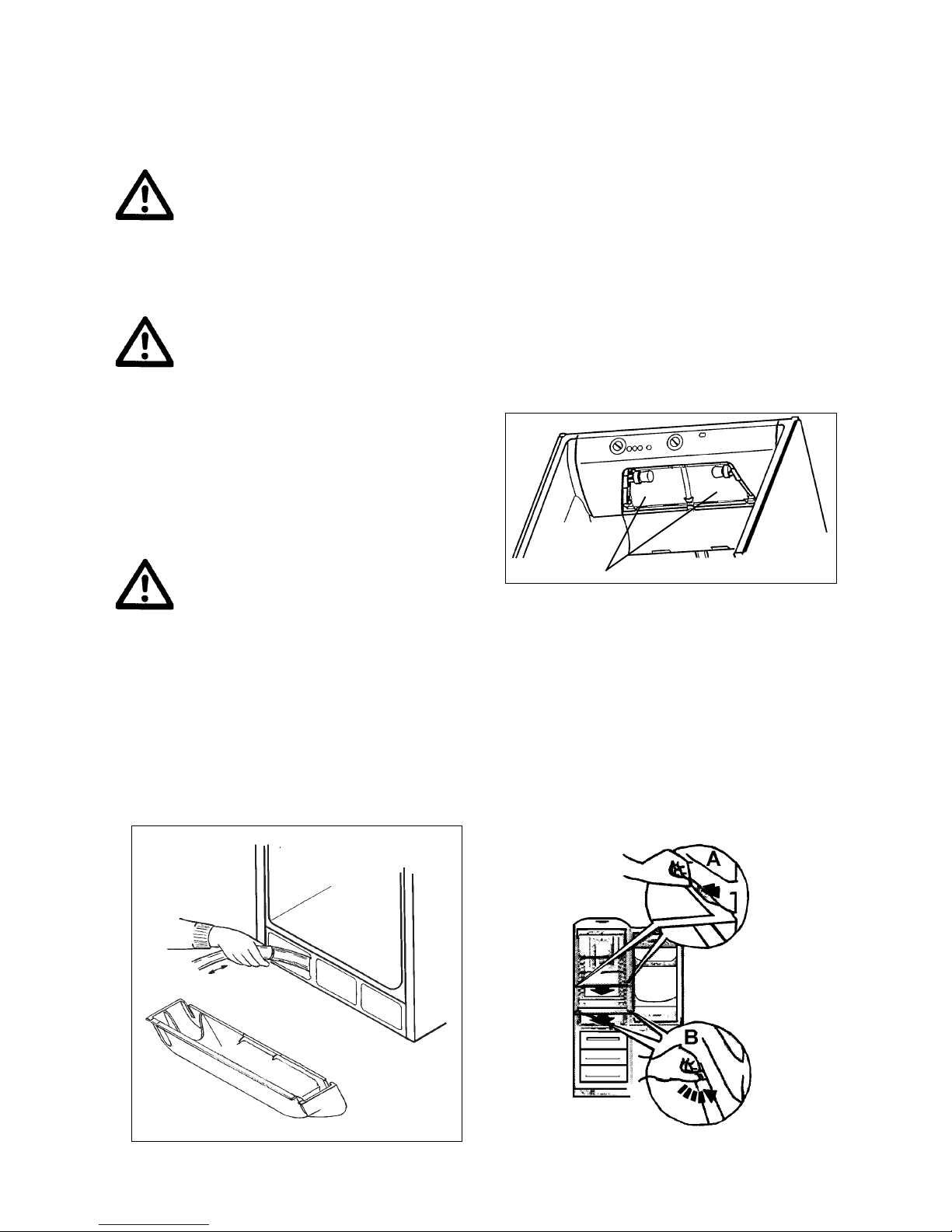

Changing the light bulb

1. Switch off the appliance by pressing the

ON/OFF button, and then unplug the appliance.

3. Open the plastic light cover, by pushing

upwards on the centre clip. The cover will then

swing down.

4. Unscrew the light bulb and replace with a bulb

with the following specifications:

Standard Bulb

E14 screw thread

220-240 Volts

25 watts (max)

When the appliance is not in use

When the appliance is not in use for long periods,

disconnect from the electricity supply, empty all of

the food and clean the inside of the appliance.

Switch off the appliance and leave the door ajar to

prevent unpleasant smells.

Glass Shelves

The shelf on the vegetable drawer is secured by

two tabs. To release and remove the vegetable

drawer and glass shelf, it is necessary to rotate the

tabs as shown in detail B (Tabs Aare previously

removed transit packaging).

Maintenance and

Cleaning

Before any maintenance or cleaning work

is carried out DISCONNECT the applian-

ce from the ELECTRICITY supply.

External Cleaning

Wash the outer cabinet with warm soapy water.

Do not use abrasive products.

There may be sharp edges on the under-

side of the product so care should be

taken when cleaning.

Ensure the vents at the back of the appliance are clear

of dust and debris etc.

Internal Cleaning

Clean the inside and accessories with warm water and

bicarbonate of soda (5ml to 0.5 litre of water).

Rinse and dry thoroughly.

Do not use detergents, abrasive powders,

highly perfumed cleaning products, wax

polishes or cleaning products containing

bleach or alcohol.

Regularly check the door seals and wipe clean to ensu-

re they are clean and free from debris.

Cleaning the Condenser

The Condenser at the bottom of your appliance needs

to be cleaned periodically. Remove the plinth, and

clean with a vacuum cleaner. Ensure the plinth is repla-

ced after cleaning.

2 standard bulbs 25W

Something Not Working

If your appliance is not operating correctly, carry out the following checks before contacting your local Service

Force Centre.

Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or ins-

tallation a charge will be made, even if the appliance is under guarantee.

Symptom Cause Solution

Interior Light (refrigerator)  Appliance is not plugged in  Plug in the appliance

does not work  The appliance is not switched on  Switch on the appliance

 There is no power to the appliance  Check the main fuse box in the

house

 The bulb is not fitted correctly or  Refit the bulb or replace with a

has fused. new bulb

The appliance does not cool  The doors have not been closed  Close the doors

down sufficiently properly

 A door has been opened frequently  Avoid frequent opening of the

doors

 The temperature control knob is  Reset as required

not set correctly

 Food has been introduced into the  The appliance will cool down in

appliance due course.

Food is freezing in the fridge  The temperature control knob  Reset as required

is incorrectly set

 Food is too close to ventilation  Reposition food, leaving a gap.

holes at the back

The motor works  Temperature control knob is  Change the setting

continuously. incorrectly set

 The doors are not properly closed  Close the doors

 Doors have been opened frequently  Avoid frequent opening of the doors

 Food has recently been introduced  The appliance will cool down in

into the appliance due course.

 The condenser is dirty  Clean (read the Maintenance &

Cleaning section).

Water/condensation in the  Wet vegetables have been put  This may occur from time to time

vegetable drawer into the box

Condensation on the  High humidity level in the room.  It does not affect the performance

outside of the cabinet of the appliance. Increase the

room ventilation.

Doors do not close  The appliance is not level  Level the appliance correctly

 The doors are incorrectly aligned  Re-align the doors

 Food is preventing the doors  Re-position food

shutting

Noises  The appliance may not be level  Level the appliance

 Something may be vibrating inside  Check the contents and shelves

are properly positioned.

All product lights start  Your product has a major fault  Contact your local Service

flashing

and the

alarm sounds Force Centre

Normal Operating Sounds

1. Temperature control

May cause clicking sounds when the system is connected or disconnected.

2. Cooling system

The injected cooling gas may produce a gurgling sound while passing through the tubes.

3. Motor

May cause a humming noise and or slight knocking sound.

4. Fans

You may occasionally hear the fans working. This is normal; the fans help to ensure the air circulates

more effectively.

Service and Spare Parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local

Zanussi Service Force Centre by telephoning:

08705 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit

the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading «Something Not Wor-

king».

When you contact the Service Centre you will need to give the following details.

1. Your name, address and postcode

2. Your telephone number

3. Clear and concise details of the fault

4. The model and serial number of the appliance (found on the rating plate)

5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee ser-

vice calls.

Customer Care Department

For general enquiries concerning your Zanussi appliance or for further information on Zanussi products, please

contact our Customer Care Department by letter or telephone at the address below or visit our website at

www.zanussi.co.uk

Customer Care Department

Zanussi

55-77 High Street

Slough

Berkshire

SL1 1DZ

08705 727727 *

* Calls to this number may be recorded for training purposes.

Andere Handbücher für ZCFF7/5W

Inhaltsverzeichnis

Andere Zanussi Kühlschrank Handbücher

Zanussi

Zanussi ZRT318W Bedienungsanleitung

Zanussi

Zanussi ZF36 Bedienungsanleitung

Zanussi

Zanussi ZK 62/23 RF Bedienungsanleitung

Zanussi

Zanussi ZI 310 DIS Bedienungsanleitung

Zanussi

Zanussi ZR85L Bedienungsanleitung

Zanussi

Zanussi ZB1420T Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi 925 993 329 Bedienungsanleitung

Zanussi

Zanussi ZC345P-1 Bedienungsanleitung

Zanussi

Zanussi ZTR 56 RL Bedienungsanleitung

Zanussi

Zanussi RF 5602 Kurzanleitung

Zanussi

Zanussi ZFC 83 L Bedienungsanleitung

Zanussi

Zanussi ZO 33 Y Bedienungsanleitung

Zanussi

Zanussi ZFC 56 L Bedienungsanleitung

Zanussi

Zanussi ZI 3165A - ZI 3243A Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi Activeself 332021 Bedienungsanleitung

Zanussi

Zanussi ZBA22021SV Bedienungsanleitung

Zanussi

Zanussi ZC320RM Bedienungsanleitung

Zanussi

Zanussi ZA 34 S Bedienungsanleitung

Zanussi

Zanussi ZQA14030DA Bedienungsanleitung

Zanussi

Zanussi DI 3165 - DI 3243 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZRA40400XA Bedienungsanleitung

Zanussi

Zanussi ZERB 3120 Bedienungsanleitung

Zanussi

Zanussi ZBB 7266 Bedienungsanleitung

Zanussi

Zanussi ZRC 328WO Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
