mFrozen food must not be re-frozen once it has

been thawed out.

mManufacturers storage recommendations

should be strictly complied with.

mLollies can cause frost burns if consumed right

away from the freezer.

mDo not place carbonate or fizzy drinks in the

freezer as these may explode.

mWhen an old freezer is to be discarded make

sure to:

mDismount the doors in order to prevent chil-

dren from getting trapped inside.

Have the gas from the cooling system with-

drawn before making it to scrap iron.

Warnings for your safety

Warnings for your safety. Carefully read

these instructions before installing and

using the machine.

mThis freezer is designed to be operated by adults

only. Children should not be allowed to tamper with

the controls or play with the product.

mAny electrical work required to install the applian-

ce should be carried out by a qualified electrician or

competent person.

mThis appliance is heavy. Care should be taken when

moving it.

mMake sure that the cable is not trapped underneath

the appliance, nor touches the motor.

mRepairs carried out by inexperienced persons may

cause injuries or serious malfunctioning. Refer to

the nearest Authorized Dealer.

mMake sure the rear part of the appliance stands

against a wall as there are working parts which heat

up and should not be of easy access.

mMake sure that there is a continous and adequate

ventilation as a failure to do so may result in dama-

ge to the appliance or deterioration of the food.

mThe appliance should be left for at least 4 hours

after installation before it is turned on ill order to

allow the refrigerant to settle.

mThis product must be serviced only by an AUTHO-

RIZED DEALER, and only GENUINE SPARE

PARTS must be employed.

mBefore cleaning or reparing the appliance, make

sure it is unplugged.

mIt is dangerous to alter the specifications or modify

this product in any way.

mThese domestic refrigerators are designed to be used

specifically for the storage and conservation of food.

mDO NOT USE SHARP INSTRUMENTS to scrap

off frost or ice. Frost may be removed by using a

plastic scraper. (See defrosting instructions).

Índex

Warnings for your safety pag. 16

Installation pag. 18

Changing the opening directions

of the doors and Panelling pag. 19 - 20

Regulation and Control pag. 21

How to use your

Refrigerator-Freezer pag. 22 - 23

Maintenance of your

Refrigerator-Freezer pag. 24 - 25

Something not working pag. 26 - 27

Normal noises when

functioning pag. 28

Guarantee, Service

and Spare Parts pag. 29

Tecnical Features pag. 30

Installation

Positioning

 Place the refrigerator away from direct sunlight and

heat sources.

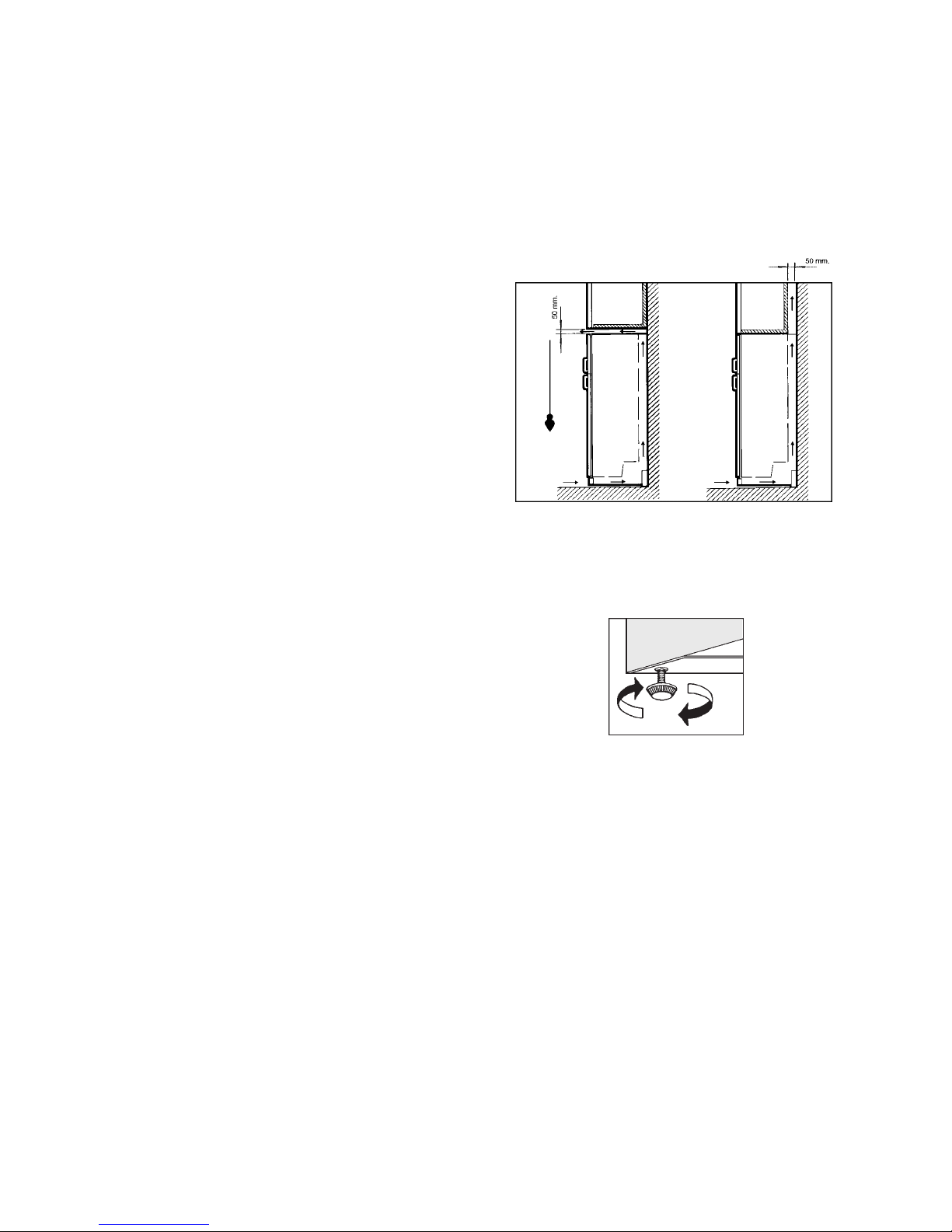

 Maintain recommended ventilation - see Fig. 1.

 Make sure the refrigerator is accurately levelled tur-

ning the adjustable feet in order to avoid vibrations

and noises, Fig. 2.

 This is a built in design to be aligned with other fur-

niture

 The appliance must be located in places of maxi-

mum temperature as follows:

If the temperature are higher than these both above

mentioned, the functions of appliance coudl result

reduced.

Cleaning the interior

 Do not use alcohol or any cleanig product containing

alcohol because it can damage the cabinet.

 Before using the appliance for the first time wash the

interior whith luke warm water and some neutral

soap so as to remove the typical smell of a brand-

new product arid then dry thoroughly.

 Do not use detergents or abrasive powders as these

will damage the finish.

 Remove security used for transportation.

Electrical connection

mBefore plugging the appliance make sure that the

voltage and frequency shown on the «Technical

Features» correspond to your home supply.

mIt is essential that the appliance be efficiently

earthed.

For this purpose the supply cable plug incorporates

a special earth contact. If the sockets of your domes-

tic wiring system are not grounded, have the

appliance connected to a separate ground wire in

accordance with existing safety regulations.

«THE MANUFACTURER DECLINES TO

ACCEPT ANY LIABILITY IF THIS SAFETY

RULE IS NOT OBSERVED».

Starting  up

 Plug the appliance into the mains.

 Make sure the inner light turns on when opening the

door.

 Turn to intermediate position the knobs of the «tem-

perature regulator» «A».

Fig. 2

Fig. 1

SN +10 to +32ºC

N +16 to +32ºC

ST +18 to +38ºC

T +18 to +43ºC

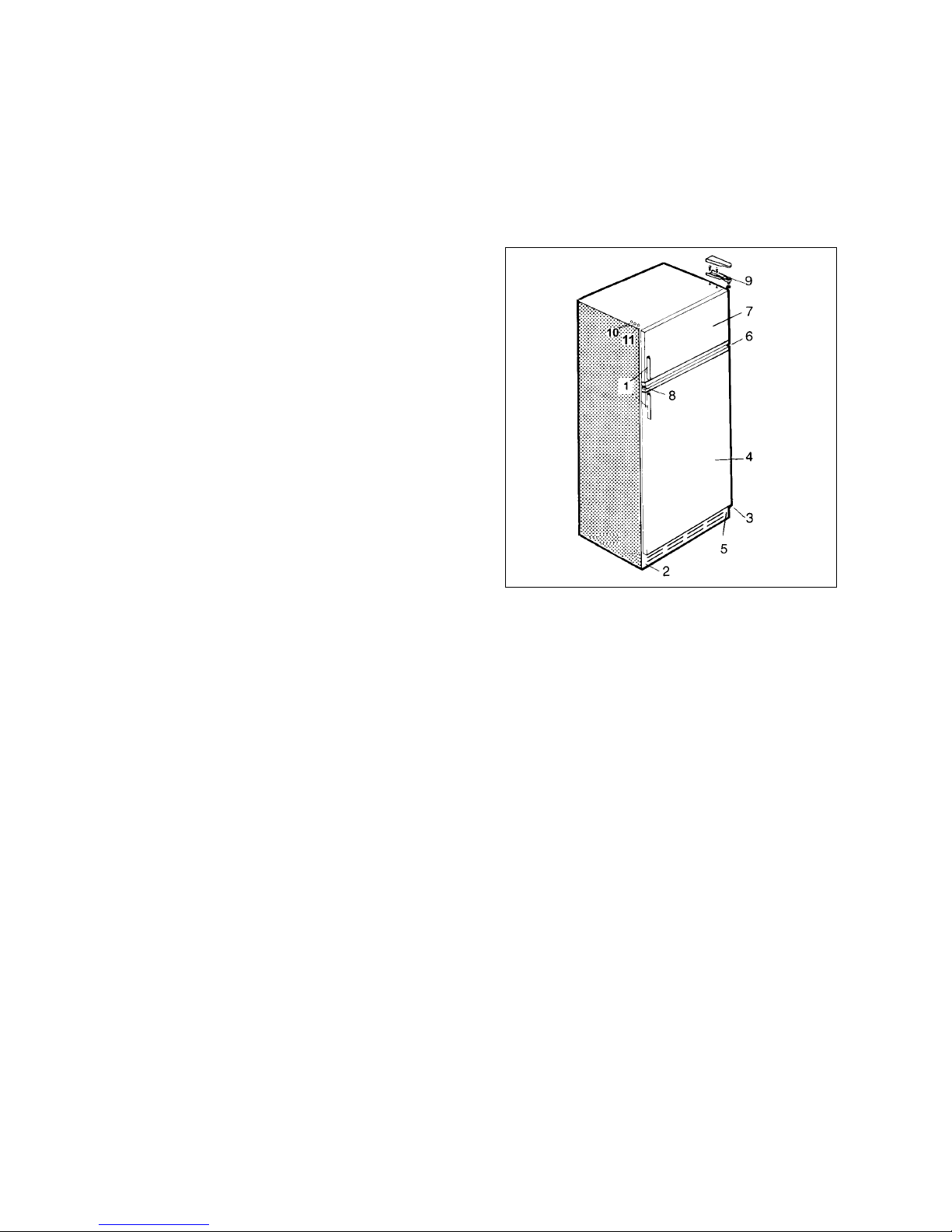

Changing the opening direction

of doors and Panelling

If you wish to change the opening side of the doors

proceed as follows:

1... Remove the handles of the doors, if they are side

fixing by screws.

2... Take off the plinth pressed on to.

3... Remove the inferior hing taking care for the dow-

ner door not to fall off and not to lose the plastic

spacer. Using a 10mm spanner, unscrew the hinge

pin and reassemble it on the opposite side.

4... Lift the downer door off the central hinge.

5... Remove the central hinge taking care for the upper

door not to fall off .

6... Take the upper door off the upper hinge. Be careful

not to lose the plastic ring.

7... Unscrew the plastic bolts of the opposite side of the

place of the central hinge taken out and introduce

them in the holes occupied before by the hinge.

Changing the opening direction

of doors and Panelling

If your refrigerator has top panel, you can manage in

the same way from point 1 to point 7 and then:

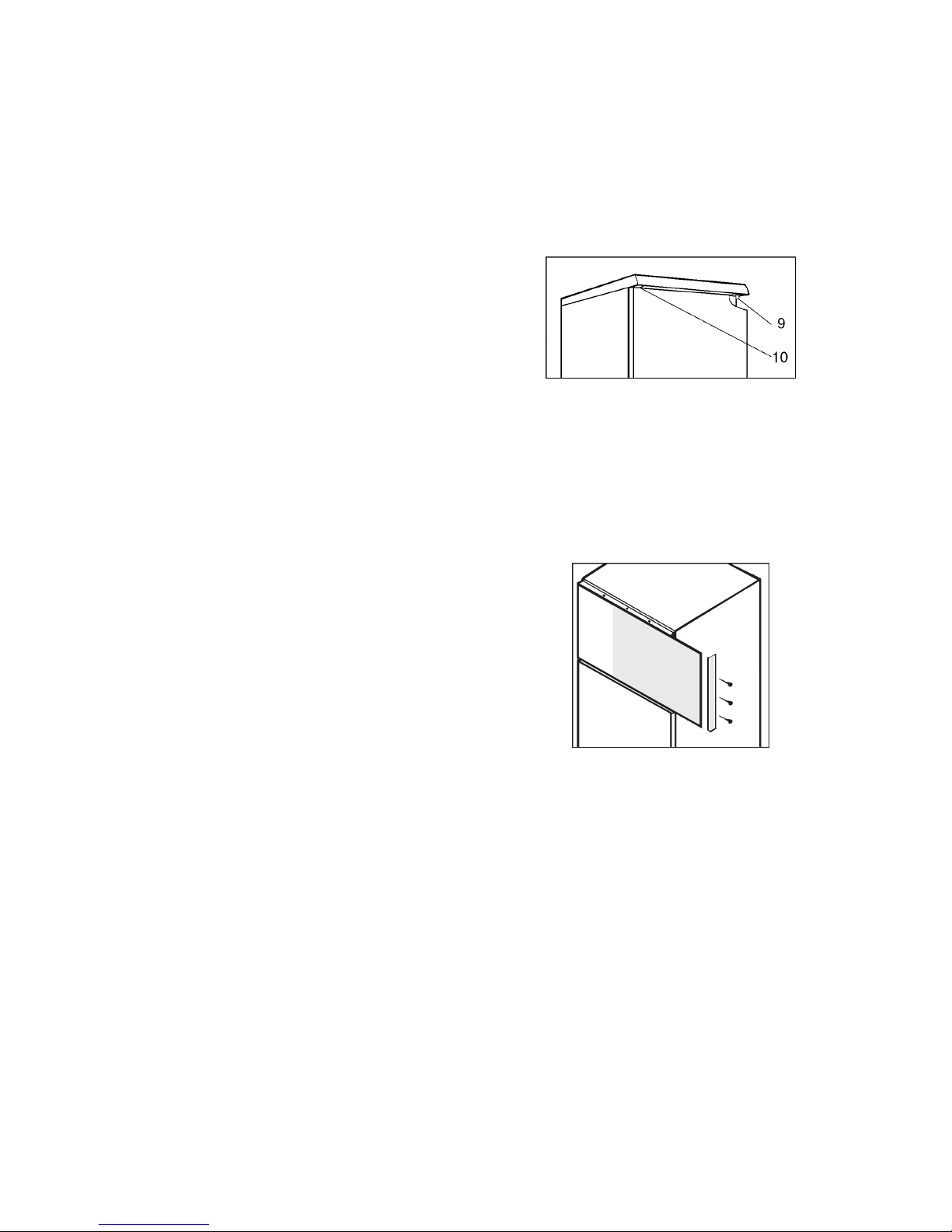

9... Unscrew the axle of the upper hing (9) and replace

it at the opposite side (10).

For the remaining parts proceed the other way round.

Once finished make sure that all joints close

perfectly well all around the door and chek that the

internal light turns of when the fridge door closes.

How to panel the door:

If your appliance is provided with metal strips for

panelling and you wish to do so proceed as follows:

1... Remove one of the side strips.

2... Loosen the screws of the remaining strips.

3... Start putting on the panel where you took off the

strip pushing it right up to the end.

4... Replace the strip on this side.

5... Tighten all screws

NOTE:

The panel dimensions must be 2 mm. shor-

ter than the doors. Maximun thickness of

the panel is 4 mm.

Regulation and Control

Temperature Regulator for Refrige-

rator:

«A»

Allows to adjust the temperature inside the refrigerator

according to use and external conditions.

 Pos. 1 = Minimum cold.

 Pos. 6 = Maximum cold.

 Pos. 0 = Motor disconnected.

Interior light:

Comes on when opening the door of the refrigerating

compartment.

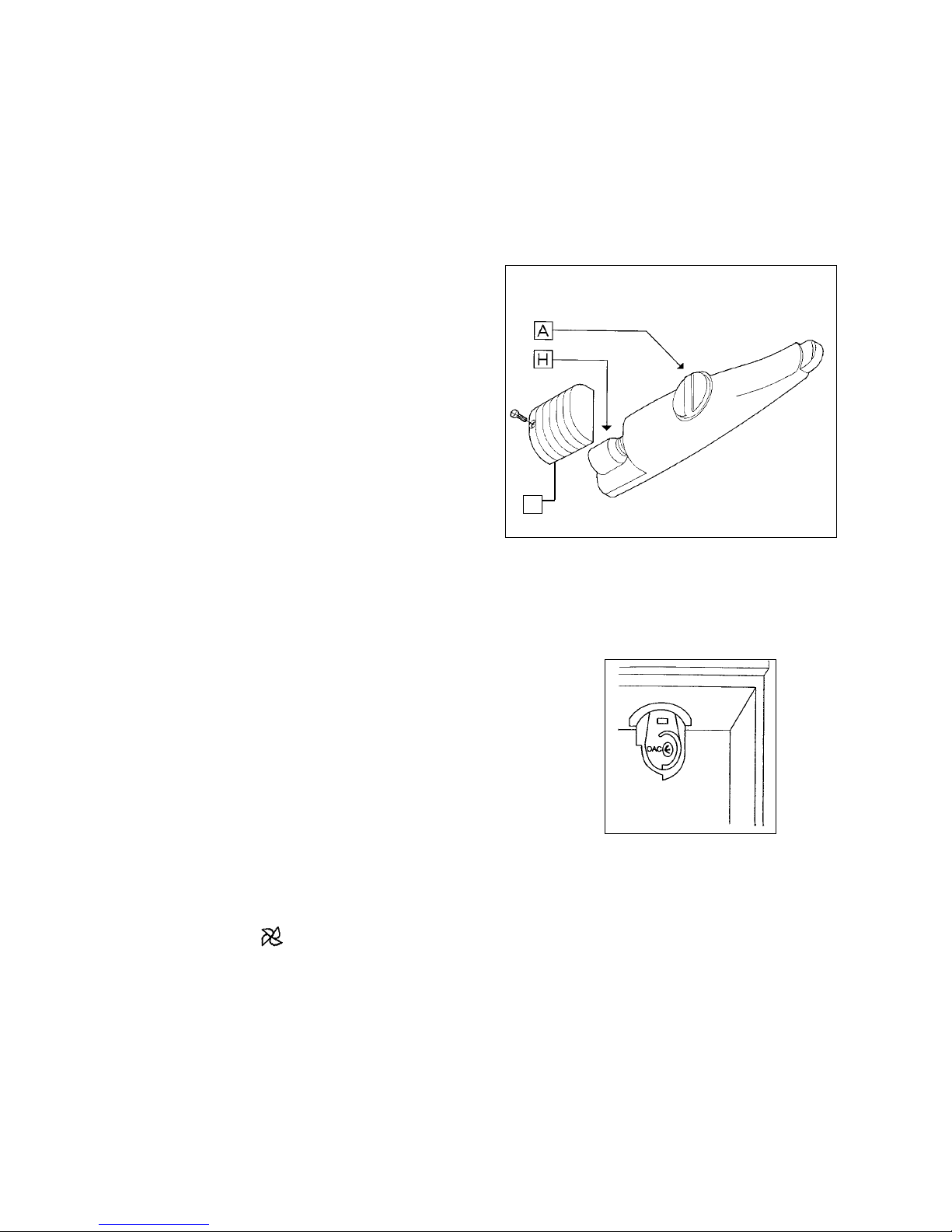

When changing the light bulb, first remove the protec-

tive cover «X», by firmly holding the edge and pulling

it horizontally. (see point A1 «IF SOMETHING DOES

NOT WORK»).

Dinamic Refrigeration (DAC):

(some

models only).

The Dynamic Refrigeration System give, in the fridge

compartment, extra efficiency showed in:

 Quicker refrigeration.

 More homogeneous temperature.

DAC (Dynamic Air Cooling system) has been mainly

designed for hot weather (ambient temperature above

25°), and also when the refrigerator is plenty of food.

To start working, push the switch.

When DAC is switched on, the cold production is hig-

her, thus you should turn the temperature regulator to

an adequate position ( ) to avoid excesive cold.

How to use your

Refrigerator-Freezer

Refrigerator Compartment:

This compartment is for storing drinks and

fresh food products.

The temperature inside is very evenly distribu-

ted. Make sure food does not touch the back

wall, since behind this surface is where the cold is

generated and food could bee partially frozen.

Also, this can impede the circulation of cold air.

This appliance is provided with an automatic

defrosting system. Consequently you will someti-

mes notice a thin layer of ice or drops of water on

the rear wall.

Freezer Compartment

This freezer, is marked , and is suitable

for freezing fresh foodstuffs and keeping food for

long periods.

Freezing of food

1... Place food on the upper grill.

2... Maintain food for at least 24 hours in that position.

3... The maximum quantity to be frozen within 24

hours is shown on the «Rating Plate», depending

on the model.

Keeping frozen food

For optimum consevation, the temperature inside the

freezer compartment must be at least -18°C.

This temperature is adjusted automatically.

Check that the «Temperature Control» is in a middle

position. Sometimes it may be necessary (insufficient

ventilation, high roon temperature, frequent opening

and closing of the door) to change the position of the

«Temperature Control».

If the appliance should be accidentally switched off by

a fault or power cut, take the following precautions:

 Keep the doors closed at all times.

 Find out how long the stoppage is expected to last.

Once normal power is restored:

A) If the freezer is full and the stoppage has been less

than «Time for temperature Rise» indicated for

each model in the «Technical Features» section,

then no damage will have been caused to the food.

B) If the freezer is not full, the cold will be lost more

quickly. If the food has not started to thaw, then

follow the instructions in «A».

C) If the food has begun to thaw, use them up as

quickly as possible, or cook them and refreeze

them.

How to use your

Refrigerator-Freezer

Useful Hints

Do not introduce any new food during a freezing

period.

Do not put any newly introduced food for freezing

near to already frozen food.

Wrap the food up properly or place it in hermethic

recipies before introducing it into the freezer.

Do not introduce any hot food into the freezer.

Food and drinks of a strong flavour may pass this on

to others and affect their flavour. Wrap them up ade-

quately or put them into tight closing bags.

Follow the instructions given in the cook books, fre-

ezing books and wrapping utensiles for better con-

servation of food.

Maintenance of your

Refrigerator-Freezer

Prior to undertaking any maintenance ope-

ration, be sure to unplug the appliance.

Defrosting of the freezer

The inner walls of the freezer become gradually cove-

red with a layer of frost keeping in mind not to open the

door frequently and keeping the food wrapped up in

closed bags.

Whenever the thickness of ice reaches 5 mm. the frost

should be removed. Here to proceed as follows:

1... Remove all food staffand place it in the coolest

possible place.

2... Never pull up the sticked ice, you must wait untill

it is melted, when the ice is soft you can remove it

by helping yourself with a plastic ice-scraper,

never use sharp objects, or heating households

because the appliance could be seriusly damaged.

3... Once removed the ice clean and dry the inside with

a soft piece of cloth.

4... You can plug it in again.

Maintenance of your

Refrigerator-Freezer

Defrosting of the refrigerator

Frost is automatically eliminated in the refrigerator.

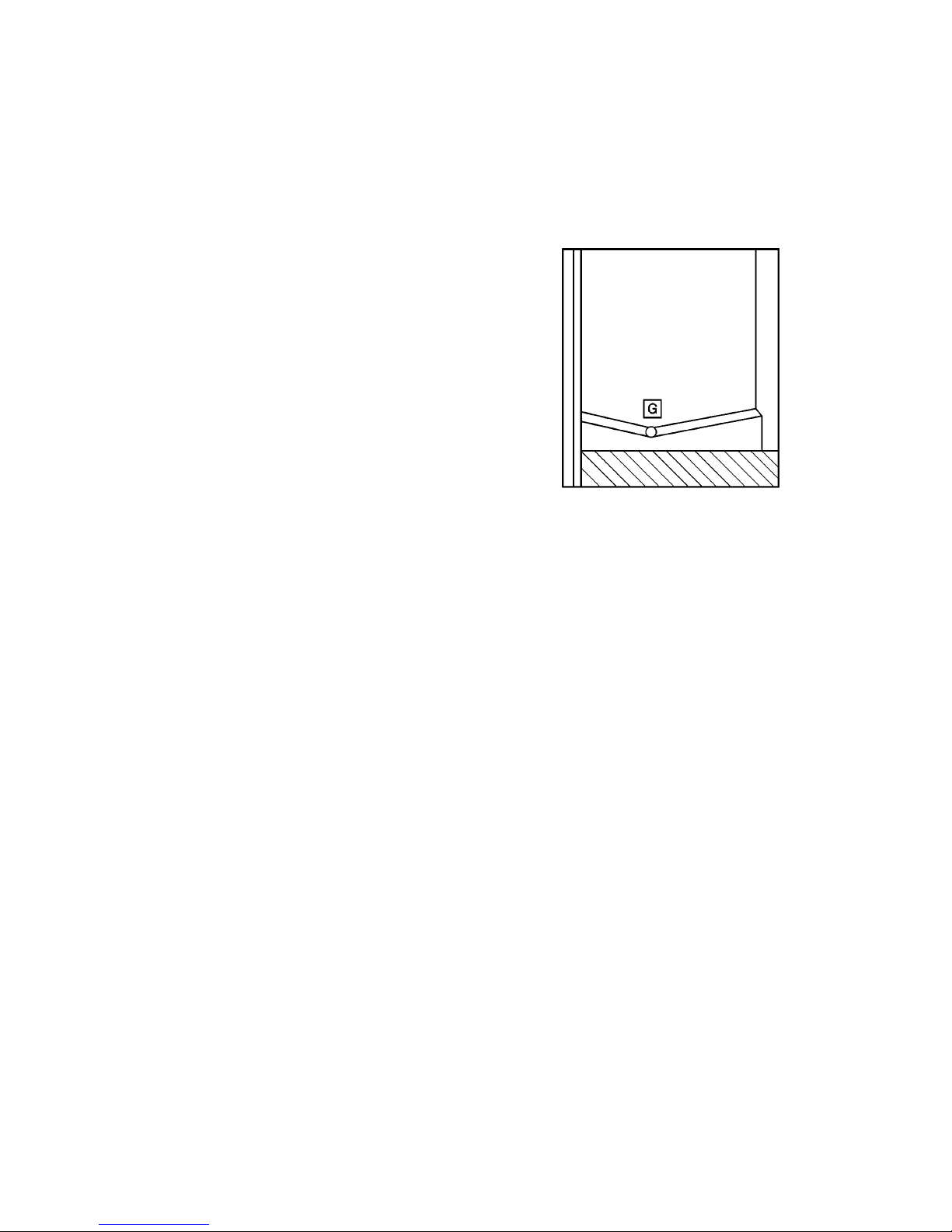

Clean regularly the water drain opening «G».

Cleaning

 Do not use alcohol or any cleanig product containing

alcohol because it can damage the cabinet.

 Use lukewarm water and neutral soap or bicarbonate

of soda for cleaning the interior and the exterior of

the appliance. Never use detergents nor abrasive

powders.

 Clean the black grill on the read of the appliance

(condeser), motor and the upper and downer ventila-

tion slots with a brush or vacuum cleaner. This way

the performance of the appliance will improve and

energy consumption reduced.

 Clean the water container above the motor.

Idle periods

During periods when the appliance is not in use take

the following precautions:

 Unplug the appliance.

 Remove all the food.

 Defrost and clean the interior and all accessories.

 Leave the door ajar to permit the air to circulate in

the interior and thus avoid unpleasant smells.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Zanussi Kühlschrank Handbücher

Zanussi

Zanussi Z1142TRM Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi DR25 Bedienungsanleitung

Zanussi

Zanussi CZC 17/6 A Bedienungsanleitung

Zanussi

Zanussi ZCL 56 Bedienungsanleitung

Zanussi

Zanussi ZFC 25 Bedienungsanleitung

Zanussi

Zanussi ZTR 57 R Bedienungsanleitung

Zanussi

Zanussi ZI 422 Bedienungsanleitung

Zanussi

Zanussi ZFK 61/27 R Bedienungsanleitung

Zanussi

Zanussi DF 89/3T Bedienungsanleitung

Zanussi

Zanussi DR 83/L Bedienungsanleitung

Zanussi

Zanussi 102298 Bedienungsanleitung

Zanussi

Zanussi ZRB 23O Bedienungsanleitung

Zanussi

Zanussi ZRG616CW Bedienungsanleitung

Zanussi

Zanussi ZRG16600WA Bedienungsanleitung

Zanussi

Zanussi ZC 2300/2T Bedienungsanleitung

Zanussi

Zanussi ZERB 3120 Bedienungsanleitung

Zanussi

Zanussi DI 220/75 Bedienungsanleitung

Zanussi

Zanussi ZRD 27 JC Bedienungsanleitung

Zanussi

Zanussi ZI 921/8 FF Bedienungsanleitung

Zanussi

Zanussi ZBA 3154 A Bedienungsanleitung

Zanussi

Zanussi ZI 9234 Bedienungsanleitung

Zanussi

Zanussi ZRA226CWO Bedienungsanleitung

Zanussi

Zanussi ZRG616CW Bedienungsanleitung

Zanussi

Zanussi ZBA15020SV Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
