Frozen food must not be re-frozen once it

has been thawed out.

Manufacturers storage recommendations

should be strictly complied with.

Lollies can cause frost burns if consumed

right away from the freezer.

Do not place carbonate or fizzy drinks in the

freezer as these may explode.

When an old freezer is to be discarded

make sure to:

Dismount the doors in order to prevent

children from getting trapped inside.

Have the gas from the cooling system

withdrawn before making it to scrap iron.

Warnings for your safety

Warnings for your safety. Carefully read these ins-

tructions before installing and using the machine.

This freezer is designed to be operated by

adults only. Children should not be allowed to

tamper with the controls or play with the pro-

duct.

Any electrical work required to install the

appliance should be carried out by a qualified

electrician or competent person.

This appliance is heavy. Care should be taken

when moving it.

Make sure that the cable is not trapped under-

neath the appliance, nor touches the motor.

Repairs carried out by inexperienced persons

may cause injuries or serious malfunctioning.

Refer to the nearest Authorized Dealer.

Make sure the rear part of the appliance stands

against a wall as there are working parts which

heat up and should not be of easy access.

Make sure that there is a continous and ade-

quate ventilation as a failure to do so may

result in damage to the appliance or deteriora-

tion of the food.

The appliance should be left for at least 4 hours

after installation before it is turned on ill order

to allow the refrigerant to settle.

This product must be serviced only by an AUT-

HORIZED DEALER, and only GENUINE

SPARE PARTS must be employed.

Before cleaning or reparing the appliance,

make sure it is unplugged.

It is dangerous to alter the specifications or

modify this product in any way.

These domestic refrigerators are designed to

be used specifically for the storage and conser-

vation of food.

DO NOT USE SHARP INSTRUMENTS to

scrap off frost or ice. Frost may be removed by

using a plastic scraper. (See defrosting instruc-

tions).

Índex

Warnings for your safety pag. 15

Installation pag. 17

Changing the opening directions

of the doors and Panelling pag. 18

Regulation and Control pag. 19

How to use your

Refrigerator-Freezer pag. 20 - 21

Maintenance of your

Refrigerator-Freezer pag. 22 - 23

Something not working pag. 24 - 25

Normal noises when

functioning pag. 26

Guarantee, Service

and Spare Parts pag. 27

Tecnical Features pag. 28

Installation

Positioning

 Place the refrigerator away from direct sunlight

and heat sources.

 Maintain recommended ventilation - see Fig. 1.

 Make sure the refrigerator is accurately levelled

turning the adjustable feet in order to avoid vibra-

tions and noises, Fig. 2.

 This is a built in design to be aligned with other fur-

niture

 The climate classification can be found on the

serial plate, which is located at the left on the insi-

de of the appliance.

The following table shows which ambient tempera-

ture is correct for each climate classification:

Climate classification for an ambient temperature of

SN + 10 to + 32°C

N + 16 to + 32°C

ST + 18 to + 38°C

T + 18 to + 43°C

Cleaning the interior

 Do not use alcohol or any cleanig product contai-

ning alcohol because it can damage the cabinet.

 Before using the appliance for the first time wash

the interior whith luke warm water and some neu-

tral soap so as to remove the typical smell of a

brand-new product arid then dry thoroughly.

 Do not use detergents or abrasive powders as

these will damage the finish.

 Remove security used for transportation.

Electrical connection

Before plugging the appliance make sure that the

voltage and frequency shown on the «Technical

Features» correspond to your home supply.

It is essential that the appliance be efficiently

earthed.

For this purpose the supply cable plug incorpora-

tes a special earth contact. If the sockets of your

domestic wiring system are not grounded, have

the appliance connected to a separate ground wire

in accordance with existing safety regulations.

«THE MANUFACTURER DECLINES TO ACCEPT

ANY LIABILITY IF THIS SAFETY RULE IS NOT

OBSERVED».

Starting  up

 Plug the appliance into the mains.

 Make sure the inner light turns on when opening

the door.

 Turn to intermediate position the knob of the «tem-

perature regulator» «A».

Fig. 2

Fig. 1

Changing the opening direction

of doors and Panelling

If you wish to change the opening side of the doors

proceed as follows:

1... Remove the handles of the doors, if they are side

fixing by screws.

2... Take off the plinth pressed on to.

3... Remove the inferior hing taking care for the dow-

ner door not to fall off.

4... Lift the downer door off the central hinge.

5... Disassemble the lower hinge reinforcement «Z».

6... Remove the central hinge taking care for the

upper door not to fall of and not to lose the plas-

tic spacer.

7Take the upper door off the upper hinge. Be care-

full not to lose the plastic ring.

8Unscrew the plastic bolts of the opposite side of

the place of the central hinge taken out and intro-

duce them in the holes occupied before fy the

hinge.

9Unscrew the axe of the upper hinge and screw it

to the hinge on the opposite side. Maker sure to

fit in the metal spacer for blocking.

Place upper door.

Assemble the lower hinge reinforcement in the

opposite side it was situated. For the remaining

parts proceed the other way round.

Once finished make sure that all joints close

perfectly well all around the door and chek that

the internal light turns of when the fridge door

closes.

How to panel the door:

If your appliance is provided with metal strips for

panelling and you wish to do so proceed as follows:

1... Remove one of the side strips.

2... Loosen the screws of the remaining strips.

3... Start putting on the panel where you took off the

strip pushing it right up to the end.

4... Replace the strip on this side.

5... Tighten all screws

NOTE:

The panel dimensions must be 2 mm. shorter

than the doors. Maximun thickness of the panel is 4 mm.

Regulation and Control

Temperature Regulator for Refrige-

rator:

«A»

Allows to adjust the temperature inside the refrigera-

tor according to use and external conditions.

 Pos. 1 = Minimum cold.

 Pos. 5 = Maximum cold.

 Pos. l= Motor disconnected.

Green light:

«B» (some models only).

Indicates connection to mains when lighted.

Interior light:

«H»

Comes on when opening the door of the refrigerating

compartment.

When changing the light bulb, first remove the pro-

tective cover «X», by firmly holding the edge and

pulling it horizontally. (see point A2, «IF SOMETHING

DOES NOT WORK»).

Dinamic Refrigeration:

(some models

only).

The Dynamic Refrigeration System give, in the

fridge compartment, extra efficiency showed in:

 Quicker refrigeration.

 More homogeneous temperature.

DAC (Dynamic Air Cooling system) has been

mainly designed for hot weather (ambient tempe-

rature above 25°), and also when the refrigerator

is plenty of food.

To start working, push the switch.

When DAC is switched on, the cold production is

higher, thus you should turn the temperature

regulator to an adequate position to avoid excesi-

ve cold.

Models with internal operating switches

Models with external operating switches

How to use your

Refrigerator-Freezer

B) If the freezer is not full, the cold will be lost

more quickly. If the food has not started to

thaw, then follow the instructions in «A».

C) If the food has begun to thaw, use them up

as quickly as possible, or cook them and

refreeze them.

Refrigerator Compartment:

This compartment is for storing drinks and

fresh food products.

The temperature inside is very evenly dis-

tributed. Make sure food does not touch

the back wall, since behind this surface is

where the cold is generated and food could

bee partially frozen. Also, this can impede the

circulation of cold air.

This appliance is provided with an automatic

defrosting system. Consequently you will

sometimes notice a thin layer of ice or drops of

water on the rear wall.

Freezer Compartment

This freezer, is marked , and is sui-

table for freezing fresh foodstuffs and keeping

food for long periods.

Freezing of food

1... Place food on the upper grill.

2... Maintain food for at leas 24 hours in that posi-

tion.

3... The maximum quantity to be frozen within 24

hours is shown on the «Rating Plate», depen-

ding on the model.

Keeping frozen food

For optimum conservation, the temperature inside

the freezer compartment must be at least -18°C.

This temperature is adjusted automatically.

Check that the «Temperature Control» is in a

middle position. Sometimes it may be necessary

(insufficient ventilation, high roon temperature,

frequent opening and closing of the door) to

change the position of the «Temperature

Control».

If the appliance should be accidentally switched

off by a fault or power cut, take the following pre-

cautions:

 Keep the doors closed at all times.

 Find out how long the stoppage is expected to

last.

Once normal power is restored:

A) If the freezer is full and the stoppage has been

less than «Time for temperature Rise» indi-

cated for each model in the «Technical

Features» section, then no damage will have

been caused to the food.

How to use your

Refrigerator-Freezer

Useful Hints

Do not introduce any new food during a free-

zing period.

Do not put any newly introduced food for free-

zing near to already frozen food.

Wrap the food up properly or place it in hermet-

hic recipies before introducing it into the free-

zer.

Do not introduce any hot food into the freezer.

Food and drinks of a strong flavour may pass

this on to others and affect their flavour. Wrap

them up adequately or put them into tight clo-

sing bags.

Follow the instructions given in the cook books,

freezing books and wrapping utensiles for bet-

ter conservation of food.

In some models, on the freezer inner door there

is usually an schematic drawing showing the

conservation time (in months) for the different

types of food. It will also depend on the food

quality in the moment of freezing and on the

specific instructions on packages.

Maintenance of your

Refrigerator-Freezer

Prior to undertaking any maintenance operation,

be sure to unplug the appliance.

Defrosting of the freezer

The inner walls of the freezer become gradually

covered with a layer of frost keeping in mind not to

open the door frequently and keeping the food

wrapped up in closed bags.

Whenever the thickness of ice reaches 5 mm. the

frost should be removed. Here to proceed as

follows:

1 Remove all food staff and place it in the

coolest possible place..

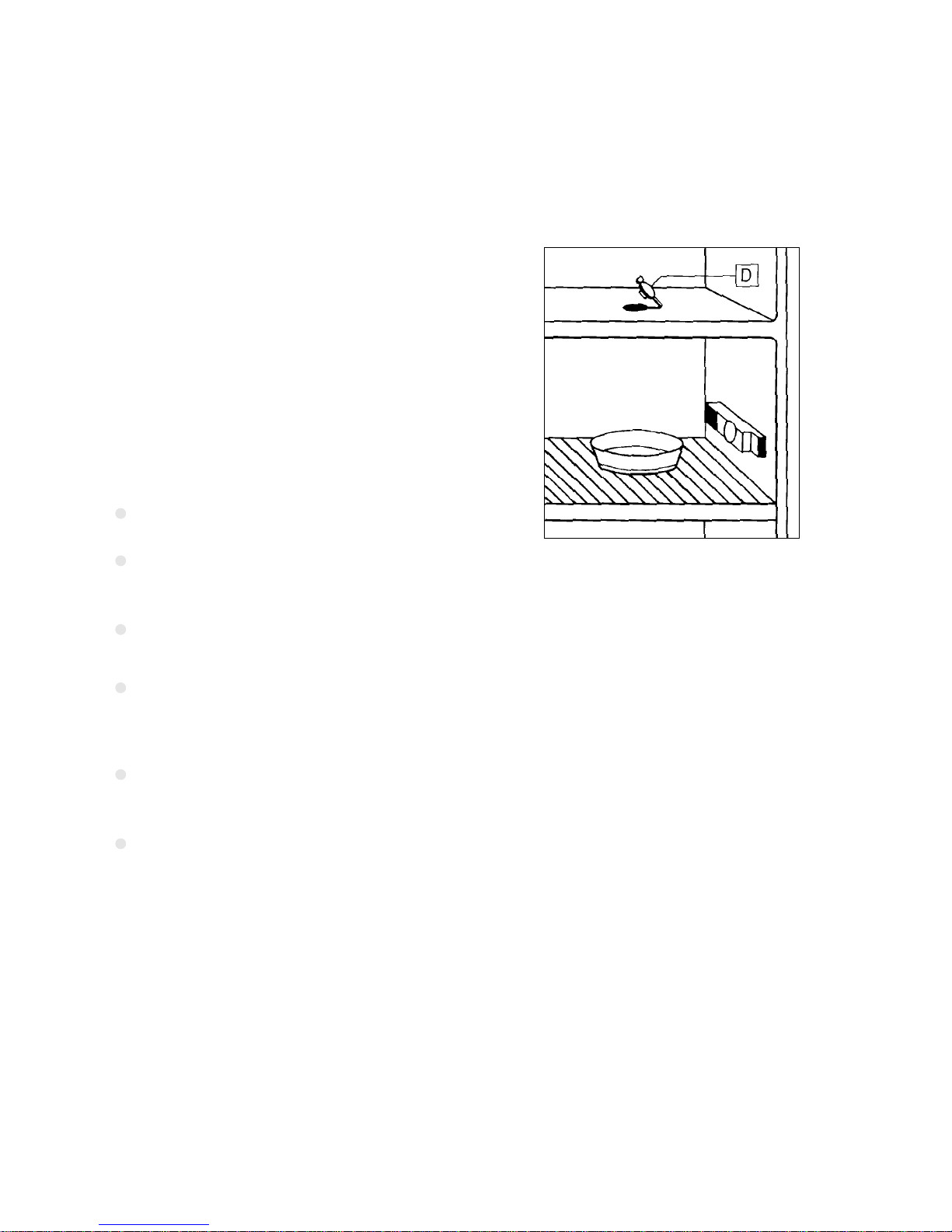

2Remove the plug «D» in the base top of the

freezer compartment, pulling the longue

strogly upwards.

3Place a bowl under the outlet to collect the

water.

4Remove the ice from the walls with a plastic

scraper. Never use any sharp metal tools,

electric ovens or similar as these may cause

serious damage to teh appliance.

5Once the ice is eliminated and the appliance

cleaned and dry again, replace the plug «D»

pushing hard.

6Connect the appliance.

Maintenance of your

Refrigerator-Freezer

Defrosting of the refrigerator

Frost is automatically eliminated in the refrigera-

tor. Clean regularly the water drain opening «G».

Cleaning

 Do not use alcohol or any cleanig product con-

taining alcohol because it can damage the cabi-

net.

 Use lukewarm water and neutral soap or bicar-

bonate of soda for cleaning the interior and the

exterior of the appliance. Never use detergents

nor abrasive powders.

 Clean the black grill on the read of the applian-

ce (condeser), motor and the upper and downer

ventilation slots with a brush or vacuum cleaner.

This way the performance of the appliance will

improve and energy consumption reduced.

 Clean the water container above the motor.

 Extract the base pulling it outwards in order to

permit cleaning undermeath the appliance.

Idle periods

During periods when the appliance is not in use

take the following precautions:

 Unplug the appliance.

 Remove all the food.

 Defrost and clean the interior and all accesso-

ries.

 Leave the door ajar to permit the air to circulate

in the interior and thus avoid unpleasant smells.

Andere Handbücher für ZD24/7LR

Inhaltsverzeichnis

Andere Zanussi Kühlschrank Handbücher

Zanussi

Zanussi DI 180/80 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZF 47/51 FF Bedienungsanleitung

Zanussi

Zanussi ZFT 45/30 Bedienungsanleitung

Zanussi

Zanussi DF 45/30 SS Bedienungsanleitung

Zanussi

Zanussi Z 32/5 SI Bedienungsanleitung

Zanussi

Zanussi ZBB28651SA Bedienungsanleitung

Zanussi

Zanussi 730191 Bedienungsanleitung

Zanussi

Zanussi ZK 56/38 RF Bedienungsanleitung

Zanussi

Zanussi DF 89/3T Bedienungsanleitung

Zanussi

Zanussi ZRG15801WA Bedienungsanleitung

Zanussi

Zanussi ZBA 6160 Bedienungsanleitung

Zanussi

Zanussi Z22/16PR Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZRA33132WA Bedienungsanleitung

Zanussi

Zanussi ZBB27450SV Bedienungsanleitung

Zanussi

Zanussi ZBA32050SA Bedienungsanleitung

Zanussi

Zanussi ZQA14030DA Bedienungsanleitung

Zanussi

Zanussi ZRB38313WA Bedienungsanleitung

Zanussi

Zanussi ZJB9476 Bedienungsanleitung

Zanussi

Zanussi BUILT-IN REFRIGERATOR Bedienungsanleitung

Zanussi

Zanussi ZT 75 Bedienungsanleitung

Zanussi

Zanussi ZRW106N Bedienungsanleitung

Zanussi

Zanussi ZFC 282 C Bedienungsanleitung

Zanussi

Zanussi Z 16/2 R Montageanleitung

Zanussi

Zanussi 728510 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
