BEDIENUNGSANLEITUNG MODE D’EMPLOI

GEBRUIKSAANWIJZING INSTRUCTION BOOKLET

2222759-20

KÜHLSCHRANK

REFRIGERATEUR

KOELKAST

REFRIGERATOR

ZI 1603

ZI 2403

34 Printed on paper manufactured with environmentally sound processes

Instructions for the use of the instructions booklet

Notes which are important for your safety or for the proper functioning of the appliance

Supplementary information regarding operation and practical applications of the appliance.

Tips and notes concerning economical and environmentally sound use of the appliance

Child Safety

¥ This appliance is designed to be operated by

adults only. Do not allow the children to tamper

with the controls or play with the products. There is

a risk of suffocation! Keep packaging material

away from children!

Environment Protection

¥ This appliance does not contain gasses which

could damage the ozone layer, in either its

refrigerant circuit or insulation materials. The

appliance shall not be discarded together with the

urban refuse and rubbish. Avoid damaging the

cooling unit. Information on your local disposal

sites may be obtained from your municipal

authorities.

Remove the plug and ensure that any locks or

catches are removed, to prevent young children

being trapped inside.

Disposal

Appliance Packaging Information

¥ The materials marked with the symbol are

recyclable.

>PE< for polyethylene, e.g. sheet wrapping

material

>PS< for polystyrene, e.g. padding material

(always CFC-free)

>POM< polyoxymethylene, e.g. plastic clips.

All materials are environmentally sound!

Safety Instructions

This information has been provided in the interests of your safety. Please read it before installing or

using the appliance. Please retain the instruction book for future reference. If owner ship is transferred,

please leave the user manual for the new owner.

Domestic Use

¥ The domestic refrigerators and freezers are

designed to be used specifically for the storage of

edible foodstuffs only.

¥ Check the appliance for transport damage. Under

no circumstances should a damaged appliance be

installed. In the event of damage please contact

your retailer.

¥ This appliance is heavy. The edges and projecting

parts of the cabinet may be sharp. Be careful when

moving the cabinet and always use gloves.

¥ Any electrical work required to install this appliance

should be carried out by a qualified electrician or

competent person.

¥Make sure that the power plug is not squashed or

damaged by the back of the appliance. Make sure

that the cable is not trapped underneath the

appliance, nor touches the motor.

¥ Do not remove the power cord by pulling on its

lead, particularly when the appliance is being

pulled out of its niche. If the power plug socket is

loose, do not insert the power plug. Damage to the

cord may cause a short-circuit, fire and/or electric

shock.

¥ Do not use electrical appliances inside the

appliance.

¥ Do not keep carbonated drinks or bottles in the freezer

compartment. The glass bottles may break.

¥ Ice lollies can cause Ôfrost/freezer burnsÕ if

consumed straight from the freezer.

¥ It is dangerous to try and alter the specifications or

modify this product in any way.

¥ Under no circumstances should you attempt to

repair the appliance yourself. Refer to your local

Service Centre, and always insist on genuine spare

parts.

Disposal of old appliances

The symbol on the product or on its packaging indicates that this product may not be treated as

household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical

and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential

negative consequences for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or the shop where you purchased

the product.

Contents

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Use and Control Before Use / Starting the appliance / Temperature control . . . . . . . . . . . . . . . . . . . . . . . . .35

Internal parts / Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Maintenance Defrosting / Cleaning / Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Something not Working / Customer Service and Spare Parts / Technical Specifications . . . . . . . . . . . .38

Door reversal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Installation Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Declaration of guarantee terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Use and Control

Before Use

Wait two hours before connecting the

appliance to allow the oil to flow back in the

compressor.

¥ Before using the appliance for the first time, wash

the interior and all internal accessories with

lukewarm water and some neutral soap so as to

remove the typical smell of a brand-new product,

then dry thoroughly.

Do not use detergents or abrasive

powders, as these will damage the finish.

¥ Remove safety elements used for transportation.

Starting the appliance

¥ Insert the plug into the wall socket and turn the

thermostat knob clockwise beyond position ÇOÈ

(OFF).

¥ The thermostat control situated inside the fridge

compartment regulates the temperature of the

appliance.

¥ Turn the thermostat control to the required setting.

Temperature Control

¥ The following effects are of significance in respect

of the interior temperature:

¥ Ambient temperature

¥ Quantity and temperature of the food stored;

¥ Frequency with which the door is opened and

how long it is left open

¥ the location of the appliance.

¥ The temperature inside the appliance is

automatically adjusted.

¥Setting ã1Ò = hightest temperature, warmest

setting

¥Setting ã6Ò = lowest temperature, coldest

setting.

¥Setting ã¥Ò= Off

A medium setting is generally the most suitable.

Hints for refrigeration

¥Do not store warm food or evaporating liquids in

the refrigerator and do cover or wrap up the food,

particularly if it has a strong smell.

To help you use your refrigerator correctly, here are

some useful hints:

¥Raw meat (beef, pork, lamb & poultry): wrap in

polythene bags and place on top of the salad

compartment, this being the coldest spot in the

refrigerator.

Meat can only be stored safely in this way for

one or two days at the most.

¥Cooked food, cold cuts, jelly, etc.: these should

be well covered and can be stored on any of the

glass shelves.

¥Fruit & vegetables: these should be thoroughly

cleaned and placed in the bottom drawer/s.

¥Butter & cheese: these should be placed in

special airtight containers or wrapped in aluminium

foil or polythene bags to keep out as much air as

possible.

¥Milk bottles: these should have a top and should

be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not

packed, must not be kept in the refrigerator.

Hints

Saving Energy

¥ Pay careful attention to where the cabinet is

placed. See the section ÒInstallationÓ. When

installed correctly the cabinet will consume less

energy.

¥ Try to avoid keeping the doors open for long

periods or opening the doors too frequently as

warm air will enter the cabinet and cause the

compressor to switch on unnecessarily often.

¥ If the ambient temperature is high, the thermostat

knob is on the coldest setting (higher numbers) and

the appliance is fully loaded, the compressor may

run continuously, causing frost or ice to form on the

evaporator. If this happens, turn the knob to a

warmer setting (lower numbers) to allow automatic

defrosting and so a saving in electricity

consumption.

¥ Do not place warm foods inside the appliance.

Allow warm foods to cool first.

¥ Keep the heat emitting condenser, the metall grille

on the rear wall of your appliance, always clean.

Internal Parts

Storage shelves

¥ The shelves can be removed for cleaning.

¥ To permit storage of food packages of various

sizes, the shelves can be placed at different

heights.

¥ To remove the internal shelf pull forward until it can

be tipped up or down and removed.

¥ Please do the same in reverse to insert the shelf at

a different height.

The glass shelf above the vegetable drawers

and the bottle shelf should always remain in

position, to ensure correct air circulation.

Door shelves

¥ To permit storage of food packages of various

sizes, the central door shelf can be adjusted in

height.

¥ Gradually pull the shelf in the direction of the

arrows until it comes free, then reposition as

required.

¥ For more thorough cleaning, the top and bottom

door sheves can be easily removed and refitted in

position.

D302

D758

Maintenance

Cleaning

Never use metal objects for cleaning your

appliance as it may get damaged.

NEVER use detergents, abrasive powders,

highly perfumed cleaning products or wax

polishes to clean the interior as these will

damage the surface and leave a strong

odour.

Clean the inside with warm water and bicarbonate of

soda. Rinse and dry thoroughly.

To guarantee a safe operation of the fridge, once a

year remove the ventilation grill at the base and

clean the air channels with a vacuum cleaner.

When the appliance is not in use

Disconnect the appliance from the electricity supply.

Empty all foods and clean the appliance, leaving the

doors ajar to prevent unpleasant smells.

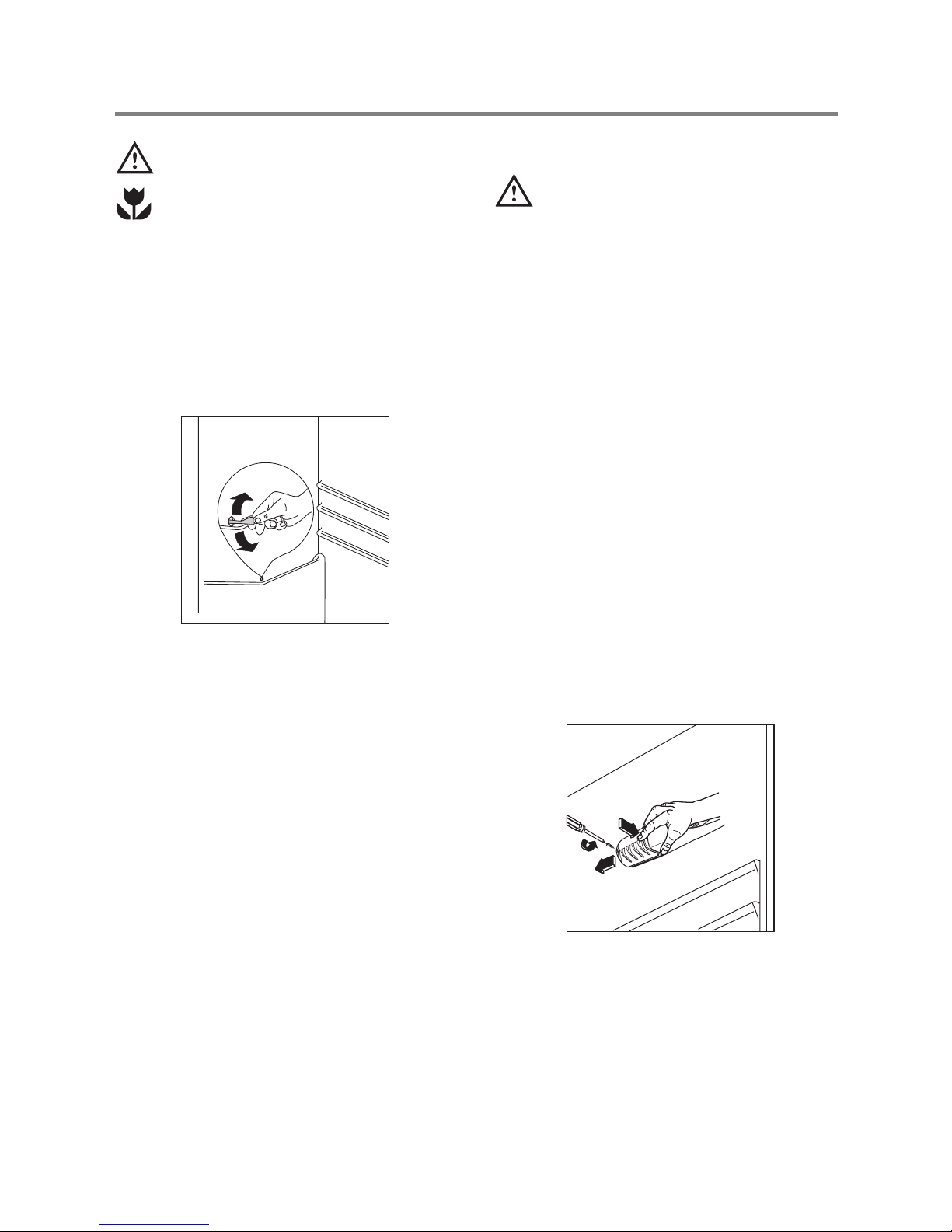

Changing the light bulb

¥ Should the interior light fail to work, first switch off

the appliance and disconnect from the electricity

supply, then replace the bulb as follows:

1. unscrew the light cover securing screws.

2. unhook the moving part by pressing it as shown

in the figure.

3. Replace the bulb by other with another with the

same charcteristics.

D411

Unplug the appliance before carrying out

any maintenance operation.

Warning

This appliance contains hydrocarbons in its

cooling unit maintenance and recharging must

therefore only be carried out by authorised

technicians.

Defrosting

¥ Defrosting the refrigerator compartment is

automatic. The defrost water drains out through a

trough into a container at the back of the appliance,

above the motor compressor, where it evaporates.

¥ It is important to periodically clean the defrost

water drain hole.

D037

Technical specifications

The technical data is indicated in the rating plate on the left side inside the appliance.

This information can be found on the rating plate

inside the cabenit on the left hand wall. We

recommend that you enter this information here, so

that it is handy if needed.

If you cannot find the remedy for a malfunction in

these operating instructions, please contact your

dealer or our customer service department and

consult the Guarantee card.

Selective ordering of replacement parts can save

unnecessary travel and costs.

For this reason always provide the following

appliance information:

¥ Model Name

¥ Model Number (PNC)

¥ Serial Number (S-No.)

Customer service and spare parts

Something not Working

Problems may be due to causes which can easily be solved before calling the Technical Service. Please

follow these instructions:

Level properly the appliances if it is not well levelled.

Weight surpasses the storage limit of the door shelf so spread weight more evenly or

take some products out.

The appliance is not properly installed. Please look in the ÒBuilding-inÓ section.

Set a lower temperature.

Distribute the food products to allow cold air to circulate around them.

Make sure that the door is completely closed and that the insulating strip is complete

and clean.

The temperature where the cabinet is placed is above normal room temperature.

Turn the temperature regulator to a warmer setting temporarily.

Turn the thermostat knob to a lower number.

The temperature where the cabinet is placed is above normal room temperature.

Check that the ventilation is sufficient and that the ventilation openings are

unobstructed.

The cause could be the introduction of large quantities of food and/or frequent

opening/closing of the door.

Sometimes is normal. During automatic defrosting frost thaws on the cooling plate.

Place the drain hose at the back of the cabinet above the drain bowl.

Sometimes this is normal. Temperature control may cause clicking sounds when the

system is connected or disconnected.

The injected cooling gas may produce a gurgling sound while passing through the

tubes.

The motor may cause a humming noise and/or slight bumping.

The insulation material used has a tendency to slighly increase noise levels, how ever it

allows for much better insulation and a lower energy consumption.

Door does not close

It is too warm inside the refrigerator

It is too cold inside the refrigerator.

The compressor works continuously.

There is water inside/outside the refrigerator.

Water comes out on the floor.

Noises

SYMPTOM SOLUTION

Door reversal

The applianceÕs door has been locked in position for

transport by means of pins on both sides. According

to the door opening direction, remove relevant pins

at the top and at the bottom.

Warning!

If the ambient temperature is cold (i.e. in

Winter), the gasket may not fit perfectly to the

cabinet. In that case, wait for the natural fitting

of the gasket or accelerate this process by

heating up the part involved with a normal

hairdrier.

Installation

Take utmost care when handling your

appliance so as not to cause any damages to

the cooling unit with consequent possible fluid

leakages.

¥ During normal operation, the condenser and

compressor at the back of the appliance heat up

considerably. Always ensure that there is adequate

ventilation as a failure to do this will result in

component failure and possible food loss. See

installation instructions.

¥Important: if the supply cord is damaged, it must

be replaced by a special cord or assembly availa-

ble from the manufacturer or its service agent.

Positioning

¥ Unpack the cabinet and check that it is in good

condition and free of any transport damage.

¥The appliance must not be located close to

radiators or gas cookers.

¥ Avoid prolonged exposure of the appliance to

direct sunlight.

¥ For safety reasons, minimum ventilation must be

as shown in Fig.

Attention: keep ventilation openings clear of

obstruction.

¥ It is necessary that the niche is provided with a

conduct of venti-lation having the following

dimensions:

Depth 50 mm

Width 540 mm

The climate classification can be found on the rating

plate, which is located inside the cabinet on the left

hand wall.

The following table shows which ambient

temperature is correct for each climate classification:

Climate

classification

SN +10 to +32¡C

+16 to +32¡C

+18 to +38¡C

+18 to +43¡C

for an ambient temperature of

50 mm

min.

200 cm

min.

D526

This appliance complies with the following E.E.C.

Directives:

- 87/308 EEC of 2/6/87 relative to radio

interference suppression.

- 73/23 EEC of 19.2.73 (Low Voltage

Directive)

and subsequent modifications.

- 89/336 EEC of 3.5.89 (Electromagnetic

Compatibility Directive) and subsequent

modifications.

Attention!

It must be possible to disconnect the appliance

from the mains power supply; the plug must

therefore be easily accessible after installation.

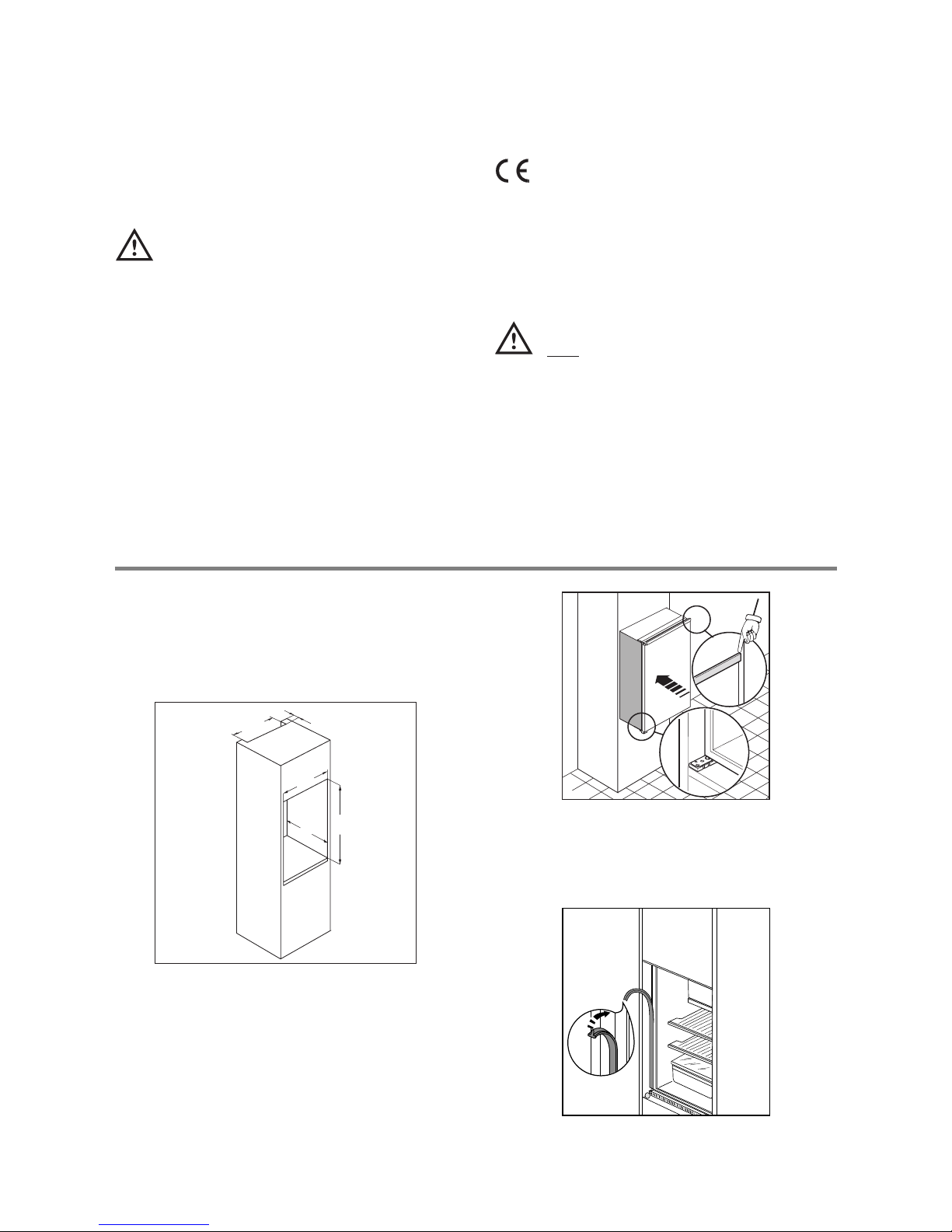

Building-in

Dimensions of the recess

ZI 1603 ZI 2403

Height of housing (1) 880 1225 mm

Depth of housing (2) 550 550 mm

Width of housing (3) 560 560 mm

It is necessary that the niche is provided with a

conduct of ventilation having the following

dimensions:

Depth 50 mm

Width 540 mm

PR0

540

Electrical connection

Before plugging in, ensure that the voltage and

frequency shown on the serial number plate

correspond to your domestic power supply.

Voltage can vary by ±6% of the rated voltage.

For operation with different voltages, a suitably sized

auto-transformer must be used.

Important

The appliance must be earthed.

The power supply cable plug is provided with a

contact for this purpose.

If the domestic power supply socket is not

earthed. connect the appliance to a separate

earth in compliance with current regulations,

consulting a specialist technician.

The Manufacturer declines all

responsibility if the above safety

precautions are not observed.

D132

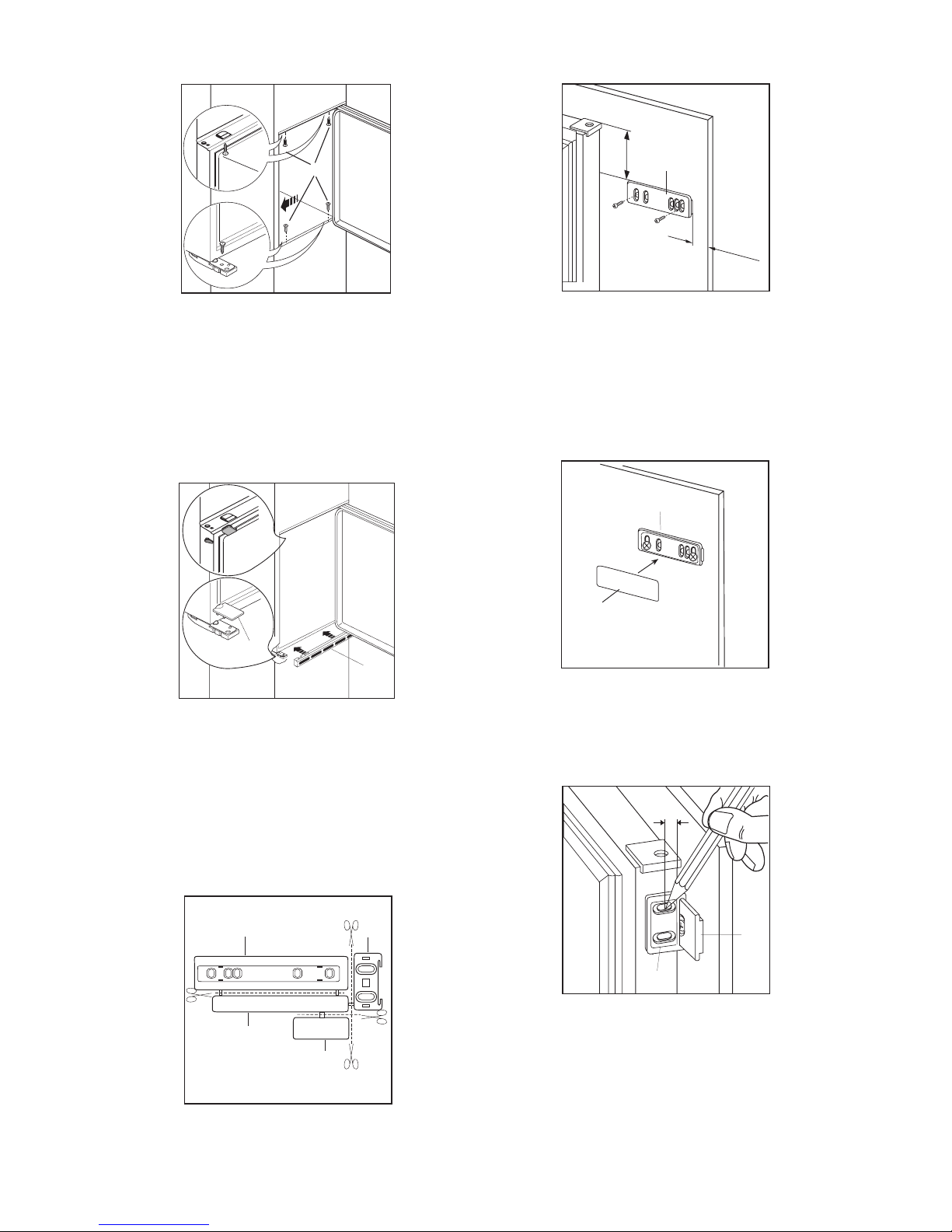

2. Apply joint the sealing strip as shown in figure.

D022

1. Slide the appliance into the recess, pushing it

against the wall on the handle side.

6. Place guide (A) on the inside part of the furniture

door, up and down as shown in the figure and

mark the position of external holes. After having

drilled holes, fix the guide with the screws

supplied.

8. Open the appliance door and the furniture door at

90¡. Insert the small square (B) into guide (A). Put

together the appliance door and the furniture door

and mark the holes as indicated in the figure.

Remove the squares and drill holes with ¯ 2 mm

at 8 mm from the outer edge of the door. Place the

small square on the guide again and fix it with the

screws supplied.

20mm

50mm

PR166

PR33/2

8mm

PR167

4. Snap vent grille (B) and hinge cover (E) into

position.

Apply covers (C-D) on joint cover lugs and into

hinge holes.

5. Separate parts A, B, C, D as shown in the figure.

PR266

3. Open the door and push the appliance against the

side of the kitchen unit opposite to that of ap-

pliance hinges. Fasten the appliance with 4

screws (I) provided in the kit included with the

appliance.

7. Fix cover (C) on guide (A) until it clips into place.

9. Should the lining up of the furniture door be

necessary, use the clearance of slots. At the end

of operations, it is necessary to check if the door

of the furniture closes properly.

PR168

PR167/1

10. Fix cover (D) on guide (B) until it clips into place.

Inhaltsverzeichnis

Andere Zanussi Kühlschrank Handbücher

Zanussi

Zanussi ZB3201 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZBA23042SA Bedienungsanleitung

Zanussi

Zanussi ZRAN88ES Bedienungsanleitung

Zanussi

Zanussi ZKC 54 L Bedienungsanleitung

Zanussi

Zanussi ZC 260 R3 Bedienungsanleitung

Zanussi

Zanussi ZFK 18/8 Bedienungsanleitung

Zanussi

Zanussi 113156 Bedienungsanleitung

Zanussi

Zanussi ZC345 Bedienungsanleitung

Zanussi

Zanussi ZC2300/2T-ZB2500/2TR Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZU 9154 Bedienungsanleitung

Zanussi

Zanussi ZECR 161 W Bedienungsanleitung

Zanussi

Zanussi ZC320RM Bedienungsanleitung

Zanussi

Zanussi ZRG31SW Bedienungsanleitung

Zanussi

Zanussi ZC260R Bedienungsanleitung

Zanussi

Zanussi Z 57/3 W Bedienungsanleitung

Zanussi

Zanussi ER7526 B Kurzanleitung

Zanussi

Zanussi Roll In/Pass Through 726650 Bedienungsanleitung

Zanussi

Zanussi ZC 255 AGO Bedienungsanleitung

Zanussi

Zanussi ZRD 23 JC Bedienungsanleitung

Zanussi

Zanussi Z17/12R Bedienungsanleitung

Zanussi

Zanussi ZKC 45 L Bedienungsanleitung

Zanussi

Zanussi U01110 ZFC 102 Bedienungsanleitung

Zanussi

Zanussi 102028 Bedienungsanleitung

Zanussi

Zanussi ZRB 23O Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
