Zanussi ZKN20 Bedienungsanleitung

Index

Safety Instructions pág. 2

Installation pág. 3 - 4

Changing the opening

directions of the doors pág. 5

Regulation and Control pág. 6 - 7

How to use your

Fridge-Freezer pág. 8 - 9

Maintenance of your

Fridge-Freezer pág. 10

Something not working pág. 11 - 12

Normal noises when

functioning pág. 13

Guarantee, Service

and Spare Parts pág. 14

Tecnical Features pág. 15

mIce lollies can cause frost burns if consu-

med straight away from the freezer.

mDo not use electrical appliances inside the

fridge/freezer.

mDo not place carbonate or fizzy drinks in the

freezer as these may explode.

mWhenever you discard and old freezer

make sure to:

mTake off the doors in order to prevent

children being trapped inside.

Have the gas R600a from the cooling

system removed by an authorised per-

son before making it into scrap metal.

Safety instructions

Warnings for your safety. Carefully read these ins-

tructions before installing and using the machine

mThis appliance is designed to be operated by

adults only. Children should not be allowed to

tamper with the controls or play with the pro-

duct.

mAny electrical work required to install the

appliance should be carried out by a qualified

electrician or competent person.

mThis appliance is heavy. Care should be taken

when moving it.

mMaker sure that the cable is not trapped under-

neath the appliance, nor touches the motor.

mRepairs carried out by inexperienced persons

may cause injuries or serious malfunctioning.

Refer to the THECNICAL OFICIAL SERVICE.

mThe appliance should be left for at least 4 hours

after installation before it is turned on in order

to allow the refrigerant to settle.

mThis product must only be serviced by an aut-

horized Thecnical Oficial Service, and only

genuine SPARE PARTS should be used.

mBefore cleaning or reparing the appliance,

make sure it is unplugged.

mIt is dangerous to try and alter the specifica-

tions or modify this product in any way.

mThese domestic appliances are designed to be

used specifically for the storage and conserva-

tion of food.

mFrozen food must not be re-frozen once it has

been thawed out.

mManufacturers storage recommendations

should be strictly complied with.

Installation

Fig. 1

Fig. 3

Fig. 2

Fig. 4

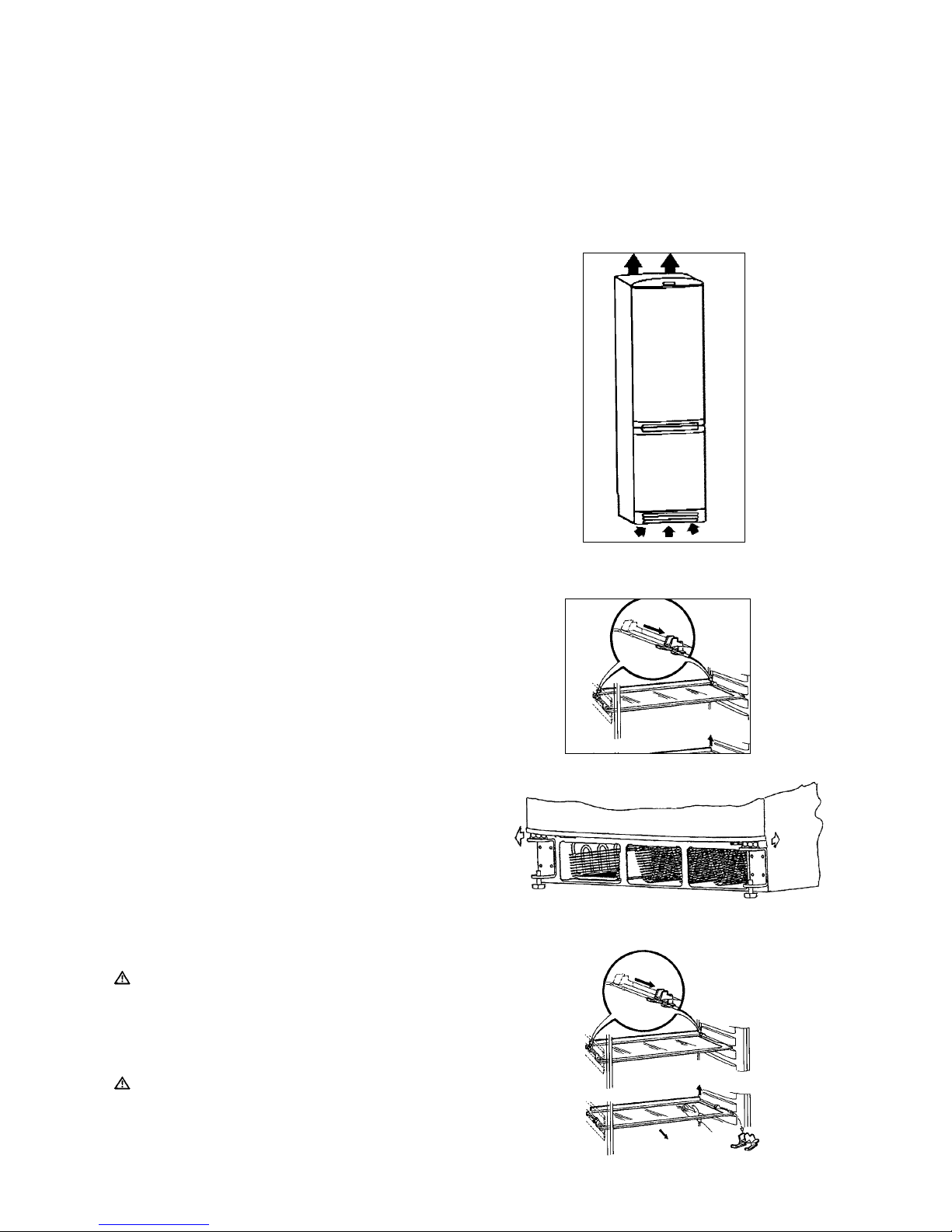

Positioning

 Place the refrigerator away from direct sunlight

and heat sources.

 Take off at least 50 mm. free over the appliance.

 Never put something on the ventilator of the

appliance. (see fig. 1).

 Make sure the refrigerator is accurately levelled

turning the adjustable feet on the front, in order to

avoid vibrations and noises and to make sure that

the doors shut properly (see fig. 2).

 Before placing the plinth cover, pull out the fixing

part of doors used only for security during trans-

port (see fig. 3).

 With the freezer door wide-open, assemble the

socle provided inside the appliance, following the

instructions stuck on it.

 Remove the shelves transport fastening red pie-

ces by sliding them (see fig. 4).

 The appliance should not be located in places

with maximum temperatures more than:

+ 32°C for N/SN Class (classification on rating

plate).

+ 43°C for T/ST Class (classification on rating

plate).

If the temperatures are higher than those mentio-

ned above, the functioning and the safety of the

appliance could be affected.

Cleaning the interior

 Do not use alcohol or any cleaning produts contai-

ning alcohol because they could damage the plas-

tic parts of the appliance.

 Before using the appliance for the first time, wash

the interior with luke warm water and a neutral

soap. This will help to remove the typical smell of

a new fridge/freezer. Afterwards dry thoroughly.

 Do not use detergents or abrasive powders as

these will damage the finish.

 Remove security elements used for transportation.

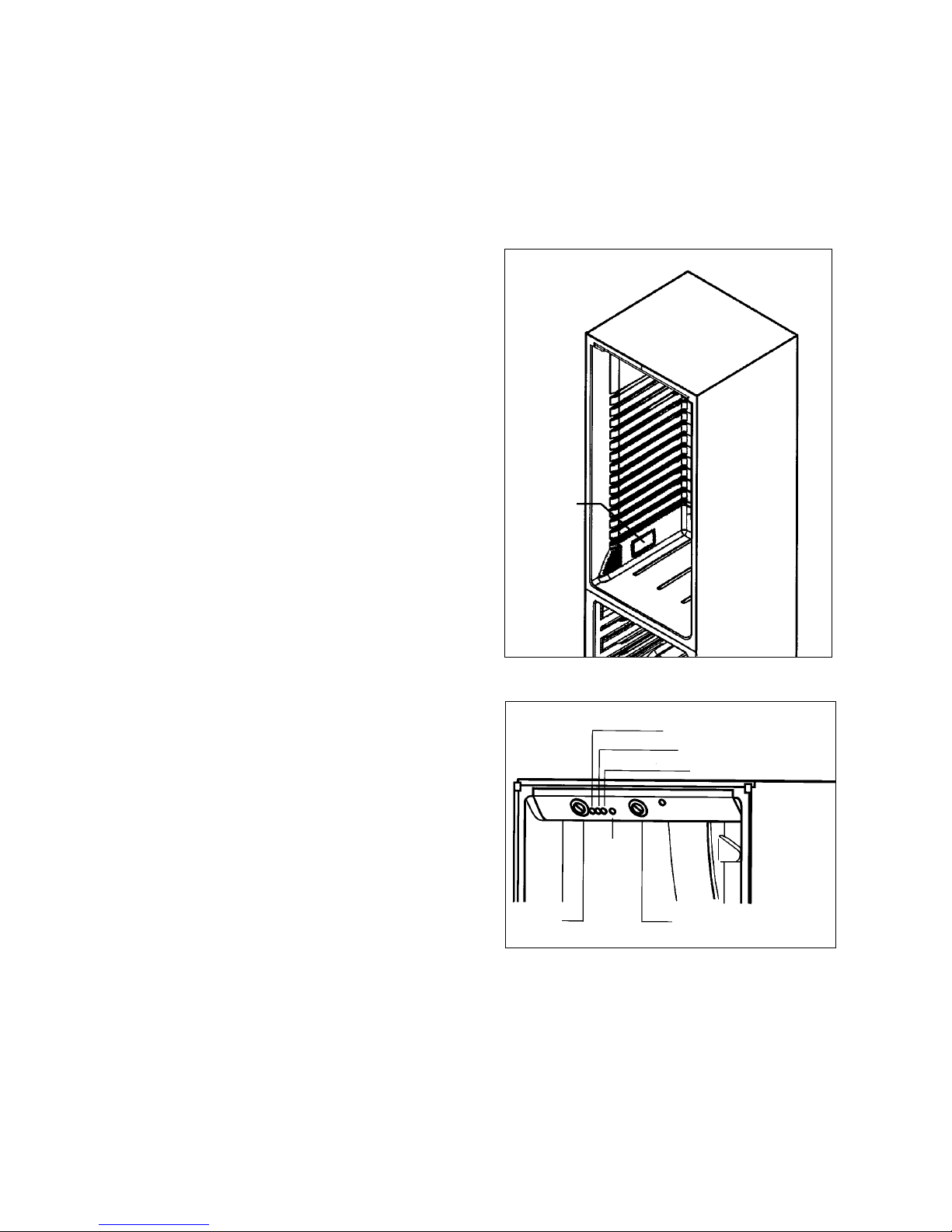

Electrical connection

Before plugging the appliance into a socket make

sure that the voltage and frequency shown on the

rating plate correspond to your home supply. (see

fig. 5).

It is essential that the appliance should be pro-

perly earthed.

For this purpose the supply cable plug incorpora-

tes a special earth contact. If the sockets of your

domestic wiring system are not earthed, have the

appliance connected to a separate earth wire in

accordance with existing safety regulations.

Installation

Fig. 5

Fig. 6

door alarm

temperature alarm

fast freeze

on/off

temperature

control fridge

temperature

control freezer

Starting - up

 Plug the appliance into the wall socket.

 Open the fridge door.

 Push the on/off button located in the fridge, con-

tinuosly for 3 seconds. The fridge will start to

function and the internal light will then go on.

The on/off button will be a bright green colour

and the fridge/freezer controls will ligh up. (see

fig. 6).

 The temperature alarm (a beeping noise) could

go on during the start up phase. If this happens

push the temperature alarm button. (See sec-

tion on the temperature control for more

details).

 You can now close the door.

rating

plate

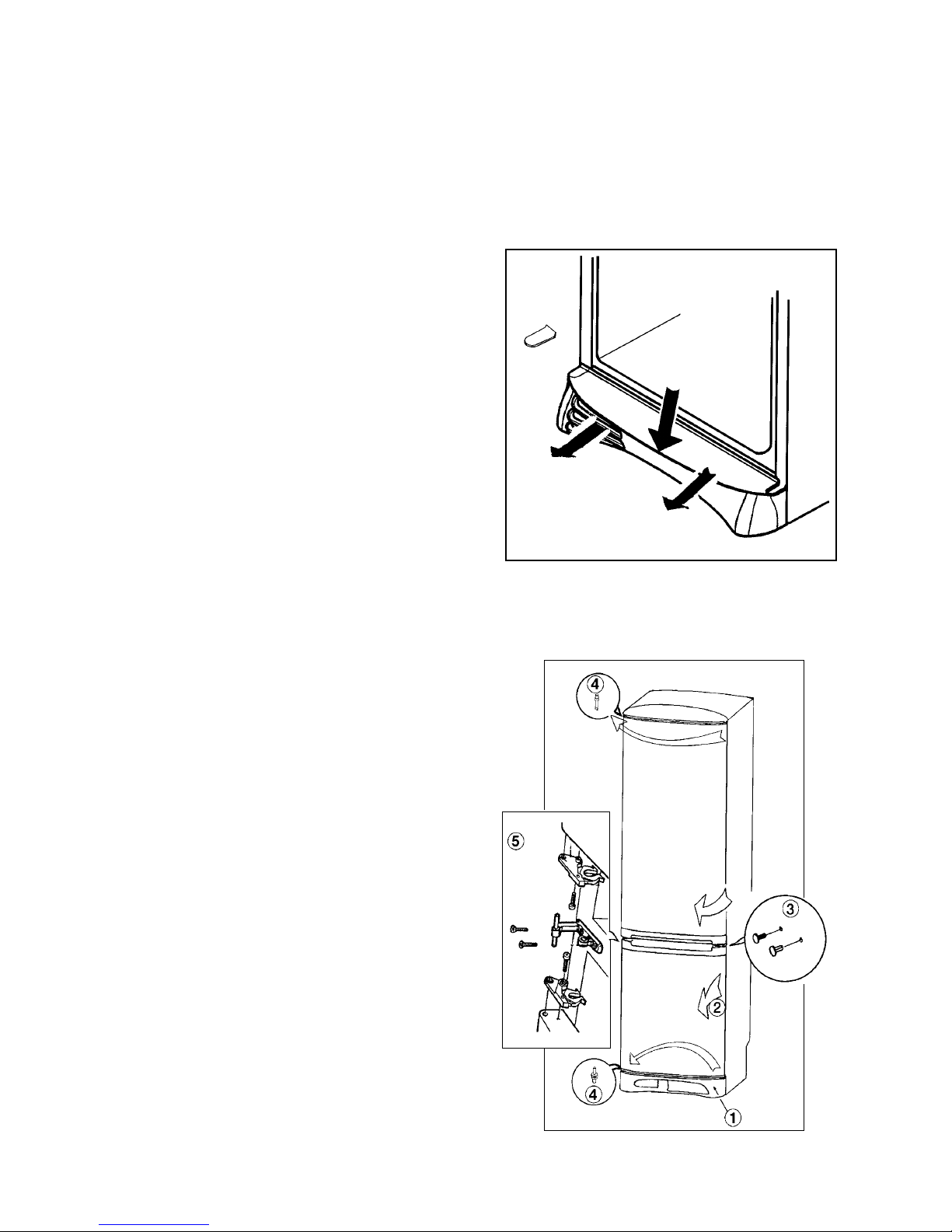

Changing the opening direction

of the doors

Fig. 7

Fig. 8

If you wish to change the opening side of the

doors proceed as follows:

1... Open the freezer door. All the appliances have

a ventilation socle at the bottom. Remove it

pushing strongly on the central and upper

part. The upper supports will be loosed takes

the piece out. Then, take the hinge cover off

the opposite side of the ventilation cover and

place it as required. (see fig. 7).

2... Removing the central hinge:

 Open both doors.

 Remove the external pin and then close the

freezer door.

 Remove the other pin and close the fridge

door.

 Taking care the doors do not fall, pull them

off till bolts are loose.

 Put the doors carefully on the floor.

3... Swap the hinge and the corner cupboard and

change the lower hinge pin and the screw

cover of the centre transom to the other side.

4... Change the door self-closing system, putting

the freezer doors on the fridge door and vice-

versa.

5... Fit the freezer door into the lower hinge bolt

and put the central hinge into the door.

6... Fit the fridge door into the upper hinge bolt.

Pulling both doors outwards, fit the central

hinge bolt too. Place the doors.

7... Open the fridge door and screw the central

hinge pin. Then, open the freezer door and

screw the other pin.

8... Assemble socle keep the door open, close it

up to the metallic part.

Fit the two lower flaps of the plastic piece into

the metallic one, press down wards the two

upper hooks (without stopping pressing the

socle).

Push it to wards the metallic one till they fit

perfectly.

Once finished make sure that all joints close

perfectly well all around the door and check

that the internal light turns off when the fridge

door closes. (see Fig. 8)

Regulation and Control

I Freezer control knob

Setting the knob at 1 will give you a minimum fre-

ezing temperature. Setting 7 will give you the

maximum freezing temperature. For normal use

set the freezer at a middle setting (The exact set-

ting will depend on your usage of the freezer).

2 The door alarm

If either of the doors is left open for a prolonged

period of time the door alarm will start to beeb and

a red flashing light will go on. Pressing the alarm

button will switch the buzzer off and the light will

stop flashing, but remain red. If you simply shut

the doors, this will also switch off the door alarm

buzzer and the light automatically.

3 Temperature alarm

If the internal temperature has risen significantly

the temperature alarm will sound and the light will

start to flash. To switch the alarm off simply press

the temperature alarm button. This will stop the

buzzer and the red light will stop blinking and

remain red.

The temperature alarm may go on because:

a.- The doors have been left open.

b.- There has been a power failure.

c.- More than the recomended amount of food has

been put in at one time.

d.- You need to set the temperature controls to a

colder position.

If the alarm goes on constantly you should contact

you THECNICAL OFICIAL SERVICE.

4 Fast Freeze

This feature is designed to help you freeze

your food more quickly. It is best to press the

fast freeze button before going shopping (pre-

ferably 3 houres in advance) in order to have

the freezer in an optimal state to put your food

in. If you havent pressed the button prior to

purchasing your food you can of course put

your new purchases in, but it will take longer

for the freezer to cool down. (If you put a lot of

fresh food into your freezer you could cause

the temperature alarm to go on. For further

information see sention on temperature

alarm).

5 On/Off button

To make the product work press the ON/OFF

button continuosly for 3 seconds. To switch the

product off press the button continuously for 3

seconds. When the product has been plugged

in and the button pressed for the 3 seconds,

the button will light up in green. If the ON/OFF

button is green the freezer knob and fridge

knob will also be lit up.

6 Fridge control

Setting the knob to the standby position when

the freezer is working, but the fridge if not

being used, (for example when you go on holi-

day), will help you to reduce energy consump-

tion. The fridge door however must be kept

closed.

By turning the knob clockwise you will pro-

gressively cool down the fridge. Position 5 is

the coldest setting possible.

If neither the fridge nor the freezer are being

used (i.e. The appliance switched off), both

doors should be left open. This will help to

avoid any possible smells caused by high

levels of humidity.

Regulation and Control

Interior light:

Switches on when opening the door of the refrige-

rator compartment and switches off when closing

the door.

When changing the fridge bulb. Switch the

appliance off by pressong ON/OFF button, and

them unplug it. Firstly open the plastic light cover

by pushing upwards with your thumb on the cen-

tre clip. The cover will then swing down and you

can remove and replace the bulb(s).

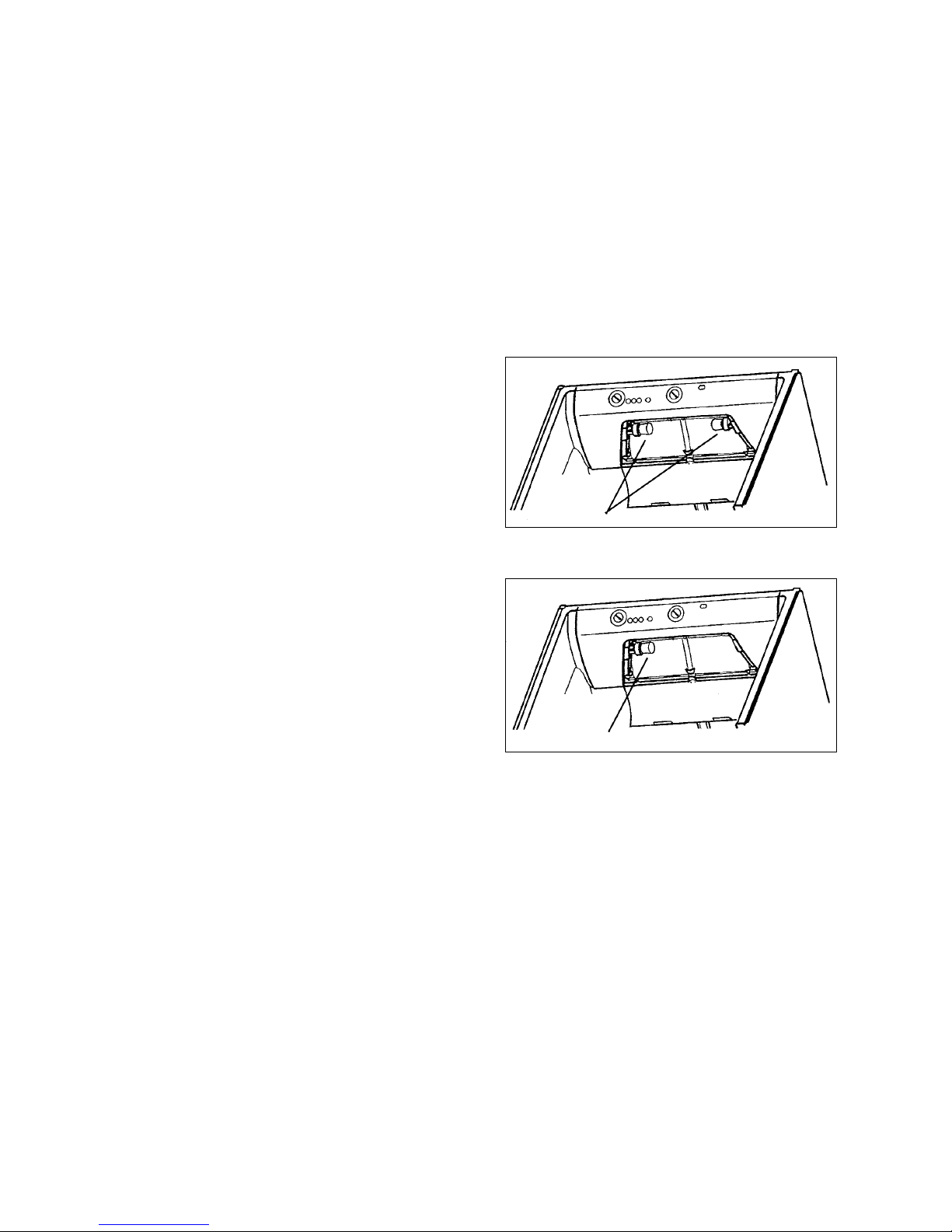

A Standard bulbs

If your fridge has two bulbs you should use 25

watt standard bulbs (maximum wattage) with an

E14 socket. Under no circumstances should halo-

gen bulbs be used. (see fig. 9).

B Halogen bulb

If your fridge has one bulb use a 25 watt halogen

bulb (Maximum wattage). The bulb that should be

used is:

Osram Halolux T

Klar/Clear

E 14 socket

Max 25 watts

Product number: 64 860 T (see fig. 10).

Fig. 9

Fig. 10

2 standard bulbs 25W

1 halogen bulb 25W

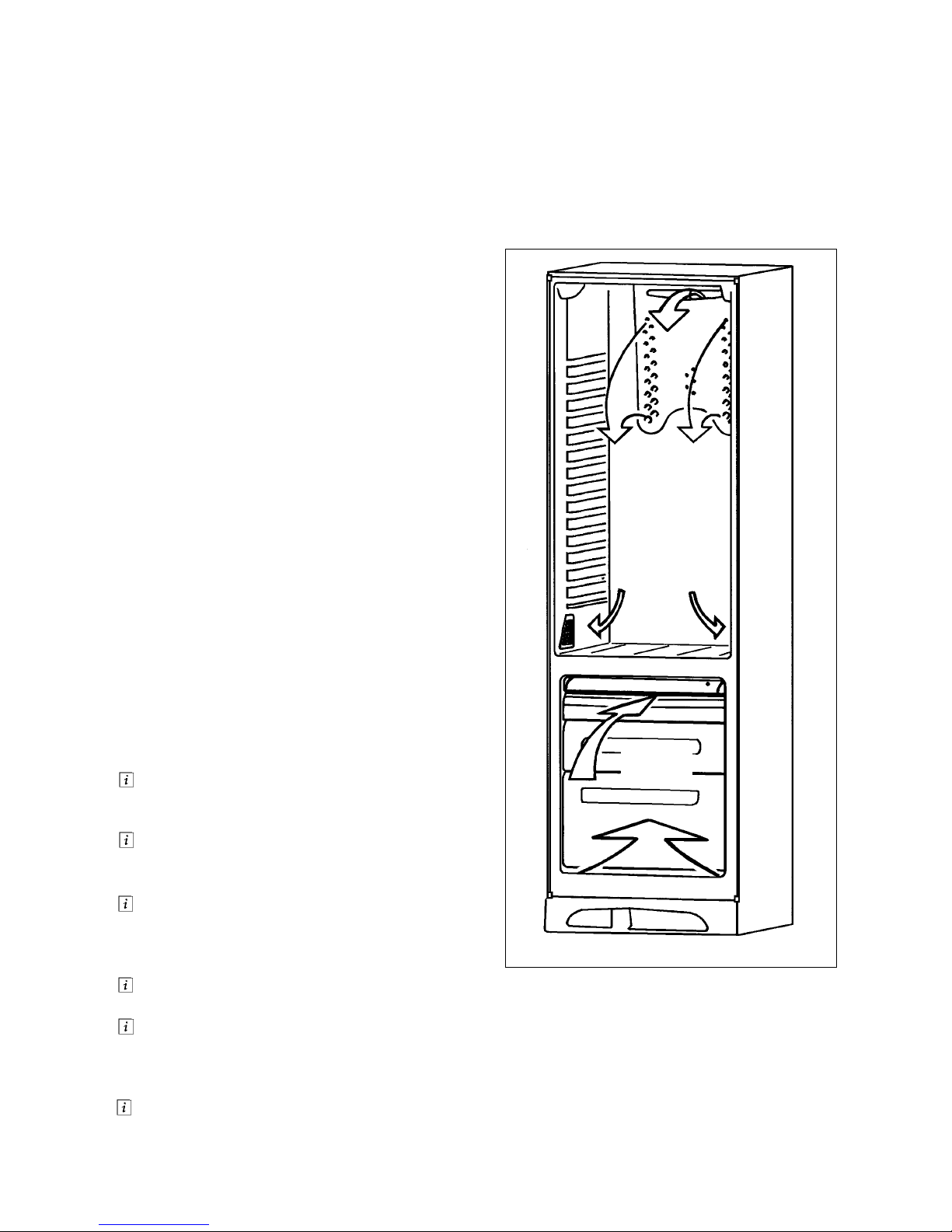

How to use your

Fridge-Freezer

 Try to find out how long the loss of power

will last for.

Once re-established:

A) If the freezer is fully loaded and the power

failure is less than the time indicated on the

«Rating Plate» no damage has been done

to the food.

B) If the freezer is not fully loaded the tempe-

rature will rise more quickly. If thawing has

not started proceed as in point A.

C) If the temperature has risen sufficiently the

temperature alarm will sound and the tem-

perature indicator will blink.

You should:

 Check that the doors are shut. If they are

not, you will hear also the door alarm.

 Check that you havent overloaded the

fridge/freezer with a large amount of new

food.

 Check that there hasnt been a long

power cut.

 Check that the fridge/freezer appears to

be working properly and isnt broken. You

should switch the alarm off by pushing

the appropriate button.

If it continues to come back on it is likely

that there is a problem with the product.

Advice then to the Technical Oficial

Service.

If thawing has started, consume the food

immediately, or cook it and then freeze it

again.

Freezing compartment

This freezer, marked , is suitable for

freezing food and permits long term storage of

frozen food.

Freezing of food

Food to be frozen should be left for at least 24

hours.

The procedure for this is as follows:

1... If the freezer has been disconnected and is

empty, plug it an and leave for 3 hours before

putting any food in. By pressing the fast free-

zer button 24 hours before freezing you will

help cool down the freezer quicker.

If the temperature alarm goes on see the ear-

lier section on the temperature alarm.

2... It is possible that the temperature alarm will

sound if a lot of new food is put in with existing

food. This is due to a slight rise in temperatu-

re. The alarm will switch itself off automati-

cally.

Conserving frozen food

To store Food properly the inside temperature

should never rise above - 18°C.

An ajustable temperature control regulates this

temperature.

Make sure the thermostat is on a medium setting.

However, it may sometimes be necessary (due to

poor ventilation, high room temperatures, fre-

quent opening of doors) to regulate the setting

of the thermostat.

In the case of an accidental stoppage of the

appliance or a power cut proceed as follows:

 Keep the doors closed at all times.

Useful Hints

Do not introduce any new food during a free-

zing.

Do not put any newly introduced food for free-

zing near to already frozen food.

Wrap the food up properly or place it in air tight

containers before putting it into the fridge/free-

zer.

Do not put any hot food into the freezer.

Food and drinks, which have a strong smell,

may affect other foods and drinks if not stored

in an appropriate manner.

Follow instructions given in cookbooks to help

conserve food longer.

How to use your

Fridge-Freezer

Refrigerator Compartment:

This compartment is designed to store drinks

and fresh food. The inner temperature is nor-

mally uniform and is kept cool by cold circula-

ting air.

Try to avoid putting food products flush against

the air vents at the back of the fridge as this could

cause the foods to freeze. (see fig. 11).

The dynamic cooling system preserves better the

food, keeping its characteristics for a long time.

For that, wrap the food, so that it does not lose

humidity (dehydration, loss of colour). Then, food

value and aroma will also be kept.

Some models might have.:

 A crisp and fresh vegetable compartment. If so,

it will also have a moisture filter which helps to

keep moisture levels high and therefore your

fruit and vegetables fresher.

 A chiller box. This is an ideal place to store

meat, fish and pre-cooked food.

Fig. 11

DO NOT

BLOCK

DO NOT

BLOCK

Maintenance of your

Fridge/Freezer

Prior to undertaking any maintenance operation,

you should switch off the appliance.

Cleaning

 Do not use alcohol or any cleaning products

containing alcohol because they could damage

plastic parts.

 Use lukewarm water and neutral soap or bicar-

bonate of soda to clean the interior and the exte-

rior of the appliance. Never use detergents or

abrasive powders.

 Clean the condensor (black wavy grill) at the

bottom of your fridge/freezer by removing the

plastic ventilation grill (push down and pull out)

and then clean with a vacuum cleaner. However

before doing this make sure to switch the

appliance off by using the on/off switch in the

fridge. (see fig. 12).

 Afterwards make sure to replace the plastic ven-

tilation grill correctly.

Idle periods

During periods when the appliance is not in use

do the following:

 Switch off an unplug the appliance.

 Remove all the food.

 Clean the interior and all accesories.

 Leave the door ajar to allow the air to circulate

in the interior and thus avoid unpleasant smells.

Fig. 12

NOISE REDUCTION PAD

(DONT REMOVE)

Andere Handbücher für ZKN20

Dieses Handbuch passt für folgende Modelle

Andere Zanussi Kühlschrank Handbücher

Zanussi

Zanussi ZF36/45 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZI 912 K Bedienungsanleitung

Zanussi

Zanussi ZNLN14ES Bedienungsanleitung

Zanussi

Zanussi DF 50/30 Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZT 45/30 Bedienungsanleitung

Zanussi

Zanussi Z1163 TR Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZRT23102WA Bedienungsanleitung

Zanussi

Zanussi ZK 62/23 RF Bedienungsanleitung

Zanussi

Zanussi ZR 55/1 W Bedienungsanleitung

Zanussi

Zanussi ZSS 7 W Bedienungsanleitung

Zanussi

Zanussi ZNFN18FS1 Bedienungsanleitung

Zanussi

Zanussi ZI 428 D Bedienungsanleitung

Zanussi

Zanussi ZFC67/42FF Bedienungsanleitung

Zanussi

Zanussi ZC320RM Bedienungsanleitung

Zanussi

Zanussi ZI 9225 AA Bedienungsanleitung

Zanussi

Zanussi ZFC194-1 Bedienungsanleitung

Zanussi

Zanussi ZFK 22/10 DAC Bedienungsanleitung

Zanussi

Zanussi ZCL 56 Bedienungsanleitung

Zanussi

Zanussi CZC 16/9 FA Bedienungsanleitung

Zanussi

Zanussi 102254 Bedienungsanleitung

Zanussi

Zanussi ZECR 161 W Bedienungsanleitung

Zanussi

Zanussi ZT 57 RM Bedienungsanleitung

Zanussi

Zanussi ZBA7230A Bedienungsanleitung

Zanussi

Zanussi ZP 3142 Montageanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
