Zanussi ZKN24/10L(S) Bedienungsanleitung

Index

Safety Instructions pág. 20

Installation pág. 21 - 22

Changing the opening

directions of the doors pág. 23

Regulation and Control pág. 24 - 25

How to use your

Fridge-Freezer pág. 26 - 27

Maintenance of your

Fridge-Freezer pág. 28

Something not working pág. 29 - 30

Normal noises when

functioning pág. 31

Guarantee, Service

and Spare Parts pág. 32

Technical Features pág. 33

mManufacturer’s storage recommendations should

be strictly complied with.

mIce lollies can cause frost burns if consumed

straight away from the freezer.

mDo not use electrical appliances inside the frid-

ge/freezer.

mDo not place carbonate or fizzy drinks in the

freezer as these may explode.

mWhenever you discard and old freezer make

sure to:

mTake off the doors in order to prevent chil-

dren being trapped inside.

Have the gas R600a from the cooling system

removed by an authorised person before

making it into scrap metal.

Safety instructions

Warnings for your safety. Carefully read

these instructions before installing and

using the machine

mThis appliance is designed to be operated by adults

only. Children should not be allowed to tamper with

the controls or play with the product.

mAny electrical work required to install the appliance

should be carried out by a qualified electrician or

competent person.

mThis appliance is heavy. Care should be taken when

moving it.

mMaker sure that the cable is not trapped underneath

the appliance, nor touches the motor.

mRepairs carried out by inexperienced persons may

cause injuries or serious malfunctioning. Refer to

the TECHNICAL OFICIAL SERVICE.

mThe appliance should be left for at least 4 hours

after installation before it is turned on in order to

allow the refrigerant to settle.

mThis product must only be serviced by an authorized

Technical Oficial Service, and only genuine SPARE

PARTS should be used.

mBefore cleaning or reparing the appliance, make

sure it is unplugged.

mIt is dangerous to try and alter the specifications or

modify this product in any way.

mThese domestic appliances are designed to be used

specifically for the storage and conservation of

food.

mFrozen food must not be re-frozen once it has been

thawed out.

Installation

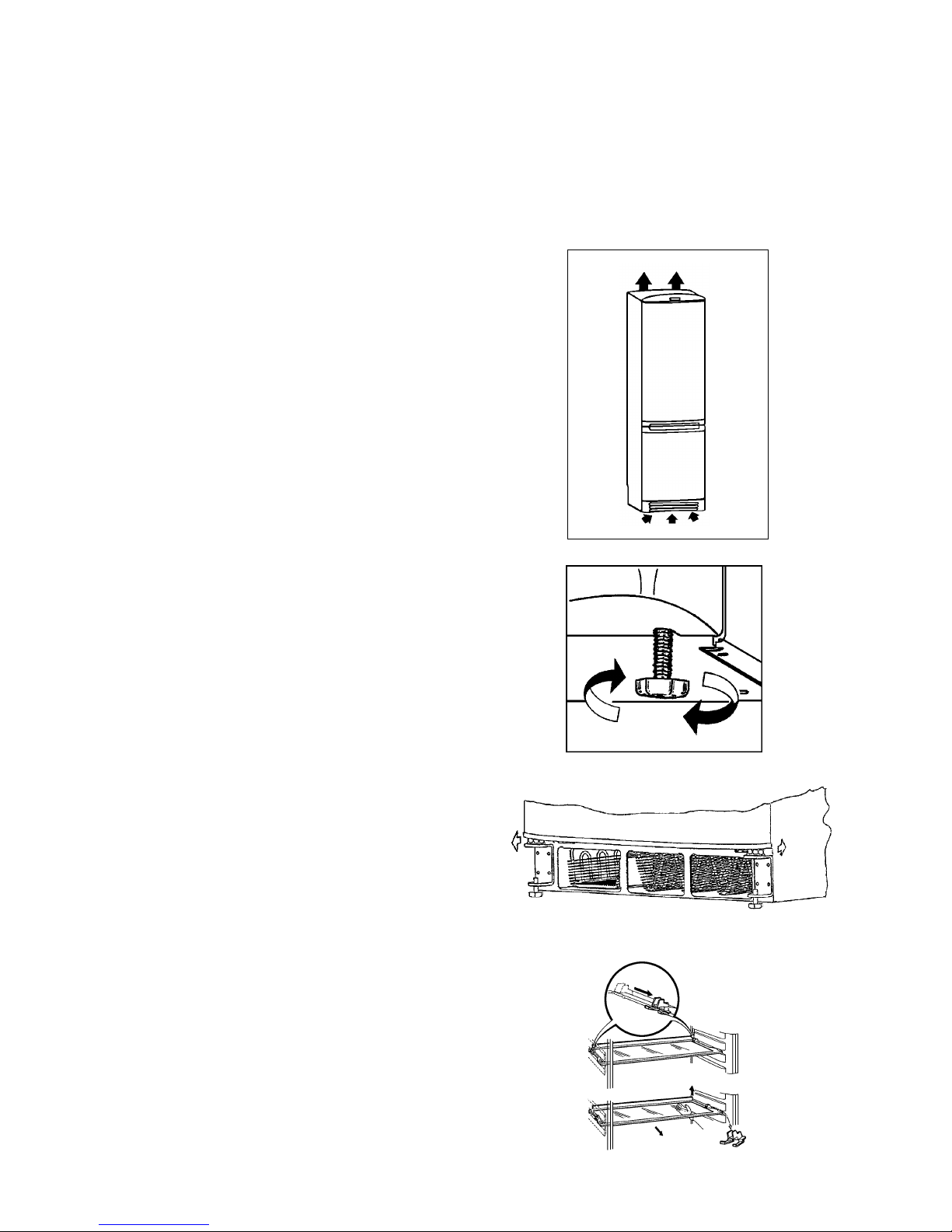

Fig. 1

Fig. 3

Fig. 2

Fig. 4

Positioning

• Place the refrigerator away from direct sunlight and

heat sources.

• Take off at least 50 mm. free over the appliance.

• Never put something on the ventilator of the applian-

ce. (see fig. 1).

• Make sure the refrigerator is accurately levelled tur-

ning the adjustable feet on the front, in order to avoid

vibrations and noises and to make sure that the doors

shut properly (see fig. 2).

• Before placing the plinth cover, pull out the fixing

part of doors used only for security during transport

(see fig. 3).

• With the freezer door wide-open, assemble the socle

provided inside the appliance, following the instruc-

tions stuck on it.

• Remove the shelves transport fastening red pieces

by sliding them (see fig. 4).

• The appliance should not be located in places with

maximum temperatures more than:

+ 32°C for N/SN Class (classification on rating

plate).

+ 43°C for T/ST Class (classification on rating

plate).

If the temperatures are higher than those mentioned

above, the functioning and the safety of the applian-

ce could be affected.

Cleaning the interior

• Do not use alcohol or any cleaning produts contai-

ning alcohol because they could damage the plastic

parts of the appliance.

• Before using the appliance for the first time, wash

the interior with luke warm water and a neutral soap.

This will help to remove the typical smell of a new

fridge/freezer. Afterwards dry thoroughly.

• Do not use detergents or abrasive powders as these

will damage the finish.

• Remove security elements used for transportation.

Electrical connection

mBefore plugging the appliance into a socket make

sure that the voltage and frequency shown on the

rating plate correspond to your home supply. (see

fig. 5).

It is essential that the appliance should be properly

earthed.

mFor this purpose the supply cable plug incorporates

a special earth contact. If the sockets of your domes-

tic wiring system are not earthed, have the appliance

connected to a separate earth wire in accordance

with existing safety regulations.

Installation

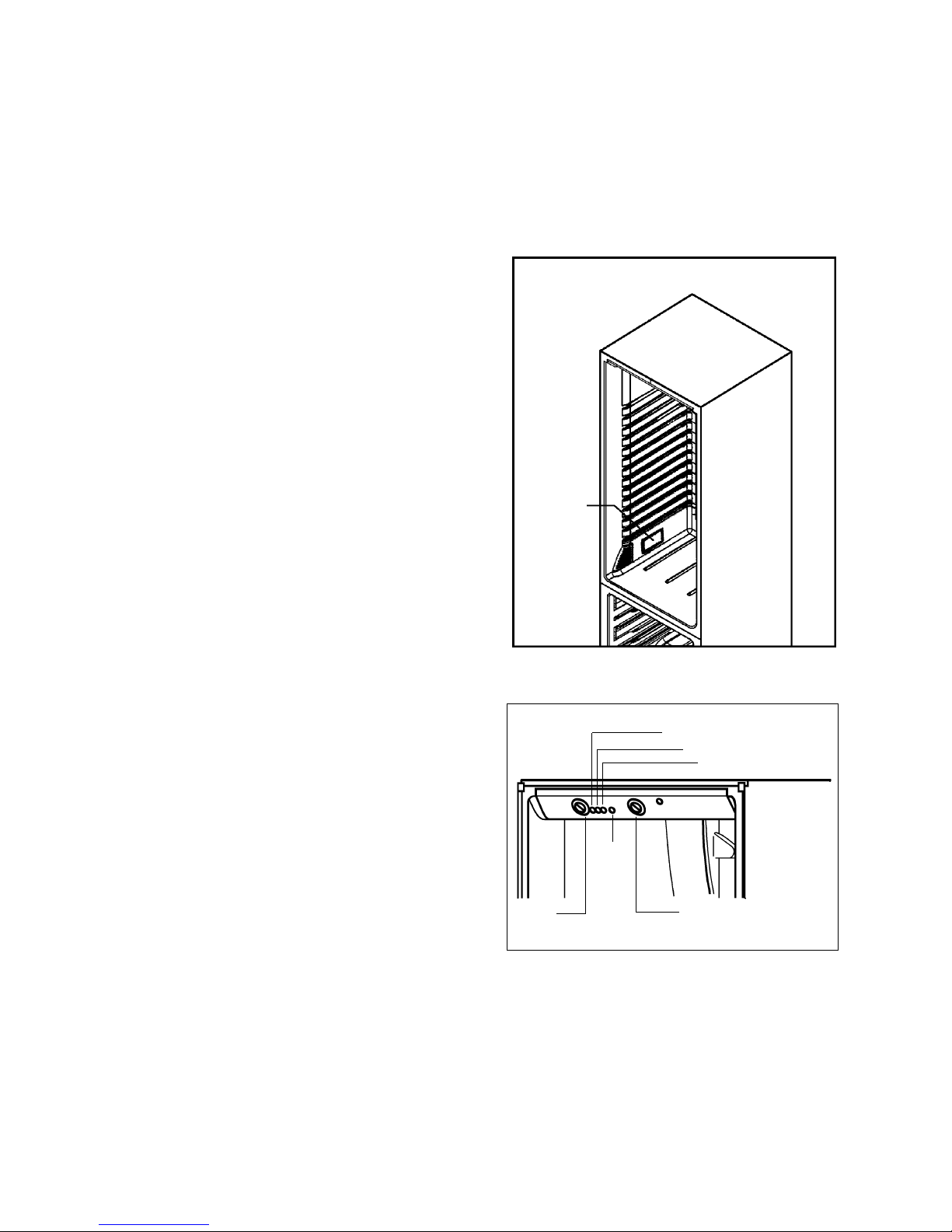

Fig. 5

Fig. 6

door alarm

temperature alarm

fast freeze

on/off

temperature

control fridge

temperature

control freezer

Starting - up

• Plug the appliance into the wall socket.

• Open the fridge door.

• Push the on/off button located in the fridge, conti-

nuosly for 3 seconds. The fridge will start to function

and the internal light will then go on. The on/off but-

ton will be a bright green colour and the fridge/free-

zer controls will ligh up. (see fig. 6).

• The temperature alarm (a beeping noise) could go on

during the start up phase. If this happens push the

temperature alarm button. (See section on the tem-

perature control for more details).

• You can now close the door. rating

plate

Changing the opening direction

of the doors

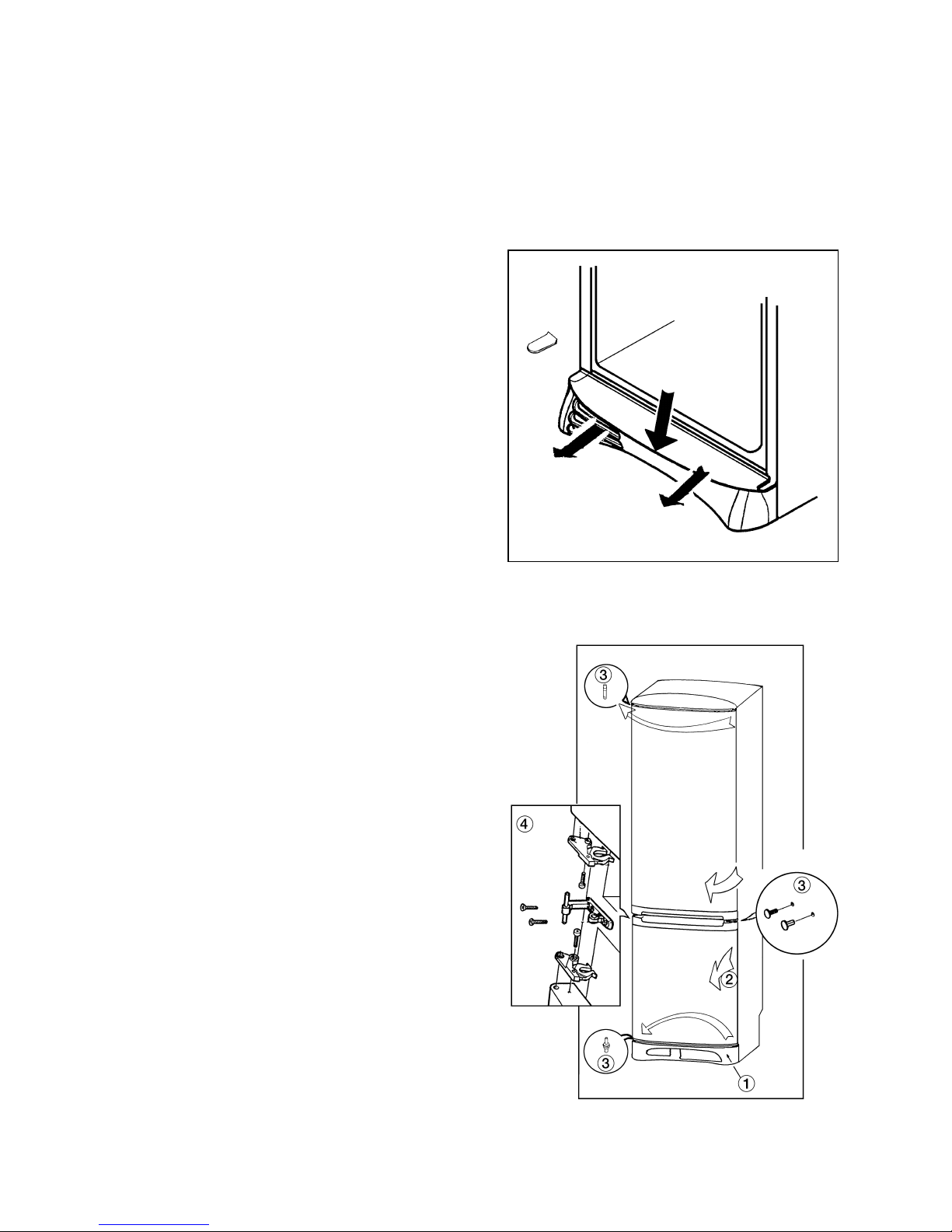

Fig. 7

Fig. 8

If you wish to change the opening side of the doors

proceed as follows:

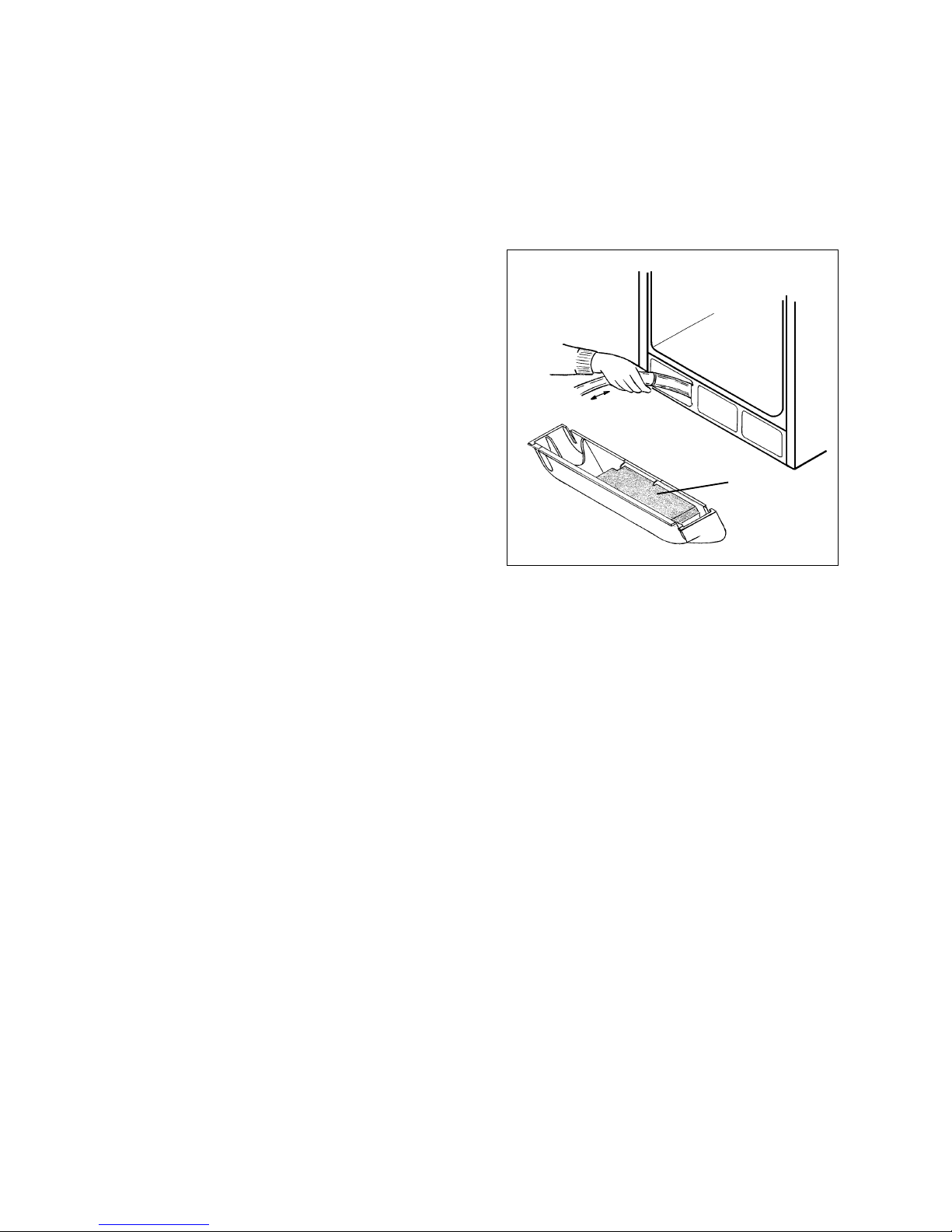

1... Open the freezer door. All the appliances have a

ventilation socle at the bottom. Remove it pushing

strongly on the central and upper part. The upper

supports will be loosed takes the piece out. Then,

take the hinge cover off the opposite side of the

ventilation cover and place it as required. (see fig.

7).

2... Removing the central hinge:

– Open both doors.

– Remove the external pin and then close the free-

zer door.

– Remove the other pin and close the fridge door.

– Taking care the doors do not fall, pull them off till

bolts are loose.

– Put the doors carefully on the floor.

3... Chage the bolts of the upper and lower hinges to

the opposite side. Change also the plastic covers of

the central partition.

4... Change the door self-closing system, putting the

freezer door’s on the fridge door and viceversa.

5... Fit the freezer door into the lower hinge bolt and

put the central hinge into the door.

6... Fit the fridge door into the upper hinge bolt. Pulling

both doors outwards, fit the central hinge bolt too.

Place the doors.

7... Open the fridge door and screw the central hinge

pin. Then, open the freezer door and screw the

other pin.

8... Assemble socle keep the door open, close it up to

the metallic part.

Fit the two lower flaps of the plastic piece into the

metallic one, press down wards the two upper

hooks (without stopping pressing the socle).

Push it to wards the metallic one till they fit per-

fectly.

Once finished make sure that all joints close per-

fectly well all around the door and check that the

internal light turns off when the fridge door closes.

(see Fig. 8)

Regulation and Control

I Freezer control knob

Setting the knob at 1 will give you a minimum freezing

temperature. Setting 7 will give you the maximum fre-

ezing temperature. For normal use set the freezer at a

middle setting (The exact setting will depend on your

usage of the freezer).

2 The door alarm

If either of the doors is left open for a prolonged period

of time the door alarm will start to beeb and a red flas-

hing light will go on. Pressing the alarm button will

switch the buzzer off and the light will stop flashing,

but remain red. If you simply shut the doors, this will

also switch off the door alarm buzzer and the light

automatically.

3 Temperature alarm

If the internal temperature has risen significantly the

temperature alarm will sound and the light will start to

flash. To switch the alarm off simply press the tempe-

rature alarm button. This will stop the buzzer and the

red light will stop blinking and remain red.

The temperature alarm may go on because:

a.- The doors have been left open.

b.- There has been a power failure.

c.- More than the recomended amount of food has been

put in at one time.

d.- You need to set the temperature controls to a colder

position.

If the alarm goes on constantly you should contact you

TECHNICAL OFICIAL SERVICE.

4 Fast Freeze

This feature is designed to help you freeze your

food more quickly. It is best to press the fast freeze

button before going shopping (preferably 3 houres

in advance) in order to have the freezer in an opti-

mal state to put your food in. If you haven’t pressed

the button prior to purchasing your food you can of

course put your new purchases in, but it will take

longer for the freezer to cool down. (If you put a lot

of fresh food into your freezer you could cause the

temperature alarm to go on. For further information

see sention on temperature alarm).

5 On/Off button

To make the product work press the ON/OFF but-

ton continuosly for 3 seconds. To switch the pro-

duct off press the button continuously for 3

seconds. When the product has been plugged in and

the button pressed for the 3 seconds, the button will

light up in green. If the ON/OFF button is green the

freezer knob and fridge knob will also be lit up.

6 Fridge control

Setting the knob to the standby position when the

freezer is working, but the fridge if not being used,

(for example when you go on holiday), will help

you to reduce energy consumption. The fridge door

however must be kept closed.

By turning the knob clockwise you will progressi-

vely cool down the fridge. Position 5 is the coldest

setting possible.

If neither the fridge nor the freezer are being used

(i.e. The appliance switched off), both doors should

be left open. This will help to avoid any possible

smells caused by high levels of humidity.

Regulation and Control

Interior light:

Switches on when opening the door of the refrigerator

compartment and switches off when closing the door.

When changing the fridge bulb. Switch the appliance

off by pressong ON/OFF button, and them unplug it.

Firstly open the plastic light cover by pushing upwards

with your thumb on the centre clip. The cover will then

swing down and you can remove and replace the

bulb(s).

A Standard bulbs

If your fridge has two bulbs you should use 25 watt

standard bulbs (maximum wattage) with an E14 socket.

Under no circumstances should halogen bulbs be used.

(see fig. 9).

B Halogen bulb

If your fridge has one bulb use a 25 watt halogen bulb

(Maximum wattage). The bulb that should be used is:

Osram Halolux T

Klar/Clear

E 14 socket

Max 25 watts

Product number: 64 860 T (see fig. 10).

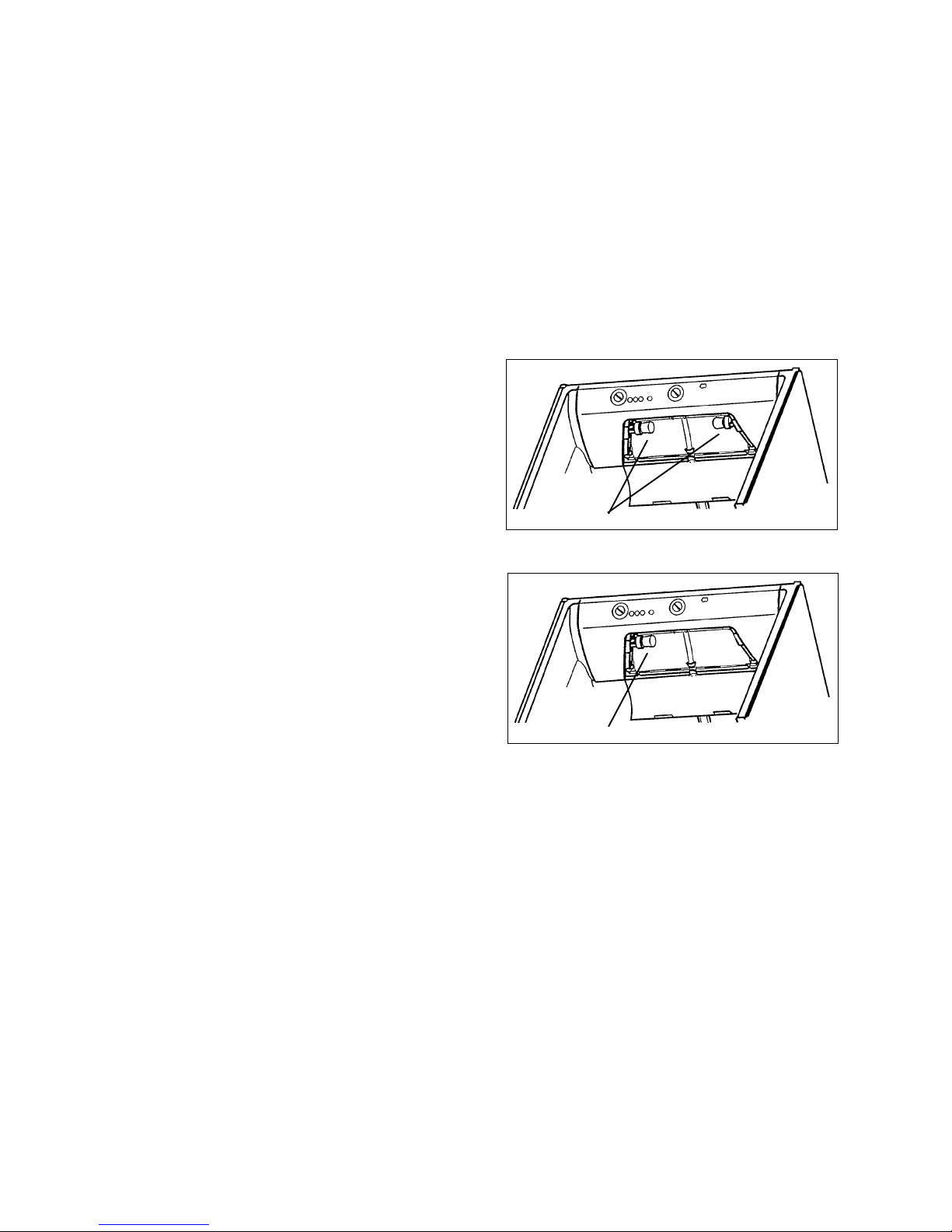

Fig. 9

Fig. 10

2 standard bulbs 25W

1 halogen bulb 25W

How to use your

Fridge-Freezer

Once re-established:

A) If the freezer is fully loaded and the power fai-

lure is less than the time indicated on the

«Rating Plate» no damage has been done to the

food.

B) If the freezer is not fully loaded the temperature

will rise more quickly. If thawing has not started

proceed as in point A.

C) If the temperature has risen sufficiently the tem-

perature alarm will sound and the temperature

indicator will blink.

You should:

• Check that the doors are shut. If they are not,

you will hear also the door alarm.

• Check that you haven’t overloaded the frid-

ge/freezer with a large amount of new food.

• Check that there hasn’t been a long power cut.

• Check that the fridge/freezer appears to be

working properly and isn’t broken. You

should switch the alarm off by pushing the

appropriate button.

If it continues to come back on it is likely that

there is a problem with the product. Advice

then to the Technical Oficial Service.

If thawing has started, consume the food immedia-

tely, or cook it and then freeze it again.

Freezing compartment

This freezer, marked , is suitable for free-

zing food and permits long term storage of frozen

food.

Freezing of food

Food to be frozen should be left for at least 24 hours.

The procedure for this is as follows:

1... If the freezer has been disconnected and is empty,

plug it an and leave for 3 hours before putting any

food in. By pressing the fast freezer button 24

hours before freezing you will help cool down the

freezer quicker.

If the temperature alarm goes on see the earlier sec-

tion on the temperature alarm.

2... It is possible that the temperature alarm will sound

if a lot of new food is put in with existing food.

This is due to a slight rise in temperature. The

alarm will switch itself off automatically.

Conserving frozen food

To store Food properly the inside temperature should

never rise above - 18°C.

An ajustable temperature control regulates this tempe-

rature.

Make sure the thermostat is on a medium setting.

However, it may sometimes be necessary (due to poor

ventilation, high room temperatures, frequent opening

of doors…) to regulate the setting of the thermostat.

In the case of an accidental stoppage of the appliance

or a power cut proceed as follows:

• Keep the doors closed at all times.

• Try to find out how long the loss of power will last

for.

Useful Hints

Do not introduce any new food during a freezing.

Do not put any newly introduced food for freezing

near to already frozen food.

Wrap the food up properly or place it in air tight

containers before putting it into the fridge/freezer.

Do not put any hot food into the freezer.

Food and drinks, which have a strong smell, may

affect other foods and drinks if not stored in an

appropriate manner.

Follow instructions given in cookbooks to help con-

serve food longer.

How to use your

Fridge-Freezer

Refrigerator Compartment:

This compartment is designed to store drinks and

fresh food. The inner temperature is normally uni-

form and is kept cool by cold circulating air.

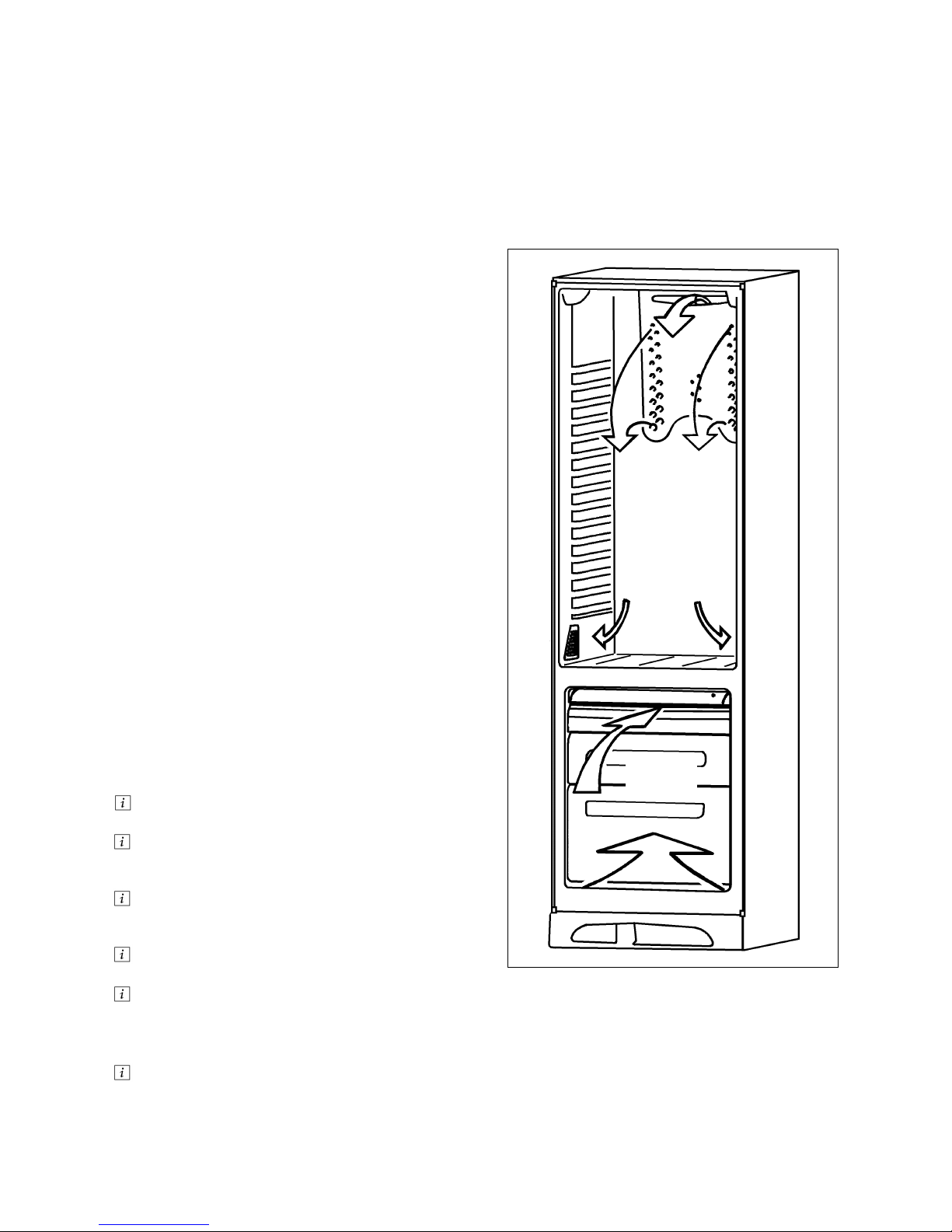

Try to avoid putting food products flush against the air

vents at the back of the fridge as this could cause the

foods to freeze. (see fig. 11).

The dynamic cooling system preserves better the food,

keeping its characteristics for a long time. For that,

wrap the food, so that it does not lose humidity (dehy-

dration, loss of colour). Then, food value and aroma

will also be kept.

Some models might have.:

• A crisp and fresh vegetable compartment. If so, it

will also have a moisture filter which helps to keep

moisture levels high and therefore your fruit and

vegetables fresher.

• A chiller box. This is an ideal place to store meat,

fish and pre-cooked food.

Fig. 11

DO NOT

BLOCK

DO NOT

BLOCK

Maintenance of your

Fridge/Freezer

Prior to undertaking any maintenance

operation, you should switch off the

appliance.

Cleaning

• Do not use alcohol or any cleaning products contai-

ning alcohol because they could damage plastic

parts.

• Use lukewarm water and neutral soap or bicarbonate

of soda to clean the interior and the exterior of the

appliance. Never use detergents or abrasive powders.

• Clean the condensor (black wavy grill) at the bottom

of your fridge/freezer by removing the plastic venti-

lation grill (push down and pull out) and then clean

with a vacuum cleaner. However before doing this

make sure to switch the appliance off by using the

on/off switch in the fridge. (see fig. 12).

• Afterwards make sure to replace the plastic ventila-

tion grill correctly.

Idle periods

During periods when the appliance is not in use do the

following:

• Switch off an unplug the appliance.

• Remove all the food.

• Clean the interior and all accesories.

• Leave the door ajar to allow the air to circulate in the

interior and thus avoid unpleasant smells.

Fig. 12

NOISE REDUCTION PAD

(DON’T REMOVE)

Andere Handbücher für ZKN24/10L(S)

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Zanussi Kühlschrank Handbücher

Zanussi

Zanussi ZD 19/5 R Bedienungsanleitung

Zanussi

Zanussi ZFC 56/48 Bedienungsanleitung

Zanussi

Zanussi ZRG16605WA Bedienungsanleitung

Zanussi

Zanussi ZRT23100XA Bedienungsanleitung

Zanussi

Zanussi ZBB28441SA Bedienungsanleitung

Zanussi

Zanussi ZRX407W Bedienungsanleitung

Zanussi

Zanussi ZERB 3120 Bedienungsanleitung

Zanussi

Zanussi ZRDN18FS2 Bedienungsanleitung

Zanussi

Zanussi ZFC 36 Bedienungsanleitung

Zanussi

Zanussi ZFT 56 RLAL Bedienungsanleitung

Zanussi

Zanussi ZQA14031DV Bedienungsanleitung

Zanussi

Zanussi ZA 27 S3 Bedienungsanleitung

Zanussi

Zanussi ZFE102T Bedienungsanleitung

Zanussi

Zanussi DI 180/80 Kurzanleitung

Zanussi

Zanussi ZFC 56/46 Bedienungsanleitung

Zanussi

Zanussi ZRD 27 JC Bedienungsanleitung

Zanussi

Zanussi Zanussi Professional TRN132AS Bedienungsanleitung

Zanussi

Zanussi ZFC 50/16 Bedienungsanleitung

Zanussi

Zanussi ZRT18101WA Bedienungsanleitung

Zanussi

Zanussi 102314 Bedienungsanleitung

Zanussi

Zanussi ZD25 Bedienungsanleitung

Zanussi

Zanussi ZBT23420SA Bedienungsanleitung

Zanussi

Zanussi 113159 Bedienungsanleitung

Zanussi

Zanussi PT 3 Series Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
