Zanussi ZQA14032DA Bedienungsanleitung

ZQA14032DA

User Manual

Refrigerator

Contents

Safety information 2

Safety instructions 3

Operation 4

First use 5

Daily use 5

Hints and tips 6

Care and cleaning 6

Troubleshooting 8

Installation 9

Technical information 10

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the

supplied instructions. The manufacturer is not responsible if an

incorrect installation and use causes injuries and damages.

Always keep the instructions with the appliance for future

reference.

Children and vulnerable people safety

•This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Cleaning and user maintenance shall not be made by children

without supervision.

•Keep all packaging away from children.

General Safety

•This appliance is intended to be used in household and similar

applications such as:

–Farm houses; staff kitchen areas in shops, offices and other

working environments

–By clients in hotels, motels, bed and breakfast and other

residential type environments

•Keep ventilation openings, in the appliance enclosure or in the

built-in structure, clear of obstruction.

2 www.zanussi.com

•Do not use mechanical devices or other means to accelerate

the defrosting process, other than those recommended by the

manufacturer.

•Do not damage the refrigerant circuit.

•Do not use electrical appliances inside the food storage

compartments of the appliance, unless they are of the type

recommended by the manufacturer.

•Do not use water spray and steam to clean the appliance.

•Clean the appliance with a moist soft cloth. Only use neutral

detergents. Do not use abrasive products, abrasive cleaning

pads, solvents or metal objects.

•Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

•If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly

qualified persons in order to avoid a hazard.

Safety instructions

Installation

WARNING!

Only a qualified person must install

this appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Obey the installation instruction supplied

with the appliance.

• Always be careful when you move the

appliance because it is heavy. Always wear

safety gloves.

• Make sure the air can circulate around the

appliance.

• Wait at least 4 hours before connecting the

appliance to the power supply. This is to

allow the oil to flow back in the compressor.

• Do not install the appliance close to

radiators or cookers, oven or hobs.

• The rear of the appliance must stand against

the wall.

• Do not install the appliance where there is

direct sunlight.

• Do not install this appliance in areas that are

too humid or too colds, such as the

construction appendices, garages or wine

cellars.

• When you move the appliance, lift it by the

front edge to avoid scratching the floor.

Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on

the rating plate agrees with the power

supply. If not, contact an electrician.

• Always use a correctly installed shockproof

socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to the

electrical components (e.g. mains plug,

mains cable, compressor). Contact the

Authorised Service Centre or an electrician

to change the electrical components.

• The mains cable must stay below the level of

the mains plug.

• Connect the mains plug to the mains socket

only at the end of the installation. Make sure

that there is access to the mains plug after

the installation.

• Do not pull the mains cable to disconnect

the appliance. Always pull the mains plug.

www.zanussi.com 3

Use

WARNING!

Risk of injury, burns, electrical shock

or fire.

• Do not change the specification of this

appliance.

• Do not put electrical appliances (e.g. ice

cream makers) in the appliance unless they

are stated applicable by the manufacturer.

• Be careful not to cause damage to the

refrigerant circuit. It contains isobutane

(R600a), a natural gas with a high level of

environmental compatibility. This gas is

flammable.

• If damage occurs to the refrigerant circuit,

make sure that there are no flames and

sources of ignition in the room. Ventilate the

room.

• Do not let hot items to touch the plastic

parts of the appliance.

• Do not store flammable gas and liquid in the

appliance.

• Do not put flammable products or items that

are wet with flammable products in, near or

on the appliance.

• Do not touch the compressor or the

condenser. They are hot.

Internal light

• The type of lamp used for this appliance is

not suitable for household room illumination

Care and cleaning

WARNING!

Risk of injury or damage to the

appliance.

• Before maintenance, deactivate the

appliance and disconnect the mains plug

from the mains socket.

• This appliance contains hydrocarbons in the

cooling unit. Only a qualified person must do

the maintenance and the recharging of the

unit.

• Regularly examine the drain of the appliance

and if necessary, clean it. If the drain is

blocked, defrosted water collects in the

bottom of the appliance.

Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains

supply.

• Cut off the mains cable and discard it.

• Remove the door to prevent children and

pets to be closed inside of the appliance.

• The refrigerant circuit and the insulation

materials of this appliance are ozone-friendly.

• The insulation foam contains flammable gas.

Contact your municipal authority for

information on how to discard the appliance

correctly.

• Do not cause damage to the part of the

cooling unit that is near the heat exchanger.

Operation

Switching on

1. Insert the plug into the wall socket.

2. Turn the Temperature regulator clockwise

to a medium setting.

Switching off

To turn off the appliance, turn the temperature

regulator to the "O" position.

Temperature regulation

The temperature is regulated automatically.

4 www.zanussi.com

A medium setting is generally the

most suitable.

However, the exact setting should

be chosen keeping in mind that the

temperature inside the appliance

depends on:

• room temperature,

• how often the door is opened,

• the quantity of food stored,

• the location of the appliance.

1. Turn the Temperature regulator toward

lower settings to obtain the minimum

coldness.

2. Turn the Temperature regulator toward

higher settings to obtain the maximum

coldness.

CAUTION!

If the ambient temperature is high or

the appliance is fully loaded, and the

appliance is set to the lowest

temperatures, it may run

continuously causing frost to form

on the rear wall. In this case the dial

must be set to a higher temperature

to allow automatic defrosting and

therefore reduced energy

consumption.

First use

Cleaning the interior

Before using the appliance for the first time, the

interior and all internal accessories should be

washed with lukewarm water and some neutral

soap to remove the typical smell of a brand-new

product, then dried thoroughly.

CAUTION!

Do not use detergents or abrasive

powders, as these will damage the

finish.

Daily use

WARNING!

Refer to Safety chapters.

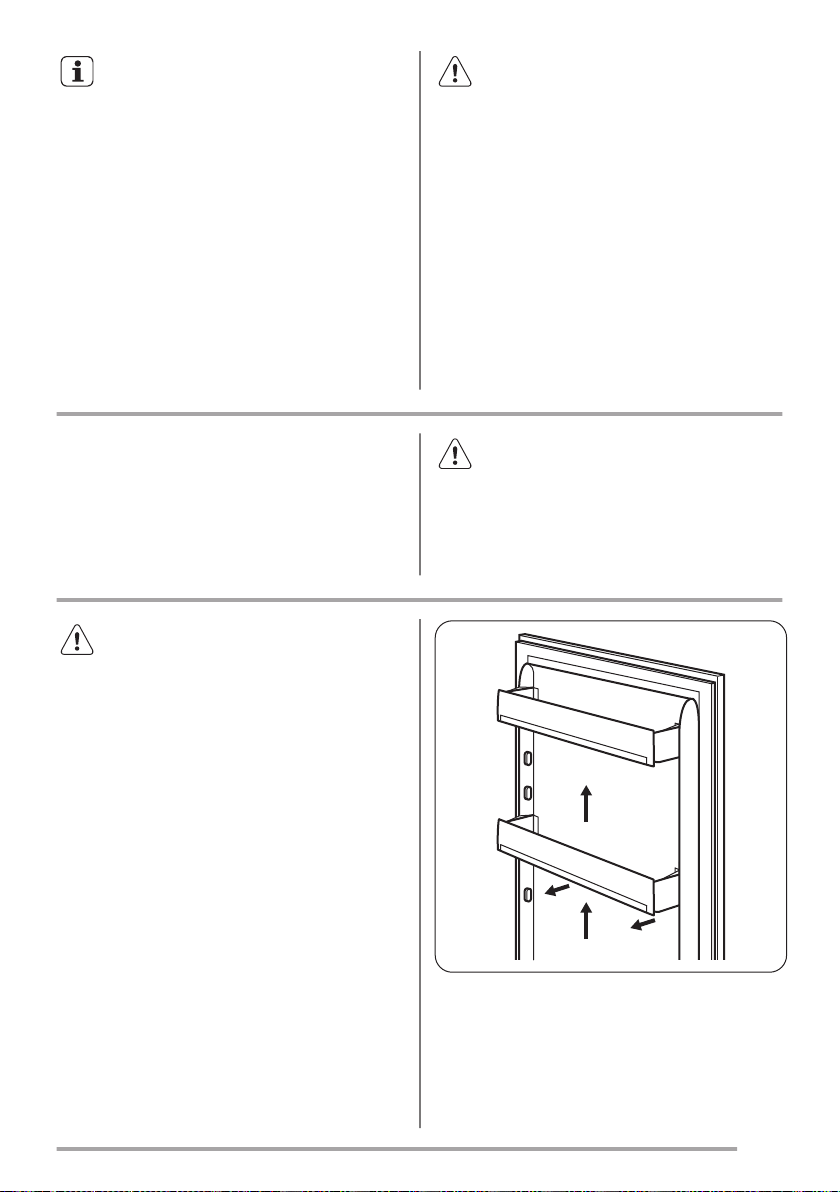

Positioning the door shelves

To permit storage of food packages of various

sizes, the door shelves can be placed at

different heights.

1. Gradually pull the shelf in the direction of

the arrows until it comes free.

2. Reposition as required.

Movable shelves

The walls of the refrigerator are equipped with a

series of runners so that the shelves can be

positioned as desired.

www.zanussi.com 5

Do not move the glass shelf above

the vegetable drawer and the bottle

shelf to ensure correct air

circulation.

Hints and tips

Normal operating sounds

The following sounds are normal during

operation:

• A faint gurgling and bubbling sound from

coils sound when refrigerant is pumped.

• A whirring and pulsating sound from the

compressor when refrigerant is pumped.

• A sudden cracking noise from inside

appliance caused by thermic dilatation (a

natural and not dangerous physical

phenomenon).

• A faint click noise from the temperature

regulator when the compressor switches on

or off.

Hints for energy saving

• Do not open the door frequently or leave it

open longer than absolutely necessary.

• If the ambient temperature is high and the

Temperature Regulator is set to low

temperature and the appliance is fully

loaded, the compressor may run

continuously, causing frost or ice on the

evaporator. If this happens, set the

Temperature Regulator toward warmer

settings to allow automatic defrosting and so

a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating

liquids in the refrigerator

• do cover or wrap the food, particularly if it

has a strong flavour

• position food so that air can circulate freely

around it

Hints for refrigeration

Useful hints:

• Meat (all types) : wrap in polythene bags and

place on the glass shelf above the vegetable

drawer.

• For safety, store in this way only one or two

days at the most.

• Cooked foods, cold dishes, etc..: these

should be covered and may be placed on

any shelf.

• Fruit and vegetables: these should be

thoroughly cleaned and placed in the special

drawer(s) provided.

• Butter and cheese: these should be placed

in special airtight containers or wrapped in

aluminium foil or polythene bags to exclude

as much air as possible.

• Bottles: these need a cap and should be

stored on the door bottle shelf, or (if

equipped) on the bottle rack.

• Bananas, potatoes, onions and garlic, if not

packed, must not be kept in the refrigerator.

Care and cleaning

WARNING!

Refer to Safety chapters.

General warnings

CAUTION!

Unplug the appliance before

carrying out any maintenance

operation.

6 www.zanussi.com

This appliance contains

hydrocarbons in its cooling unit;

maintenance and recharging must

therefore only be carried out by

authorized technicians.

The accessories and parts of the

appliance are not suitable for

washing in a dishwasher.

Periodic cleaning

CAUTION!

Do not pull, move or damage any

pipes and/or cables inside the

cabinet.

CAUTION!

Take care of not to damage the

cooling system.

CAUTION!

When moving the cabinet, lift it by

the front edge to avoid scratching

the floor.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with

lukewarm water and some neutral soap.

2. Regularly check the door seals and wipe

clean to ensure they are clean and free from

debris.

3. Rinse and dry thoroughly.

4. If accessible, clean the condenser and the

compressor at the back of the appliance

with a brush.

This operation will improve the performance

of the appliance and save electricity

consumption.

Defrosting of the refrigerator

Frost is automatically eliminated from the

evaporator of the refrigerator compartment

every time the motor compressor stops, during

normal use. The defrost water drains out

through a trough into a special container at the

back of the appliance, over the motor

compressor, where it evaporates.

It is important to periodically clean the defrost

water drain hole (F) situated under the salad

drawers to prevent the water overflowing and

dripping onto the food inside. Use the special

cleaner provided (P), which you will find already

inserted into the drain hole.

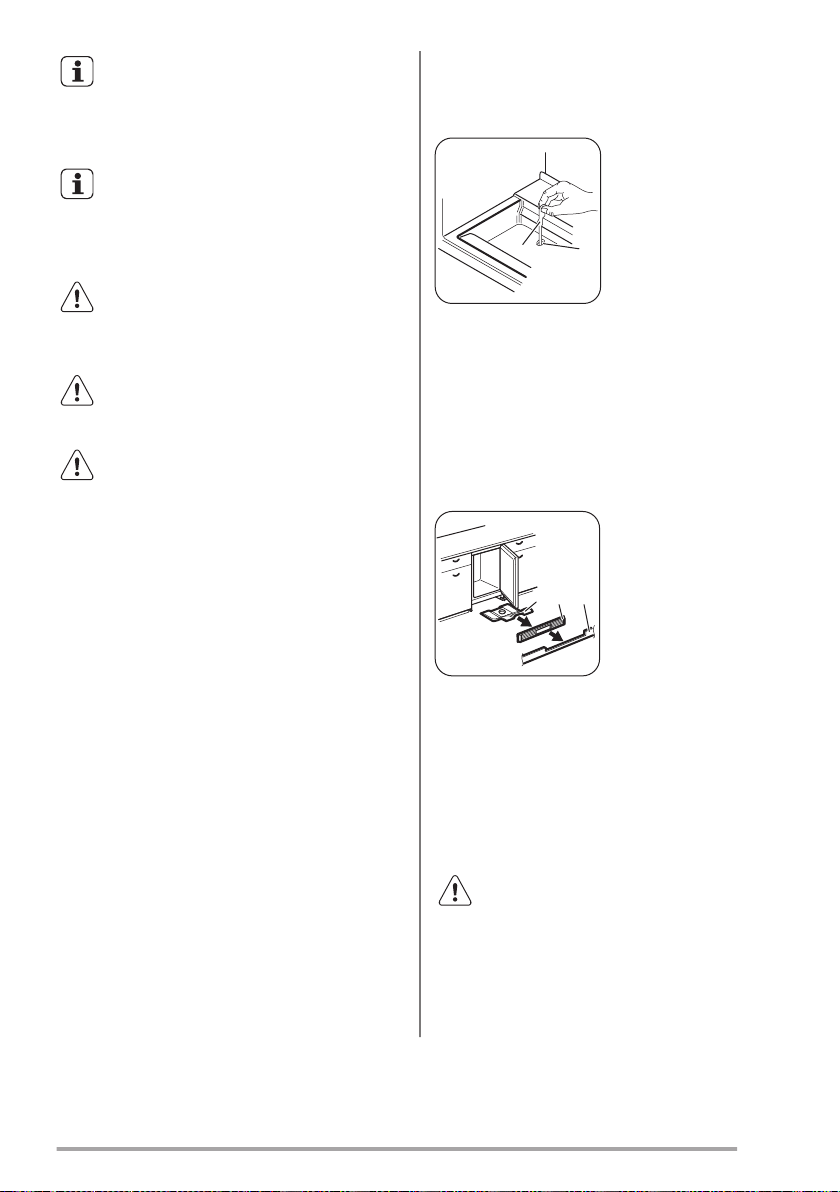

Cleaning the air channels

1. Remove the plinth (A), then the ventilation

grille (B).

2. Clean the ventilation grille.

3. Carefully pull the air deflector out (C),

checking that there is no water left from the

defrosting.

4. Clean the lower part of the appliance with a

vacuum cleaner.

C AB

Periods of non-operation

When the appliance is not in use for long

periods, take the following precautions:

1. Disconnect the appliance from electricity

supply.

2. Remove all food.

3. Leave the door/doors open to prevent

unpleasant smells.

WARNING!

If the cabinet will be kept on, ask

somebody to check it once in a

while to prevent the food inside from

spoiling in case of a power failure.

www.zanussi.com 7

Troubleshooting

WARNING!

Refer to Safety chapters.

What to do if...

Problem Possible cause Solution

The appliance does not operate. The appliance is switched off. Switch on the appliance.

The mains plug is not connected

to the mains socket correctly. Connect the mains plug to the

mains socket correctly.

There is no voltage in the mains

socket. Connect a different electrical ap-

pliance to the mains socket. Con-

tact a qualified electrician.

The appliance is noisy. The appliance is not supported

properly. Check if the appliance stands

stable.

The lamp does not work. The lamp is in stand-by. Close and open the door.

The lamp is defective. Refer to "Replacing the lamp".

The compressor operates contin-

ually. Temperature is set incorrectly. Refer to "Operation" chapter.

Many food products to be frozen

were put in at the same time. Wait some hours and then check

the temperature again.

The room temperature is too

high. Refer to climate class chart on

the rating plate.

Food products placed in the ap-

pliance were too warm. Allow food products to cool to

room temperature before storing.

The door is not closed correctly. Refer to "Closing the door".

Water flows into the refrigerator. The water outlet is clogged. Clean the water outlet.

Food products prevent that water

flows into the water collector. Make sure that food products do

not touch the rear plate.

The temperature in the appliance

is too low/too high. The temperature regulator is not

set correctly. Set a higher/lower temperature.

The door is not closed correctly. Refer to "Closing the door".

The food products' temperature

is too high. Let the food products tempera-

ture decrease to room tempera-

ture before storage.

Many food products are stored at

the same time. Store less food products at the

same time.

The door has been opened often. Open the door only if necessary.

8 www.zanussi.com

Problem Possible cause Solution

There is no cold air circulation in

the appliance. Make sure that there is cold air

circulation in the appliance.

If the advice does not lead to the

desired result, call the nearest

Authorized Service Centre.

Replacing the lamp

Disconnect the plug from the mains socket.

1. Remove the screw from the lamp cover.

2. Remove the lamp cover (refer to the

illustration).

3. Replace the used lamp with a new lamp of

the same power and specifically designed

for household appliances (the maximum

power is shown on the lamp cover).

4. Install the lamp cover.

5. Tighten the screw to the lamp cover.

6. Connect the plug to the mains socket.

7. Open the door.

Make sure that the light comes on.

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to

"Installation".

3. If necessary, replace the defective door

gaskets. Contact the Authorised Service

Centre.

Installation

WARNING!

Refer to Safety chapters.

Location

Refer to the assembly instructions

for the installation.

To ensure best performance, install the

appliance well away from sources of heat such

as radiators, boilers, direct sunlight etc. Make

sure that air can circulate freely around the back

of the cabinet.

Positioning

This appliance can be installed in a dry, well

ventilated indoor where the ambient

temperature corresponds to the climate class

indicated on the rating plate of the appliance:

Climate

class Ambient temperature

SN +10°C to + 32°C

Climate

class Ambient temperature

N +16°C to + 32°C

ST +16°C to + 38°C

T +16°C to + 43°C

Some functional problems might

occur for some types of models

when operating outside of that

range. The correct operation can

only be guaranteed within the

specified temperature range. If you

have any doubts regarding where to

install the appliance, please turn to

the vendor, to our customer service

or to the nearest Authorised Service

Centre.

www.zanussi.com 9

Electrical Connection

CAUTION!

Any electrical work required to install

this appliance should be carried out

by a qualified electrician or

competent person.

WARNING!

This appliance must be earthed.

The manufacturer declines any

liability should these safety

measures not be observed.

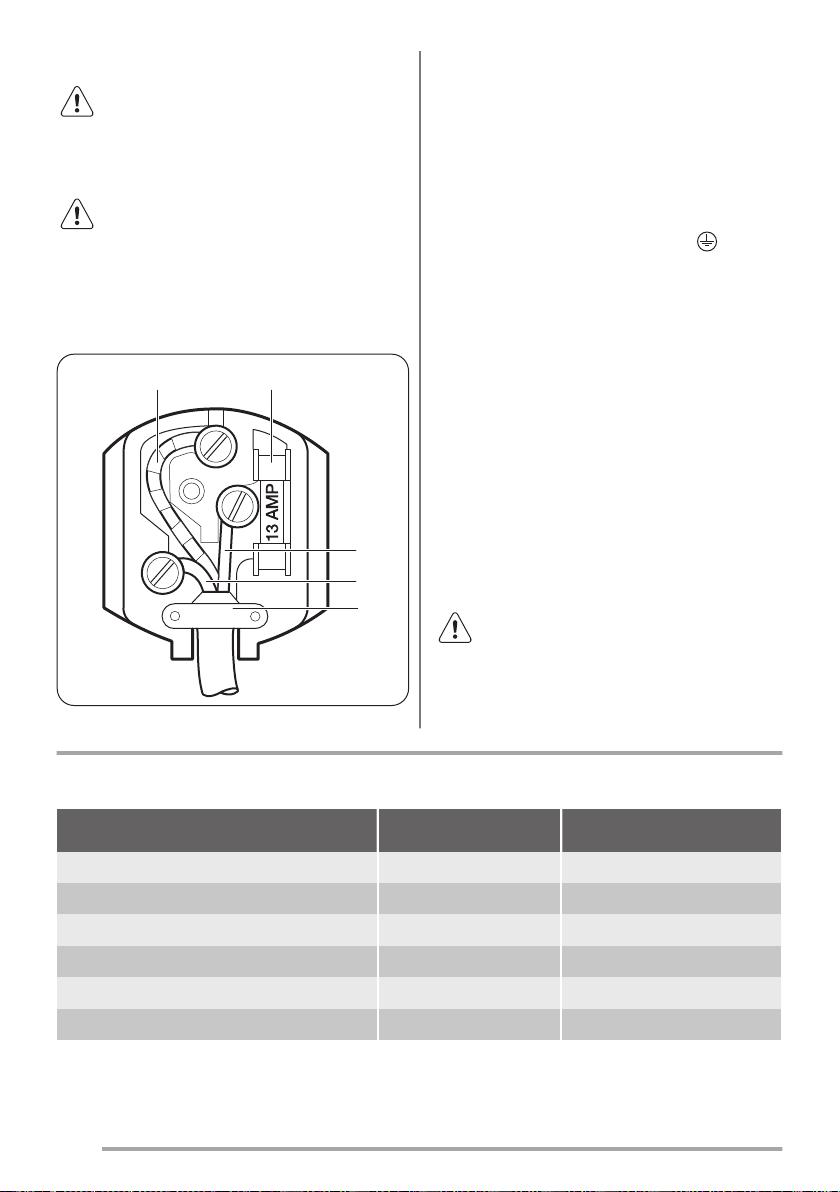

The wires in the mains lead are coloured in

accordance with the following code:

A B

•A- green and yellow: Earth

•C- brown: Live

•D- blue: Neutral

As the colours of the wires in the mains lead of

this appliance may not correspond with the

coloured markings identifying the terminals in

your plug, proceed as follows:

1. Connect the wire coloured green and

yellow to the terminal marked either with the

letter “E“ or by the earth symbol or

coloured green and yellow.

2. Connect the wire coloured blue to the

terminal either marked with the letter “N“ or

coloured black.

3. Connect the wire coloured brown to the

terminal either marked with the “L“ or

coloured red.

4. Check that no cut, or stray strands of wire is

present and the cord clamp (E) is secure

over the outer sheath.

Make sure the electricity supply voltage is

the same as that indicated on the appliance

rating plate.

5. Switch on the appliance.

The appliance is supplied with a 13 amp fuse

(B). In the event of having to change the fuse in

the plug supplied, a 13 amp ASTA approved

(BS 1362) fuse must be used.

WARNING!

A cut off plug inserted into a 13 amp

socket is a serious safety (shock)

hazard. Ensure that it is disposed of

safely.

Technical information

Technical data

Dimensions of the recess

Height mm 815

Width mm 596

Depth mm 550

Voltage Volts 230 - 240

Frequency Hz 50

10 www.zanussi.com

Inhaltsverzeichnis

Andere Zanussi Kühlschrank Handbücher

Zanussi

Zanussi ZR 100 TF Bedienungsanleitung

Zanussi

Zanussi ZD 22/5 BO Bedienungsanleitung

Zanussi

Zanussi ZRG714SW Bedienungsanleitung

Zanussi

Zanussi ZBA15021SA Bedienungsanleitung

Zanussi

Zanussi ZFK 18/8 Bedienungsanleitung

Zanussi

Zanussi ZTB2000A-A Bedienungsanleitung

Zanussi

Zanussi ZRT 143W1 Bedienungsanleitung

Zanussi

Zanussi Roll In- Pass Through 726515 Bedienungsanleitung

Zanussi

Zanussi ZXAN13FW0 Bedienungsanleitung

Zanussi

Zanussi ZRC 328WO Bedienungsanleitung

Zanussi

Zanussi ZG21/10PR-ZB21/10PR Bedienungs- und Sicherheitshinweise

Zanussi

Zanussi ZRT 6646S Bedienungsanleitung

Zanussi

Zanussi ZBA7190A Bedienungsanleitung

Zanussi

Zanussi ZFC 56/48 Bedienungsanleitung

Zanussi

Zanussi ZUD 9154 A Bedienungsanleitung

Zanussi

Zanussi ZX 57/3 SI Bedienungsanleitung

Zanussi

Zanussi ZK 20/8 R Bedienungsanleitung

Zanussi

Zanussi ZDC76/4 Bedienungsanleitung

Zanussi

Zanussi ZRA40102WA Bedienungsanleitung

Zanussi

Zanussi ZRA40100WA Bedienungsanleitung

Zanussi

Zanussi Activeself 332021 Bedienungsanleitung

Zanussi

Zanussi ZA96/3W Bedienungsanleitung

Zanussi

Zanussi ZBB 6286 Bedienungsanleitung

Zanussi

Zanussi ZRT18101WA Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
