Zanussi ZHC 951 Leitfaden

Cappa

Cooker hood

Hotte de cuisine

Dunstabzugshaube

Dampkap

MANUALE DI INSTALLAZIONE, USO E MANUTENZIONE

INSTALLATION, USE AND MAINTENANCE HANDBOOK

MANUEL D’INSTRUCTIONS POUR L’INSTALLATION, L’EMPLOI ET L’ENTRETIEN

HANDBUCH FÜR INSTALLATION, BEDIENUNG UND WARTUNG

INSTRUCTIES VOOR MONTAGE, GEBRUIK EN ONDERHOUD

ZHC 951

11GB

CONTENTS

Dear Customer,

If you follow the recommendations

contained in this Instruction Manual,

your appliance will give you constant

high performance and will remain

efficient for many years to come.

RECOMMENDATIONS AND SUGGESTIONS 12

CHARACTERISTICS 13

INSTALLATION 15

USE 18

MAINTENANCE 19

12GB

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

•The manufacturer will not be held liable for any damages resulting

from incorrect or improper installation.

•The minimum safety distance between the cooker top and the

extractor hood is 650 mm.

•Check that the mains voltage corresponds to that indicated on the

rating plate fixed to the inside of the hood.

•For Class I appliances, check that the domestic power supply

guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of

minimum diameter 120 mm. The route of the flue must be as short

as possible.

•Do not connect the extractor hood to exhaust ducts carrying

combustion fumes (boilers, fireplaces, etc.).

•Iftheextractorisusedinconjunctionwithnon-electricalappliances

(e.g. gas burning appliances), a sufficient degree of aeration must

be guaranteed in the room in order to prevent the backflow of

exhaust gas. The kitchen must have an opening communicating

directly with the open air in order to guarantee the entry of clean

air.

USE

•The extractor hood has been designed exclusively for domestic

use to eliminate kitchen smells.

•Never use the hood for purposes other than for which it has ben

designed.

•Never leave high naked flames under the hood when it is in

operation.

•Adjust the flame intensity to direct it onto the bottom of the pan

only, making sure that it does not engulf the sides.

•Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames.

•The hood should not be used by children or persons not instructed

in its correct use.

MAINTENANCE

•Switch off or unplug the appliance from the mains supply before

carrying out any maintenance work.

•Clean and/or replace the Filters after the specified time period.

•Clean the hood using a damp cloth and a neutral liquid detergent.

650 mm min.

13GB

CHARACTERISTICS

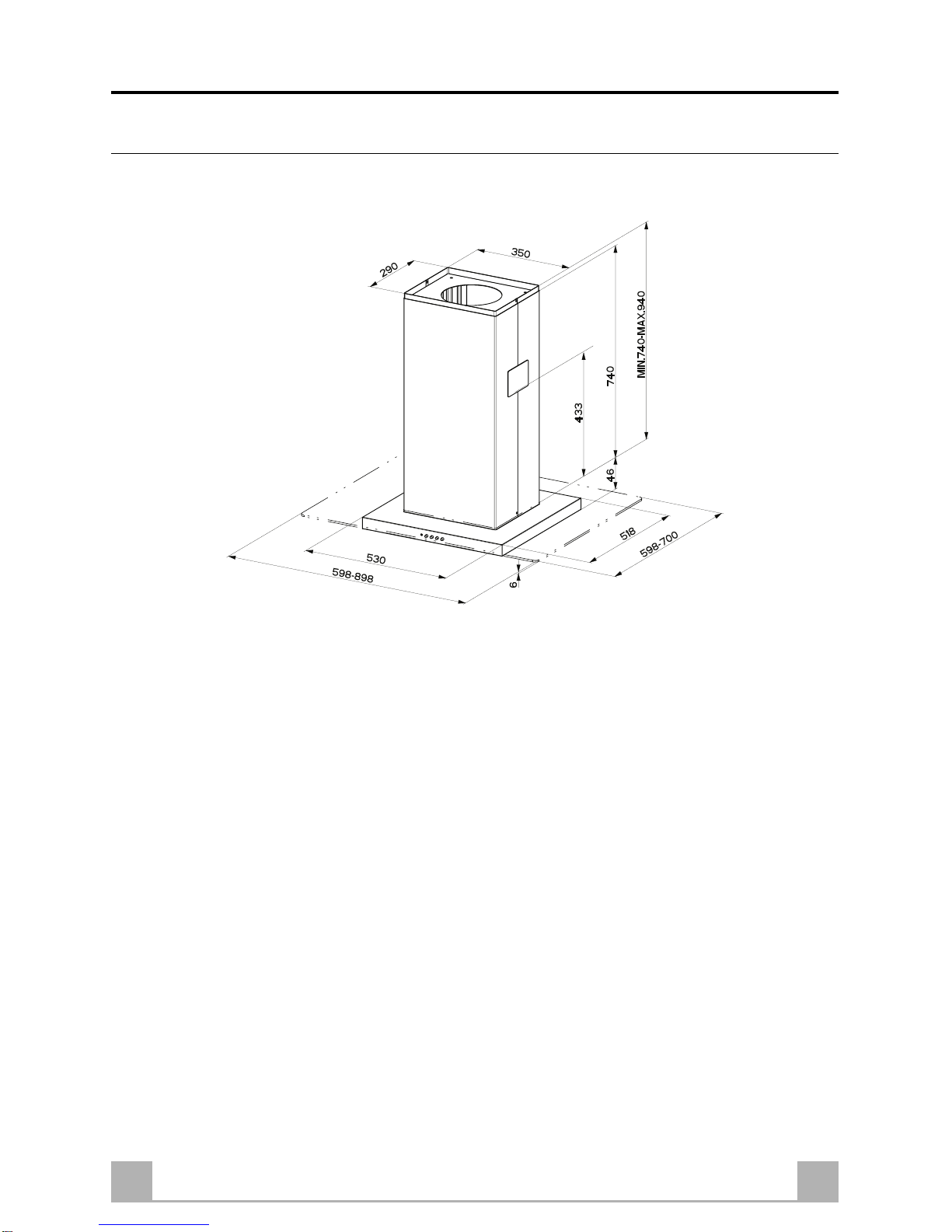

Dimensions

14GB

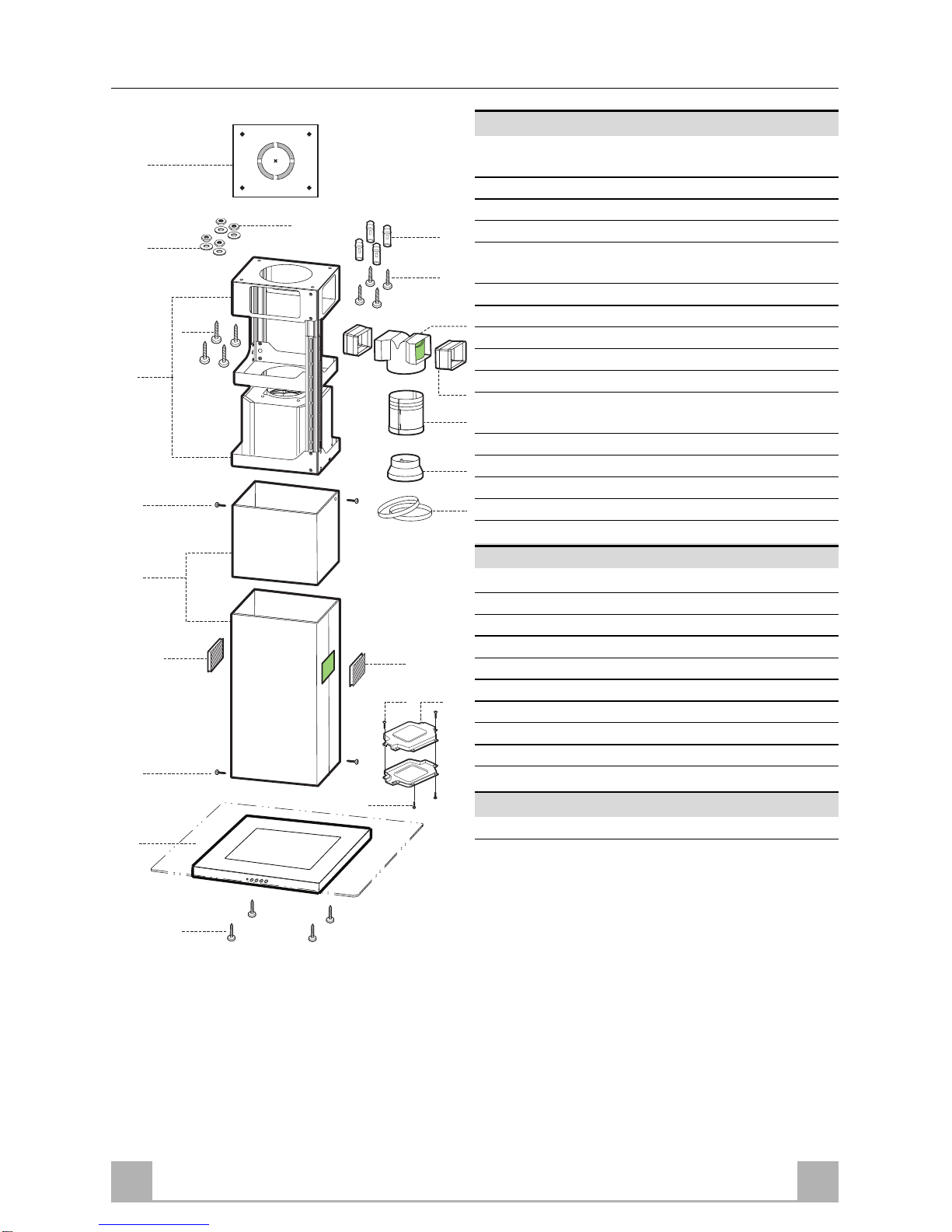

Components

Ref. Q.ty Pro uct Components

11 Hood Body, complete with: Controls, Light,

Blower, Filters

21 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

7.1 1 Telescopic fr me complete with extr ctor,

consisting of:

7.1a 1 Upper fr me

7.1b 1 Lower fr me

8a 1 Right Air Outlet Grill

8b 1 Left Air Outlet Grill

91 Reducer Fl nge ø 150-120 mm

14 1 Hood Body Air Outlet Extension Piece

consisting of two H lf Shells

14.1 1 Air Outlet Connection Extension

15 1 Air Outlet Connection

24 1 Junction box

25 2 Pipe cl mps

Ref. Q.ty Installation Components

11 4 W ll Plugs ø 10

12c 6 Screws 2,9 x 9,5

12e 2 Screws 2,9 x 6,5

12f 4 Screws M6 x 10

12g 4 Screws M6 x 80

12h 4 Screws 5,2 x 70

21 1 Drilling templ te

22 4 6.4 mm int. di w shers

23 4 M6 nuts

Q.ty Documentation

1 Instruction M nu l

7.1a

7.1

12h

7.1b

2.1

2.2

8b 8a

12c

12g

12e

12c

14.1

12c

12f

15GB

INSTALLATION

Drilling the Ceiling/shelf an fixing the frame

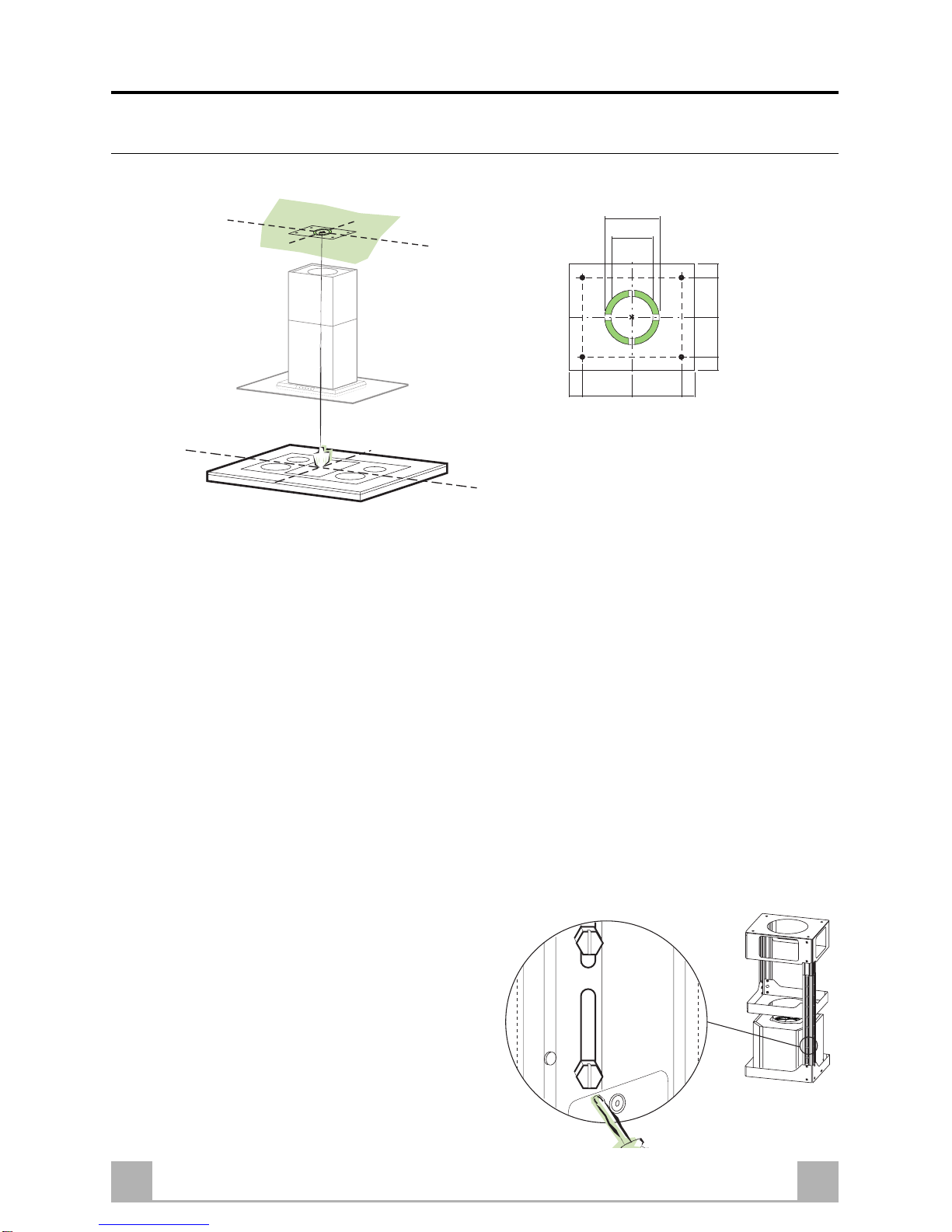

DRILLING THE CEILING/SHELF

•Use a plumb line to mark the centre of the hob on the ceiling/support shelf.

•Place the drilling template 21provided on the ceiling/support shelf, making sure that the template

is in the correct position by lining up the axes of the template with those of the hob.

•Mark the centres of the holes in the template.

•Drill the holes at the points marked:

•For concrete ceilings, drill for plugs appropriate to the screw size.

•For hollow brick ceilings with wall thickness of 20 mm: drill ø10 mm.

•For wooden beam ceilings, drill according to the wood screws used.

•For wooden shelf, drill ø7 mm.

•For the power supply cable feed, drill ø10 mm.

•For the air outlet (Ducted Version), drill according to the diameter of the external air exhaust

duct connection.

FIXING THE FRAME

Before fixing, separate the Upper Section 2.1 and

the Lower Section 2.2 from the Frame by

unscrewing the screws 12c, then separate the two

sections of the frame by unscrewing the 8 side

screws to obtain the Upper frame and Lower fra-

me.

16GB

Upper frame

•Align the power supply cable feed hole

•Fix the upper frame to the ceiling or shelf using:

•For concrete ceilings, use the appropriate plugs for the screw size (not provided).

•For hollow brick ceilings of wall thickness of approximately 20 mm: use 4 plugs 11 and 4

screws 12h (5,2 x 70), provided.

•For wooden beam ceilings, use 4 wood screws (not provided).

•For wooden shelf, use 4 screws 12g (M6 x 80) with washers 22 and nuts 23, provided.

Lower frame

•Fix the lower frame using the 8 previously removed screws, adjusting the length according to the

installation height (hood body lower fixing surface must be at least 710 mm from the hob).

•For the recirculation version, turn the frame in the direction chosen for the recirculated air outlet.

•The frame mountings must be secure to withstand the weight of the hood and any stresses caused

by the occasional side thrust applied to the device. On completion, check that the base is stable,

even if the frame is subjected to bending.

•In all cases where the ceiling is not strong enough at the suspension point, the installer must

provide strengthening using suitable plates and backing pieces anchored to the structurally sound

parts.

Connections

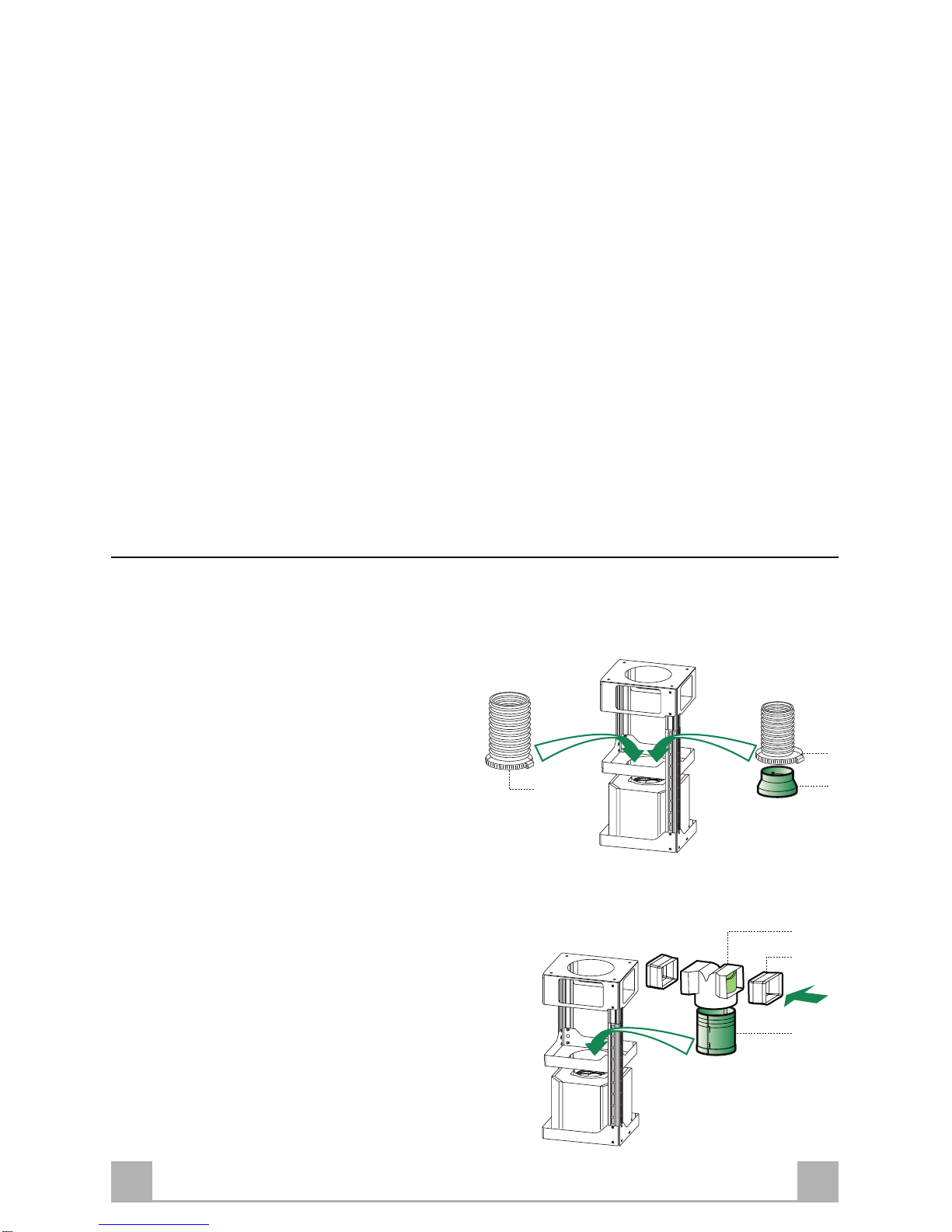

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid

pipe ø150 or 120 mm, the choice of which is left to the installer.

•To install a ø120 mm air exhaust connection,

insert the reducer flange 9on the hood body

outlet.

•Fix the pipe using the pipe clamps 25 provided.

•Remove any activated charcoal filters.

RECIRCULATION VERSION AIR OUTLET

•Assemble the two halves of the hood body

extension piece 14.

•Push fit the assembled hood body extension

piece 14 onto the air outlet.

•Push fit connection 15 onto the hood body

extension piece 14.

•Insert the connection extension pieces laterally

14.1 in connection 15.

ø 150 ø 120

14.1

17GB

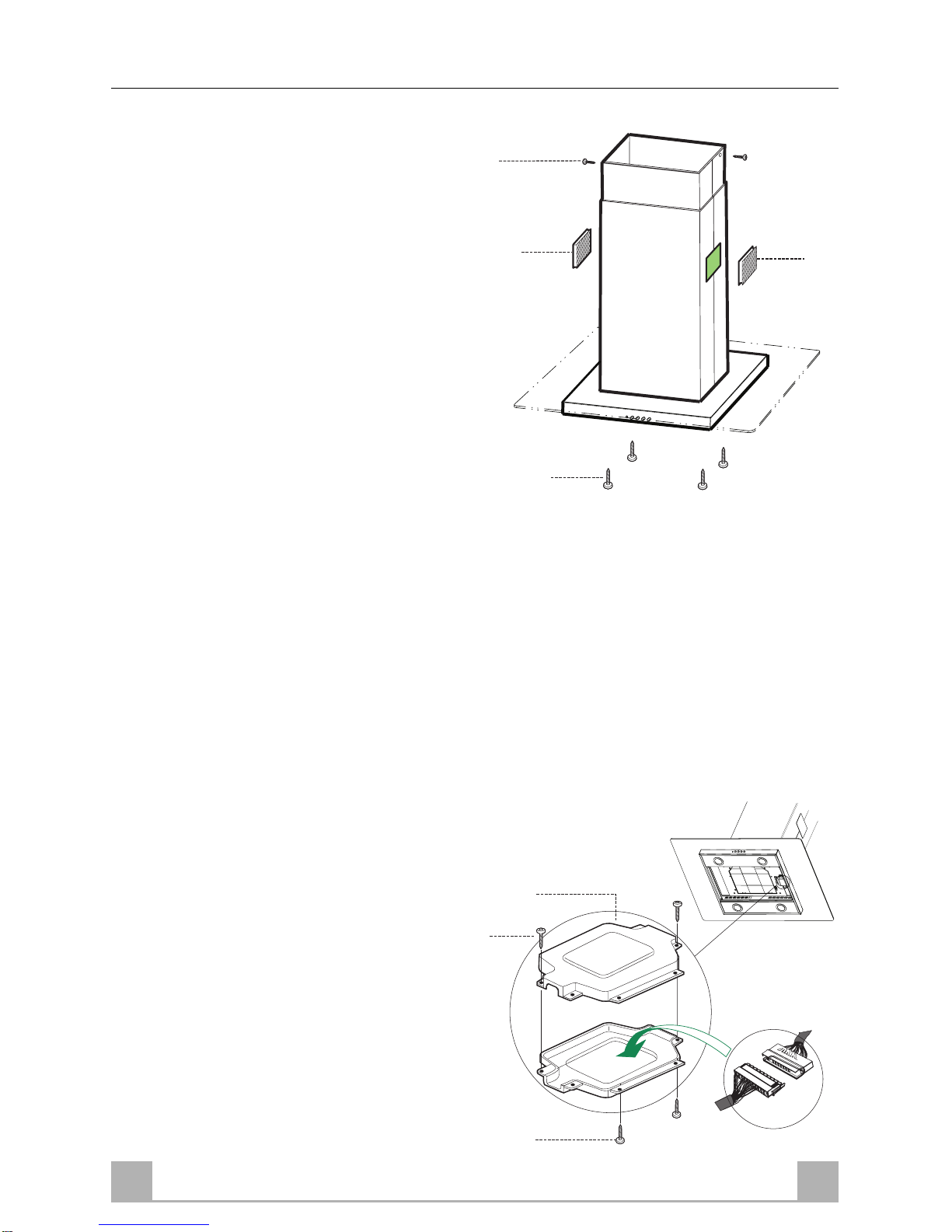

Flue assembly - Mounting the hoo bo y

•Position the upper chimney section and fix the

upper part to the frame using the 2 screws 12c

(2,9 x 9,5) provided.

•Similarly, position the lower chimney section

and fix the lower part to the frame using the 2

screws 12c (2,9 x 9,5) provided.

Recirculation version

•Make sure that the outlet of the extension pieces

14.1 is horizontally and vertically aligned with

the chimney outlets.

•Ifthis is not thecase, remove the lowerchimney

section and adjust the position by either

reversing the connection extension pieces 14.1

or by cutting the hood body extension 14 along

one of the thinner section channels denoting the

pre-fixed lengths, then reassemble as described

previously.

•Fit the directional grids 8a-8bin their housings

making sure that the directional symbols are

towards the top. Also make sure that they are

correctly inserted in the connection extension

pieces 14.1.

Before fixing the hood body to the frame:

•Remove the grease filters from the hood body.

•Remove any activated charcoal filters.

•From below, use the 4 screws 12f (M6 x 10)

provided to fix the hood body to the frame.

ELECTRICAL CONNECTION

•Connect the hood to the mains through a two-

pole switch having a contact gap of at least 3

mm.

•Connect the control connector Cmd.

•Place the connector in the junction box 24 and

close it using the 2 screws 12e (2,9 x 6,5)

provided.

•Fix the junction box to the hood body using the

2 screws 12c (2,9 x 9,5) provided.

•For the recirculation version, fit the activated

carbon odour filter.

•Replace the grease filters.

8b 8a

12c

12f

12e

Cmd

12c

18GB

USE

Control panel

LLight Switches the lighting system on and off.

SLed Motor running led.

V1 Motor Switches the extractor motor on and off at low speed. Used to provide a contin-

uos and silent air change in the presence of light cooking vapours.

V2 Speed Medium speed, suitable for most operating conditions given the optimum treated

air flox/noise level ratio.

V3 Intensive Maximum speed, used for eliminating the highest cooking vapour emission,

including long period.

V1 V2 V3

19GB

MAINTENANCE

Grease filters

CLEANING METAL GREASE FILTERS

•The filters must be cleaned every 2 months of

operation, or more frequently for particularly

heavyusage,andcanbewashedinadishwasher.

•Removethefiltersoneatatimebypushingthem

towards the back of the group and pulling down

at the same time.

•Wash the filters, taking care not to bend them.

Allow them to dry before refitting.

•When refitting the filters, make sure that the

handle is visible on the outside.

Activate charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

•The filter is not washable and cannot be

regenerated and must be replaced at least every

4 months of operation, or more frequently for

particularly heavy usage.

•Remove the metal grease filters

•Remove the saturated activated carbon filter by

releasing the fixing hooks

•Fit the new filter by hooking it into its seating

•Replace the metal grease filters.

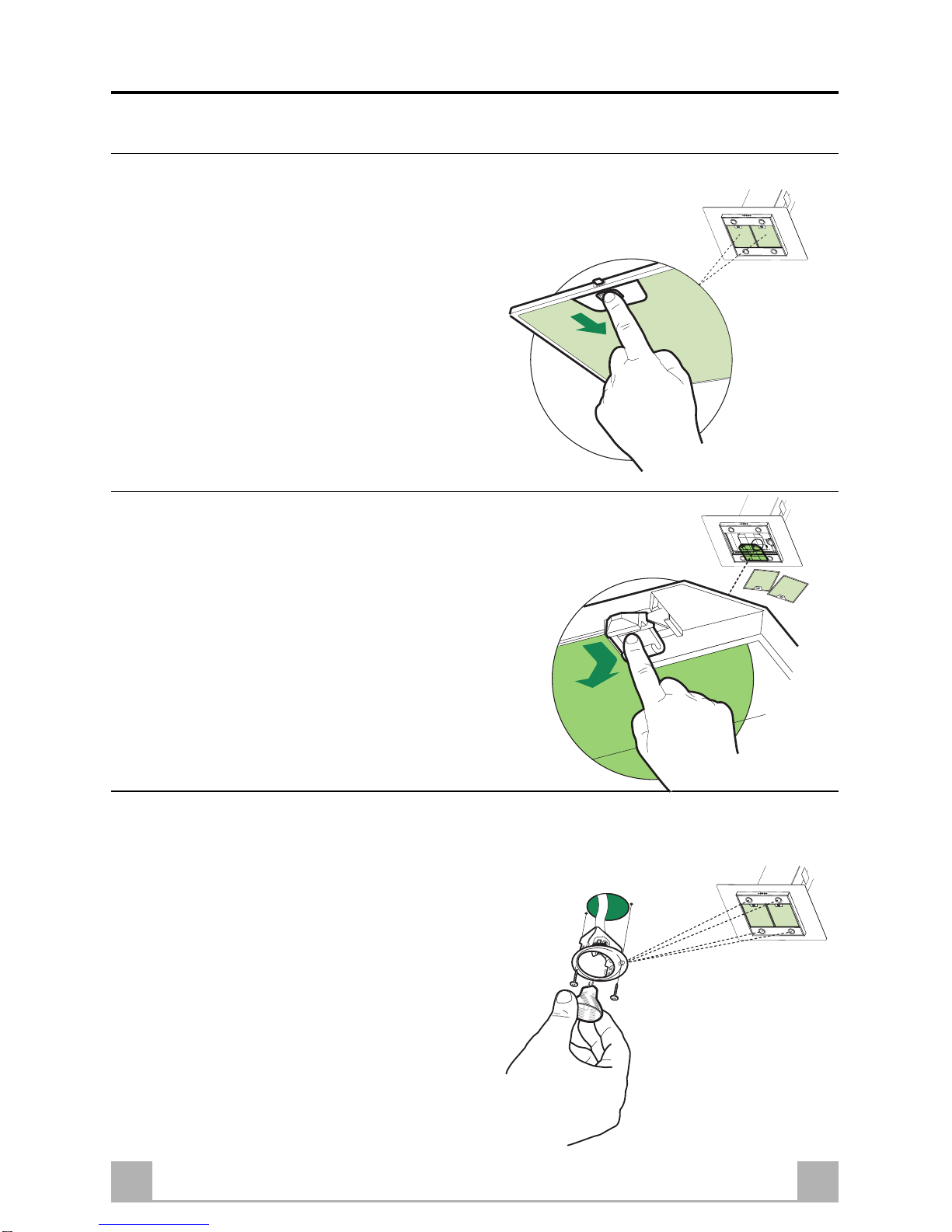

Lighting

LIGHT REPLACEMENT

20 W halogen light.

•Remove the 2 screws fixing the Lighting

support, and pull it out of from the Hood.

•Extract the lamp from the Support.

•Replace with another of the same type, making

sure that the two pins are properly inserted in

the lamp holder socket holes.

•Replace the Support and fix it in place with the

two Screws removed as above.

Andere Handbücher für ZHC 951

Andere Zanussi Dunstabzugshaube Handbücher

Zanussi

Zanussi ZFT919Y Bedienungsanleitung

Zanussi

Zanussi ZB 350 Bedienungsanleitung

Zanussi

Zanussi ZHC 95 ALU Bedienungsanleitung

Zanussi

Zanussi Block 642345 Bedienungsanleitung

Zanussi

Zanussi ZHC960 Bedienungsanleitung

Zanussi

Zanussi ZHT660 Bedienungsanleitung

Zanussi

Zanussi ZHI 623 Handbuch

Zanussi

Zanussi ZHG51251G Bedienungsanleitung

Zanussi

Zanussi ZHC 916X Bedienungsanleitung

Zanussi

Zanussi IH6013 Montageanleitung

Zanussi

Zanussi ZHC4284 Bedienungsanleitung

Zanussi

Zanussi ZHC 9254X Bedienungsanleitung

Zanussi

Zanussi ZHC66540 Bedienungsanleitung

Zanussi

Zanussi Professional Export 642011 Bedienungsanleitung

Zanussi

Zanussi Professional Master 642121 Bedienungsanleitung

Zanussi

Zanussi ZFT919Y Bedienungsanleitung

Zanussi

Zanussi ZHS92551XA Bedienungsanleitung

Zanussi

Zanussi ZHP 60131 Bedienungsanleitung

Zanussi

Zanussi ZB 960 Bedienungsanleitung

Zanussi

Zanussi ZHB92670KA Bedienungsanleitung

Zanussi

Zanussi Professional Master 642063 Bedienungsanleitung

Zanussi

Zanussi Supertredil 640040 Bedienungsanleitung

Zanussi

Zanussi ZHC96540 Bedienungsanleitung

Zanussi

Zanussi ZFV819K Bedienungsanleitung

Beliebte Dunstabzugshaube Handbücher anderer Marken

emmeti

emmeti RECUPA MED A-140 Leitfaden

Nibe

Nibe F135 Bedienungsanleitung

Kuppersberg

Kuppersberg INTRO 60 Montage- und Wartungsanleitung

Zephyr

Zephyr Spruce AK9834BS Installationsanleitung

Hisense

Hisense MH6INBG Bedienungsanleitung

Miele

Miele DA 1255 Bedienungsanleitung

Broan

Broan 46000 Bedienungsanleitung

GE Profile PV977 Originalbetriebsanleitung

FALMEC

FALMEC FFRIA24W5FS Bedienungsanleitung

Whirlpool

Whirlpool RH2600XL-1 SERIES Bedienungsanleitung

Küppersbusch

Küppersbusch DX ISLA Bedienungsanleitung

ETNA

ETNA AV360RVS Bedienungsanleitung

JUNO

JUNO JDF603E6 Bedienungsanleitung

Miele

Miele DA 6708 D Bedienungsanleitung

Tricity Bendix

Tricity Bendix LE 150 Handbuch

AEG

AEG X68163BV1 Bedienungsanleitung

AEG

AEG 125 D Bedienungsanleitung

Smeg

Smeg KSEV97X Bedienungsanleitung
