V1100 User Manual

- CONTENT -

Safety Instruction ……………………………………………………………………………….…...1

Minimum System Requirement & Product Feature ……………………….……………….……..3

System Requirement ........................................................................................................................ 3

Product Feature ……………………….…….………….…………………………………………..4

Main Page………………………...…………………………………….……………………………..5

Basic Setup ...........................................................................................................................................8

Account .............................................................................................................................................8

Network .............................................................................................................................................9

Date Time ........................................................................................................................................12

Video................................................................................................................................................13

Audio................................................................................................................................................14

Live View.............................................................................................................................................15

Video................................................................................................................................................15

Audio................................................................................................................................................15

Camera Setting.................................................................................................................................15

PTZ Setting .....................................................................................................................................16

Playback .............................................................................................................................................17

Client PC..........................................................................................................................................17

Network Storage...............................................................................................................................18

Local Storage ...................................................................................................................................18

Event ...................................................................................................................................................18

Event Server ....................................................................................................................................18

Event List ........................................................................................................................................19

Audio Detection ..............................................................................................................................20

Motion Detection..............................................................................................................................21

Schedule ..........................................................................................................................................21

System .................................................................................................................................................21

Maintenance ....................................................................................................................................21

Date Time ........................................................................................................................................22

Security ............................................................................................................................................22

Network Basic .................................................................................................................................23

Network Advanced..........................................................................................................................23

Digital I/O .......................................................................................................................................24

LED .................................................................................................................................................24

System Log.......................................................................................................................................24

V1100 User Manual

Safety Instruction

Before you use this product

This product has been designed with safety in mind. However, the electrical products can cause fires

which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed

the following.

Legal Caution

Video and audio surveillance can be forbidden by laws that vary from country to country. Check the

laws in your local region before using this product for surveillance purposes.

Don't open the housing of the product

Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage

or other hazards.

Don't use the accessories not recommend by the manufacturer

Heed the safety precautions

Be sure to follow the general safety precautions and the “Operation Notice.”

Operation Notice - Operating or storage location

Avoid operating or storing the Video Server in the following locations:

Extremely hot or cold places

(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )

Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)

Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)

Close to sources of strong magnetism

Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters

Locations subject to strong vibration or shock

V1100 User Manual

In case of a breakdown

In case of system breakdown, discontinue use and contact your authorized dealer.

In case of abnormal operation

If the unit emits smoke or an unusual smell,

If water or other foreign objects enter the cabinet, or

If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2

Contact your authorized dealer or the store where you purchased the product.

Transportation

When transporting the Video Server, repack it as originally packed at the factory or in materials of

equal quality.

Ventilation

To prevent heat buildup, do not block air circulation around the device.

Cleaning

Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be

removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.

Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the

surface.

V1100 User Manual

MinimumSystemRequirement&ProductFeature

System Requirement

For normal operation and viewing of the Video Server, it’s recommended that your system meet

these minimum requirements for proper operation:

Item

Requirements

CPU

Minimum Intel® Core 2 Duo or higher (Core i3 or above is

recommended)

Graphic Card

256 MB RAM graphic cards (or equivalent on-board graphic cards)

RAM

Minimum 1 GB of RAM,(2GB or above is recommended)

Operating System

Window 2000, 2003, XP, Vista or Windows 7

Mac OS Leopard 10.5

Web Browser

Internet Explore 6 or later

Note:

1. If using Windows 98 or Windows ME, please install IPInstaller before using WEB UI to

ensure the system runs normally.

2. If not able to view the recorded video file, please install Xvid codec while installing

Intelligent IPInstaller. (For Windows 98, ME or 2000 server, the codec might not work

properly. Please download Xvid codec 1.0 from the internet.)

3. Please always updating the latest Windows software and service package. (Ex: Net

Framework, Windows Media Player, Enhance ActiveX Security)

V1100 User Manual

Product Feature

SYSTEM

Resolutions

NTSC: 704x480

PAL: 704x576

Compressing format

H.264 / MPEG-4 / Motion JPEG

Max Frame Rate

30fps (NTSC)

25fps (PAL)

Image settings

Rotation: Mirror, Flip, Mirror Flip

Brightness / Contrast / Saturation / Hue

Overlay capabilities: time, date, text and privacy image

Image snapshot

Yes

Video Recording

Yes

Full Screen Viewing

Yes

Digital Zoom

10x digital

Audio

Two-way (full / half duplex) with built-in microphone

Audio compression: G.711 μ law, a law, and AMR

Mobile Phone Live View

Through 2.5 WAP

Alarm Sending

FTP Client / SMTP / Network Storage/ SD Card / HTTP Event

Security

Password Protection / HTTPS encryption / IP Filter

Alarm Buffer

Input: alarm buffer, motion detection, audio detection

Output: network storage, FTP, SMTP, Pre-and post alarm buffer

Supported protocols

Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS,

NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP, UDP, 3GPP/ISMA

RTSP

Simultaneous Connection

Up to 10 users

Operating conditions

0°C ~ 50 ℃(32℉~ 122 ℉)

V1100 User Manual

Main Page

Toolbar of Main Page

V1100 User Manual

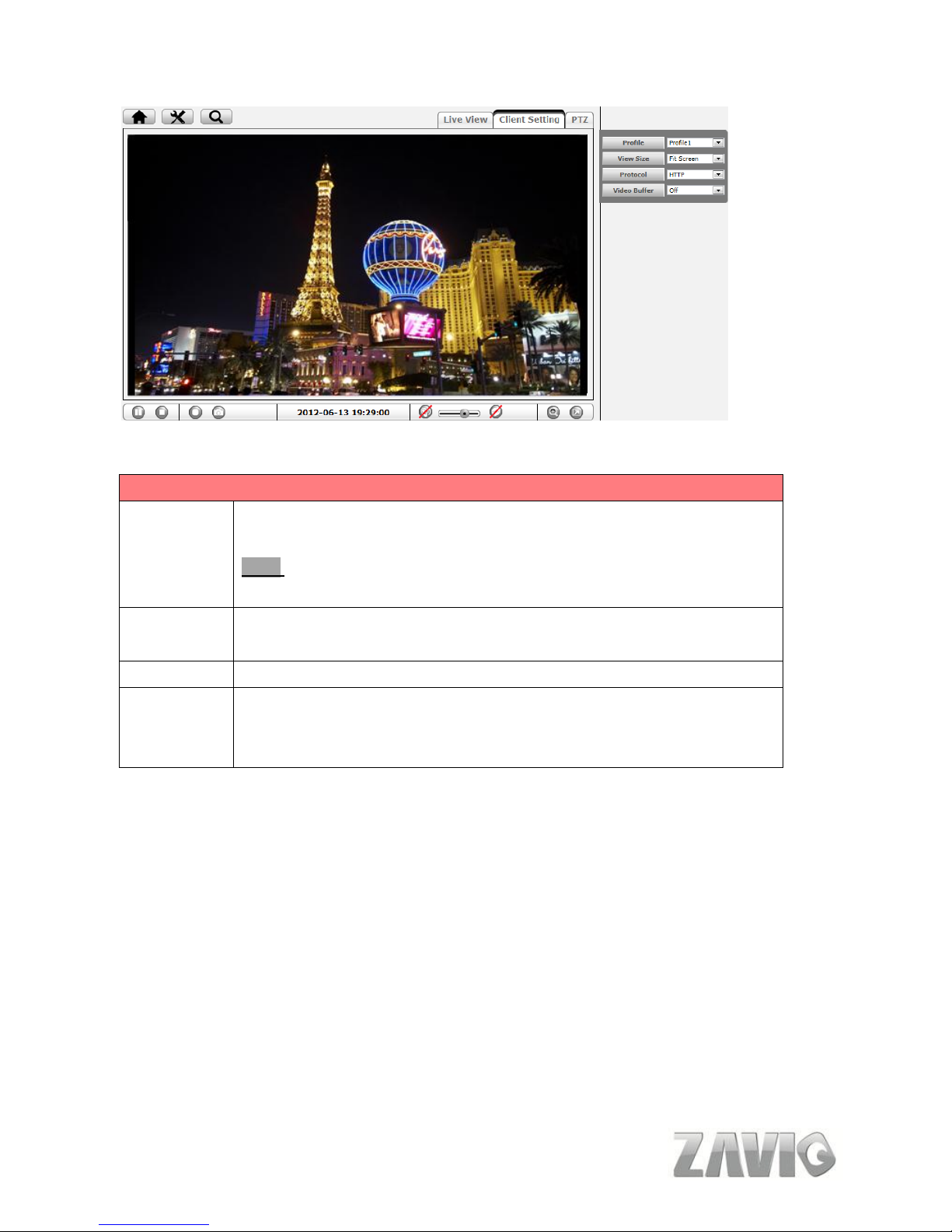

Client Setting

Profile

Click the drop-down menu to choose video compression mode of Live

View among H.264, MPEG-4, MJPEG and 3GPP.

Note: As long as the operating system is not able to afford loading under

H.264 mode, please downgrade the mode to MPEG-4 or MJPEG.

View Size

Select the desired view size of image resolution between Fit Screen

and Full Screen.

Protocol

Select the transferring protocol among TCP, UDP, and HTTP.

Video Buffer

Turn the Video Buffer function On / Off. The Video Buffer function makes

the streaming more smoothly in unsteady network environment, but might

cause a little delay in live view.

V1100 User Manual

PTZ

Click the Home button and it brings you back to the center no matter

what position you are at.

Move the camera view to the direction that the various arrows you click

on.

Preset

Use the various direction arrows to steer the camera view to the

required position, and name it for the specified position.

Patrol

Before starting this function, it requires to specify Guard tour settings in

the Setting.

Zoom

Click & to adjust the digital zoom range.

Focus

Click to turn on the manual focus mode and then click &

to control far and near focus.

Iris

Click to turn on the manual iris mode and then click &

to adjust the aperture.

OSD

Control

Click , the Speed Dome OSD menu will be show up on the live

view screen, then click Up/ Down/ Left/ Right to customize your

interface.

V1100 User Manual

Basic Setup

Account

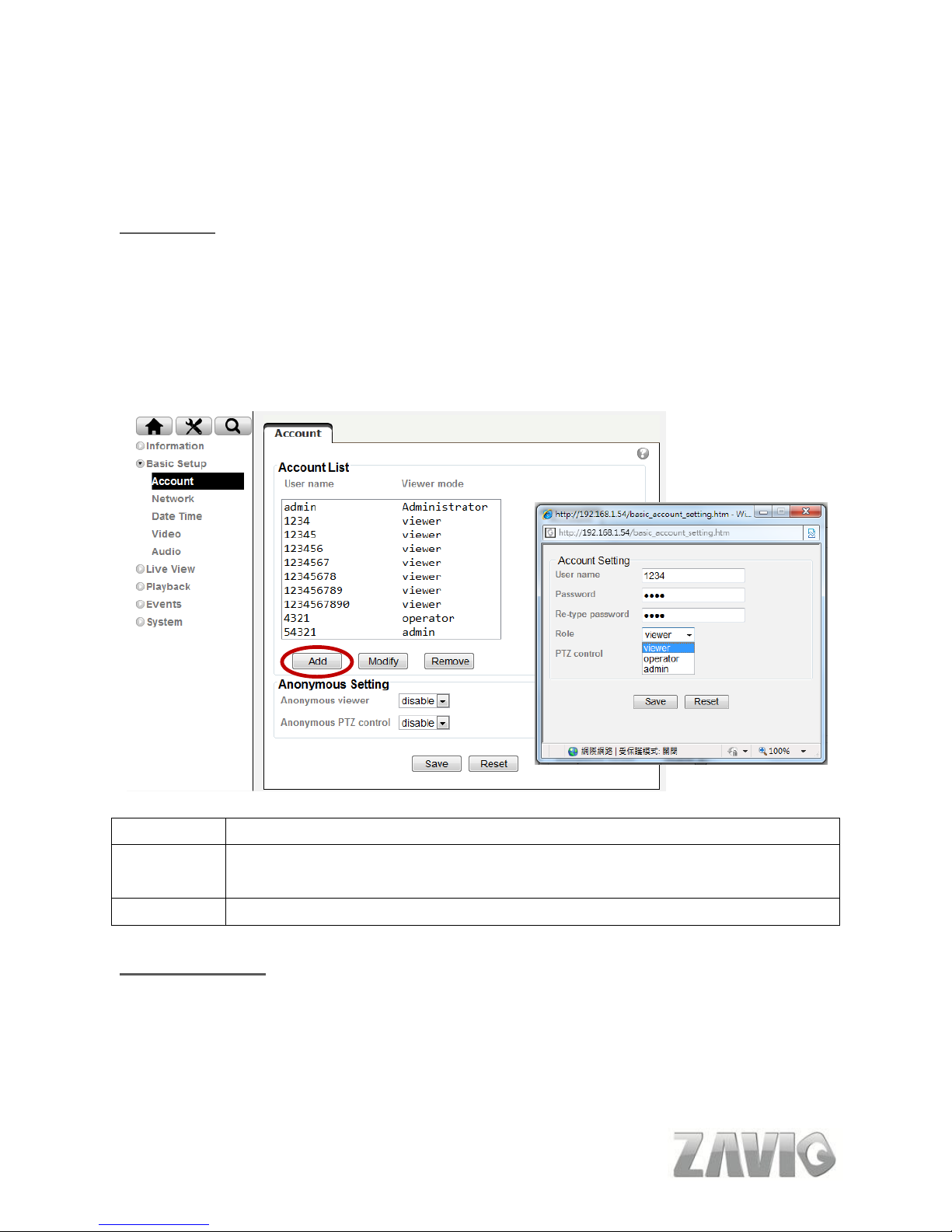

Account List

The device default account and password setting is “admin / admin”. That means everyone who

knows IP address can access the device including all configuration. It is necessary to create a new

password if the device is intended to be accessed by specific ones.

Click “Add”to create the accounts to the specific users. There are 1 default account and 9 accounts

that you may assign 3 different viewer modes as you wish. The instruction of 3 viewer modes listed

as below:

Viewer

It only allows the user to access to the Live View page.

Operator

It allows to view the Live View page, create and modify events, and adjust certain

other settings.

Administrator

It allows the user to watch the live view and access all configurations.

Anonymous Setting

There is a drop-down menu for both “Anonymous viewer” and “Anonymous PTZ control” to disable

or enable the function.
