1 - EN

ComfoClime 24

ComfoClime 36

Service manual

■Decorative radiators ■Comfortable indoor ventilation ■Heating and cooling ceiling systems ■Clean air solutions

EN - 2

This manual has been compiled with the utmost care. The publisher cannot be held liable for any damage caused as a

result of missing or incorrect information in this manual.

Table of Contents

Preface .........................................................................................................................................................................3

1 Introduction ................................................................................................................................................................3

2 ComfoClime unit internal access ..................................................................................................................................4

2.1 Access to the LEFT front coil..............................................................................................................................4

2.2 Access to the LEFT front condensation tray ........................................................................................................5

2.3 Access to the RIGHT back coil (siphon and condensation tray) ............................................................................6

2.4 Access to the RIGHT back condensation tray......................................................................................................7

2.5 Replacement of the actuators ............................................................................................................................8

3 - EN

Preface

IMPORTANT!

Carefully read this manual before use.

This manual provides all the information required for safe and optimal installation and maintenance of the ComfoClime

24 or ComfoClime 36. It is also intended as a reference for servicing, so that this can be carried out in a responsible

manner. The unit is subject to continuous development and improvement. As a result, the ComfoClime 24 or

ComfoClime 36 may slightly differ from the descriptions.

NOTE : this manual has been compiled with the utmost care. However, no rights can be derived

from it. In addition, we at all times reserve the right to change the contents of this manual, without

prior notice.

The following pictograms are used in this document:

Symbol Meaning

Point of attention / important informations.

Risk of compromised performance or damage to the ventilation system / risk of personal injury.

Consult the manual before using/operate the equipment.

1 Introduction

Zehnder ComfoClime unit can be configured as SX or DX version, via software, during the commissioning of the system.

Zehnder Group IT

Via G. di Vittorio 6

41100 Campogalliano (MO), Italy

EN - 4

2 ComfoClime unit internal access

2.1 Access to the LEFT front coil

Always comply with the safety regulations, warnings, comments and instructions given in this

document. Failure to comply with the safety regulations, instructions, warnings and comments

may lead to personal injury or damage to the unit.

In order to proceed with access to the LEFT front coil, follow the steps as described below:

Step Action

Remove the ComfoClime black top cover

Aby unhooking the 4 hooks and pulling

back using the 2 protruding corners.

Remove the white frontal panel B of

the ComfoClime, lifting it a little then

extracting the lower side. B

3Remove the front metal sheet C

unscrewing all the screws D.

5 - EN

Step Action

The coil Eis visible on the left side

(higlighted in red);

it is possible to clean it using a vacuum

cleaner or a compressor taking care

of closing the below intake of the

ComfoAir Q to avoid the dirt to fall

down into the ComfoAir Q (see after for

access to condensation tray).

CAUTION!

The supplier shall not be held liable for any damage, to things or people, caused by accidents due

to a failure to comply with the instructions provided in this manual and in the following chapters.

2.2 Access to the LEFT front condensation tray

Always comply with the safety regulations, warnings, comments and instructions given in this

document. Failure to comply with the safety regulations, instructions, warnings and comments

may lead to personal injury or damage to the unit.

In order to proceed with access to the LEFT front condensation tray, follow the steps as described below:

Step Action

1Please follow the previous sequence described in the "Paragraph 2.1 - Step 1 to 3", to get access to the

internal components.

2Unscrew the two metallic Aplates to

see the bottom of the condensation tray.

EN - 6

Step Action

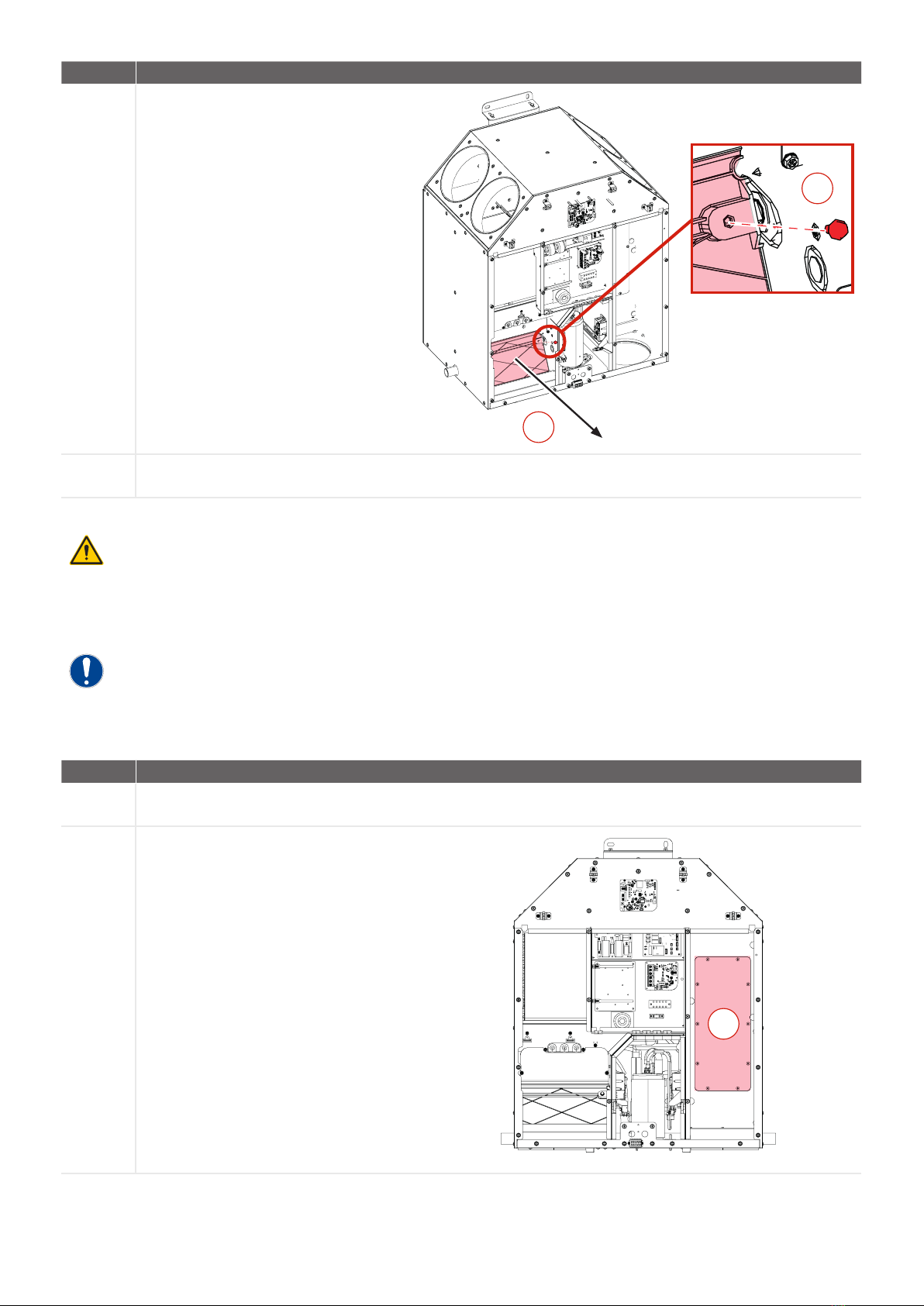

Unscrew the two screws Bthat lock the

condensation tray C then pull it gently

toward you rotating it slightly.

4It is possible to replace the internal siphon extracting gently the rubber hose ends.

CAUTION!

The supplier shall not be held liable for any damage, to things or people, caused by accidents due

to a failure to comply with the instructions provided in this manual and in the following chapters.

2.3 Access to the RIGHT back coil (siphon and condensation tray)

Always comply with the safety regulations, warnings, comments and instructions given in this

document. Failure to comply with the safety regulations, instructions, warnings and comments

may lead to personal injury or damage to the unit.

In order to proceed with access to the RIGHT back coil (siphon and condensation tray), follow the steps as described

below:

Step Action

1Please follow the previous sequence described in the "Paragraph 2.1 - Step 1 to 3", to get access to the

internal components.

The coil is not visible behind the metallic

wall on the right side of the unit. To get

access to the right back coil, please

unscrew the metallic sheet A.A

7 - EN

Step Action

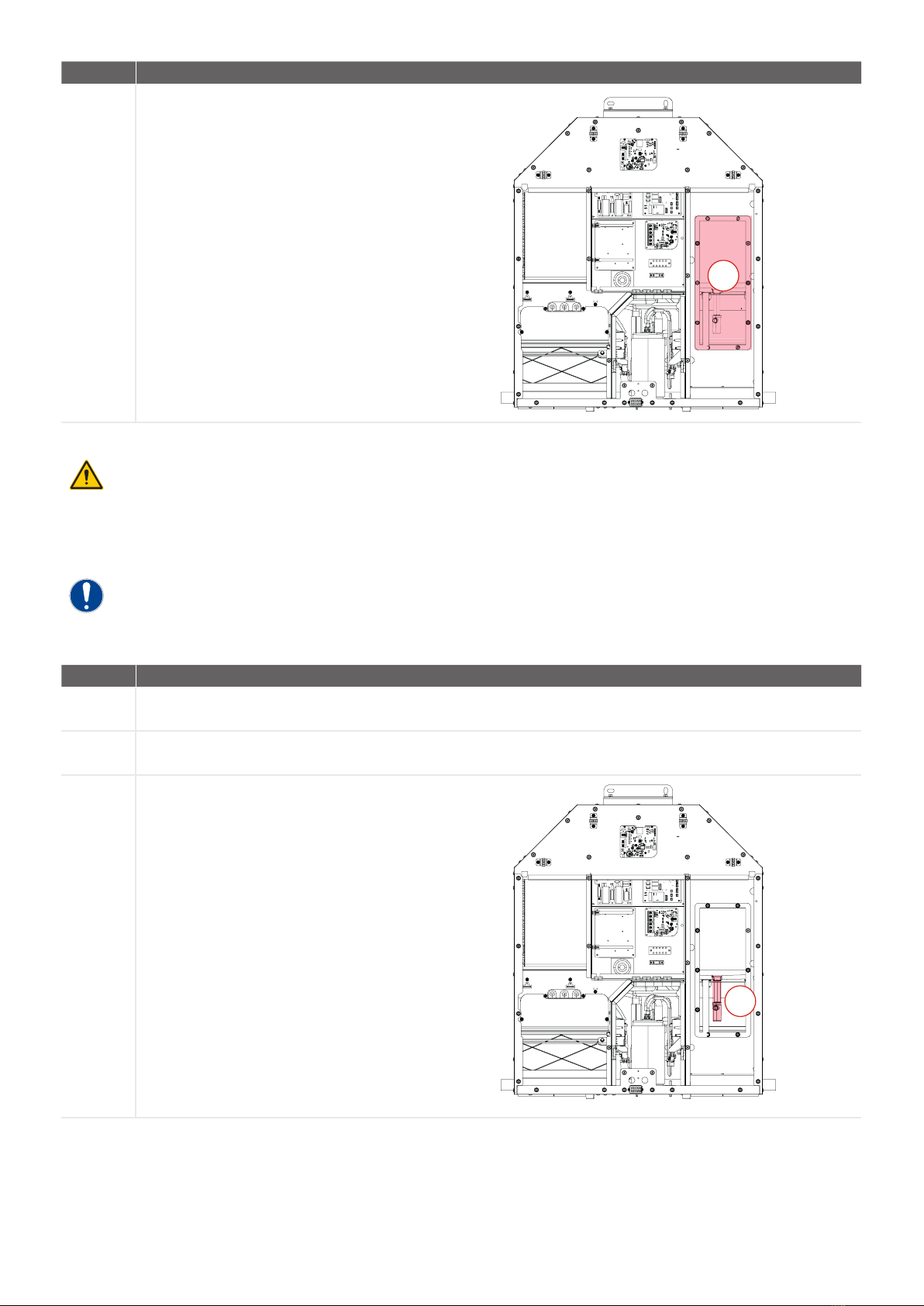

The coil and the condensation Btray are

visible and it’s possible to clean the coil

with a vacuum cleaner or a brush taking

care of closing the below intake of the

ComfoAir Q to avoid the dirt to fall down

into the ComfoAir Q.

CAUTION!

The supplier shall not be held liable for any damage, to things or people, caused by accidents due

to a failure to comply with the instructions provided in this manual and in the following chapters.

2.4 Access to the RIGHT back condensation tray

Always comply with the safety regulations, warnings, comments and instructions given in this

document. Failure to comply with the safety regulations, instructions, warnings and comments

may lead to personal injury or damage to the unit.

In order to proceed with access to the RIGHT back condensation tray, follow the steps as described below:

Step Action

1Please follow the previous sequence described in the "Paragraph 2.1 - Step 1 to 3", to get access to the

internal components.

2Please follow the previous sequence described in the "Paragraph 2.3 - Step 1 to 3", to get access to the

internal components.

It is possible to replace the internal

siphon extracting gently the rubber

hose ends A.

EN - 8

Step Action

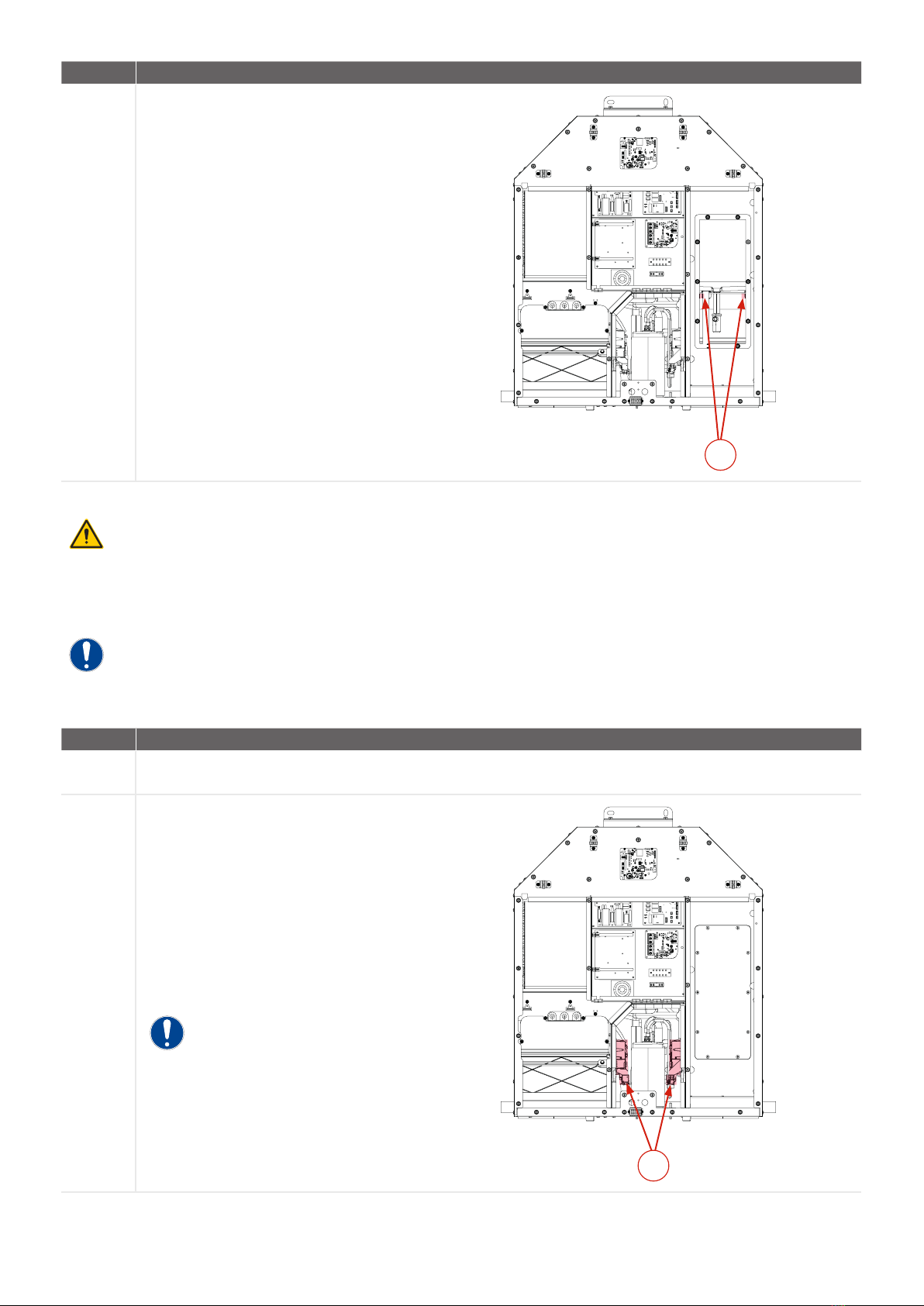

Unscrew the two screws Bthat lock

the condensation tray then pull it gently

toward you rotating it slightly.

CAUTION!

The supplier shall not be held liable for any damage, to things or people, caused by accidents due

to a failure to comply with the instructions provided in this manual and in the following chapters.

2.5 Replacement of the actuators

Always comply with the safety regulations, warnings, comments and instructions given in this

document. Failure to comply with the safety regulations, instructions, warnings and comments

may lead to personal injury or damage to the unit.

In order to proceed with the Replacement of the actuators, follow the steps as described below:

Step Action

1Please follow the previous sequence described in the "Paragraph 2.1 - Step 1 to 3", to get access to the

internal components.

Individuating the actuators A placed

in the central bottom area, before the

compressor.

The actuator on the left

controls the flap on the

left ; the one on the right

commands the flap through a

leverage.

9 - EN

Step Action

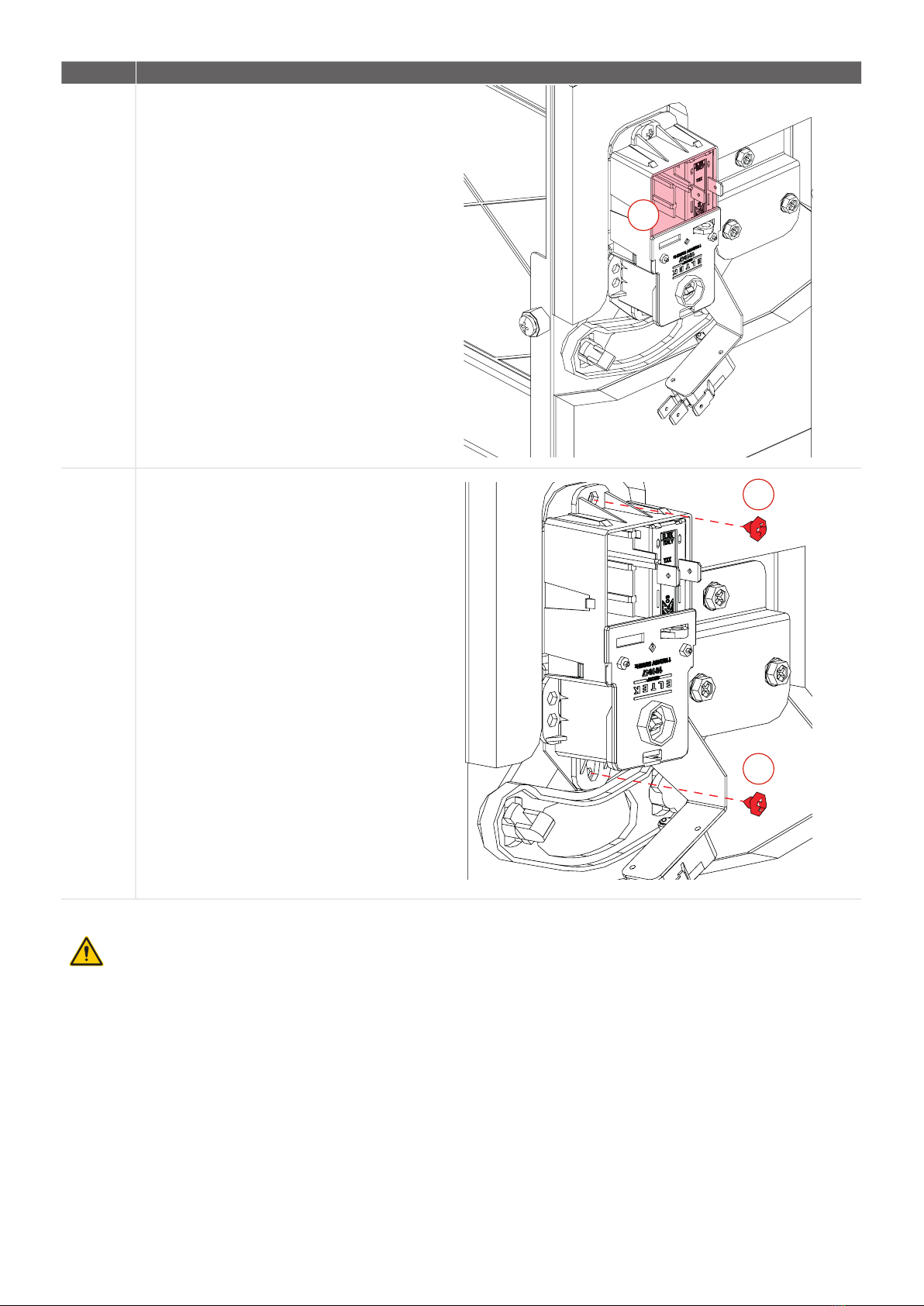

3Unplug the two connectors Bfrom the

upper part of the actuator.

4Unscrew the two screws C that hold it

attached to the frame.

CAUTION!

The supplier shall not be held liable for any damage, to things or people, caused by accidents due

to a failure to comply with the instructions provided in this manual and in the following chapters.

Zehnder Group IT

Via G. di Vittorio 6

41100 Campogalliano (MO), Italy

Zehnder Service Manual_REV00-12-2021_Subject to change
