Zhaoxin KXN-3050D Bedienungsanleitung

DC POWER SUPPLY

Instruction Manual

(Please read carefully and thoroughly this instruction

manual before operation, and keep it safely.)

extinguish, restart power switch. (Voltage adjustment knob must be

turned to the minimum or output voltage less than the limited

voltage.)

(9) Attention: Don't start power switch with the load. Otherwise, easy

to damage DC Power Supply and the load. When the load current

more than 10A,Please use the rear output terminal. When use large

current, wiring terminal and output line must tighten. Otherwise,

wiring terminal will be damaged caused by connecting the big

resistance leading to fever.

4、Repair

4-1 Fuse replacement:

If fuse is burnt out, the power supply will stop working. If such

case occurs, its cause must be found and corrected. Use same type

fuse replacement. Do not open the fuse box, unless problem occurs.

4-2 Repair:

If the interior of the power supply is burn out, it must be repaired by

professional maintenance personnel or by the manufacturer through

the distributor. Do not repair it by yourself for the safety reason.

1、Summary

RXN-3020D、JPS-3020D、RXN-3030D、JPS-3030D are single output

power supply.RXN-302D(A)-II、JPS-302D-II、MPS-3002L-3、

RXN-303D(A)-II、JPS-303D-II、MPS-3003L-3、RXN-305D(A)-II、

JPS-305D-II、MPS-3005L-3、RXN-3010D(A)-II、JPS-3010D-II、

MPS-3010L-3 are three-output power supply, collectively referred to as

high precision constant current, constant voltage DC Linear Power

Supply .Characterized by high precision and strong reliability. And the

three-output power supply with auto tracing, auto series and parallel

operation.

KXN-3050D、KXN-3060D、…KXN-30010D are high efficiency

constant current, constant voltage DC Switching Power Supply. This

series DC Power Supply feature is strong ability to load and work for

low failure rate. Also they with the over-voltage protection,

over-temperature protection, over-load protection, over-current

protection functions.(work efficiency≥86%)

RXN、JPS、MPS、KXN series constant voltage constant current DC

Power Supply design for technology product development, laboratory,

junior college, electronic production line and communications industry.

The technical parameters please see the table.

Caution: KXN Series are Switching Power Supply. Internal

have high-pressure circuit. Not professional

maintenance personnel must not repair, lest produce

danger.

Table 1 RXN、JPS、MPS series

Model

Parameters

RXN-3020D

JPS-3020D

RXN-3030D

JPS-3030D

Voltage output range 0-30V 0-30V

Current output range 0-20A 0-30A

Current & Voltage

display model

RXN series D means LED digital display

PS series D means LCD digital display

Display precision ±1%±1word

Model

parameters

RXN-302A-II

RXN-302D-II

JPS-302D-II

MPS-3002L-3

RXN-303A-II

RXN-303D-II

JPS-303D-II

MPS-3003L-3

RXN-305A-II

RXN-305D-II

JPS-305D-II

MPS-3005L-3

RXN-3010A-II

RXN-3010D-II

JPS-3010D-II

MPS-3010L-3

Voltage

output

range

2×0-30V 2×0-30V 2×0-30V 2×0-30V

Current

output range 2×0-2A 2×0-3A 2×0-5A 2×0-10A

Single fixed

output 5V/3A

Current &

Voltage

display model

RXN series D means LED digital display，A means pointer display.

JPS series are LCD digital display.

MPS series are LED digital display.

Display

precision Pointer display: ±2.5%. Digital display:±1%±1word

3-2 Method of operation:

(1) Connect the machine to the mains supply: AC220V±10%.

(2) Adjust over-voltage protection knob and current adjustment knob to

the maximum along the clockwise direction.

(3) Put power switch to the “ON”, and the red pilot lamp will go on.

(4) Adjust voltage coarse and fine adjustment knob to the required

value.

(5) Connect the external load to the “+” and “－”output terminal.

(6) When it is used to meet high requirement, the binding post of

output “+”or “－”must be connected with “GND” binding post to

reduce the output ripple voltage.

(7) Constant current setting: First adjust the voltage to 3-10V arbitrary

value, then adjust current adjustment knob to 0(turn it to the end

anticlockwise).Using the line to connect the output of the positive

(“+”) and the negative (“-”) electrodes. Then clockwise adjust the

current adjustment knob to the required current value. Remove the

short-circuit line, adjust voltage adjustment knob to the required

voltage value, and now it is ready to be used.

(8) Over-voltage protection setting: First adjust the over-voltage

protection knob to the maximum along the clockwise direction.

Then turn on power switch. Adjust the voltage adjustment knob to

the required protection value. Then anticlockwise adjust the

over-voltage protection knob to over-voltage protection. Use

voltage must be within the scope of your limit. Otherwise it will

automatically protect. Meanwhile, the over-voltage protection pilot

lamp will go on.

Restart steps after the over-voltage protection: First turn off power

switch. After over-voltage protection pilot lamp completely

2 7

2-2 Rated working condition:

Input voltage: AC 220V±10% 50/60Hz

Working conditions: Temperature: -10 to 40℃℃

relative humidity ＜90%

Storage conditions: Temperature: -10 to℃40℃

relative humidity ＜80%

2-3 Constant voltage working condition:

Parameter Voltage

stability Load stability Ripple and noise

Model

RXN 、JPS、MPS series ≤0.01%+2mV ≤0.01%+2mV ≤1mVrms(RMS)

KXN series ≤0.2% ≤0.1% ≤0.5%P-P

2-4 Constant current working condition:

Parameter Current stability Ripple and noise

Model

RXN series ≤0.2%+3mA ≤3mArms

KXN series ≤0.3% ≤0.5%P-P

3、Operating Instruction

3-1 Notice:

(1) AC input: AC 220V±10% 50Hz（If input voltage is 110V±10%

60Hz, on the rear of the machine will have marks）

(2) Insulation: The radiator in the rear of the machine should have

enough space to dissipate heat.RXN-3020D、RXN-3030D and

KXN Series DC Power Supply have temperature control switch.

When inside temperature≥45 radiator fan start to rotate to℃

dissipate heat. Do not use the machine in a place where the

temperature is over 45℃.

Table 2 KXN series

Parameters

Model

Voltage

output

range

Current

output

range

Current &

Voltage

display model

Display

precision

KXN-3050D 0-30V 0-50A LED display

±1%±1word

KXN-3060D 0-30V 0-60A LED display

±1%±1word

KXN-3080D 0-30V 0-80A LED display

±1%±1word

KXN-30100D 0-30V 0-100A LED display

±1%±1word

KXN-5050D 0-50V 0-50A LED display

±1%±1word

KXN-5060D 0-50V 0-60A LED display

±1%±1word

KXN-5080D 0-50V 0-80A LED display

±1%±1word

KXN-50100D 0-50V 0-100A LED display

±1%±1word

KXN-6030D 0-60V 0-30A LED display

±1%±1word

KXN-6040D 0-60V 0-40A LED display.

±1%±1word

KXN-6050D 0-60V 0-50A LED display

±1%±1word

KXN-6060D 0-60V 0-60A LED display

±1%±1word

KXN-6080D 0-60V 0-80A LED display

±1%±1word

KXN-10010D 0-100V 0-10A LED display ±1%±1word

KXN-10020D 0-100V 0-20A LED display ±1%±1word

KXN-10030D 0-100V 0-30A LED display ±1%±1word

KXN-20010D 0-200V 0-10A LED display ±1%±1word

KXN-20020D 0-200V 0-20A LED display ±1%±1word

KXN-30010D 0-300V 0-10A LED display ±1%±1word

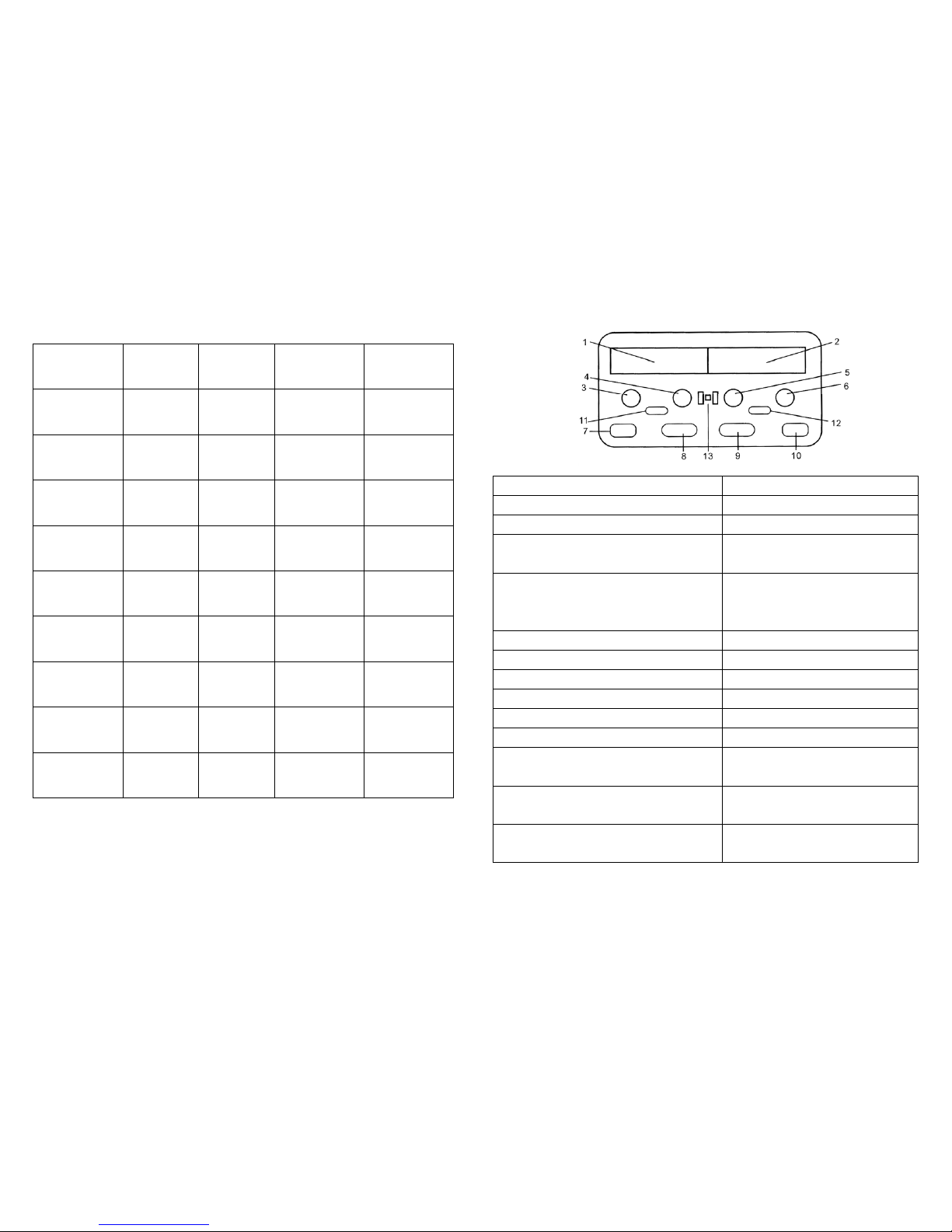

2、Parameter specification and Panel

features

2-1 single-output panel features: Double-output panel feature:

(1)Current display (I way current/voltage display)

(2)Voltage display (II way current/voltage display)

(3)Current fine adjustment (RXN Series)

Current adjustment (KXN Series) (I way current adjustment)

(4)Current coarse adjustment (RXN Series)

Over-voltage protection adjustment

(KXN Series)

(I way voltage adjustment)

(5)Voltage fine adjustment (II way current adjustment)

(6)Voltage coarse adjustment (II way voltage adjustment)

(7)Power switch (Power switch)

(8)---------------- (I way output terminal)

(9)Output terminal (II way output terminal)

(10) -------------- (5V/3A fixed output terminal)

(11) Constant current and over-voltage

protection pilot lamp

(I way constant current、constant

voltage pilot lamp)

(12) Over-temperature protection and

Constant voltage pilot lamp

(II way constant current、constant

voltage pilot lamp)

(13)—————— (Independent /Series/Parallel switch,

LCD backlight select switch)
