ZiLOG ZAURA RF Anleitung zur Verwendung

,Inc.Allrightsreserved.

www.zilog.com

Hello!Let’sinstallaZAURASystem.

Zilog’sZAURARFWirelessoccupancydetectorenergymanagementsystemisdesignedforeasyplug‐and‐playinstallation.Thisguideis

designedtoassistprofessionallightingsystemsinstallerstoperformatypicalZAURASysteminstallationwhichwilldetectoccupancyina

roomandswitchthestarter‐basedlightingonandoffwithouttheneedforcontrolwiring.Forgreaterdetailabouteachofthefollowing

steps,refertotheZAURAInstallationGuide(UM0229).

Step1.

Assembleyourtools.You’llneedthefollowingitems:

•Screwdriver

• Ladder

•Pen,PencilorMarker

• Standardelectricdrillandbits(forconcrete,animpactdrill)

•Smallslotscrewdriver(forchangingMasterDIPSwitchpositions)

•Tapemeasure

• Appropriatetoolstoaccessstarter(s)inluminaries

Step4.

Inventoryyourparts.Atypicalinstallationwillrequireas

manystartersastherearelightfixturesintheroom.

Iftheroomisanylargerthansixmeterssquare,you

manyneeda2ndMasterunit.SeetheZAURAInstal‐

lationGuidefordetails.

Step6.

Mountbaseplate(s)totheceilinginthelocation(s)you

determinedin

Step2

usingthescrewsorthedouble‐sidedtape

provided.

Step2.

DeterminethelocationofStandardMasters(andRange

Extenders,ifrequired).

Step3.

Determineluminaryconfiguration.

Step5.

OpentheMasterUnitbyremovingtheretainingscrewfrom

thesideoftheDetectorbody.Turnthebaseplateuntilthearrows

ontheDetectorbodyandthebaseplatealign.RemovetheDetector

bodyandlenscoverfromthebase.

1

Thedouble‐sidedtapeisnon‐permanentandisrecommendedonlyfortest‐

ingyourconfigurationpriortopermanentlyaffixingyourZAURAMaster.

Step7.

ToconfigureaZAURAMaster,settheMastertypeswitchto

theStandard(OFF,OFF)position.

Note:

ZAURA

™

RFWirelessLightingControl

ProfessionalInstaller’sReferenceGuide

QS008001‐0311

ZAURA™RFWirelessLightingControl

QuickStartGuide

QS008001‐0311 Page2of3

Step12.

InstallaLithium3VTypeCR123batteryineitherbattery

slotoftheMaster.IftheMasterwillbeassociatedwithanyRange

Extenders,Zilogrecommendsinstallingtwobatteries.TheMaster

willinitializeforaperiodofuptooneminute.

Step13.

IfaRangeExtenderisrequired,settheMastertypeswitch

toRangeExtender(OFF,ON)position,asshowninthefigurein

Step

.IfnoRangeExtendersarerequiredinyourinstallation,skipto

Step17

Step14.

SetDIPswitches1through8tomatchtheMaster;referto

thefigurein

Step11

Step15.

AdjusttheOccupancySensitivityPOT(ifrequired)and

installaLithium3VTypeCR123batteryineitherbatteryslotofthe

baseplateoftheRangeExtender.

Step16.

AssociatetheRangeExtendertotheMasterbypressing

theDimmingorNon‐Dimming

Associate

buttonontheMaster.The

Masterwillattemptassociationforaperiodof30seconds.

Pleaseproceedtothenextpage.

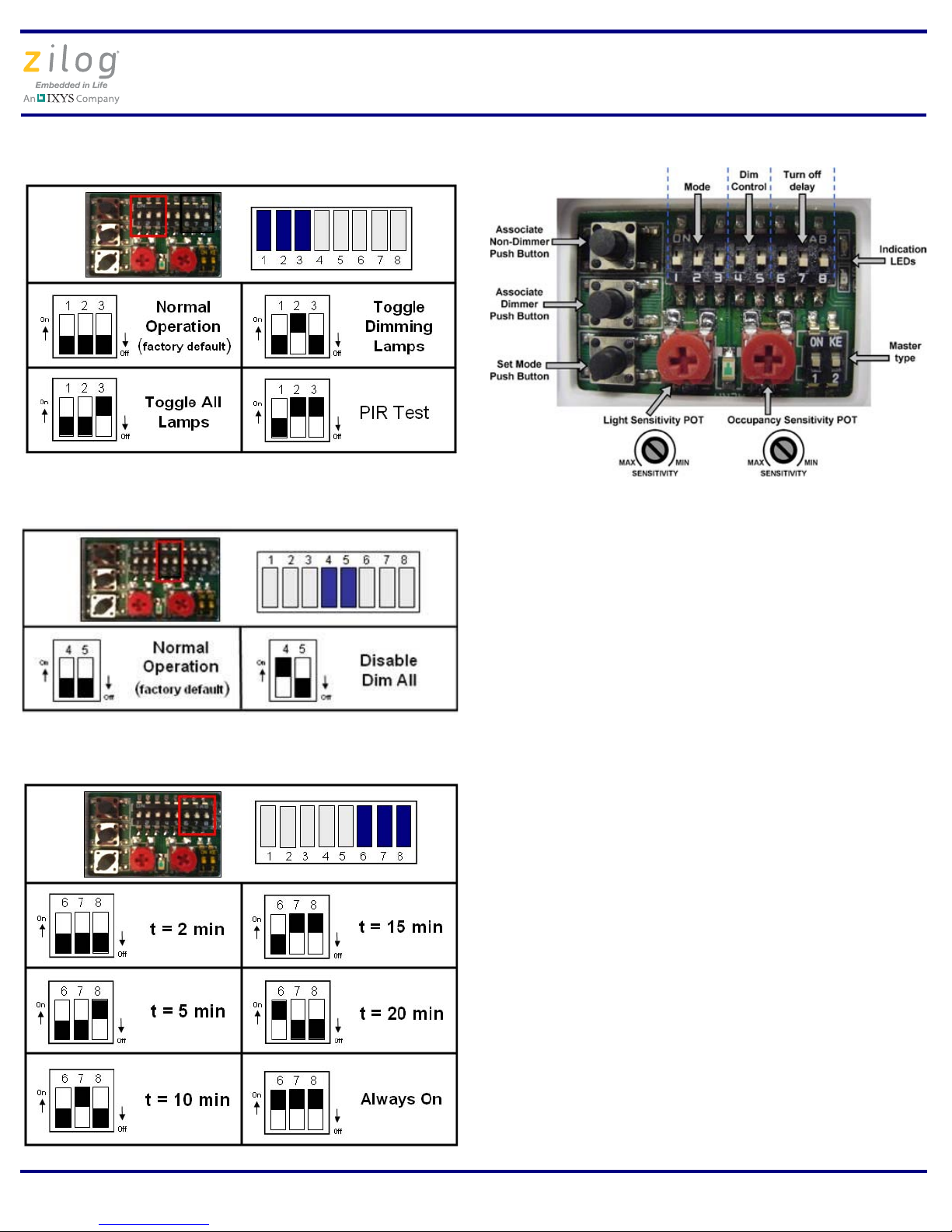

Step8.

MakesurethemodeissettoNormalOperation(i.e.,DIP

switches1,2and3areintheOFFposition).

Step9.

MakesuretheDimControlissettoNormalOperation(i.e.,

DIPswitches4and5areintheOFFposition).

Step10.

Settheturn‐offdelaytotherequiredvalue(the

recommendedsettingis5minutes).

Step11.

AdjustlightandoccupancysensitivityPOT,ifrequired.

ZAURA™RFWirelessLightingControl

QuickStartGuide

QS008001‐0311 Page3of3

Step18.

Applypowertotheluminaries.

Step19.

AssociatetheZAURAVirtualDimmingStarterstothe

Masterbypressingthe

AssociateDimmer

button.TheMasterwill

attemptassociationforaperiodof30seconds.

Step20.

VerifytheassociationofallZAURAVirtualDimming

Starters:

a. Changethemodeto

ToggleDimmingLamps

byslidingDIP

Switch2totheONposition.

b. Pressthe

SetMode

button.Allluminariesthatareassociated

asVirtualDimmingshouldturnoff.

c. Pressthe

SetMode

buttonasecondtime.Thesameluminar‐

iesshouldturnbackon.

d. SlideDIPSwitch2totheOFFpositiontoreturntheMasterto

NormalOperatingMode.

Step21.

TosettheStandardLuminariestobecontrolledbythe

Master,removepowerandreplacetheoriginalstarterswithZAURA

StartersintheremainingluminariestobecontrolledbytheMaster.

Forassistance,refertothefigurein

Step17

Step22.

Applypowertotheluminaries.

Step23.

AssociatetheZAURAStarterstotheMasterbypressing

the

AssociateNon‐Dimmer

buttonontheMaster.TheMasterwill

attemptassociationforaperiodof30seconds.

Step24.

VerifytheassociationofallZAURAStarters:

a. Changethemodeto

Tog gleAllLamps

byslidingDIPSwitch3

totheONposition.

b. Pressthe

SetMode

button.Allluminaries,includingtheVir‐

tualDimmingluminariesinstalledinthepreviousstep,should

turnoff.

c. Pressthe

SetMode

buttonagain.Thesameluminariesshould

turnbackon.

d. SlideDIPSwitch3totheOFFpositiontoreturnthemasterto

NormalOperatingMode.

Step26.

PlacetheDetectorbodyintothebaseplatesothatthe

arrowsoneacharealigned.Turntheunitclockwisetolatchit

closed;thearrowswilloffseteachother.Insertandfastenthe

retainingscrew.

Step27.

MounttheRangeExtenders(ifany)totheirdesignated

baseplates;seesteps25and26.Yourinstallationisnowcomplete!

DONOTUSETHISPRODUCTINLIFESUPPORTSYSTEMS.

LIFESUPPORTPOLICY

ZILOG’SPRODUCTSARENOTAUTHORIZEDFORUSEASCRITICALCOMPONENTSINLIFESUP‐

PORTDEVICESORSYSTEMSWITHOUTTHEEXPRESSPRIORWRITTENAPPROVALOFTHEPRESI‐

DENTANDGENERALCOUNSELOFZILOGCORPORATION.

Lifesupportdevicesorsystemsaredeviceswhich(a)areintendedforsurgicalimplantintothe

body,or(b)supportorsustainlifeandwhosefailuretoperformwhenproperlyusedinaccor‐

dancewithinstructionsforuseprovidedinthelabelingcanbereasonablyexpectedtoresultin

asignificantinjurytotheuser.Acriticalcomponentisanycomponentinalifesupportdeviceor

systemwhosefailuretoperformcanbereasonablyexpectedtocausethefailureofthelifesup‐

portdeviceorsystemortoaffectitssafetyoreffectiveness.

applications,ortechnologydescribedisintendedtosuggestpossibleusesandsuperseded.

ZILOG,INC.DOESNOTASSUMELIABILITYFORORPROVIDEAREPRESENTATIONOFACCURACY

OFTHEINFORMATION,DEVICES,ORTECHNOLOGYDESCRIBEDINTHISDOCUMENT.ZILOGALSO

DOESNOTASSUMELIABILITYFORINTELLECTUALPROPERTYINFRINGEMENTRELATEDINANY

MANNERTOUSEOFINFORMATION,DEVICES,ORTECHNOLOGYDESCRIBEDHEREINOROTHER‐

WISE.Theinformationcontainedwithinthisdocumenthasbeenverifiedaccordingtothegen‐

eralprinciplesofelectricalandmechanicalengineering.

ZAURAisatrademarkofZilog,Inc.Allotherproductorservicenamesarethepropertyoftheir

respectiveowners.

Step17.

TosetVirtualDimmingLuminaries,removepowerand

replacetheoriginalstarterswithZAURAStarters.IfnoVirtual

Dimmingluminariesarerequired,skipto

Step21

.Foramore

thoroughdescriptionofvirtualdimming,seethesectiontitledLight

SensorforDaylightHarvestingintheZAURAInstallationGuide.

Step25.

MounttheMastertothepreviously‐installedbaseplate

closesttothecenteroftheroombyplacingthefourtabsofthelens

coverintothematchingnotchesoftheDetectorbodyandturning

thelenscoverclockwiseuntilitissecure.

Warning:
