Zinwell ZIN-5005HD Bedienungsanleitung
1
ZIN-5005HD
User’s Manual
2
Safety Instructions
This product has been engineered and manufactured to assure your personal safety.
However, improper use can result in potential electric shock or fire hazards. In order not to
defeat the safe-guards incorporated in this instrument and its accessories, please adhere
to the following instructions when installing, operating and servicing.
Power Source Warning
◆A marking label attached on the rear side of the adapter (supplied) indicates the correct
power source for this equipment. Operate this product only from an electrical outlet with
the voltage and frequency indicated on the product label. Incorrect power source may
result in a risk of electric shock or fire. If you are uncertain of the type of power supplied to
your home, consult your local power company or appliance dealer.
◆Only use the power cord and adapter provided by the manufacturer. Internal
component may be damaged if you use a different adapter to power this product. To avoid
electric shock and fire hazard, match the plug and outlet connections carefully, then fully
insert. If the plug fails to fit the outlet, please contact an electrician to update your power
outlets.
◆Do not overload electrical outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock. And to prevent power cord damage,
arrange all power cords so that people cannot walk on the cords. Do not place objects on
the cords.
◆Place this product in a location that is close enough to an electrical outlet and where
the power cord is easily accessible to be disconnected from the wall outlet.
3
Usage Warning
◆To reduce the risk of electric shock, do not remove the cover or attempt to disassemble
this product. There are no user-serviceable parts inside. Please refer all servicing to
qualified service personnel.
◆Protect this product from foreign objects. Never push object of any kind into this
product through openings as they may touch dangerous voltage points or short-out parts
that could result in a fire or electric shock.
◆Do not expose this product to liquids, rain or moisture.
◆This product has ventilation openings that protect it from overheating. Never block or
cover these openings. And do not place this product near heat sources such as radiators,
heat registers, stoves or other products producing heat.
◆Before cleaning or wiping this product, make sure your power cord is already
unplugged from the electrical outlet. Only use damp cloth to clean this product, and never
use a liquid cleaner or an aerosol cleaner.
◆During a thunderstorm, or when this product is unused for long periods of time, unplug
power cord from the wall outlet. This will prevent damage to the product due to lightning
and power-line surges.
Service Warning
◆Refer all servicing to qualified service personnel. For damage that requires service,
please unplug your power cord from the AC outlet first, and contact your dealer or
servicing personnel to obtain service for the following conditions.
◆If there is damage to the adapter, power cord or plug.
◆If liquid enters this product.
◆If you drop this product, a heavy object falls on this product, or damage occurs to the
cover of this product.
◆If you expose this product to rain or water.
◆If this product does not operate normally by following the operating instructions.
◆ If this product exhibits a distinct change in performance.
4
Table of Contents
ⅠINTRODUCTION
Package Content 5
Specifications 6
Front View 7
Back View 7
Remote Control 8
ⅡSETTING UP FOR ZIN-5005HD
Connections 11
Connect to the Internet 11
Connect to USB Devices 13
Power On 13
Turn On ZIN-5005HD 13
Select the Video Output/Resource 13
ⅢNETWORK CONNECTIONS
Wired 15
Wireless 16
File Sharing Configuration 19
ⅣMEDIA CENTER
Select Media Sources 21
Video Playback 23
Music Playback 25
Photo Playback 26
ⅤBONUS FEATURES
Torrent Download 29
ⅥSETUP MENU
Audio 31
Video 32
System 33
Miscellaneous 34
ⅦTroubleshooting
5
1 INTRODUCTION
ZIN-5005HD is a high-definition multimedia player and streamer connecting to the
external USB ard drives and your HD TV, bringing PC and internet entertainment to the
living room. ZIN-5005HD is also a BitTorrent downloader with built-in BitTorrent engine. It
downloads media files into the attached USB hard drives corresponding to the BitTorrent
seeds already saved on the USB drive. Playing and downloading your favorite media files
is now PC-free. It supports most video/audio/image formats so you do not need to convert
downloaded media to another format. You can plug in your USB devices to the
ZIN-5005HD to play music, movies and pictures on TV by following the on-screen display
(OSD) menu. The ZIN-5005HD can also access the shared folders on the remote PCs
through the intranet (local area network) and play the digital media
files there on your TV. It supports high-definition media playback with HDMI output.
Package content
Please make sure the following items are included within your new ZIN-5005HD package.
might not be compatible with some accessories made by other manufacturers. We highly
recommend that you use only the specific accessories we
suggest.
6
Specification
Interfaces
Video Output: HDMI、YPbPr、Composite Video
Audio Output: Audio L/R、S/P DIF (Optical)
Data Transfer: USB x 2、Ethernet Port
General Specifications:
Support Media Format:
Video:
MPEG1 (AVI/MKV/TS/DAT/MPG/MPEG/VOB)
MPEG2
(MKV/DAT/MPG/MPEG/VOB/ISO/IFO/TS/TP)
/M2TS
MPEG4 (AVI/MP4/MKV/MOV/WMV/ASF)
DivX 3/4/5/6、Xvid (AVI/MKV/MP4/MOV)
H.264/AVC
(TS/AVI/MP4/MKV/MOV/FLV)/M2TS
VC-1 (TS/AVI/ASF/WMV)/M2TS
WMV9 (ASF/WMV)
Real Video 8/9/10 (RM/RMVB)
Audio:
MP3、MPEG Audio、Dolby Digital、DTS 、
WMA、PCM、LPCM、ADPCM、FLAC、WAV、
AAC、RA、OGG、MKA
Photo: HD JPEG、GIF、PNG、BMP、TIF、TIFF
Subtitle: SRT、SMI、SUB、SSA、IDX+SUB
USB Device File Systems:
EXT3、NTFS、FAT16/32
Decoding: Up to 1080p (RMVB up to 720p)
Output: Up to 1080p
Dimension: 204 mm× 145.4 mm× 40 mm
Power Supply: 100~240V ±10% input voltage/ 12V @ 2A
7

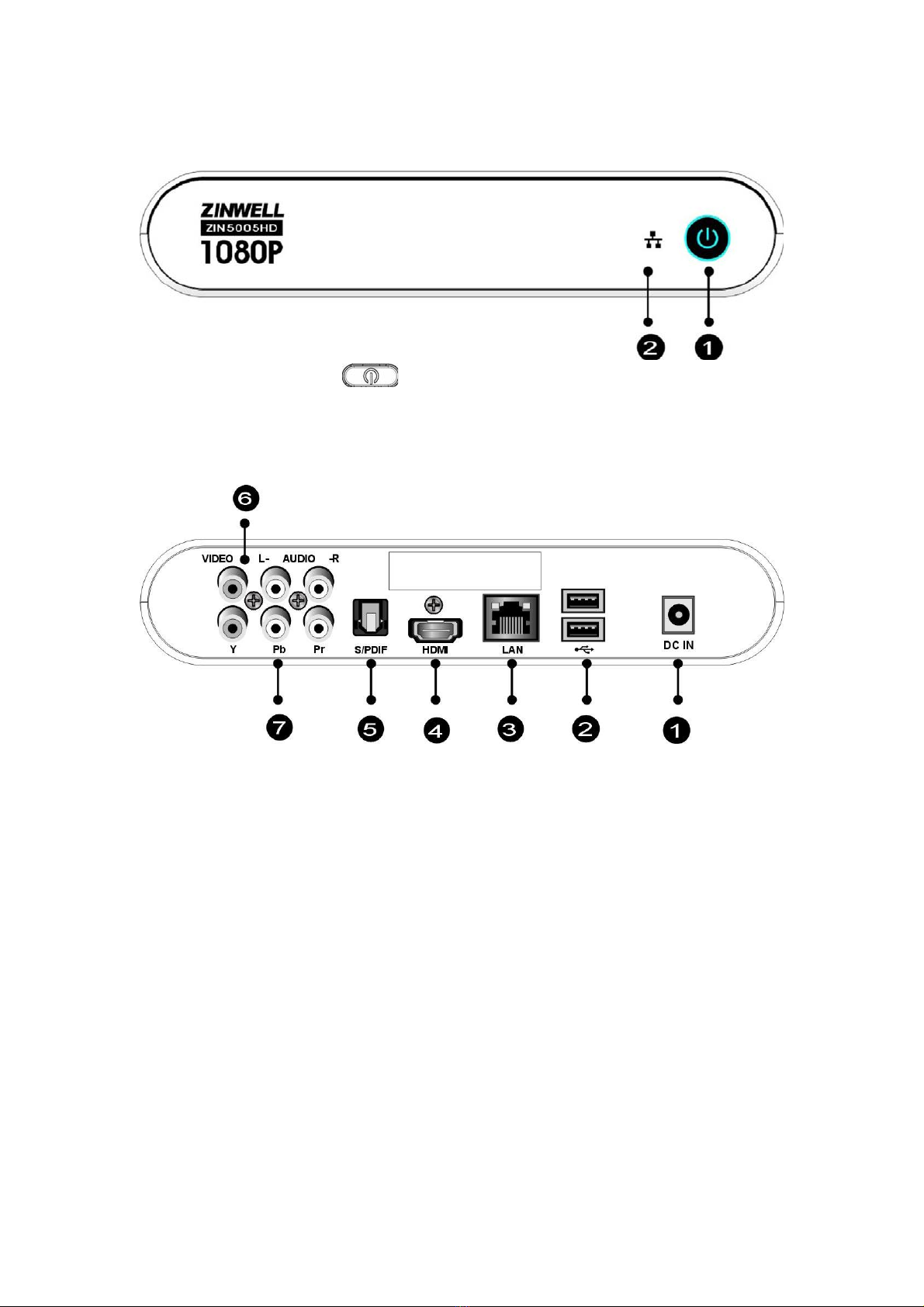

Front View
Power Press to turn the ZIN-5005HD on.
Network LED The LED blinks when ZIN-5005HD accesses to Network.
Back View
DC IN: Connects to the DC output of the power adapter.
USB Port: Plug the supported USB devices into USB ports, such as USB hard drives,
cameras, camcorders and wireless USB dongles.
LAN: Connects to the RJ-45 Ethernet 10/100 based network. Not compatible with the
telephone line.
HDMI OUT: Connects to the HDMI jack on the display; a single cable transmits both
audio and video data.
S/PDIF: Connects the ZIN-5005HD to a display that has an optical digital audio port,
using an optical digital audio (also called S/PDIF) cable.
AUDIO L/R/ VIDEO: Connects to the display with the VIDEO IN/ AUDIO L/R IN jacks
on the display using VIDEO (Yellow)/ AUDIO L (White)/R (Red) cables.
Y/Pb/Pr: Connect to a Y/Pb/Pr-compatible display using three video (Y/Pb/Pr) and two
audio jacks (AUDIO L/R), through a component video cable with green, blue, and red
connectors.
8

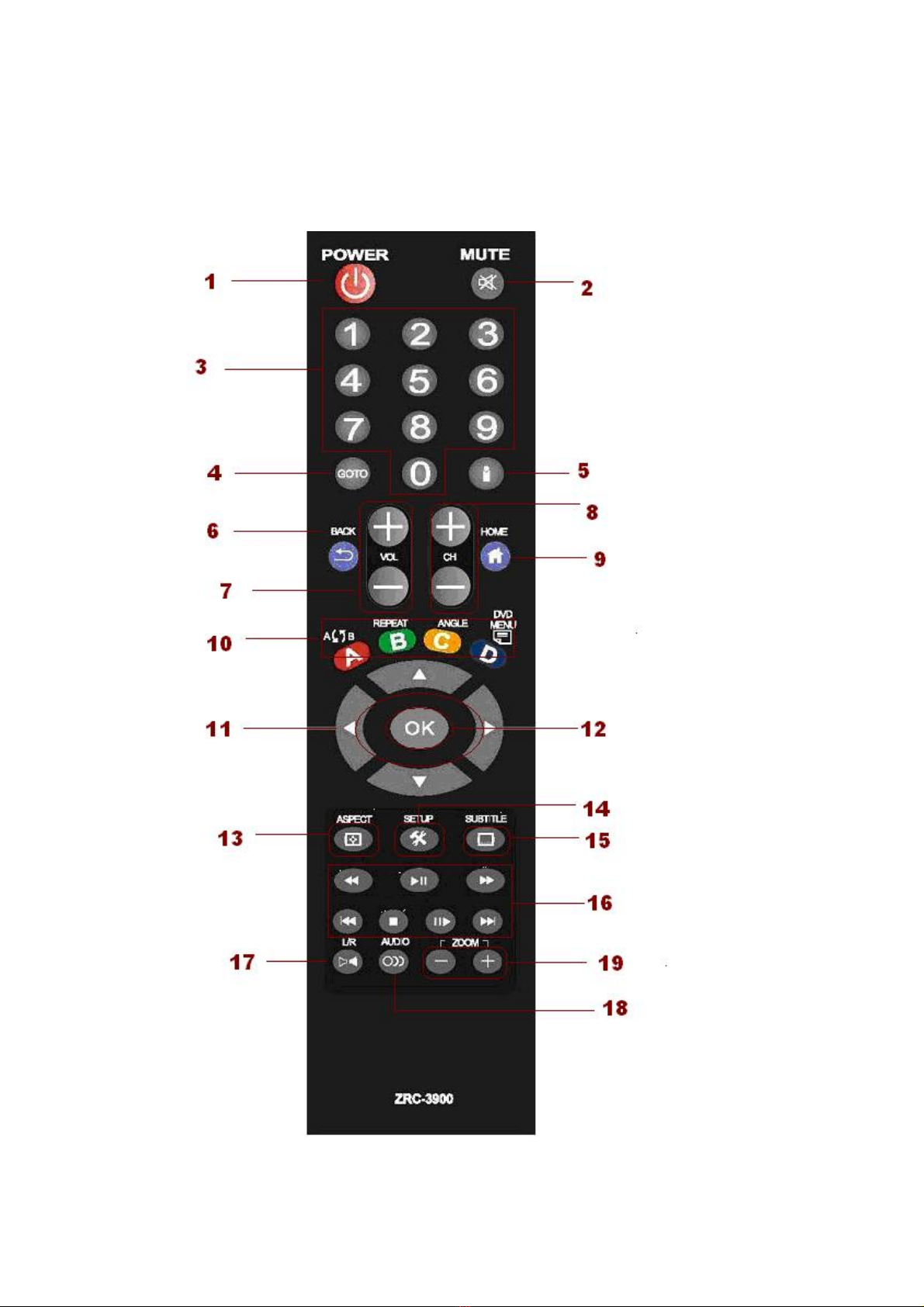

REMOTE CONTROL
9
REMOTE CONTROL

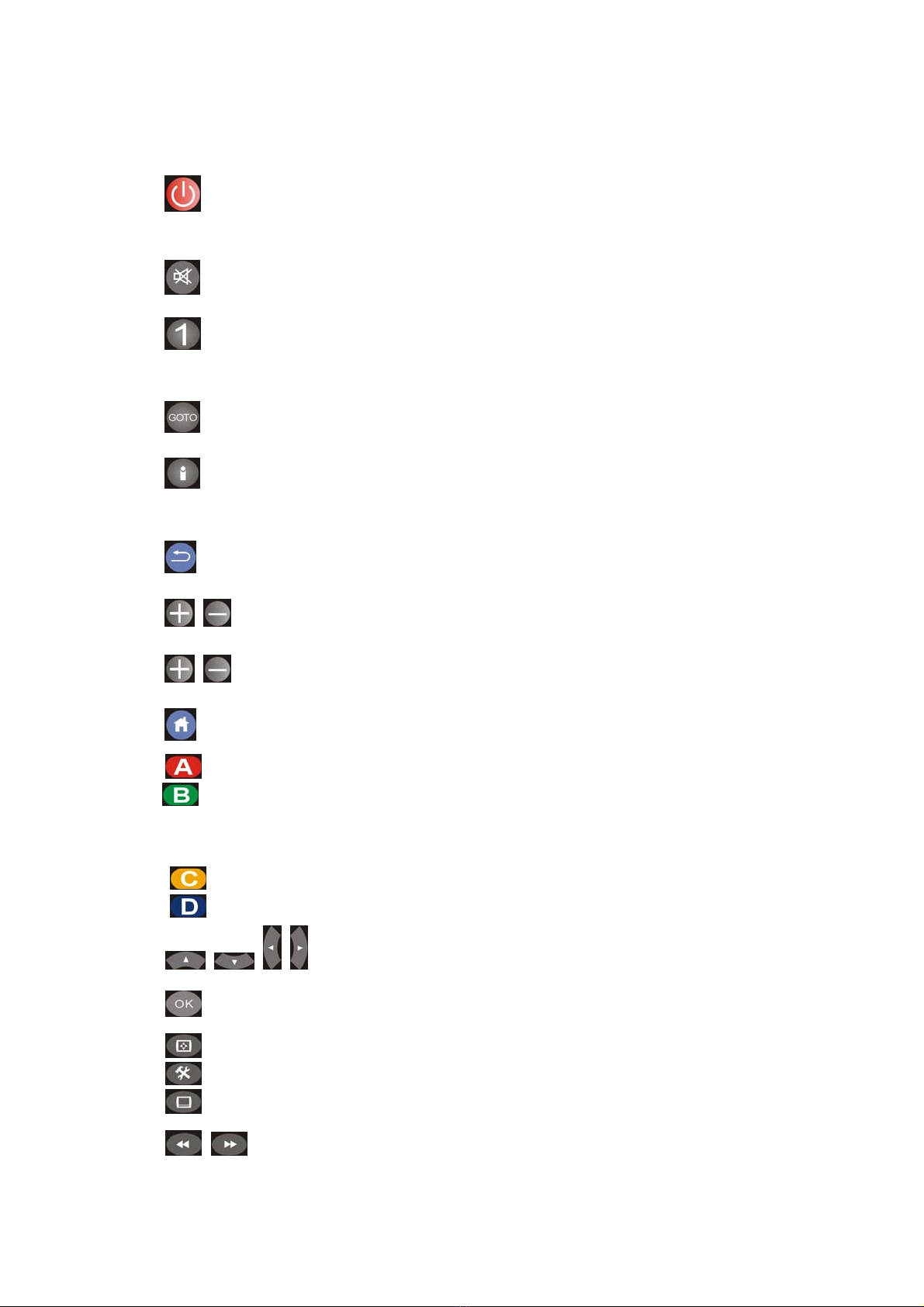

1 POWER Press to turn on the ZIN-5005HD; press
again to switch to stand-by mode.
2 MUTE Press to mute the sound.
3 Number 0-9 number keys for selecting desired
options.
4 GOTO Video/movie chapter selection.
5 INFO Display the information of media files while
in play mode.
6 BACK Return to the previous display.
7 VOL Increase/decrease the volume.
8 CHANNEL Reserved keypad.
9 HOME Hot key to the main OSD menu.
10 REPEAT Enable/disable repeat of file playback.
REPEAT A-B Press once to mark desired repeat point A;
press again to mark desired repeat point B;
press yet again to turn this feature off
ANGLE Switch DVD display angles.
DVD MENU Show DVD Menu.
11 Navigate through menu screen or media libraries.
12 OK Confirmorselect.
13 ASPECT Adjust aspect ratio
14 SETUP Entersetupmenu
15 SUBTITLE Switch subtitle files.
16 MULTI-FUNCTION: Refer to the
10
instructions in the screen.

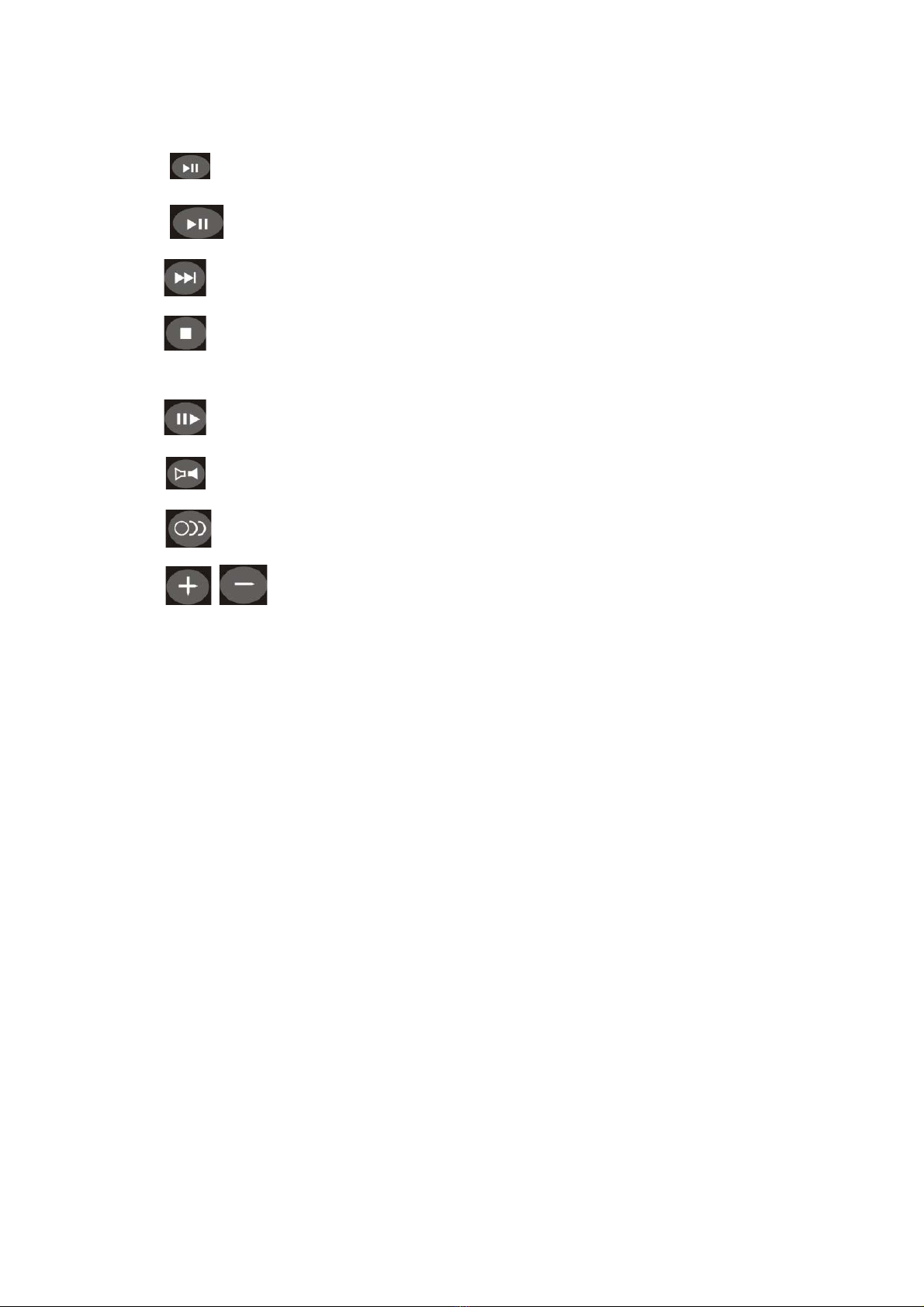

PALY/ PAUSE Play/pause selected file.
PREV Return to previous file.
NEXT Go to next file.
STOP Stop playback and return to the previous
screen.
SLOW MOTION Play films in slow mode.
17 L/R Enable/disable Left/Right speaker.
18 AUDIO Switch audio outputs.
19 ZOOM Zoom video or image display on screen.
