Zippity ZP19002 Bedienungsanleitung

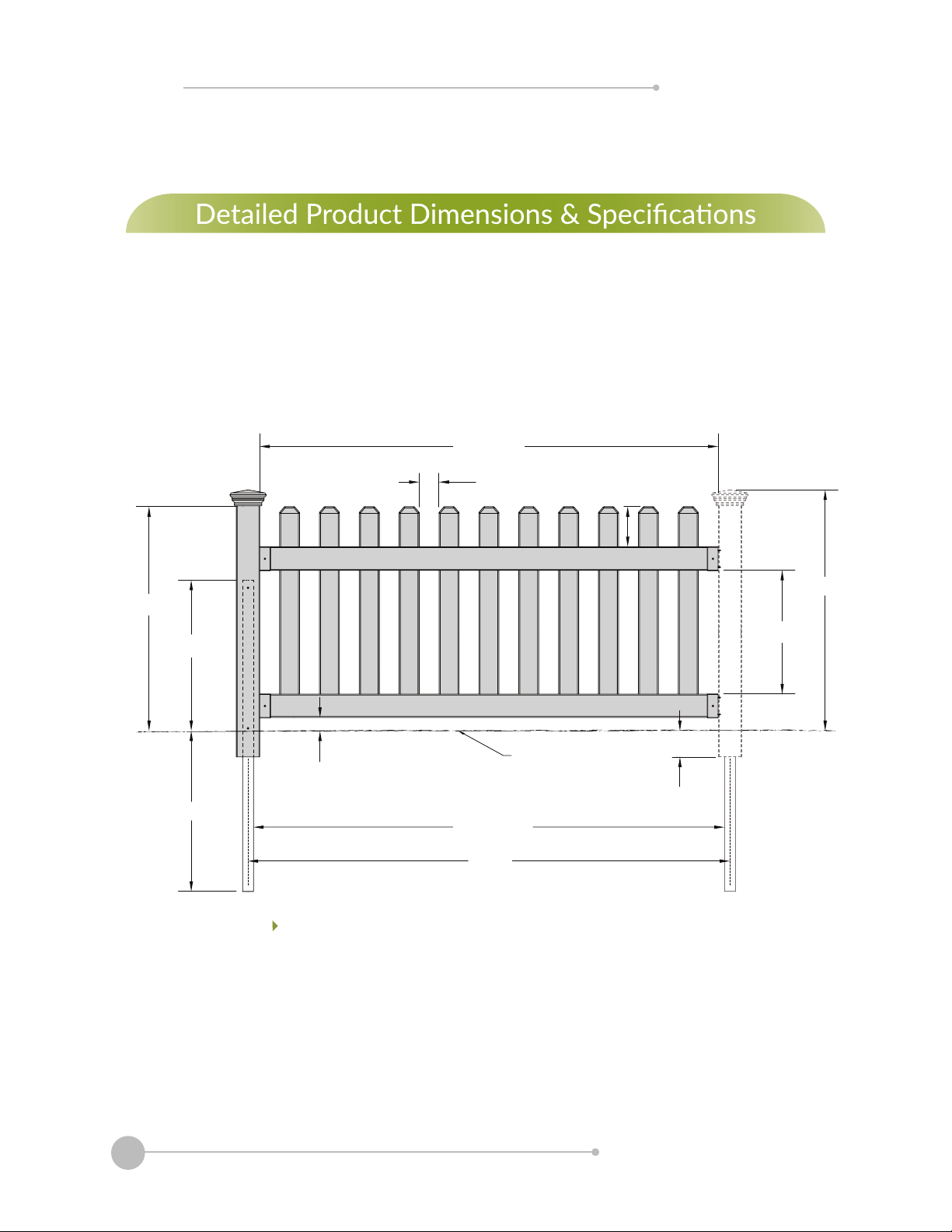

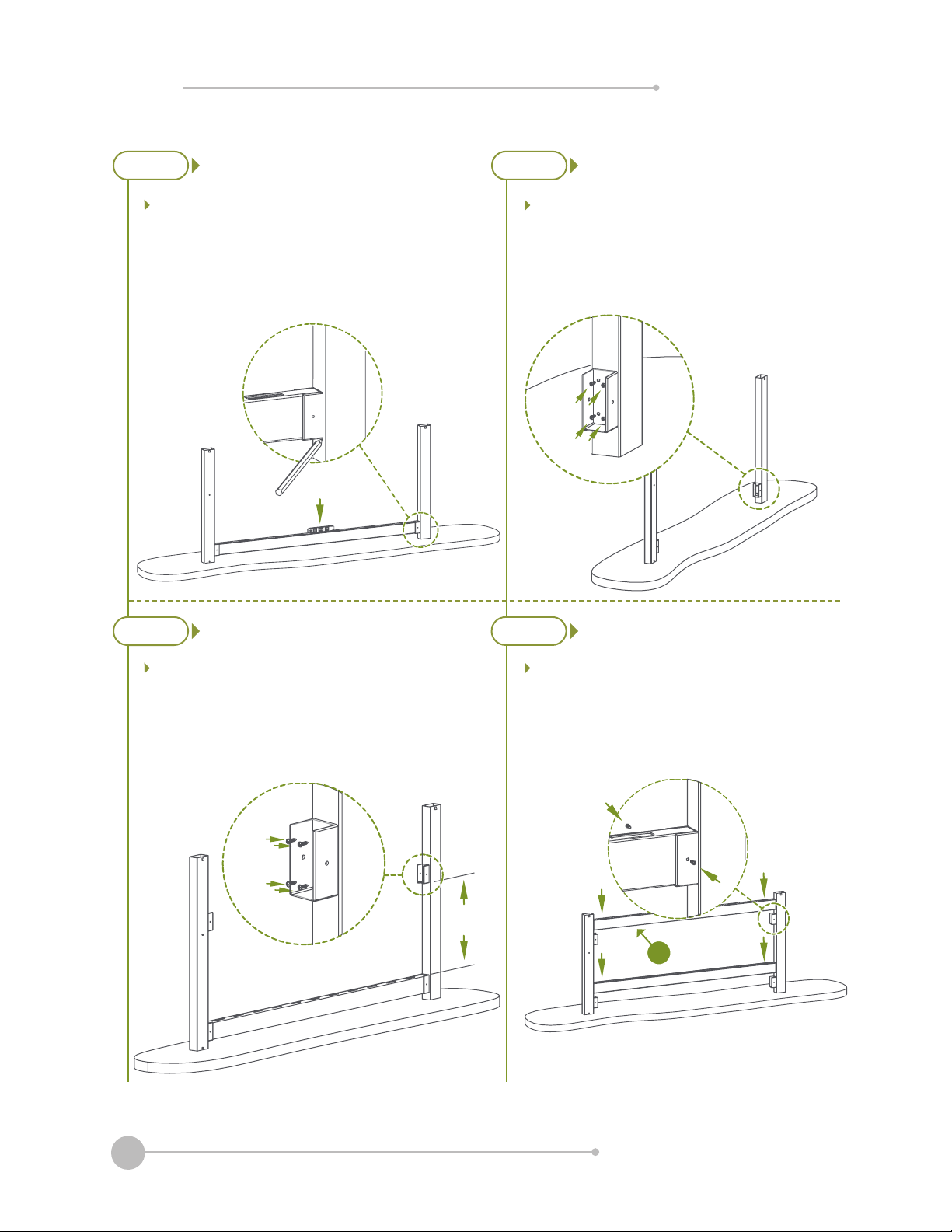

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS ZP19002

WWW.ZIPPITY-OUTDOOR.COM

VER. 042921

ZP19002

ASSEMBLY

INSTRUCTIONS

60 MIN

Approximate assembly me

Want to see a video on how to

assemble this product?

Scan the QR code

NEWPORT

VINYL PICKET

FENCE WITH POST



PIPE ANCHOR KIT



Finishing Post

Kit (ZP19003)

sold separately.

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS

ZP19002

kCheck the inside of the larger pieces in your box for other

materials packed inside.

kWhen assembling components, place on a non-abrasive

surface (i.e. shipping box) to avoid scratching.

kWe recommend an area approximately 5’x 8’ for

unobstructed assembling.

kYou should not need to use excessive force when assembling

components.

VISIT OUR WEBSITE FIRST,

SO WE CAN HELP YOU RIGHT AWAY!

Although great care has been taken to ensure proper packaging

and handling of this product, occasionally problems occur. If you



our website to order replacement parts. If you experience any

further trouble with your product, please contact our customer

service department.

parts.nychbrands.com

[email protected]

704-892-5222 /877-234-6196

Customer service agents are available to take calls weekdays from 8am-

5pm EST. If you call outside of business hours, please leave a voicemail.

To help you quickly and accurately, please have reference item

number ZP19002

on page 5. It is helpful if you can provide the batch lot which is a

stamped number on the end of the box.



this product, we are happy to assist you with the process, so

please give us a call at 704-892-5222 / 877-234-6196.

If for some reason you need to return this product, please



return the product, you will need to iniate the return from the

company you originally purchased from.

GENERAL

INFORMATION

MISSING

DAMAGED

PARTS?

NEED

ASSEMBLY

HELP?

NEED TO

RETURN?

IMPORTANT

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS ZP19002

1. 



2.



3. 

4. O



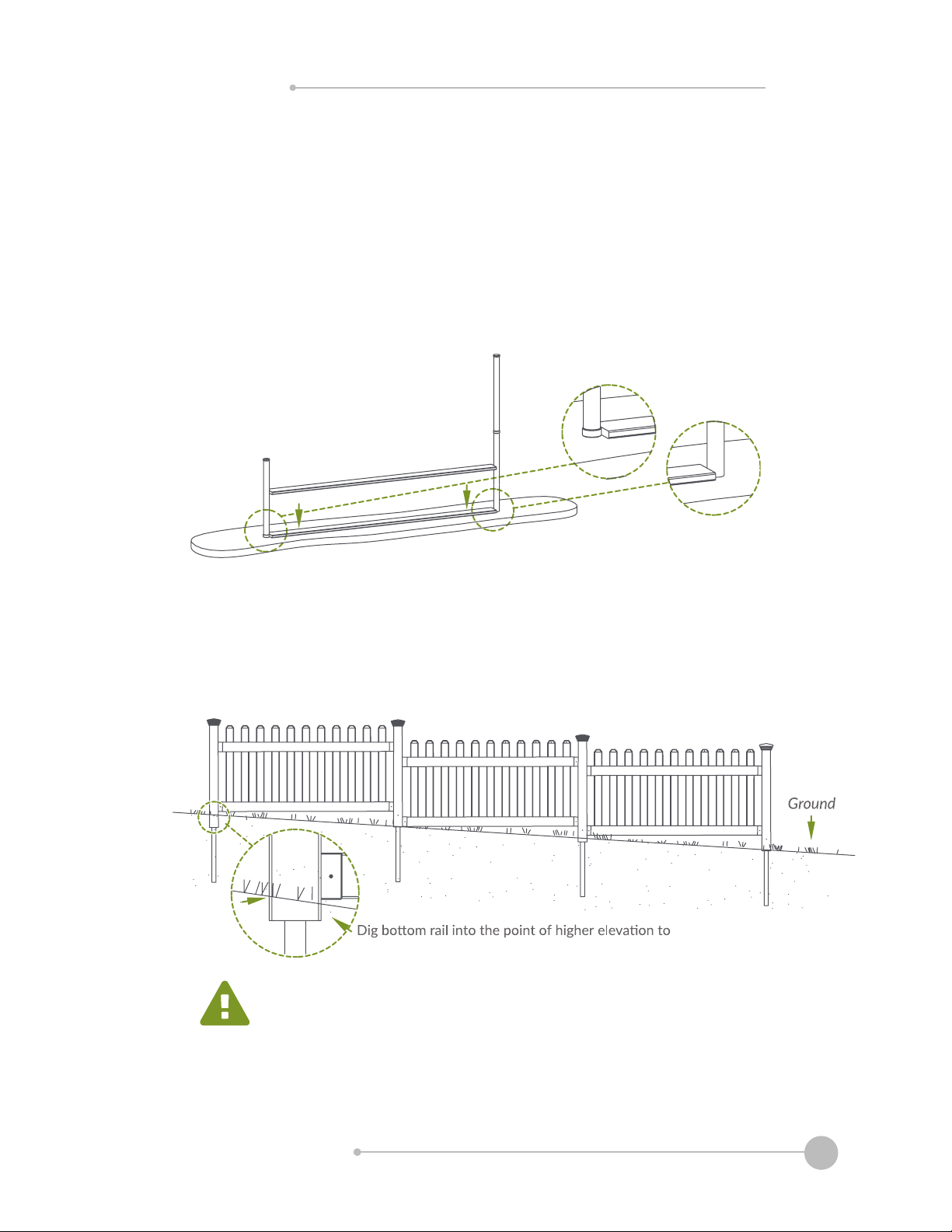

5. If your yard is steeply pitched or is very uneven, you may need to stair-step your panels as

illustrated below. Post heights can be trimmed down as necessary.

Warning: 



this fence. Your post will not be long enough to accommodate this slope.

minimize the gap on the lower side.

TIPS:

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS

ZP19002

Ground

70 3/8 in

72 in

2 in

2 15/16 in

68 1/2 in

6 in

18 1/2 in

24 in

4 in

36 in

33 1/2 in

22 7/8 in

3 in





20 3/4 in

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS ZP19002

STEP 1:

LAY OUT MATERIALS

A B

G H

Note: Top rail

has picket

holes on both

sides.

Picket (11)

⅞” x 3” x 29¾”

Post (1)

2” x 3½” x 38⅝”

Top Rail (1)

1½” x 3½” x 68¼”

(1)

1½” x 3½” x 68¼”

Pipe Anchor (1)

1⅝” x

44¾” ¾” Self-Drilling Stainless Steel Screw (24)

Rail Bracket (4)

Post Cap (1)

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS

ZP19002

Try and drive the pipe anchor as level as possible. Check level



is usually established, and you cannot manually pull the pipe back

to make it level.

BEST

anchor into the ground:

GOOD

BETTER

Hammer

DO NOT USE

STEP 2:

INSTALL PIPE ANCHORS

STEP 2.1



(G)



STEP 2.2

Note: Check level

in both direcons.

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS ZP19002





Orient the Post (C) correctly with tabs at the

top, and slide the post over the pipe anchor and

into the ground.

Using a wood block (or something to protect the





on the pipe anchor. Repeat for the second post.



around the base of the pipe anchor. This will

allow the post to easily insert itself into the



Step 3.1 is only to be completed if the

ground is hard.

70 ¼in.

72in.

STEP 3:

INSTALL POST OVER PIPE ANCHOR

STEP 3.1 STEP 3.2

STEP 3.3

STEP 2.3

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS

ZP19002

1. 



out of the post.

2. Remove the vinyl burrs from the post and screw.

3. Slowly drive the screw with force into the pipe anchor.

1. Use a level to straighten the post.

2. Drive a second hex head tek screw into the top of the post using



Adjust unl level.

Step 4 is only to be completed if you are concerned that

someone may pull your fence posts out of the ground.

STEP 4

 SECURE POST TO PIPE ANCHOR

1 2 3

1 2

Top View

STEP 4.2

STEP 4.1

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS ZP19002

Slide another rail bracket

over the opposite end of the

(F), and slide



the rail bracket installed in



Install one Rail Bracket

(D)

Self-Drilling Stainless Steel

Screws (H). The rail bracket





STEP 5:

INSTALL FENCE PANEL

STEP 5.1



STEP 5.2

WWW.ZIPPITY-OUTDOOR.COM

ASSEMBLY

INSTRUCTIONS

ZP19002



determine where to install the opposing rail

bracket, and mark the height.





self-drilling stainless steel screws.





rail bracket as illustrated below, and install

the top rail brackets.



in order to align the pickets, and slide the Top Rail

(E)

stainless steel screws to secure brackets to

both rails.

STEP 5.3 STEP 5.4



STEP 5.5 STEP 5.6
