ZKTeco UR20RWF Bedienungsanleitung
1.- Product Summary
UR20RW-F are ultra high frequency, readable and writable card issuers that
can read and write data for the user area and EPC area of UHF tags.
Combined with UHF contactless radio frequency circuitry and various
encoding and decoding algorithms, this card issuer can read and write the
tags and cards that support the global EPC standard UHF Class1 Gen 2 and
ISO 18000-6C. Its USB interface adopts the advanced plug and play interface
without driver kernel technology to connect computers and other
equipment.
The card issuer control chip is provided with a watchdog and voltage
detection circuit, and has the advantage of stable reading performance.
2.- General Information
enroller
Work Frequency:
902MHz-928Mhz
Reading Range:
20~40CM
Mini-USB port
3.- Technical Data
Model UR20RWF
Supported Cards UHF Tags ,UHF Cards
Work Frequency 902MHz-928Mhz
Reading Distance Valid distance of 20 ~ 40CM (determined by
the environment and labels)
Protocol Global EPC UHF Class1 Gen 2, ISO 18000-6C
Communication Interface USB analog keyboard output
Support Operation Compatible with US standard UHF reader
working voltage DC5V(±4%)
Work Current 50~300mA
Work temperature -10°C ~ +50°C
4.- Safety Precautions
The operating voltage of the winder is 5V, it is recommended to use a mini
USB cable and take the voltage from the USB port of the PC.
5.- Modification of the configuration by means of Demo
UR10RW
Software Introduction
Our company offers Demo, which is used to configure the work parameters
of the enroller.

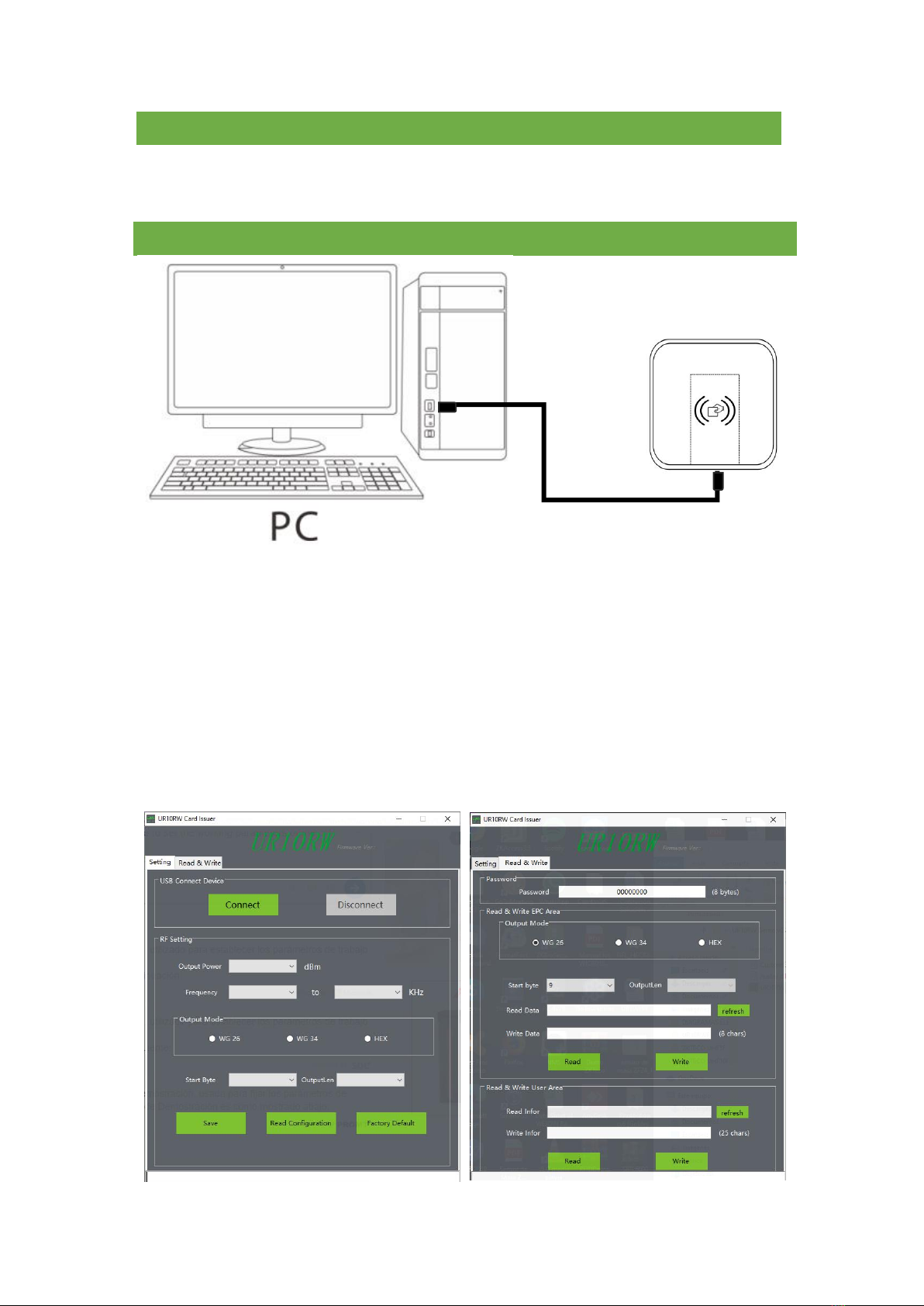

The demo interface is as shown below:
The default reader settings are as follows:
Output power 26dBm
Frequency 902MHz-928Mhz
Communication Interface Wiegand 26
Demonstration with instructions
Connect the USB port of the reader to the USB port of the computer.
- To play the demo on computer, please click "Connect", on the
right side of the middle it will display "Connected Successfully".
- RF configuration: Set the RF parameters of the machine, including
power and spectrum.
- Output power: The power range is 10 ~ 33 dBm.
- Frequency: They allow its use in multiple applications and
systems. Available for Global Frequencies 902MHz-928Mhz.
- Output Mode: The default Wiegand format is WG26 and can be set
to WG34 and Hex.
- Start Byte: EPC tag has 12 byte data, the default first 3 or 4 byte data,
if you set a byte offset value, the output data will start from the set
value.
Reading and writing
The module is used to read and write the EPC card number. Read &
Write EPC Area: To read and write data from the EPC area.
Read & Write EPC User Area: To read and write EPC user data.
ZK Building, Wuhe Road, Gangtou, Bantian, Buji Town,
Longgang District, Shenzhen China 518129
Tel: +86 755-89602345 Fax: +86 755-89602394
www.zkteco.com
