QUICK START GUIDE

Applicable Model: G5

Version: 1.0

Date: May 2023

Outdoor & Multi-Biometric

Access Control Terminal

Safety Precautions

Before installation, please read the following precautions carefully to prevent

the risks of danger to the users of this product or those nearby and damaging

the device.

Do not expose to direct sunlight, water, dust and soot.

Do not place any magnetic objects near the product. Magnetic objects

such as magnets, CRT, TV, monitors or speakers may damage the device.

Do not place the device next to heating equipment.

Prevent water, drinks or chemicals leaking into the device.

This product is not intended for use by children unless they are

supervised.

Do not drop or damage the device.

Do not disassemble, repair or modify the device.

Do not use the device for any purpose other than those specified.

Remove dusts or dirts regularly. While cleaning, wipe dust off with a

smooth cloth or towel instead of water.

Contact your supplier in case of any problem!

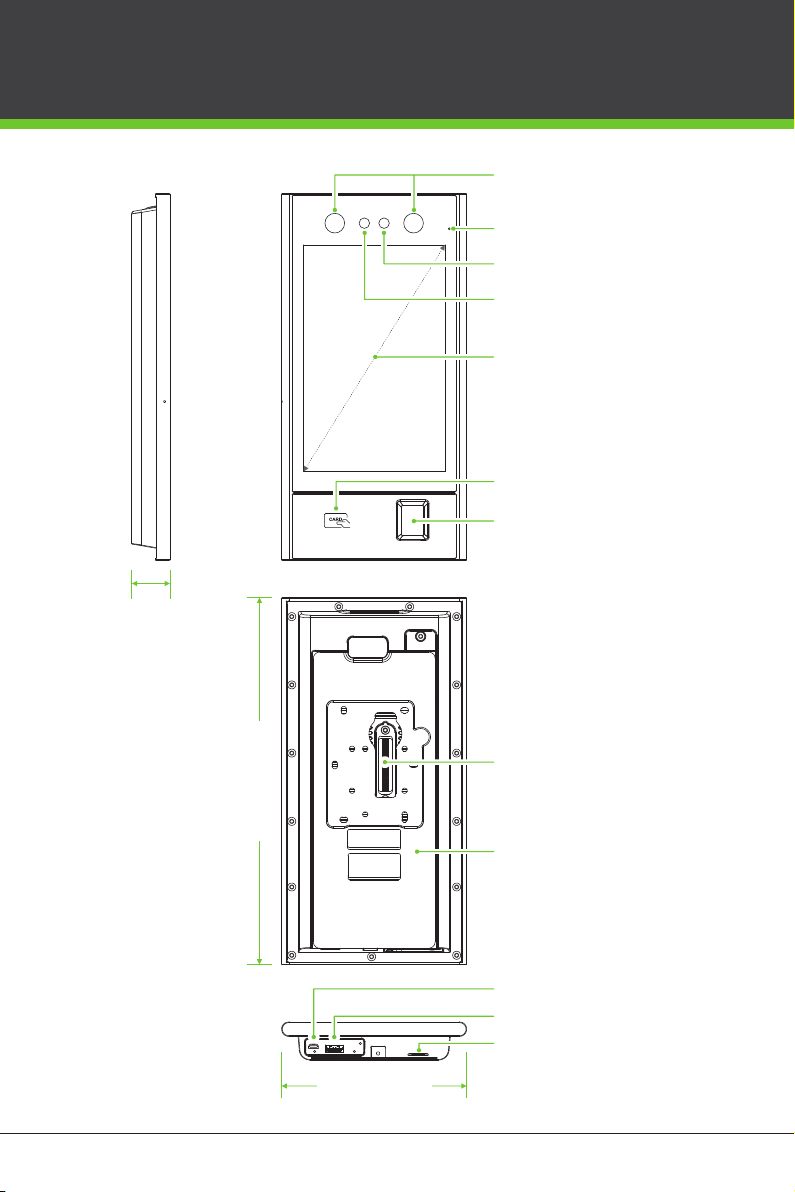

Device Overview

Visible Light Camera

Near-infrared Camera

Near-infrared Flash

8" HD Capacitive Touch Screen

Microphone

Fingerprint Scanner

Built-in ID Card Reader

Speaker

USB Port

Micro USB

Back Plate

Terminal Block

11.004" (279.5mm)

5.551" (141.0mm)

1.142" (29.0mm)

Terminal Block

AUXIN

SEN

BUT

GND

COM1

NC1

ALARM-

ALARM+

12V OUT

GND

485B

485A

232TXD

232RXD

WD0

WD1

IWD0

IWD1

BELL+

BELL-

Auxiliary Input

Sensor

Exit Button

Alarm

Power Out

Power In

RS485

RS232

Lock

Wiegand Out

Wiegand In

Bell

USB

Ethernet

Product Installation

The recommended distance

Installation on the wall

First passing the wires through the wiring hole in the back plate.

Drill holes at suitable locations on the wall, then fix the back plate to the wall with mounting screws,

the recommended distance from the camera to the ground is 61.024 (1.55m). inches

Then attach the device to the back plate from top to bottom.

Fasten the device to the back plate with a security screw.

1 2

For users whose height is between 55.118" to 70.866" (1.4m to 1.8m), the

recommended height of the equipment is 61.024" (1.55m), and the

distance from the personnel to the equipment is 19.685" (0.5m). Users not

in the range can adjust the position by moving back and forth according

to the actual situation.

61.024" (1.55m)

19.685" (0.5m)

①

②

③

④

Ethernet Connection

Recommended power supply

Power & Ethernet Connection

Power Connection

Recommended AC adapter 12V 3A:,

AC adapterTo share the power with other devices, use an with higher current ratings.

AC Adapter

RouterNetwork Cable

Access Control & Reader Connection

Access Control Connection

Reader Connection

12V OUT

GND

485B

485A

232TXD

232RXD

WD0

WD1

IWD0

IWD1

+12V

GND

485-

485+

+12V

GND

RXD

TXD

RS485 Reader

RS232 Reader

Wiegand Reader

+12V

GND

WD0

WD1

12V OUT

GND

485B

485A

232TXD

232RXD

WD0

WD1

IWD0

IWD1

WD0

WD1

GND

+12V

Access

Controller

Do not use

Lock Relay Connection

Device not sharing power with the lock is shown below:

DC12V, 3A

AC Adapter

COM

V- V+

FR107

Magnetic Lock

DO NOT REVERSE

THE CONNECTION.

+12V

GND

AUXIN

SEN

BUT

GND

COM1

NC1

ALARM-

ALARM+

+12V DC

Device sharing power with the lock is shown below:

DC12V, 3A

AC Adapter

COM

V- V+

FR107

Magnetic Lock

DO NOT REVERSE

THE CONNECTION.

+12V

GND

AUXIN

SEN

BUT

GND

COM1

NC1

ALARM-

ALARM+

The system supports both Normally Opened Lock and Normally Closed Lock. The NO Lock (Normally Opened

when powered) is connected with 'NO' and 'COM' terminals, and the NC Lock (Normally Closed when powered)

is connected with 'NC' and 'COM' terminals. The power can be shared with the lock or can be used separately for

the lock, as shown in the example with NC Lock below:

Do not use

Bell Connection

BELL+

BELL-

Door Bell

Smoke Detector, Door Sensor, Exit Button & Alarm Connection

COM

+12V DC

Alarm

Detector Power

Smoke Detector

Exit Button

+12V DC

Alarm Power

+12V DC

Bell Power

AUXIN

SEN

BUT

GND

COM1

NC1

ALARM-

ALARM+

Door Sensor

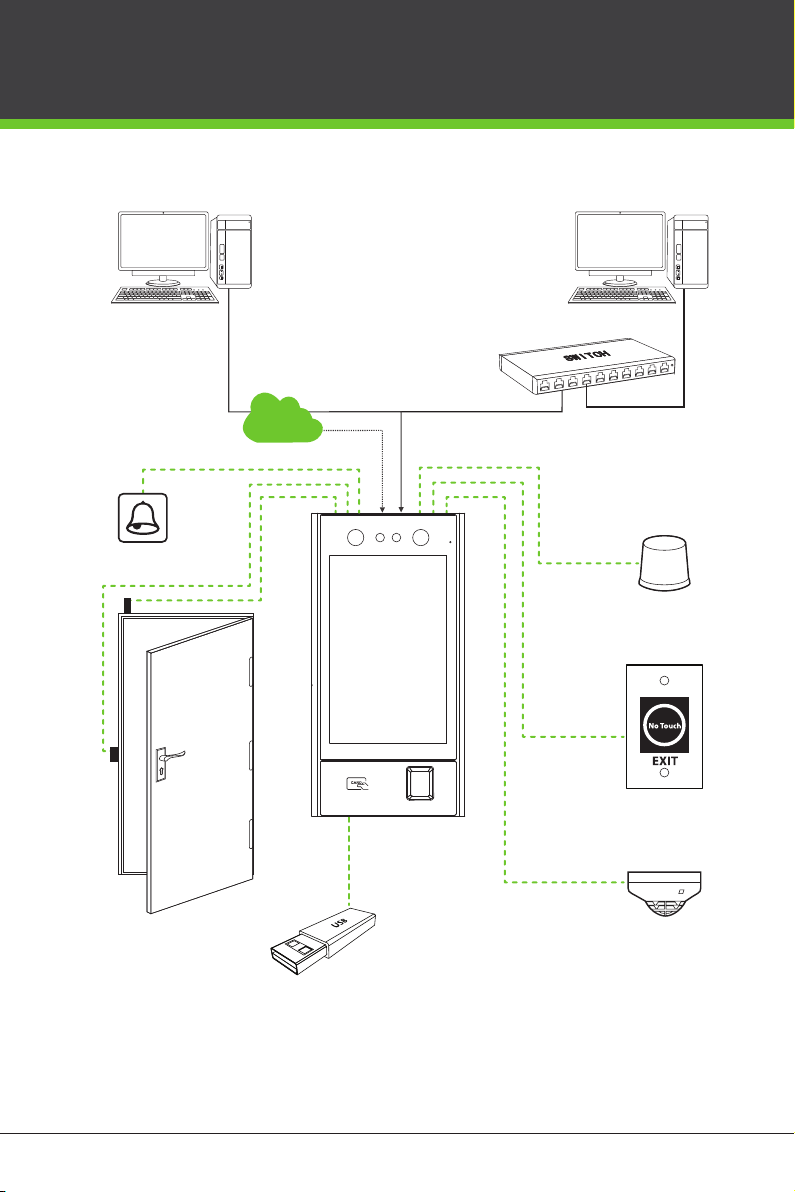

Connecting Other Devices

Do not use

Standalone Installation

WAN

Option A Option B

TCP/IP

SWITCH

Door Sensor

Exit Button

Lock

Alarm

Smoke Detector

Door Bell

USB Disk
