Zline Monument Series Bedienungsanleitung
Installation Manual
MONUMENT DISHWASHERS
www.zlinekitchen.com
ZLINE Kitchen and Bath provides Attainable Luxury, where the kitchen and bath of your dreams
is never out of reach. Through our unique designs and unparalleled quality, we’re dedicated to
providing you an elevated experience in the heart of your home. With an endless selection of features
and finishes, our inspiration is your reality.
ZLINE is fueled by a passion for innovation; A relentless pursuit of bringing the highest end luxury
designs and professional features into everyone’s homes. Because we continually strive to improve our
products, we may change specifications and designs without prior notice.
WARNING: This product can expose you to chemicals including nickel, which is known to the
State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
COVERAGE
ZLINE Kitchen and Bath dishwashers will be warrantied for one year from the original
purchase date for the original purchaser of the product.
TERMS
This warranty applies only to the original purchaser of the product installed for
normal residential use. This is defined as a single-family, residential dwelling in a
non-commercial setting. Commercial settings include but are not limited to: schools,
churches, hotels, restaurants, vacation rentals such as Airbnb, day care centers,
private clubs, fire stations, common areas in multi-family dwellings, nursing homes,
food service locations, and institutional food service locations such as hospitals or
correction facilities. This warranty is non-transferable and will not be extended based
on the date of installation. The warranty applies only to products installed in the
continental United States and the District of Columbia. Warranty shall not apply and
ZLINE Kitchen and Bath is not responsible for damage resulting from negligence,
improper maintenance, misuse, abuse, alteration of or tampering with the appliance,
accident, natural disaster, improper electric supply, unauthorized service or repair,
improper installation, or installation not in accordance with the instructions contained
in the manual or the local codes.
WHAT IS NOT COVERED
1. Installation or start-up damages or problems caused by improper installation or
use.
2. Damage related to unauthorized service or unauthorized parts.
3. Installation in any commercial or non-residential application.
4. Aesthetic damage, scratches, or natural wear caused by normal use.
5. Second-hand, open box products, or products purchased from an unauthorized
retailer.
WARRANTY
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
This symbol indicates that dangerous voltage constituting a risk of
electric shock is present within your refrigerator.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying your
refrigerator.
WARNING
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT
• Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions for the consumer’s and local
inspector’s use.
• Note to Consumer – Keep these instructions with your User Guide for future
reference.
• Skill Level – Installation of this dishwasher requires basic mechanical and
electrical skills. Proper installation is the responsibility of the installer. Product
failure due to improper installation is not covered under the appliance warranty.
• Completion Time – One to three hours. New installations require more time than
replacement installations.
IMPORTANT
• The dishwasher MUST be installed to allow for future removal from the enclosure
if service is required.
• If you received a damaged dishwasher, you should immediately call customer
service.
IMPORTANT SAFETY INSTRUCTIONS
1
General Safety
FOR YOUR SAFETY
Read and observe all CAUTIONS and WARNINGS shown throughout these
instructions. While performing installations described in this booklet, gloves and
safety glasses or goggles should be worn.
WARNING
This dishwasher comes with a heating element to heat the water. To avoid the risk of a
serious burn, don’t touch the heating element when the dishwasher is on.
WARNING
To reduce the risk of electrical shock, fire, or injury to persons, the
installer must ensure that the dishwasher is completely enclosed at
the time of installation.
2
General Safety
FOR YOUR SAFETY
Read and observe all CAUTIONS and WARNINGS shown throughout these
instructions. While performing installations described in this booklet, gloves and
safety glasses or goggles should be worn.
WARNING
This dishwasher comes with a heating element to heat the water. To avoid the risk of a
serious burn, don’t touch the heating element when the dishwasher is on.
WARNING
To reduce the risk of electrical shock, fire, or injury to persons, the
installer must ensure that the dishwasher is completely enclosed at
the time of installation.
IMPORTANT SAFETY INSTRUCTIONS

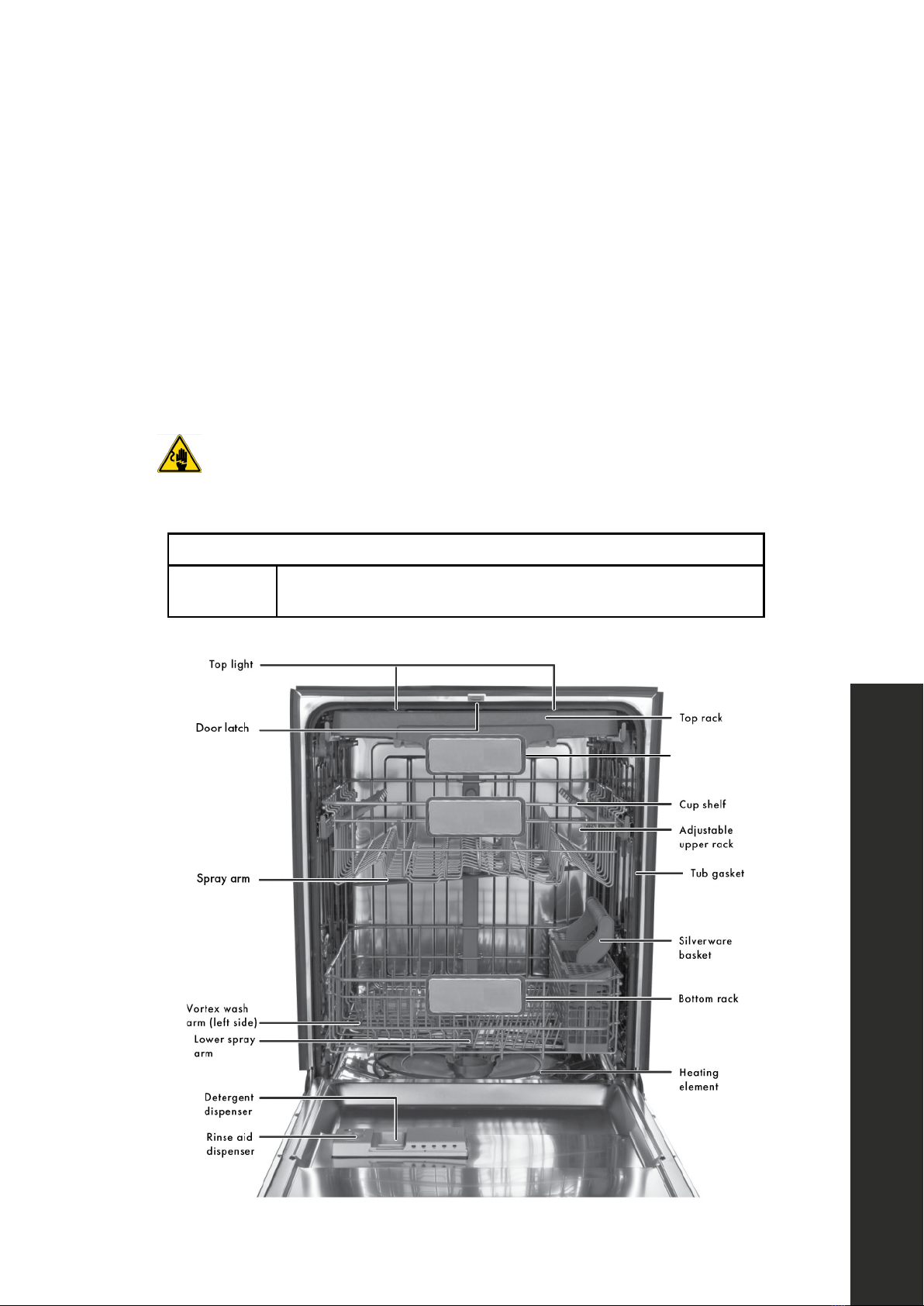

SPECIFICATIONS
Dimensions
(W x D x H)
• Unit with decorated door and handle: 23.9 x 26.5 x 33.7 in.
• Unit without decorated door and handle: 23.9 x 24 x 33.7 in.
Basket Handle
SPECIFICATIONS
Dimensions
(W x D x H)
• Unit with decorated door and handle: 23.9 x 26.5 x 33.7 in.
• Unit without decorated door and handle: 23.9 x 24 x 33.7 in.
IMPORTANT SAFETY INSTRUCTIONS
Basket handle
2
Product Specifications
If you have an installation problem, contact your dealer or installer. You are
responsible for providing adequate electrical, plumbing, and other connecting
facilities.
PREPARING TO INSTALL YOUR DISHWASHER
PARTS SUPPLIED
• Screws A - #8, 3/4”, Flat Head sheet
Metal Screw (4)
• Screws B - #8, 1/2”, Flat Head Sheet
Metal Screw (8)
• Screws C - #6, 7/8”, Flat Head Sheet
Metal Screw (2)
• Screws D - #6, 1 3/4”, Flat Head
Sheet Metal Screw (4)
• Top mounting clips (2)
• Hose clamp
• Drain hose
• Brackets (2)
• Top Hook Mounting Seats (2)
TOOLS NEEDED
• Phillips screwdriver
• 1/4” and 5/16” nut driver
• Level
• Flashlight
• Gloves
• Bucket
• Adjustable wrench
• Carpenters square
• Measuring tape
• Safety glasses
MATERIALS NEEDED (KIT PURCHASE SEPARATELY)
• 90° Elbow, ferrule and compression nut. (3/8” NPT external thread on one end. Other
end sized to fit water supply line
• Teflon thread seal tape
• Three wire nuts (UL listed) (two included in kit)
Not included in kit
• Hand shut-off valve
• Waste tee for house plumbing (if applicable)
• Screw-type hose clamps
• Coupler for extending drain line (if applicable)
• Air gap (if required)
PACKAGE CONTENTS
• Dishwasher
• Hose
• Installation Kits
• User Guide
• Installation Guide
BEFORE INSTALLATION
3
Tools

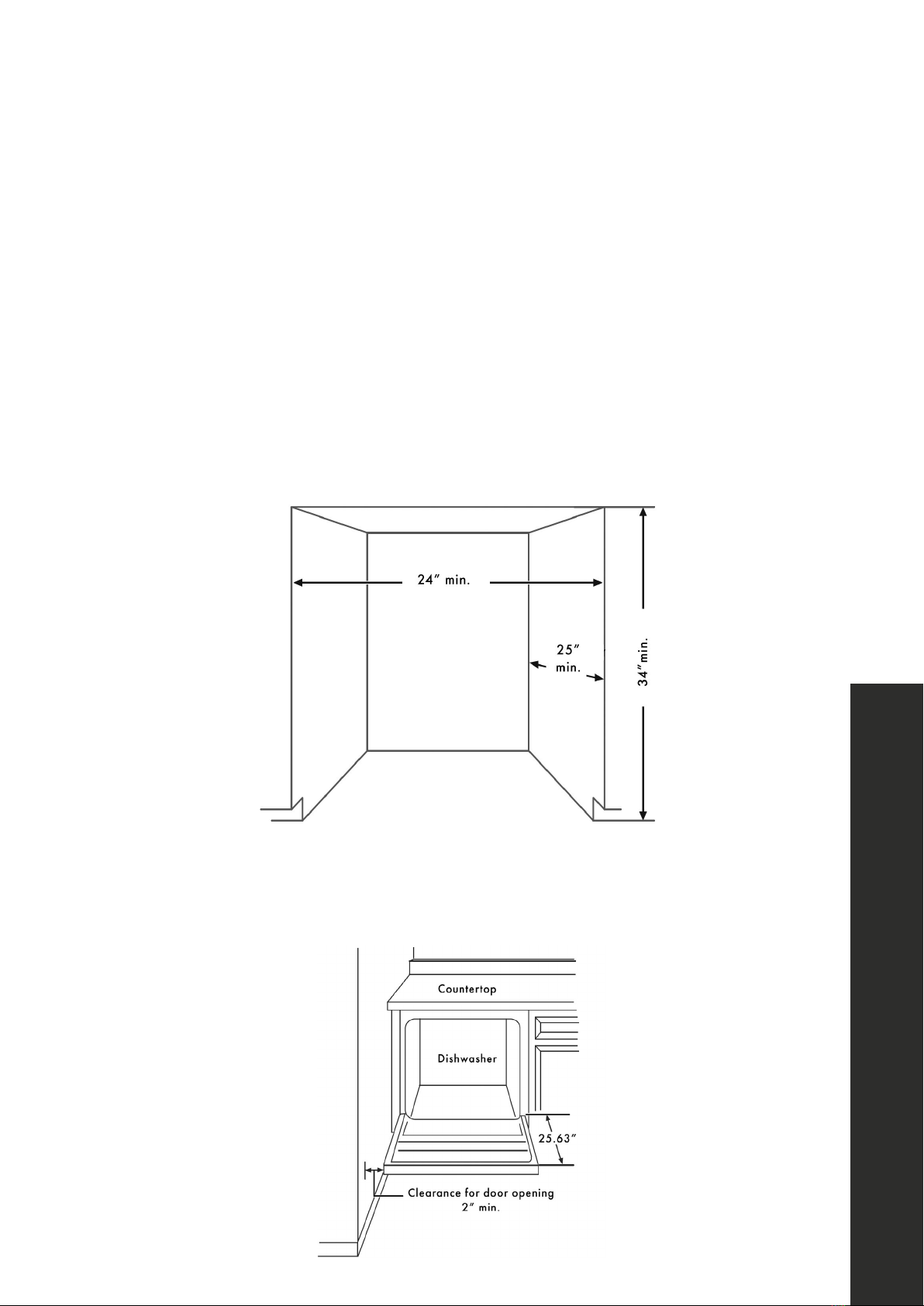

ENCLOSURE REQUIREMENTS
• The dishwasher must be installed so that the drain hose is no more than 10 ft. in
length, for proper drainage.
• This dishwasher is designed to be enclosed on the top and on both sides by a
standard residential kitchen cabinet unit.
• The installation enclosure must be clean and free of any obstructions.
• The enclosure must be at least 24 in. wide, 25 in. deep, and 34 in. high.
• For the front door of the dishwasher to be flush with the front edge of the counter
top, the counter top must be 25 in. deep.
If installing into a corner, allow 2 in. min. clearance between dishwasher and
adjacent cabinet, wall, or other appliances. Allow 25.63 in. min. clearance from the
front of the dishwasher for opening the door.
BEFORE INSTALLATION
4
Enclosure Dimensions
DRAIN REQUIREMENTS
• Follow all local codes and ordinances.
• Do not exceed 10 ft. of drain hose.
• Do not connect the drain lines from other devices to the dishwasher drain hose.
• The dishwasher must be connected to a waste line with an air gap (not provided)
or a 32 in. high (min.) drain loop, depending on local codes and ordinances, to
prevent back flow into the dishwasher.
• An air gap must be used if the waste tee or garbage disposal connection is less
than 18 in. above the floor, to prevent siphoning.
BEFORE INSTALLATION
5
Drain Requirements
