TRI CHLORINE

GENERATOR

INSTRUCTION MANUAL

AND WARRANTY CARD

Part: Qty: Description:

a. 1 TRi Power pack

b. 1 Chlorine generating cell

c. 1 Power pack bracket

d. 2 Reducing bushes

THIS KIT CONTAINS:

WELCOME TO ZODIAC

Congratulations on your purchase of a product from the Zodiac range of

pool care products. Zodiac products are designed to let you spend more

time enjoying your pool and less on maintenance.

IMPORTANT INFORMATION

YOU MUST READ THIS INFORMATION BEFORE INSTALLATION.

ALWAYS READ THE LABEL AND OPERATION MANUAL BEFORE

USING. PLEASE KEEP YOUR MANUAL AS IT CONTAINSYOUR

WARRANTY.

ZODIAC BELIEVES IN SAFETY FIRST

At Zodiac, we take safety seriously. Always exercise caution when using

electrical appliances and follow the instructions. Failure to do so could

result in permanent injury, electrocution or drowning.

GENERAL WARNINGS

Zodiac saltwater chlorine generators are designed for domestic swimming

pool use only. Contrary use could affect performance and void warranty.

Operating a chlorine generator without water ﬂowing through the cell may

cause a build up of ﬂammable gases, resulting in ﬁre or explosion.

Keep equipment out of reach of children.

A damaged supply cord should only be replaced by the manufacturer,

authorized service agent or electrician.

When installing and using this electrical equipment, always follow basic

safety precautions.

Before performing installation, disconnect all power.

Connect to a circuit that is protected by a ground fault circuit interrupter

(GFCI).

For swimming pools, Australian standards recommend a minimum of 1 Part

Per Million (ppm) of free available chlorine must be maintained at all times.

Service to Zodiac equipment should only be carried out by qualiﬁed and

authorized pool professionals.

ZODIAC BELIEVES IN SAFETY FIRST

CHILD SAFETY

Children should not be allowed to operate or perform maintenance on this

product.

No one, particularly children, should sit, step, lean, or climb on any of your

pool’s operational system.

In the interests of child safety, all components of a pool’s operational

system should be located at least 3 metres away from the pool.

ELECTRICAL HAZARD

To avoid accidental contact with lawn mowers and hedge trimmers, power

cords should remain within sight and above ground at all times.

The Zodiac TRi Power pack must not come into contact with water and

should be installed at least 3 metres from the inside wall of your swimming

pool.

Should a lack of water be detected, the unit’s electronic ﬂow switch is

designed to turn off the system. Interfering with the electronic ﬂow switch

could result in personal injury and/or damage to the cell.

One pump per electrical socket only (no ancillary equipment should be

connected to the same outlet).

INSTALLATION GUIDE

The following steps will help you get up and running with your new Zodiac

TRi Chlorine generator.

POSITIONING THE POWER PACK

1. Locate a suitable space for the power pack bracket. It should be

installed no further than 1.8 meters away from the cell - ideally in a

ﬁltration shed or close to the ﬁltration equipment.

PLEASE NOTE: if ﬁxing to a post it must have a waterproof panel ﬁtted (behind the unit),

at least 450mm wide and 470 mm high.

2. Using screws provided, fasten the bracket securely to the wall and

position the power pack on the bracket. Plug into power point, but

don’t turn on the power.

POSITIONING THE CHLORINE GENERATING CELL

PLEASE NOTE:The cell should always be the last device placed on the water pipe

(In the return line to the pool).

3. Ensure the cell is placed horizontally, with the Inlet pipe connecting to

the ﬁtting closest to the cell lead.

4. Using screw barrel ﬁttings (supplied), attach the cell to the pipe. If using

40mm pipe, you will need to ﬁt the cell using the reducing bushes (also

supplied).

5. When connecting the lead from the power pack to the cell match up

the corresponding colours and pins, then ﬁt the end cap.

(Note: Either RED wire can be connected to either RED pin on the electrode.)

6. Plug your pool pump into the outlet socket in the bottom of the TRi

(this will allow the TRi timer to control the ﬁltration times)

7. Once all connections are together press the mains power switch to ON.

USING INBUILT CLOCK AND TIMERS

When it comes to chlorination, every pool is different.To get what’s right

for you, you will need to set the unit’s clock and timers.

SETTING THE CLOCK

1. Switch power on.

2. Wait for the start-up sequence to complete.

3. Press the button to enter the MAIN MENU.

4. Use / buttons and scroll to SET CLOCK.

5. Press .

6. Use / buttons to set the hours.

7. Press to save the hours.

8. Use the / buttons to set the minutes.

9. Press to save the minutes.

TRi will then return to the MAIN MENU.

10. Press to return to the operating screen.

NOTE:The time is displayed in 24 Hour format

TURNING CHLORINE GENERATION ON

The chlorine generation of the TRi can be controlled in a number of ways:

1. Manually set to an output level, with the operating times determined by

an external timer.

2. Using the in-built timers on the TRi unit (refer to ‘The Timers’)

3. Using a connection to an external ‘third-party’ controller

(refer to ‘Connecting to a controller’).

To turn the chlorine generation on manually, press the ON/OFF button.

The output level can be set as described in ‘Setting the Chlorine Output.’

NOTE: For safety reasons, the TRi chlorine generator will continually dose chlorine for a maximum of

30 hours if left running with no ‘OFF’ time – unless connected to en external controller. After this time

the TRi will switch to ‘OFF’.

THE TIMERS

The Zodiac TRi chlorine generator comes with two inbuilt timers that

switch the ﬁltration and chlorination system on and off as required.

During swimming season, consider running the system for around 8 hours

a day.This can be increased to 10 hours during periods of very hot weather.

In winter, it may only be necessary to run your pool’s ﬁltration system for

4 hours a day. These shorter periods of activity will lengthen the life of the

unit’s electrode.

For best year round results, set the unit to operate during the cooler hours

of the early morning, evening or when swimmers are using the pool.

PROGRAMMING THE TIMERS

To activate the timer, you will need to enter both an ON and OFF time.

If no OFF time is entered, the chlorine generator will switch off at the

default time of 12:00am (0:00).

You will know that a valid time has been entered when a “T” Symbol is

displayed in the top right hand corner of the LCD display when the unit is

displaying the ‘operating screen’.

USING INBUILT CLOCK AND TIMERS

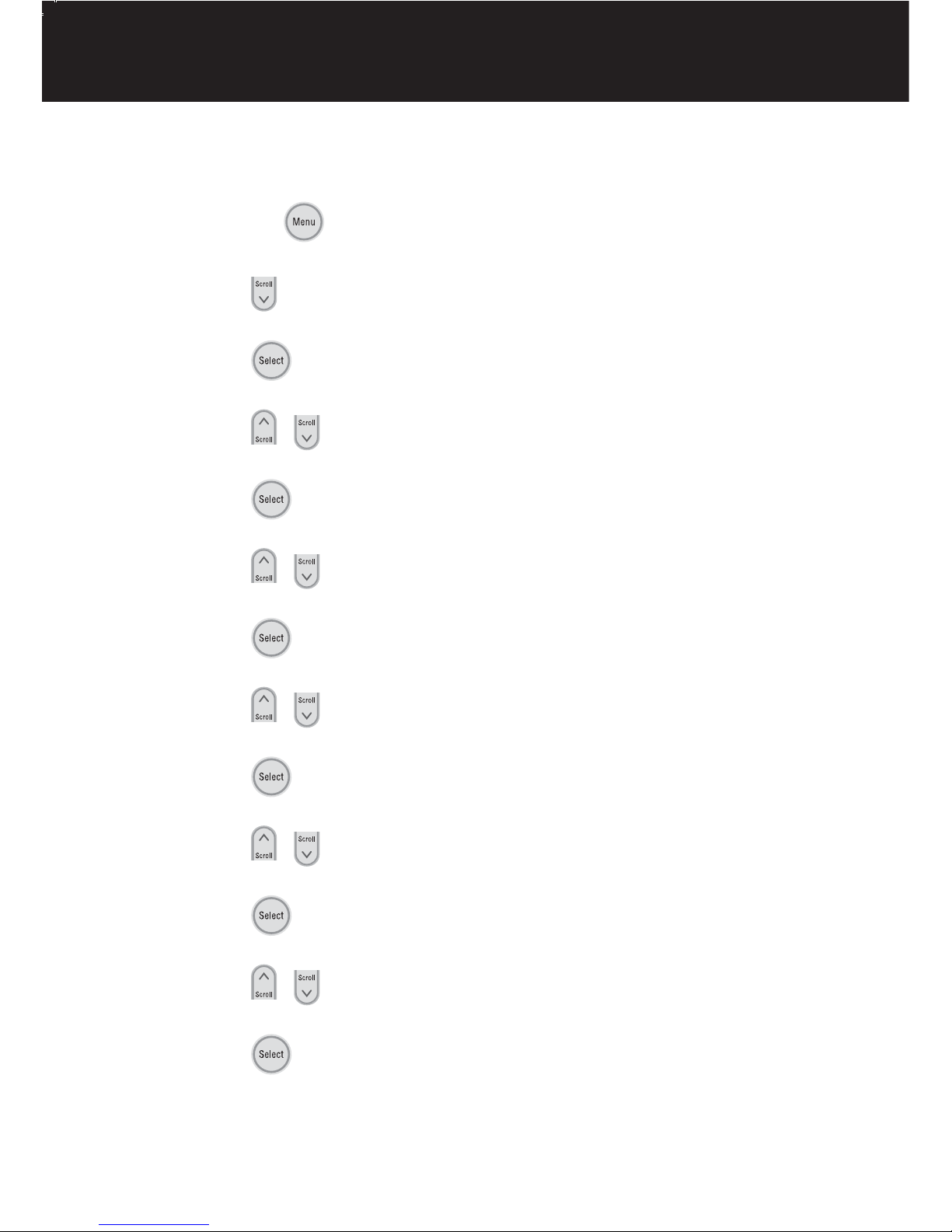

To program the timer:

1. Press the button.

2. Press button to move arrow to ‘SET TIMERS’.

3. Press to enter the ‘SET TIMERS’ menu.

4. Press / to select the timer you wish to set. (Timer 1 or Timer 2)

5. Press .

6. Press / to set the hours (on time).

7. Press to save the hours.

8. Press / to set the minutes (on time).

9. Press to save the minutes.

10. Press / to set the hours (off time).

11. Press to save the hours.

12. Press / to set the minutes (off time).

13. Press to save the minutes.

TRi will return to the ‘SET TIMERS’ menu.

CLEARING THE TIMERS

To clear the timer:

1. Press the button.

2. Press / button to scroll to ‘SET TIMERS’.

3. Press to enter the ‘SET TIMERS’ menu.

4. Press / to scroll to ‘CLEAR TIMERS’.

5. Press .

A conﬁrmation message will appear on the screen.

EXTERNAL TIME CLOCK

At times, it may be desirable to control chlorine generation using an

external time switch. If the chlorine generator is turned ON, and the

external timer fails to switch the mains power off within 24 hours, the

Zodiac TRi will automatically stop chlorinating in order to prevent over

chlorination.

To set the chlorine generator to run from an external clock:

1. Clear the Timer by following the procedure outlined in ‘Clearing the

Timers’.

2. Press the button to turn the chlorine generator on.

USING INBUILT CLOCK AND TIMERS
