Zonet KVM3008 Bedienungsanleitung

witch

4 PORT / 8 PORT / 16 PORT

Contents

Introduction

Overview…………………………………………………..1

Features……………………………………………….…..2

Configurations……………………………………………..3

Installation

Connection………………………………………..……….5

Power-up…………….…………………..………….……..7

Rack Mount Accessories……….…………………...……8

Operation

Front Buttons……………………………...…...……..……9

OSD (On-Screen Display) Menu………………………..10

Hot-key Commands………………………………………20

Cascade Configuration

Connection……………………………..…….……...……22

Change Configuration while Running………..…………25

Appendices

Specifications…….…………………………………..……26

Troubleshooting……………………………………………27

The products are tested and complied with FCC, CE and VCCI

standards for electromagnetic interference.

KVM Switch User’s Guide

------------------------ Introduction

Overview

Thank you for your purchased our products, The KVM Switch allows you

to access multiple computers from one keyboard, mouse and monitor

without extra interface card or software. KVM installation is as easy as

connecting cables between the KVM Switch and your computers.

Operation is just pressing push button, key in hot-key command or operating

through the function of user-friendly on-screen menu (available for models

with OSD only: XXXXDseries), it’s simple and easy.

Serial Mouse Conversion (RS-232 Interface)

The KVM Switch you can connect computers with PS/2 or serial mouse port

and control all PCs use one PS/2 mouse from the KVM console port.

(Computer side need a PS/2 to Serial port adaptor if connect to computer

serial port).

High Video Quality

The KVM Switch supports VGA resolution up to 1920 x 1440 (Max.,

bandwidth 300MHz)*and DDC1/2B compatible.

On-Screen Display (OSD) Menu For 4 / 8 /16 Port

(OSD models only: XXXXD)

For KVM Switch with built-in OSD menu, you can rename your computers,

select to a computer from a menu, also configure settings, view the selected

computer like: name, time interval setting, security function setting

(lock/unlock, channel authorize setting, password), ...etc.

*Dependants on the quality of testing monitor and VGA card, VGA cable,

then both PC port and Console port can be distance up to 20 – 30 meter.

KVM Switch User’s Guide

Features

PC port supports both PS/2 and serial mouse (specify adaptor)

Supports Microsoft IntelliMouse (Pro), Optical, Mouse Man,

Wheel Mouse, Scroll Point and Serial Mouse,…,etc.

Keyboard states automatically saved and restored when computer

channel switching

Hot-key functions available for easy access computers

Single hot-key for channel left/right shift sequentially. (left/rightAlt )

Auto-scan can automatically switch computers sequentially

(OSD model can setting auto-scan conditions)

Buzzer sound On/Off selectable

Hot-key Scroll Lock/Caps Lock selectable

Cascade configuration expands system capability (64 to 4096 PCs)

Operating system independent, transparent to all applications, no any

software or hardware add

Plug and play system configuration

Keyboard and mouse can be hot plugged at any time

High VGA resolution 1920 x 1440 (Max. bandwidth 300MHz)

PC port keep alive capability, KVM powering down and all PC will still

keep active

Hot-Key function

Select and access computers

Sequential channel shift (left-decrease, right-increase)

Scan function and time interval setting (Non-OSD model)

Buzzer sound On/Off selectable

Hot-key Scroll Lock/Caps Lock selectable

Extra function for On-Screen Display model

Assign computers names for more easy to identify

Identify and select computers by the names

Programmable scan conditions and scan time interval

Password security lock/unlock access

(Default Name: admin. Password: 123456)

Store all setting information to non-volatile memory

User friendly OSD interface

KVM Switch User’s Guide

Configurations

Single KVM Switch Configuration

For your system safety purpose, you must turn off all PCs and

Monitor during the configuration

After plug in KVM power adapter, connect a PS/2 keyboard, a PS/2 mouse

and a multi-sync VGA monitor to the KVM CONSOLE port. After that,

connect the KVM cables (keyboard, mouse and monitor) between the KVM

PC ports and computers, as shown in figure 1.

Figure 1: Single KVM Switch configuration

KVM Switch User’s Guide

Cascade (Master/Slave) Configuration

Master KVM unit: has a physical keyboard, mouse and monitor connected

to its CONSOLE port, any PC port can connect computer or another KVM.

Slave KVM unit: is a KVM Switch that has its CONSOLE port connected to

the Master's PC port.

First, plug the power adapter to the Master KVM. Then connect the console

device and PC port link. You can connect a second and third level of one or

more KVM Switches to any PC port of the Master KVM. Cascade

configuration expands system ability allowing you to select computers

connected to the Master or Slaves. There is only need a mouse, a keyboard

and a monitor connected to the CONSOLE port of Master and its can directly

operated by a user. After connected, KVM Switches automatically configure

Master or Slave by themselves. Slaves can be mixed different KVM Switch

models in cascade configuration, show as figure 2.

Figure 2: A cascade KVM Switch configuration

KVM Switch User’s Guide

------------------------ Installation

Connection

For your system safety, please make sure all PCs and Monitor

or other devices are powered down during the installation

Console Device Connection

First, plug the power adapter to KVM. Then connect the CONSOLE and PC.

The monitor connected to the HD-DB-15 VGA port of a Master CONSOLE

port. Connect a PS/2 mouse and a keyboard to the CONSOLE port

respectively with a mouse and a keyboard marked as shown in figure 3.

Figure 3: Master console connection

KVM Switch User’s Guide

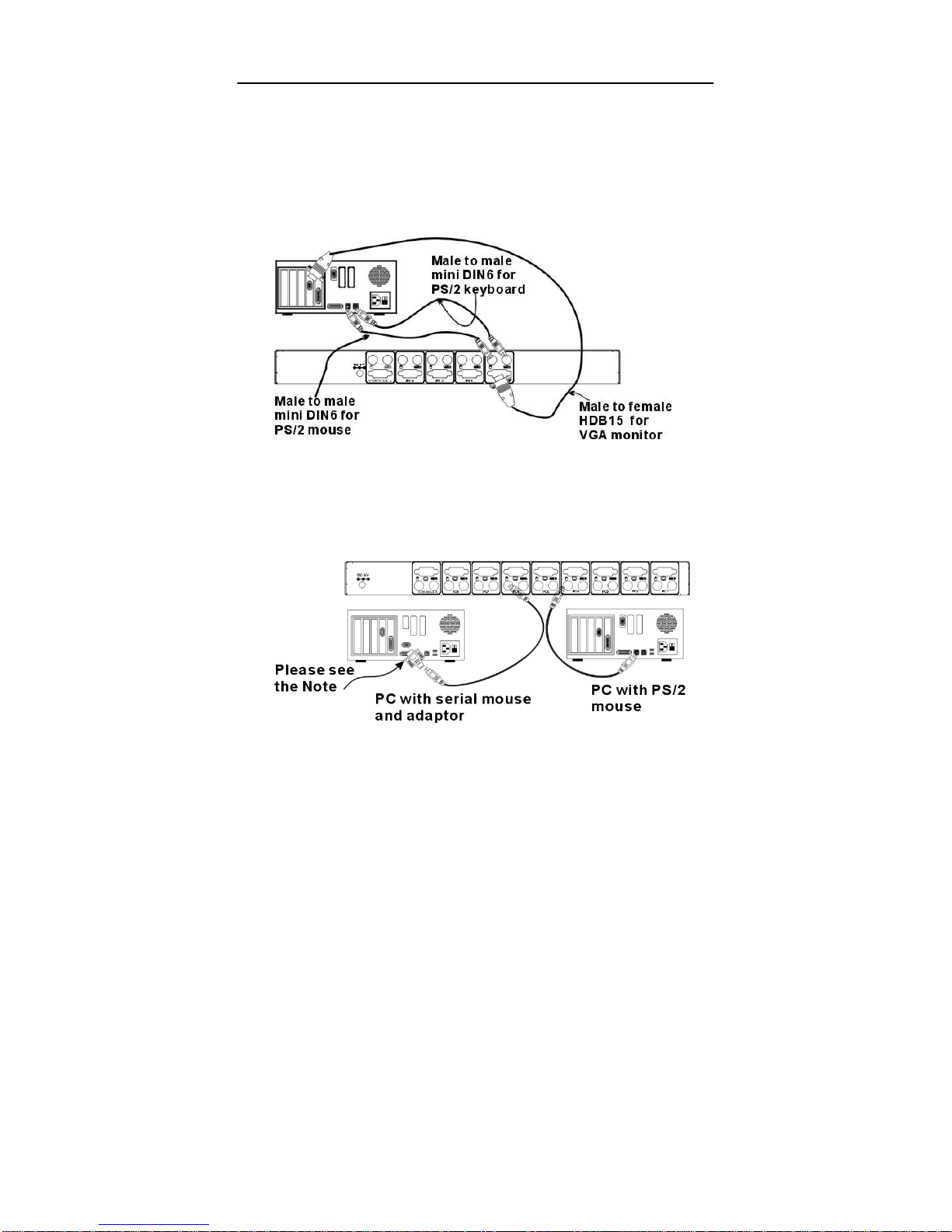

Computer Connection

For computers using PS/2 mouse, connect the computer's mouse and

keyboard cables to the KVM Switch’s PC ports marked with a mouse and

keyboard respectively. Connect the computer's monitor cable to the

HD-DB-15 VGA connector. As shown in figure 4.

Figure 4: Master computer connection

For computers using serial mouse, connect the DB-9 to mini-DIN-6 adapter

(supplied from manufacturer or agent) to the computer serial port, then

connect KVM cable from the mouse adapter to KVM Switch, see Figure 5.

Figure 5: Adapter and serial mouse connection

Note: you can ask your agent or manufacturer for this mouse adaptor.

KVM Switch User’s Guide

Initial Power-Up Process

Make sure all computers and KVM Switches are powered down

during installation. You must power up the Master KVM Switch

before turning on any other devices.

For single KVM Switch:

1) Apply a power adapter to the Master. (after cables connected)

2) Turn on computers.

For cascade:

1) Apply a power adapter to the Master.

2) Apply power adapters to all Slaves.

3) Turn on computers.

Note: You may hot plug any powered-down computer and Slave KVM at any

time after initial power up process completed.

Hot Plug Capability

Master Console Devices Replacement

You can replace a keyboard or mouse of the Master CONSOLE port at any

time without powering down the Master KVM.

PC Port Hot Plug and Hot Swap

You can plug in or out of PC port or swap PC port at any time without

powering down the KVM.

Note: Some PC was not support PnP configuration and it will need to

rebooting after Hot swap.

In case, some devices need to rebooting or software driver initial, you

may press the Reset button in the KVM front panel to re-start the

KVM initial process.
