Zonet ZVC7500 - REV 1 Bedienungsanleitung

Package Contents……………………………………………………………………………………………………………3

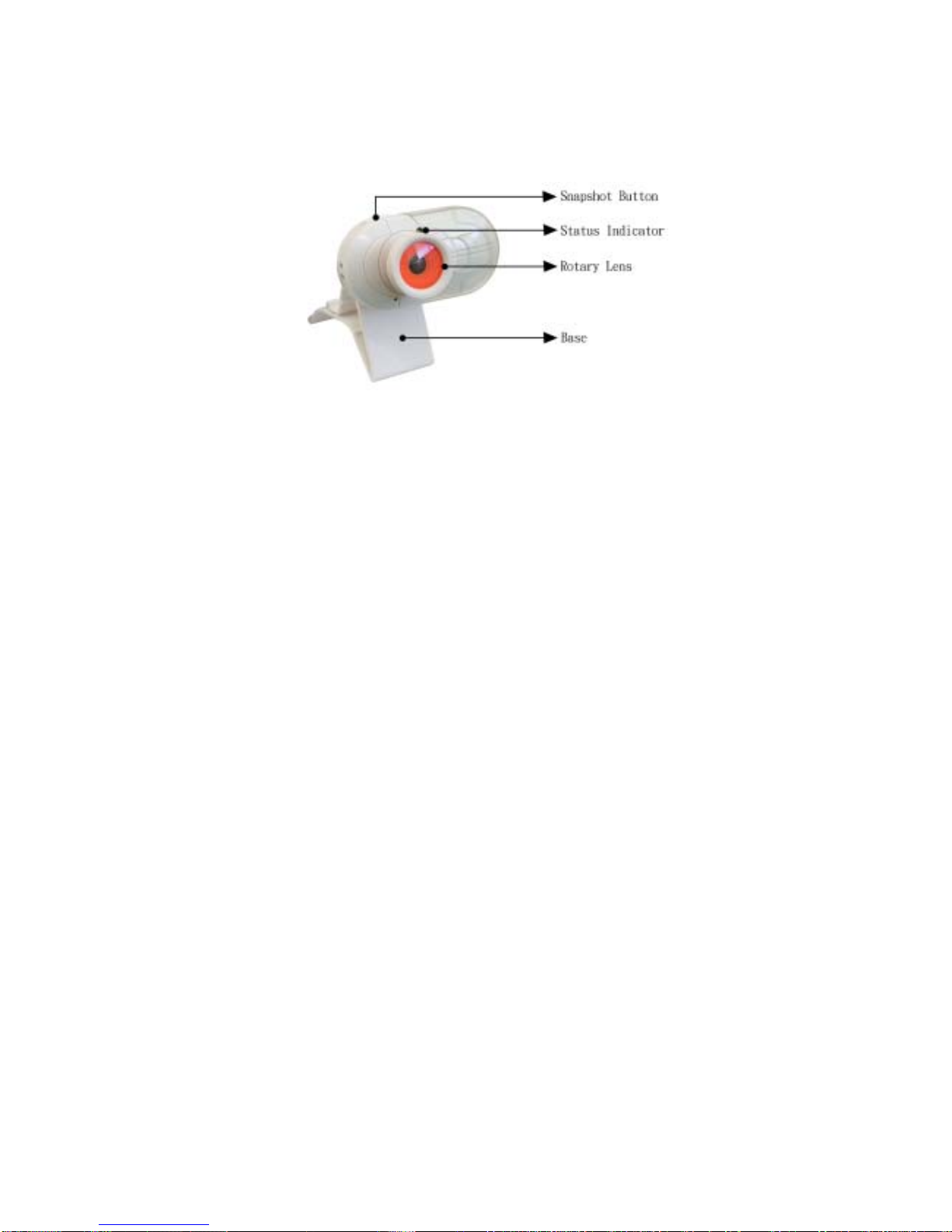

Product Diagram…………………………………….………………………………………………………………………3

Specifications……………………………………………………………………………………………………………………3

System Requirements………………………………………………………………………………………………………3

Driver Installation…………………………………………………………………………………………………………..4

Software Installation…………………………………………………………………………………………………………5

Hardware Installation………………………………………………………………………………………………………6

Check the hardware is working and related settings…………………………………………………….……6

Advanced Settings………….…………………………………………………………………………………………………9

Cautions………………………………………………………………………………………………………………………..12

Package Contents:

˙One ZVC7500

˙One User Manual

˙One Driver CD

˙1.3 Mega pixels Digital Camera

˙Image Sensor: CMOS

˙Video Capture Resolution: 1280*960

˙Max. Image Resolution: 2304*1728 (picture size)

˙Video mode: RGB24 / I420

˙Interface: USB 2.0 port

˙Frame rate: 1280*960 mode up to 10 ~ 15 fps

1600*1200 mode up to 10 fps

˙Signal-Noise ratio: Larger than 48dB

˙Dynamic range: Larger than 72dB

˙Focus Settings: Manual, 3cm to infinity

˙Non-Compression Image Processor

˙Automatic Whiteness Balance

˙Automatic Face Tracking

˙Lens: 5-layer Glass

˙Snap-shot Button

˙Special Image Effect

˙Special Image Frame

˙Built-in Microphone

˙Digital Zoom function

˙CPU: above PII 400MHz, Celeron, AMD Athlon

˙OS: Windows 98/2000/ME/XP

˙Free HDD space: over 200MB

˙Memory: min. 128MB

˙CD-ROM driver

˙Available USB port

˙Support DirectX 9.0 VGA card

Notice: DO NOT PLUG ZVC7500 INTO USB PORT BEFORE DRIVER IS INSTALLED! If have already plugged

ZVC7500, please get it unplugged and follow the Steps below.

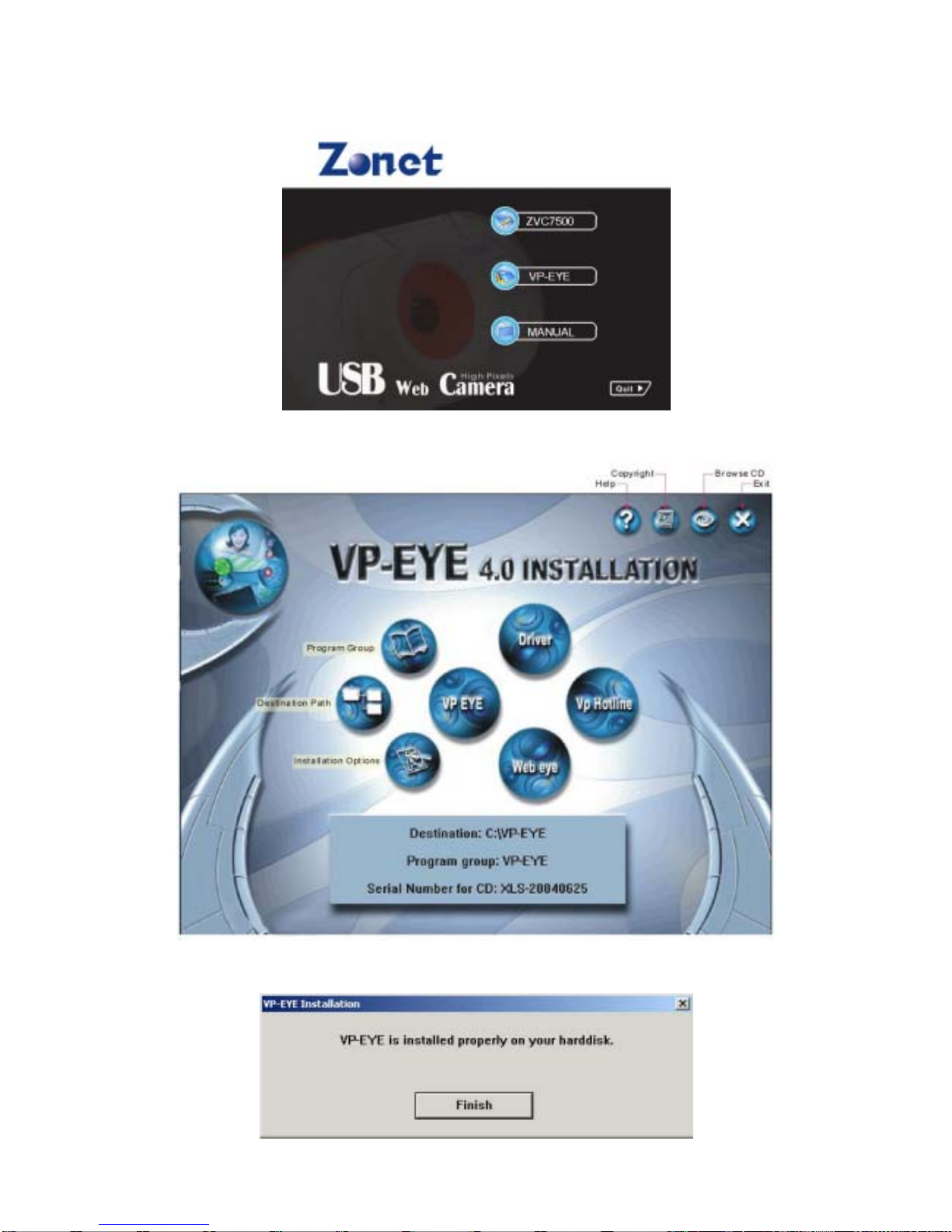

Insert the Installation Disc into CD-ROM driver then installation menu will automatically appear.

a. Click ZVC7500 to install the driver

Figure 1

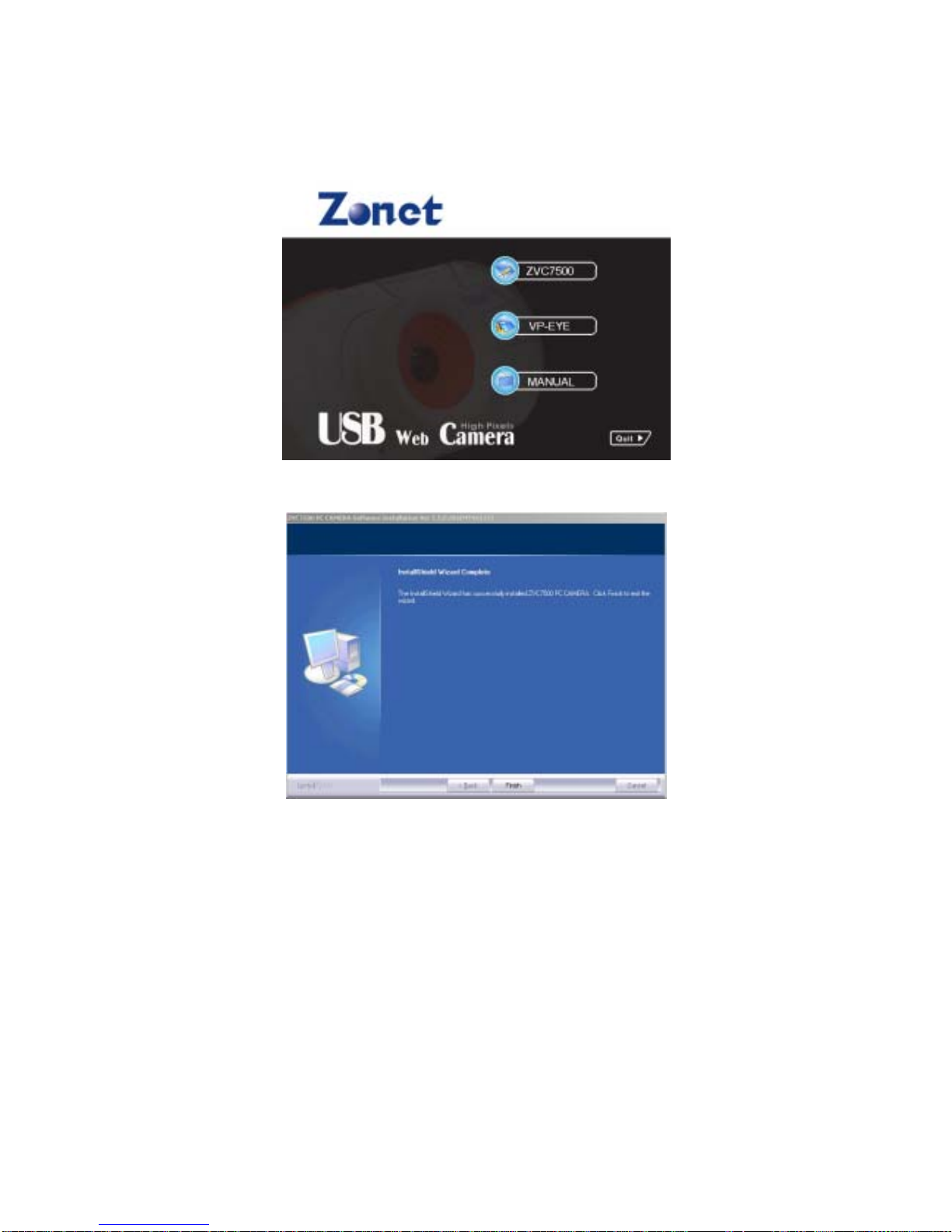

b. Click Finish to complete the driver installation

Figure 2

a. After ZVC7500 Driver is installed, please go back to installation menu and click VP-EYE to

install the software

Figure 3

b. Click VP-EYE icon to start installation

Figure 4

c. Click Finish to complete installation of software

Figure 5

When the installation of software and related drivers are complete, plug ZVC7500 into an

available USB port, system will detect the device and complete the installation automatically.

Click Finish to complete ZVC7500 installation

Figure 6

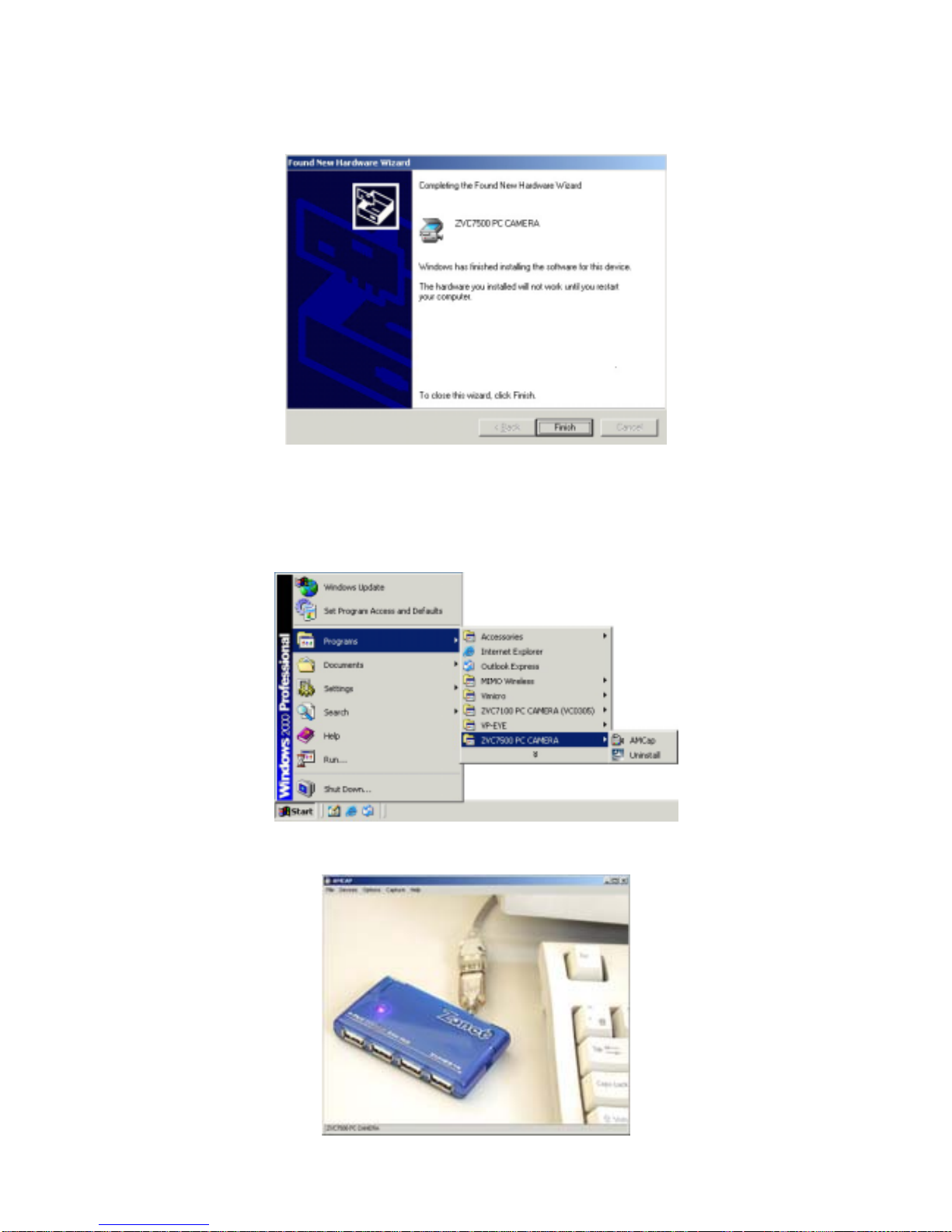

Start your ZVC7500

a. By selecting the Application Program from Start menu as Figure 7

Figure 7

b. You will see the preview picture of ZVC7500

Figure 8

c. By selecting the Options

→

Video Capture Pin, you can adjust the resolution from pull down

menu of Output Size from preview window

Figure 9

d. By selecting the Captures

→

Set Frame Rate, you can set frame rate from preview window

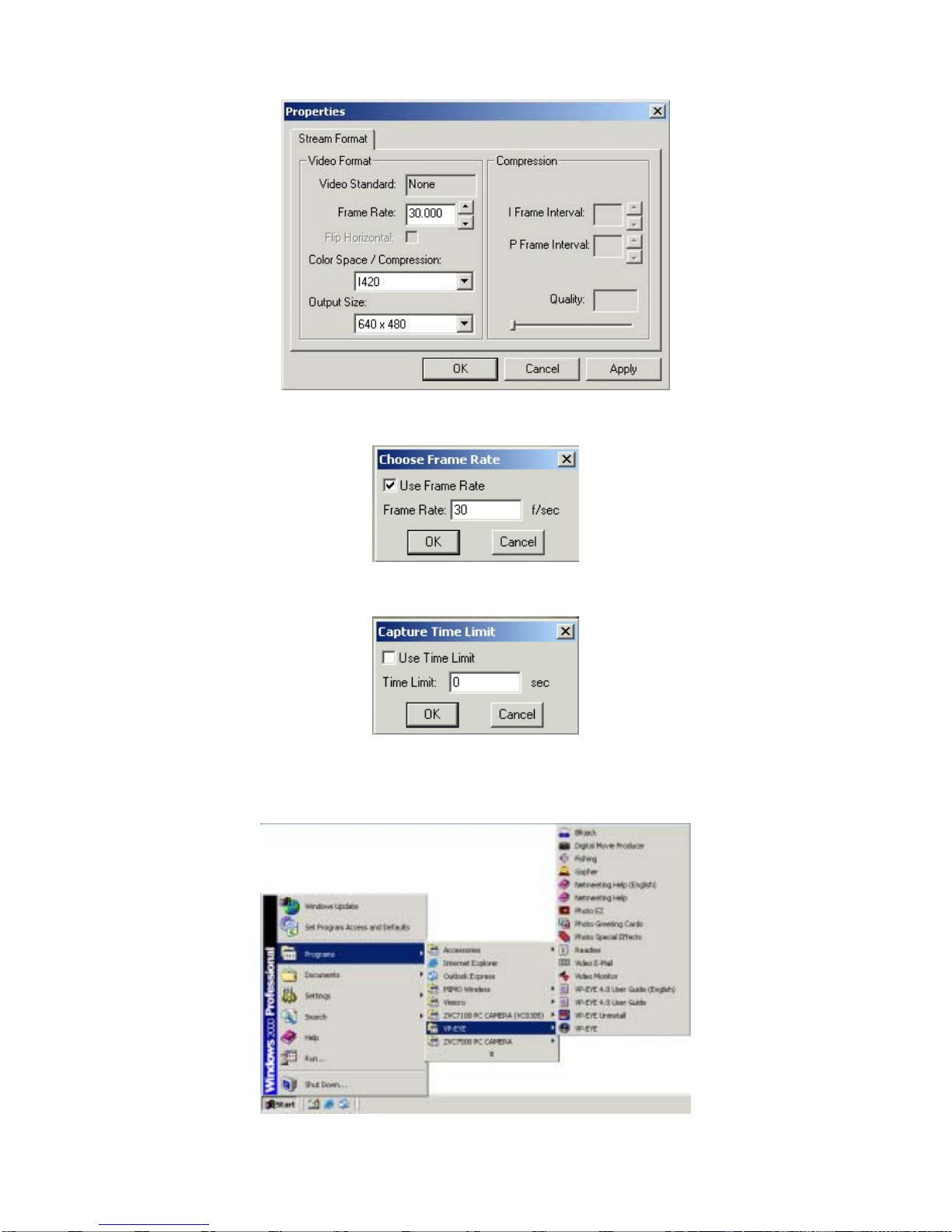

Figure 10

e. By selecting the Captures

→

Set Time Limit, you can set time limit from preview window

Figure 11

Start your VP-EYE

a. By selecting the Application Program from Start menu as Figure 12

Figure 12

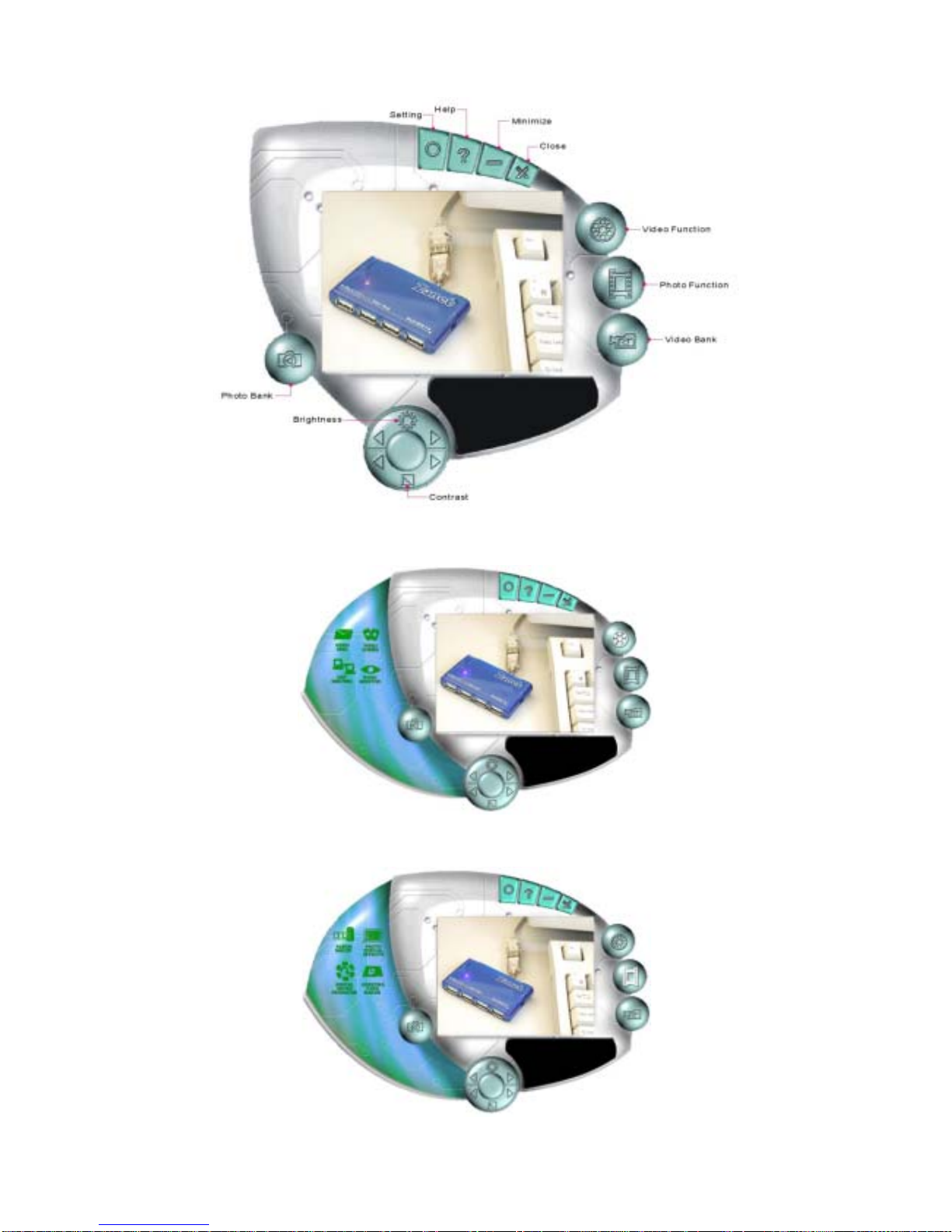

b. You will see the preview picture of VP-EYE, and you can select below functions when Application

Panel appears

Figure 13

i. Video Function: you can select the function you need from the left side of control panel

Figure 14

ii. Photo Function: you can select the function you need from the left side of control panel

Figure 15

iii. Video Bank: you can adjust the volume, microphone, save files of video…from the left side of

control panel

Figure 16

iv. Photo Bank: you can adjust the resolution, save files of photo…from the left side of control

panel

Figure 17

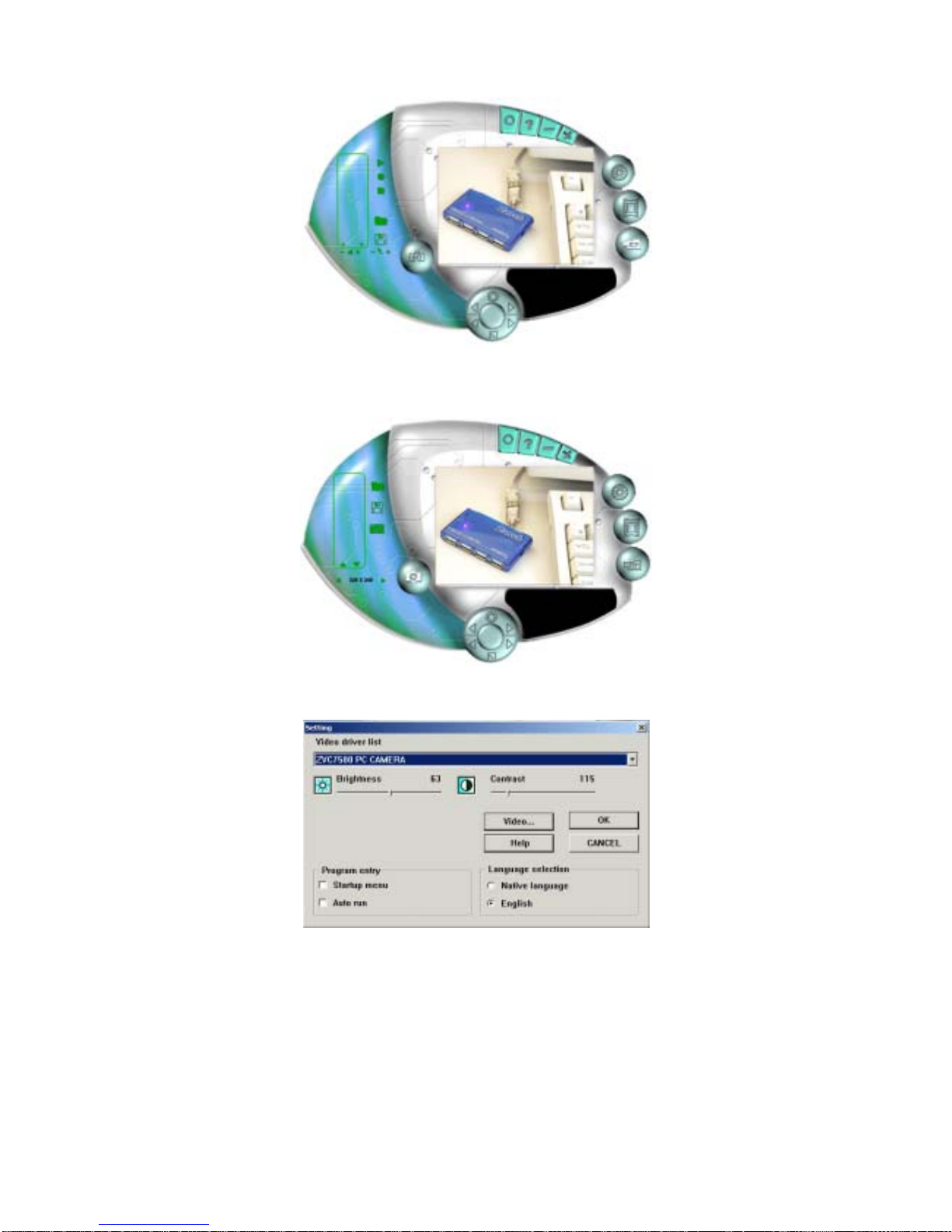

c. You can adjust the Brightness and Contrast from adjust button or setting icon as Figure 18

Figure 18

For ZVC7500

a. By clicking Options

→

Video Capture Filter, you can enter into advanced settings

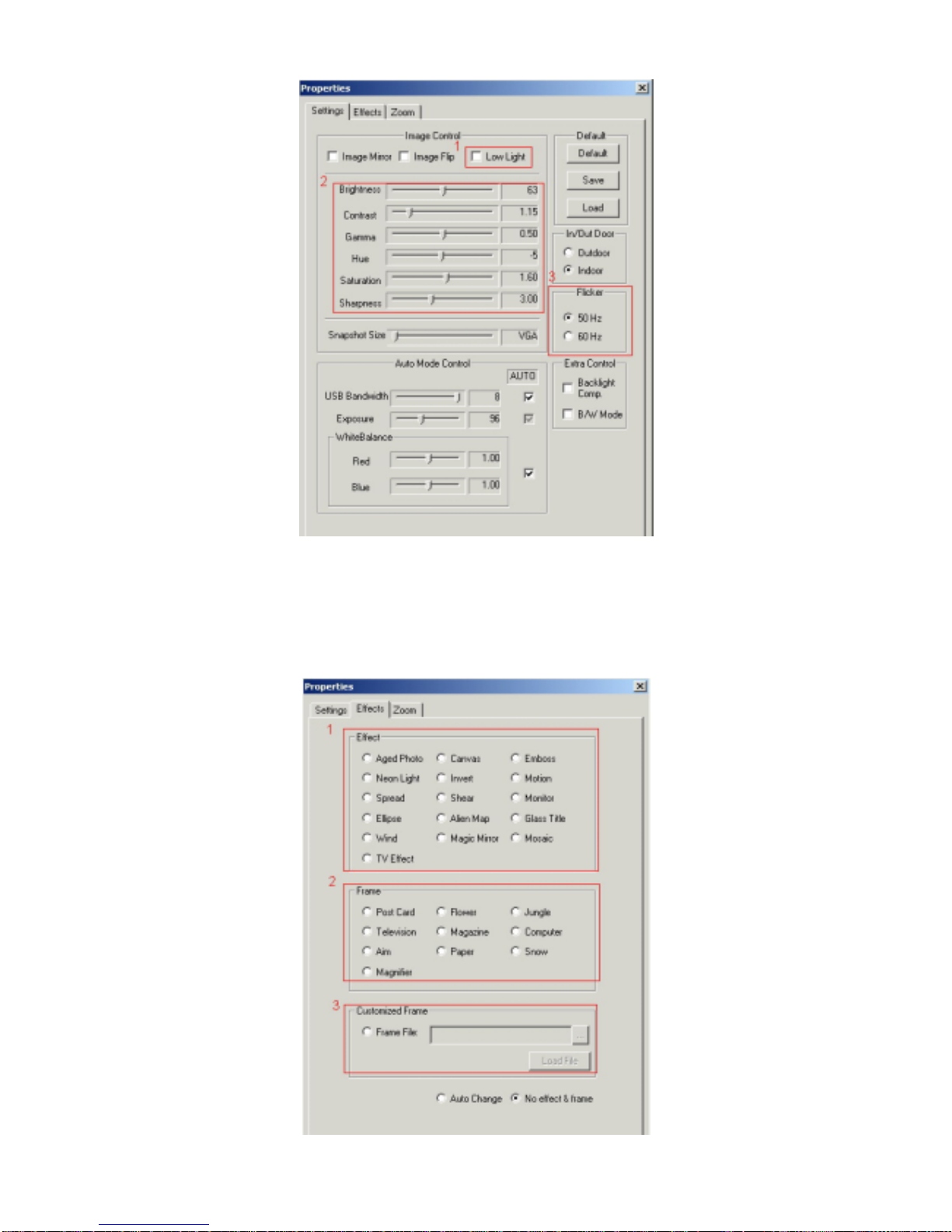

i. From this Settings page you can adjust the quality of the picture

Figure 19

1. Click the check box under low-light surrounding

2. Adjust the parameter to your favorite setting

3. It’s very important to set the frequency the same as your local power supply

ii. From this Effects page you can set 18 special effects as well as 10 photo frames for your

pictures

Figure 20
