Zoom MultiTrak R12 Bedienungsanleitung

Quick Tour

Copying or reprinting this manual in part or in whole without permission is prohibited.

You might need this manual in the future. Always keep it in a place where you can access it easily.

The contents of this manual and the specifications of the product could be changed without notice.

You must read the Usage and Safety Precautions before use.

The Operation Manual can be downloaded from the ZOOM website.

www.zoom.jp/docs/r12

Inserting microSD cards

Supported recording media:

microSDHC: 4 GB – 32 GB

microSDXC: 64 GB – 512 GB

• Always turn the power off before inserting or removing a microSD card.

• To remove a microSD card, push it further into the slot and then pull it out.

Connecting

Dedicated AC adapter

(ZOOM AD-17)

USB port (Type-C)

Powered monitors

Headphones

• Turn on the powered monitors after starting up the R12.

• The power will automatically turn off if the R12 is unused for 10 hours.

If you want to keep the power on always, turn off the automatic power saving (Auto Power Off) function.

• Power can also be supplied through the USB (Type-C) port by connecting a commercially-available mobile battery.

• Dry cell batteries (alkaline, nickel-metal hydride and lithium) can also be used.

Turning the power on and setting up the rst time

█ Turning the power on

Press

and hold

Formatting microSD cards

We recommend formatting microSD

cards before using them for the rst

time with the R12 in order to maximize

their performance.

Be aware that all data previously

saved on a microSD card will be

deleted when it is formatted.

Turn the power on while pressing and holding the

button.

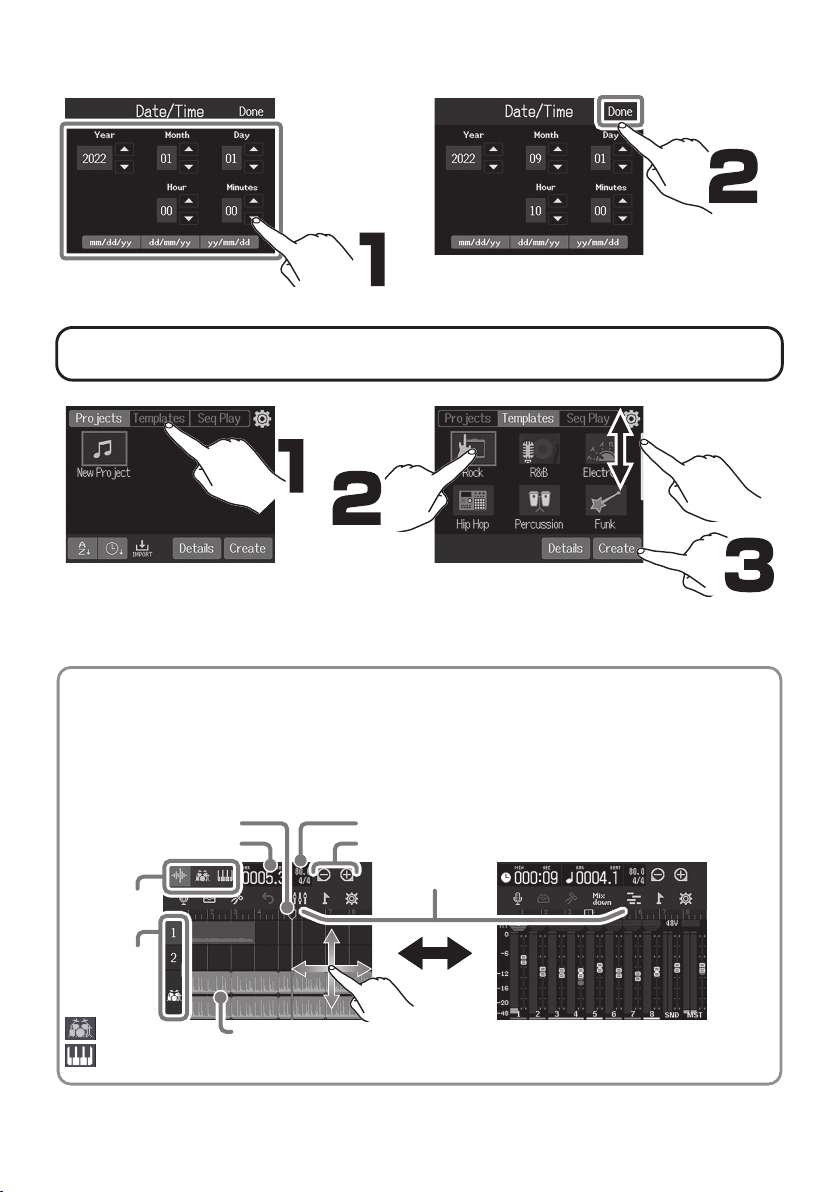

█ Setting the date and time

Creating projects

Templates include preset rhythm loops. Select the

desired template.

• Track view

This is the normal recording/editing screen.

Since recorded waveforms and their positions

can be examined easily, this is useful for thinking

about song structure and editing.

• Level meter view

This screen shows the level meters and

faders for all tracks.

This is useful for recording multiple channels

simultaneously and adjusting the mix.

Track type

buttons

Track number

or type

Recording/playback bars/beats

Recording/playback position Tempo and time signature

Home Screen

Screen switching

buttons

Magnication buttons

Rhythm loop

included when

using a template

Scroll the screen to

view other tracks and

bars.

Rhythm track

Synth track

Recording

█ Connections and preparation

Hi-Z ON:

Guitar/bass with passive

pickups (direct connection)

Hi-Z OFF:

Guitar/bass with active pick-

ups, synth or other electronic

instrument

Make sound and adjust so PEAK does not

quite light at maximum volume.

48V phantom power can be

supplied to condenser mics.

By default, INPUT 1 is assigned to track 1 and set to record. Track assignments can be

changed, for example, when alternately recording a guitar and a bass directly connected to

INPUT 1 (Hi-Z input).

█ Using effects

Effects are saved and recalled in units of patch memories. Patch memories store effect on/off states

and parameter setting values.

Select a track to use an effect on.

Add a to select a patch memory.

Make specic effect settings.

█ Recording

Press to stop recording.

Press when stopped to set the recording/playback position to the beginning.

█ Playing recordings

Adjust levels with the MASTER fader

and faders for tracks to be played.

Outputting the click

The click output can be changed.

The volume balance between the signal after

it passes through the MASTER fader and the

click sound can be adjusted. (This is only effec-

tive when the CLICK switch is set to PHONES.)

The click sound can be turned on/off.

█ Making individual track settings

Making individual track settings

Pan, EQ, send effect and stereo link settings can be

changed.

The stereo link function allows a pair of adjacent odd

and even-numbered tracks to be joined and handled

as a single stereo track. This allows their track set-

tings and fader operations to be shared.

Double

tap

Editing projects

Waveforms and MIDI notes added to

recorded tracks are called “regions”.

The R12 has audio, rhythm and synth

regions that can be edited to create projects. Regions

█ Moving regions

Highlight

A region can be elongated (enabling looping) by dragging at its right edge.

█ Editing regions

Double

tap

█ Adding regions

Rhythm

Rhythm loops are converted to match

the project tempo when added.

Audio

Double

tap

WAV les can be added.

Mixing down

Projects can be mixed down to stereo WAV les.

Since the project plays back while recording the mixdown, adjusting the faders during play-

back will affect the levels.

█ Adjusting the mix

After switching proj-

ects, the positions

of physical faders

will be applied again

once they have been

aligned with the

bright position

indicators.

Physical fader

position

Previous fader

position

While listening to play-

back, adjust the faders

to balance the levels as

desired.

█ Mixing down

The mixdown le will be saved in the “AUDIO”

folder on the microSD card.

Make it light red.

Switch to the Level Meter View Screen.

Mute tracks.

Output sound only

from selected tracks.

Mute/solo functions

Functions of parts

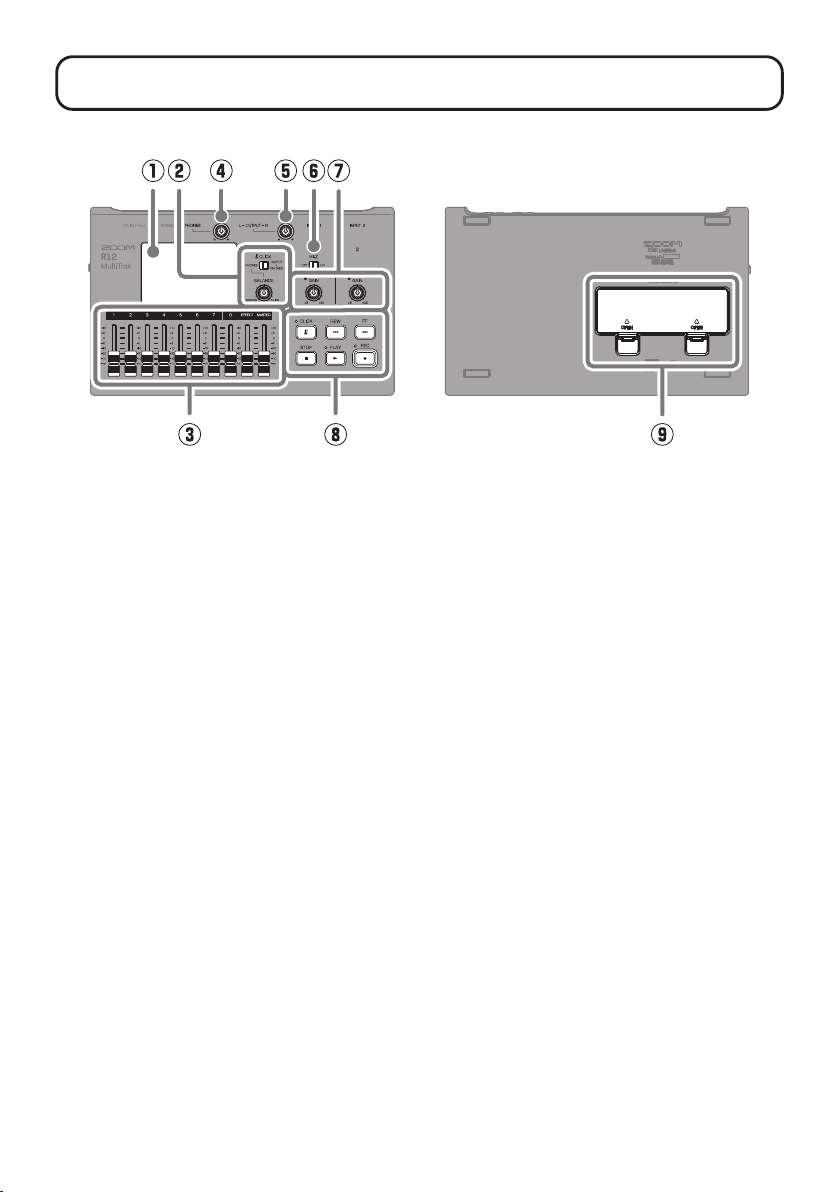

■Top ■Bottom

①Touchscreen

This shows various types of information

and allows operation by touch.

②CLICK switch / BALANCE knob

When the CLICK switch is set to PHONES,

use the BALANCE knob to adjust the

balance between the MASTER and CLICK

signals output from the PHONES output

jack.

③Channel/EFFECT/MASTER faders

Channel faders: These adjust individual

track signal levels in a range from −∞ to

+10 dB.

EFFECT fader: This adjusts the return level

of the send effect in a range from −∞ to

+10 dB.

MASTER fader: This adjusts the signal lev-

els output from the OUTPUT jacks and the

PHONES output jack in a range from −∞ to

+10 dB.

④PHONES output volume knob

This adjusts the headphone output volume.

⑤OUTPUT volume knob

This adjusts the OUTPUT volume.

⑥Hi-Z switch

Turn Hi-Z on/off for INPUT 1. Turn this on

as necessary for the connected guitar or

bass.

⑦PEAK indicators / GAIN knobs

Use these input gain knobs to adjust input

signals. Adjust these so that the PEAK

indicators do not light.

⑧Other buttons

CLICK: This turns the click sound on/off.

The indicator lights when it is on.

REW: This moves the playback position one

ruler unit back. Press and hold to search

backward.

FF: This moves the playback position one

ruler unit forward. Press and hold to search

forward.

STOP: This stops recording/playback.

Press when stopped to move the record-

ing/playback position to the beginning of

the project.

PLAY: This starts/pauses playback of

recorded les. The indicator lights during

playback.

REC: This starts recording. The indicator

lights during recording.

⑨Battery cover

Open this when installing or removing AA

batteries.
