Technical Reference Booklet
TABLE OF CONTENTS
HARDWARECONFIGURATION .................................................................... 4
Key Features..................................................................................................4
MOTHERBOARDLAYOUT ............................................................................ 7
REARPANEL ................................................................................................ 8
AUDIOCONFIGURATION .............................................................................. 9
JUMPERSETTING ....................................................................................... 10
JCMOS1 - J1:CMOS Clear ..................................................................... 10
CONNECTORS ............................................................................................. 11
Floppy Disk Drive Connector - J10 ........................................................ 11
Hard Disk Connectors - J9 .................................................................... 11
Serial ATA Hard Disk Connectors -
SATA1,SATA2,SATA3,SATA4(optional) ................................................ 12
Fan Power Connectors -
CPUFAN(CPUF1)/ PWRFAN/SYSFAN (optional) ................................. 13
Front Panel Audio Header - FP_S1 ....................................................... 14
USB Connectors - J16/J17/J18 (optional)............................................. 15
Front Panel Headers - J20, SPDIFOUT, IRDA1 .................................... 16
SLOTS ......................................................................................................... 17
CPUINSTALLATION .................................................................................... 18
INSTALL DDRII DIMMS ............................................................................... 20
BIOS SETUP ................................................................................................ 21
About the Setup Utility ............................................................................ 21
Main Menu.............................................................................................. 22
Standard CMOS Features ..................................................................... 22
Advanced BIOS Features....................................................................... 22
Advanced Chipset Features .................................................................. 22
Integrated Peripherals........................................................................... 22
Power Management Setup .................................................................... 22
PNP/PCI Configurations........................................................................ 22
PC Health Status ................................................................................... 22
3
Frequency/Voltage Control..................................................................... 22
Load Fail-Safe Defaults......................................................................... 23
Load Optimized Defaults ....................................................................... 23
Set Supervisor/User Password............................................................. 23
Save & Exit Setup ................................................................................... 23
Exit Without Saving................................................................................. 23
REALTEKHDAUDIODRIVERSETUP........................................................... 26
Getting Started ....................................................................................... 26
Sound Effect........................................................................................... 26
Environment Simulation ........................................................................ 26
Equalizer Selection ................................................................................ 27
Frequently Used Equalizer Setting ........................................................ 27
Karaoke Mode........................................................................................ 27
Mixer ....................................................................................................... 28
Playback control ............................................................................... 28
Recording control............................................................................. 29
AudioI/O ........................................................................................... 30
Speaker Configuration..................................................................... 31
Global Connector Settings............................................................... 32
S/PDIF .............................................................................................. 32
Speaker Calibration ......................................................................... 33
Microphone....................................................................................... 34
Noise Suppression.......................................................................... 34
Beam Forming ................................................................................. 34
Acoustic Echo Cancellation ............................................................. 34
Audio Demo ..................................................................................... 35
Information ....................................................................................... 35
APPENDIX .................................................................................................... 36
4
Technical Reference Booklet
HARDWARECONFIGURATION
Key Features :
Chipset
• NVIDIA nForce® MCP61S/MCP61PV Single Chipset.
Processor
• Supportsthe Athlon64/Athlon64 FX/AthlonX2/Sempron AM2processors.
• Supports 200,400,800, and 1000MHZ HyperTransport(HT) interface
Speeds.
• Supports dynamic link width and frequency change.
• Supports LDTSTP interface, CPU throttling, and stutter mode.
System Memory
• 128-bit dual-channel DDRII SDRAM interface.
• Supports up to 8GB DRAMs.
• Supports DDRII400/DDRII533/DDRII667/DDRII800.
• 1.8VDRAMinterfaceforDDRII SDRAM.
PCIE x 16 Graphics Interface
• One 16-lane (x16 port) PCI Express port intended for external
graphics (MC61S only support 8x, MC61PV support to 16x).
• Fully compliant to the PCI Express Base Specification revision 1.0a.
• The base PCI Express frequency of this interface is 4GB/s.
• PCI Express supported enhanced addressing mechanism.
PCIE x 1 Controller
• Fully compliant to the PCI Express Base Specification revision 1.0a.
• One virtual channel support for full unsynchronized data transfers.
• Supports full 2.5Gb/s bandwidth in each direction per x1 lane.
Onboard I/O
•Onboard one PCI fast IDE port supporting up to 2 ATA, ATA2 , Ultra
ATA33/66/100/133 IDE HDDs, CD-ROMs, ZIP drives and LS-120
drives as boot drive.
•One ECP/EPP parallel port.
•One 16550 Compatible UART serial port.
•One floppy port, supports two FDD of 360KB, 720KB, 1.28MB,1.44MB,
and 2.88MB capacity.
•PS/2 keyboard connector.
•PS/2 mouse is supported.
5
•One Front Panel Sound Connector.
• Infrared (IrDA) is supported via a header (optional).
• Ten USB ports.
System BIOS
• PnP, APM, ATAPI and Windows 2000/XP.
• Full support of ACPI & DMI.
• Easy to upgrade BIOS by end-user.
Onboard Fast Ethernet Controller
• The RTL8201/RTL8211B is a single-chip 10 Mb/s&100MB/s&
1000MB/s (only for RTL8211B) controller for the PCI bus.
• One RJ45 port.
Plug-and-Play
• Supports Plug and Play specification 1.1.
• Plug and Play for Windows2000/XP.
• Fully steerable PCI interrupts.
Power Management
• SupportSMM,APM,ACPI
• Break switch for instant suspend/resume on system operations.
• Energy star “ Green PC ” compliant.
• Hardware monitoring circuit is supported, provide voltage, fan speed,
etc. monitoring(optional).
• Support STR(suspend to RAM)(optional)
OnboardVGA
• Built-in NVIDIA nForce® MCP61S Chipset.
• Integrated NVIDIA GeForce 6100 graphic core.
• Up to 1920 x 1440, non-interlaced screen resolution for CRT.
Onboard ALC888 7.1 Audio
• Integrated Realtek ALC888 controller.
• Full Direct Sound and Sound Blaster compatibility.
• Full-Duplex 4 24-bit two-channel DACs and 3 stereo 20-bit ADCs.
• PnP and APM 1.2 support.
• Windows® 2000/XP ready.
• Supports Line-in, Line-out, Mic-in, SPDIF-out.
• Supports ALC888 codec for eight channel sound output.
• CD In connection.
6
Technical Reference Booklet
Static electricity can harm delicate components of the motherboard.
To prevent damage caused by static electricity, discharge the static
electricity from your body before you touch any of the computers
electronic components.
Onboard Serial ATA Host Controller
• Independent DMA operation on Four ports(optional).
• SupportsSATAII
• Data transfer rates of 300MB/s.
• RAID 0, RAID 1, JBOD feature support.
ExpandedUSB Support
• Supports up to ten USB ports.
•Supports USB2.0.
•Supports transfer rates rates at high speed (480 Mb/s), full speed
(12Mb/s), and low speed (1.2Mb/s).
•This motherboard support USB2.0 only Windows®2000 (with SP4 or
above) and Windows®XP (with SP1 or above) operating systems.
Expansion Slots
• 1 PCI Express X16 slot.
•1 PCI Express X1 slots (optional).
•2 PCI bus master slots - ver. 2.3 compliant (optional).
7
Motherboard Layout
The following diagram shows the relative positions of the jumpers, connectors,
major components and memory banks on the motherboard.
NOTE:
1) Be sure to check the cable orientation in order to match the coloured strip
to the pin 1 end of the connector.
2) When you start up the system, please wait for 5 seconds after you power
on AC.
3) Adding a metal spaced plate to the back of the Socket 940 is not
recommended as this will short motherboard components and damage
the system.
8
Technical Reference Booklet
PIN SIGNAL DESCRIPTION
1 VCC +5V/5VSB (optional)
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V/5VSB (optional)
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground

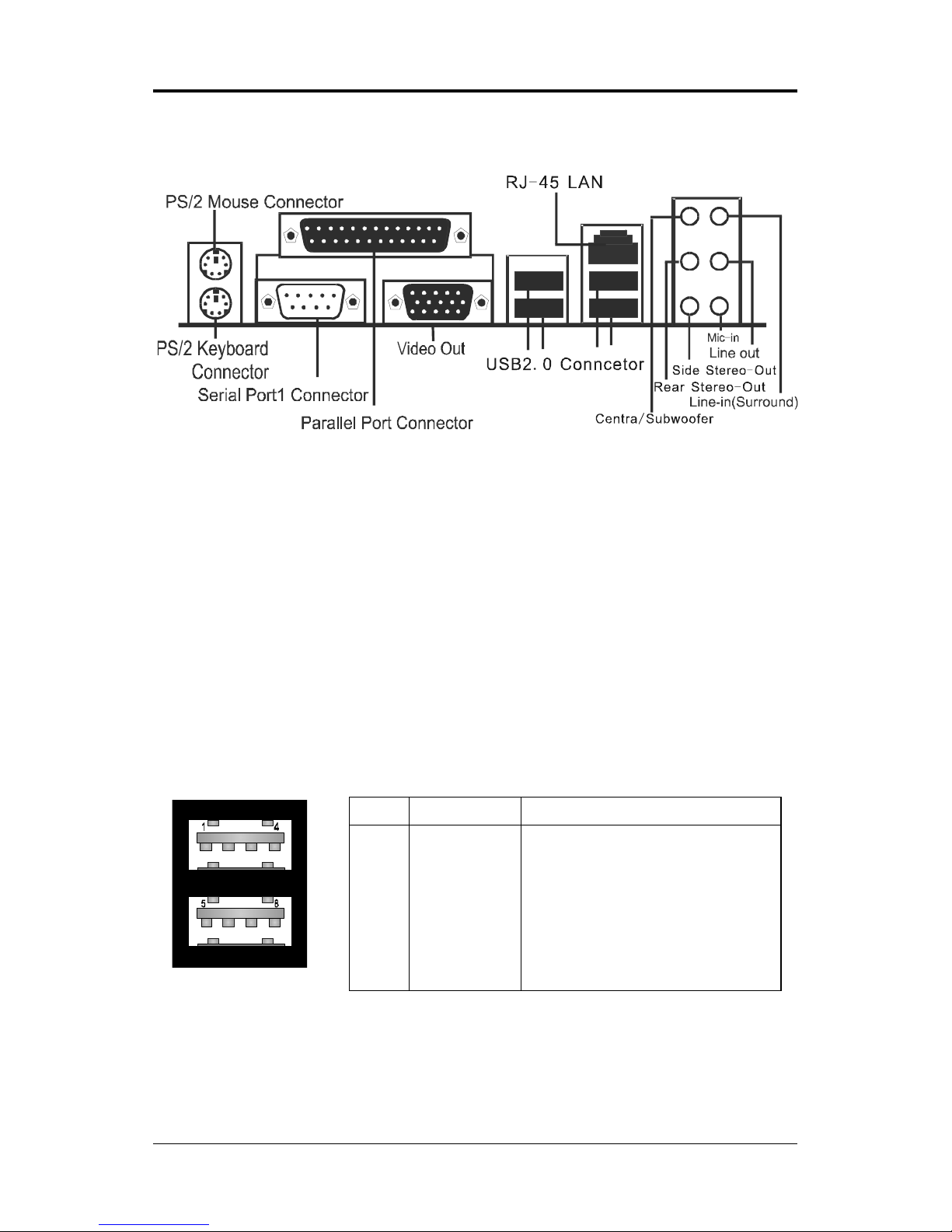

Rear Panel
The back panel provides the following connectors:
Mouse Connector
The motherboard provides a standard PS/2® mouse mini DIN connector for
attaching a PS/2® mouse. You can plug a PS/2® mouse directly into this
connector.
Keyboard Connector
The motherboard provides a standard PS/2® keyboard mini DIN connector for
attaching a PS/2® keyboard. You can plug a PS/2® keyboard directly into this
connector.
USB 2.0 Connector
The motherboard provides a UHCI (Universal Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices. You can plug the USB device directly into the
connector.
USB 2.0 Connector DescriptionUSB 2.0 Connector
9
Serial Port Connector: COM
The Port is 16550A high speed communication ports that send/receive 16
bytes FIFOs. You can attach a serial mouse or other serial devices directly
to the connectors.
Video Out Connector
The motherboard provides a Video out port to connect a 15-pin analog
videomonitor.
RJ-45 LAN Jack (Optional)
The motherboard provides one standard RJ-45 jack for connection to
Local Area Network(LAN).You can connect a network cable to the LAN jack.
Parallel Port Connector:LPT
The motherboard provides a 25-pin female centronic connector as LPT. A
parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) mode.
8 Channel HD Audio
Option select of 2, 6, or 8 channel audio from onboard High Definition compli-
ant CODEC with 20-bit ADC and 24-bit DAC resolution.
- Supports CD-In and SPDIF-out.
- Optical & Coaxial SPDIF-out available on rear panel.
- Supports jack detection for easy audio device installation.
Rear panel audio jacks configuration:
Audio Jack Color 2 Channel 6 Channel 8 Channel
Blue Line-In Line-In Line-In
Lime Line-Out Front Stereo-Out Front Stereo-Out
Pink Mic-In Mic-In Mic-In
Gray -- -- Side Stereo-Out
Black -- Rear Stereo-Out Rear Stereo-Out
Orange -- Centre & Subwoofer Centre & Subwoofer
10
Technical Reference Booklet
Close Open * = Default setting.

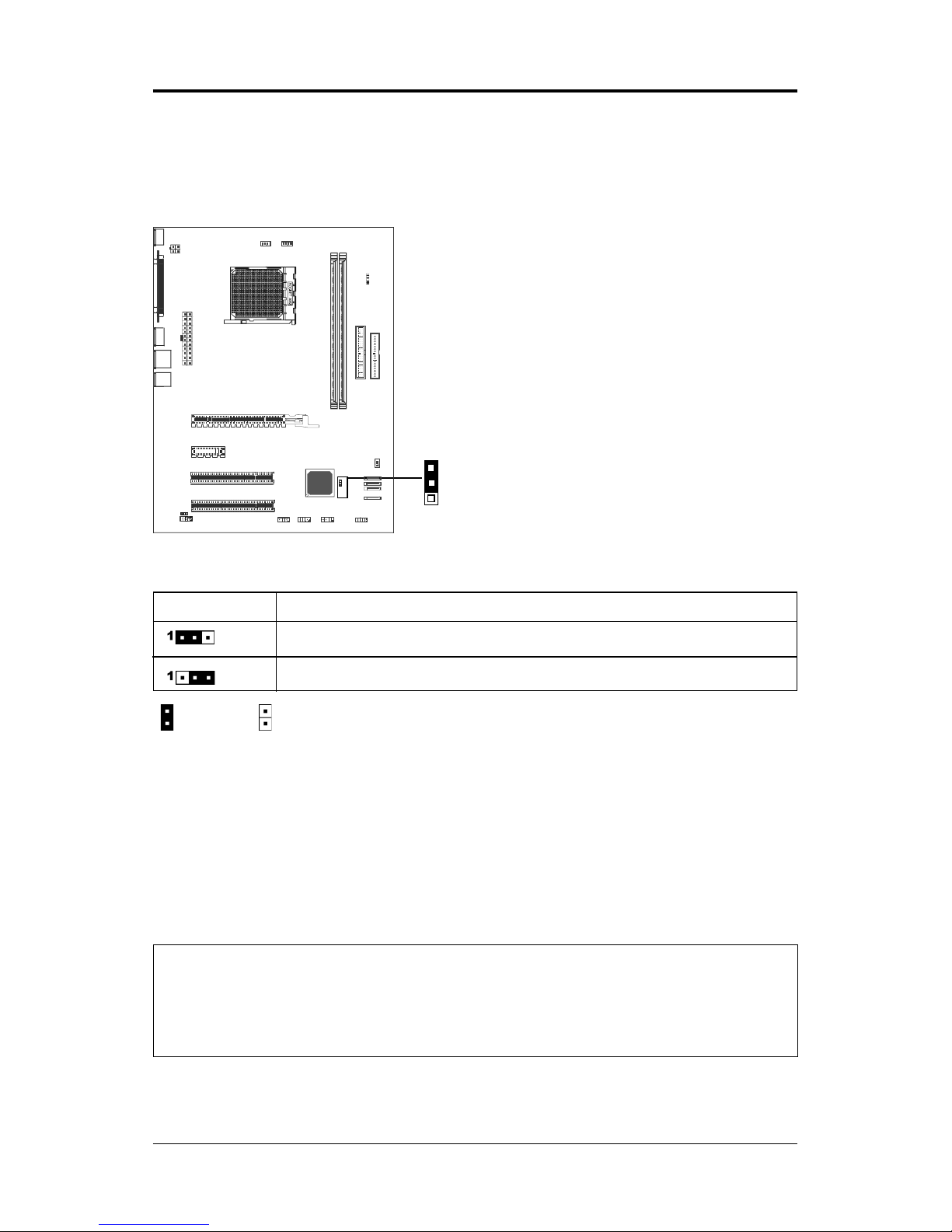

J1-CMOS Clear
JCMOS1 Selection
1-2* CMOS Clear
2-3 Normal*
CPU Speed Selection
In this motherboard, jumperless feature is implemented such that no
jumper is required to be set for different type of CPU installed.
Clear CMOS Jumper: J1
If you want to clear the system configuration, use the J1(Clear CMOS
Jumper) to clear data.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be
seen even if the frequency multiplier setting in CMOS setup is changed.
1
Jumper Setting
This chapter explains how to configure the motherboard’s hardware. Before
using your computer, make sure all jumpers and DRAM modules are set
correctly. Refer to this chapter whenever in doubt.
Inhaltsverzeichnis
Andere Zotac Hauptplatine Handbücher
Zotac
Zotac Supreme H67ITX series Bedienungsanleitung
Zotac
Zotac nForce 630i Bedienungsanleitung
Zotac
Zotac GeForce 8200-ITX series Bedienungsanleitung
Zotac
Zotac IONITX-E series Bedienungsanleitung
Zotac
Zotac H61MATX series Bedienungsanleitung
Zotac
Zotac nForce 620i Value Bedienungsanleitung
Zotac
Zotac GeForce 8100 Bedienungsanleitung
Zotac
Zotac M880G-ITX series Bedienungsanleitung
Zotac
Zotac B150ATX Series Bedienungsanleitung
Zotac
Zotac Intel NM70-ITX Series Bedienungsanleitung
Zotac
Zotac H55 series Bedienungsanleitung
Zotac
Zotac Supreme H67ITX series Bedienungsanleitung
Zotac
Zotac G43-TX series Bedienungsanleitung
Zotac
Zotac H61ITX series Bedienungsanleitung
Zotac
Zotac NM10-DTX WiFi Bedienungsanleitung
Zotac
Zotac nForce 610i - ITX Bedienungsanleitung
Zotac
Zotac GeForce 8300 Bedienungsanleitung
Zotac
Zotac G41 series Bedienungsanleitung
Zotac
Zotac IONITX-U series Bedienungsanleitung
Zotac
Zotac nForce 610i - ITX Bedienungsanleitung
Beliebte Hauptplatine Handbücher anderer Marken
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Bedienungsanleitung
Gigabyte
Gigabyte GA-9IVDT Bedienungsanleitung
Texas Instruments
Texas Instruments ADS8372EVM Bedienungsanleitung
Commell
Commell MS-C73 Bedienungsanleitung
IBT Technologies
IBT Technologies MB860 Bedienungsanleitung
Nvidia
Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung
