Zte ZTE-C E520 Bedienungsanleitung
1
ZTE-C E520
CDMA 1X Digital Mobile Phone
User Guide
2
LEGAL INFORMATION
Copyright © 2011 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form
or by any means, electronic or mechanical, including photocopying and microlm, without
the prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modications
on print errors or update specications without prior notice.
Version No. : R1.0
Edition Time :.2011.08
Manual No. : 07958450XXXX
3

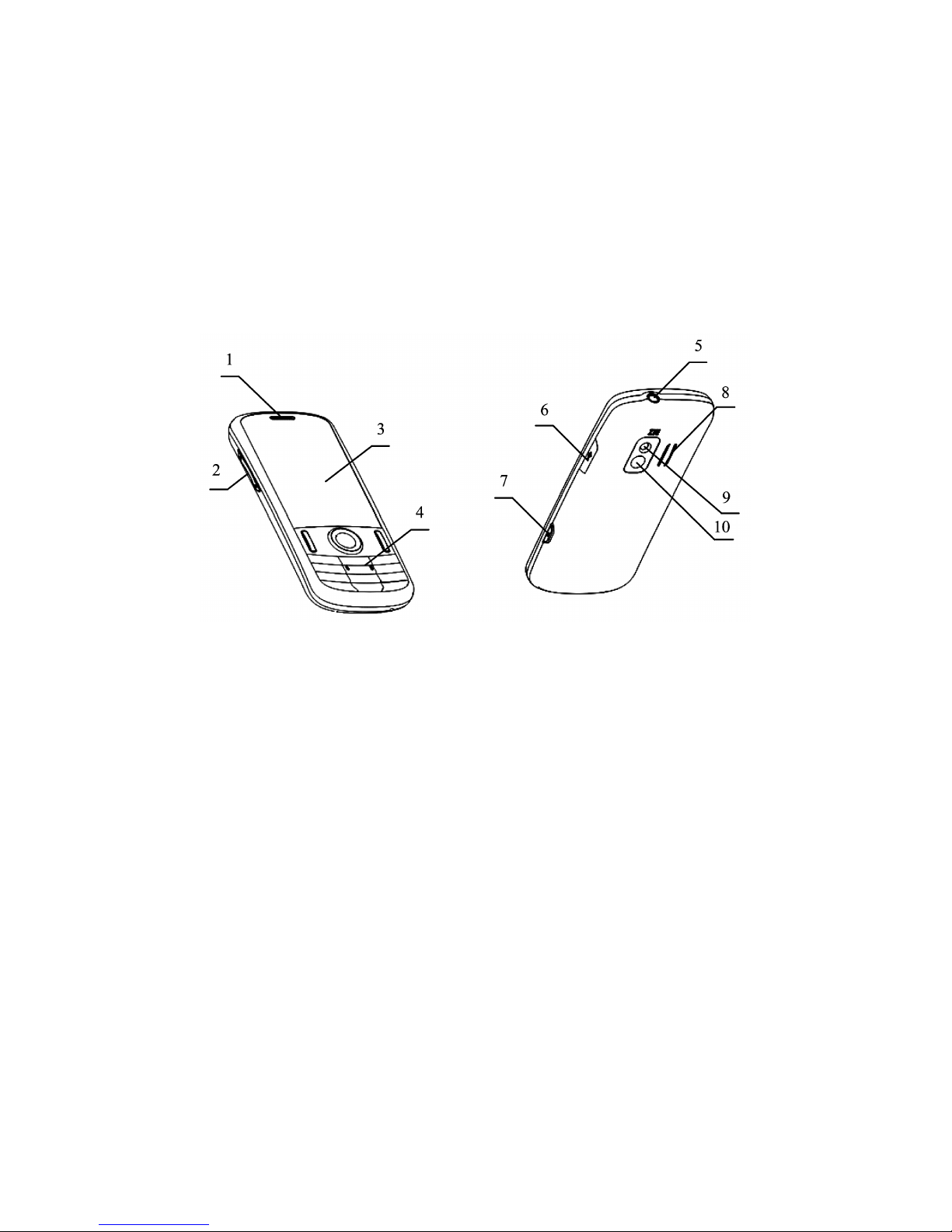

Phone Overview
[1] Earpiece [6] USB Charger Port
[2] Volume Keys [7] Camera Key
[3] Display Screen [8] Speaker
[4] Keypad [9] Camera Lens
[5] 3.5mm Earphone Jack [10] Mirror
4
Key Functions
Keypad Function
Left Soft Key – Press to access the function listed above the key. From
the home screen , press to display the Contacts.
Right Soft Key –Press to access the function listed above the key. From
the home screen , press to access Messaging.
Send Key – Press to make or receive a call. From the home screen ,
press to display the Call history list.
End Key – Press to end calls or close applications. Press and hold to
power your phone on or off from the home screen.
Back Key – Delete characters during text entry mode. Press to return to
the previous menu or screen.
Music Player Key – Press to access the music player from the home
screen.
Directional Key – Allows you to scroll through phone menu options and
provides a shortcut to phone functions from the home screen.
5
Keypad Function
OK Key – Conrm actions and make selections.
~ Alphanumeric Keys – Use to enter numbers and characters or to select
menu items. Press and hold the ‘1’ Key to launch Voicemail from the home
screen
* Key and # Key – Press and hold the * Key to turn Vibration Mode on or
off from the home screen. Press and hold the # Key to lock the keypad .
Volume Keys – Allows you to adjust the master volume or the earpiece
volume during a call. Adjust the volume when playing music in the music
player.
Camera Key – Press and hold to launch the camera from the home
screen.
6
Battery
Installing the Battery
1 2 3
1. Insert the battery by aligning the contacts (1) and then gently press it down until it clicks
into place (2).
2. Replace the battery cover and snap it into place (3).
Charging the Battery
Your phone is powered by a rechargeable battery. The battery is not fully charged when
you purchase your phone, but there may be enough power in the battery to turn the phone
on. Charge the battery by following the steps below:
Note: For maximum battery performance, it is recommended that you completely
charge the battery before using the phone for the rst time.
7
1
2
1. Pull the rubber USB cover out of the USB port and move it out of the way.
2. Plug the USB data cable into the phone's USB Charger Port (as shown in the above il-
lustration) and the wall adapter end into an electrical outlet.
Removing the Battery
If you need to remove your phone’s battery, please follow the procedure indicated below:
1 2 3
1. Insert your ngernail into the back cover slot on the bottom of the phone and lift off the
back cover (1) (2).
2. Insert your ngernail into the slot and lift the battery from the compartment (3).
8
microSD Card
The microSD card gives your phone a very large memory capacity, and this feature allows
you to transfer data between the microSD Card and a compatible PC.
Your phone can support a microSD card with capacity up to 16GB.
microSD is a trademark of the SD Card Association.
Inserting the microSD Card
1. Open the back cover of the phone.
2. Handle the microSD card by the edges and carefully insert it into the microSD slot with
the cut edge oriented as shown in the following picture.
3. Push it until it clicks into position.
4. Close the back cover.
Removing the microSD Card
1. Open the back cover of the phone.
2. Push the microSD card to release it from the microSD slot on the phone.
3. Pull the microSD card completely out of the slot.
4. Close the back cover.
9
Notes:
Do not remove the memory card while reading or writing to the card. This may
cause data corruption on the card or phone. It is best to insert and remove the mem-
ory card when the phone is powered off.
Switching On/Off
To power on the phone, press and hold the End Key [ ] until the LCD screen lights
up.
To power off the phone, press and hold the End Key [ ] until the display turns off.
Warning:
Do not power the phone on when wireless phone use is prohibited, or when it may
cause interference or danger.
10
Idle Mode
The rst screen you will see when you power on your phone is the home screen or standby
screen.
Top Display Icons: Displays the net-
work status, signal strength, battery
power, etc.
Soft Keys and OK Key Function
Area: Displays the current functions
for the Left Soft Key, Right Soft Key
and OK Key.
