3Com®

Wireless 11n Cable/DSL Firewall Router

Model Number: WL-602

3CRWER300-73

Installation Guide 2

Guía de instalación 11

Antes de usar este equipo por primera vez, lo invitamos a leer

detenidamente las siguientes instrucciones. Guarde este manual

para consultas futuras.

Руководство по установке 21

Guida all'installazione 31

Guia de Instalação 41

Guide d'installation 51

Installationshandbok 61

Installatiehandleiding 71

Other languages are available on the included CD-ROM and on www.3com.com

www.3com.com

Part No. 10016788 Rev. BA

Published July 2008

INTRODUCTION

About This Guide:

This Guide takes you through the basic steps necessary to install and configure your 3Com Wireless 11n

Cable/DSL Firewall Router, and establish a connection from your computers to the Internet. Throughout,

the Wireless 11n Cable/DSL Firewall Router is simply referred to as the Router.

Your Package Contains:

•One 3Com Wireless 11n Cable/DSL Firewall Router

•One power adapter for use with the Router

•Four rubber feet

•One Ethernet cable

•One CD-ROM containing the Quick Installation Guide and the User Guide

•This Installation Guide

•One Support and Safety Information Sheet

•One Warranty Flyer

System Requirements

Before starting, you must ensure the following:

•You already have a cable or DSL broadband connection to the Internet with a suitable modem and that

this connection works properly. The modem must have an Ethernet port for connection to your Router.

•You have a computer that has an Ethernet connection available and is already correctly configured for

communication with the Internet. Your computer must be able to connect to the Internet via the

modem, and must have a Web browser installed.

•There are no other DHCP server devices on your local network that are responsible for allocating IP

addresses to your computers and other network-connected devices. Your Router will now perform this

function by default.

If one or more of these conditions are not met, refer to the comprehensive Router User Guide provided on

the accompanying CD-ROM for further guidance.

ABOUT YOUR ROUTER

The front panel of the router contains a series of indicator lights (LEDs) that help describe the state of

various networking and connection operations.

1. Power LED (Illuminated Logo) White

Indicates that the Router is powered on. If this LED is off, the power adapter or the connections to the

power adapter may be faulty. Refer to the Problem Solving section.

2. Alert LED Amber

Indicates a number of different conditions, as described below.

Off - The Router is operating normally.

Flashing quickly - Indicates one of the following conditions:

•The Router has just been started up and is running a self-test routine, or

•The administrator has invoked the Reset to Factory Defaults command, or

•The system software is in the process of being upgraded

In each of these cases, wait until the Router has completed the current operation and the Alert LED is

Off.

On for 2 seconds, and then off - The Router has detected and prevented a hacker from attacking your

network from the Internet.

Continuously on - A fault has been detected with your Router during the start-up process. Refer to

the main User Guide.

3. Cable/DSL Status LED Blue

Indicates that the internet connection to the Cable/DSL modem is active. If the LED is flashing, data is

being transmitted or received by the modem.

4. Wireless LAN (WiFi) Status LED Blue

If the LED is on it indicates that wireless networking is enabled. If the LED is flashing, data is being

transmitted or received. If the LED is off, the Wireless LAN has been disabled in the Router, or there is

a problem.

Refer to the ‘Problem Solving’ section.

5. Four LAN Status LEDs Blue

If the LED is on, the link between the port and the next piece of network equipment is OK. If the LED

is flashing, the link is OK and data is being transmitted or received. If the LED is off, nothing is

connected, the connected device is switched off, or there is a problem with the connection (refer the

‘Problem Solving’ section). The port will automatically adjust to the correct speed and duplex.

6. WPS LED Blue

When flashing indicates that the WPS function is active. The WPS function will operate for

approximately 2 minutes after the WPS mode has been activated.

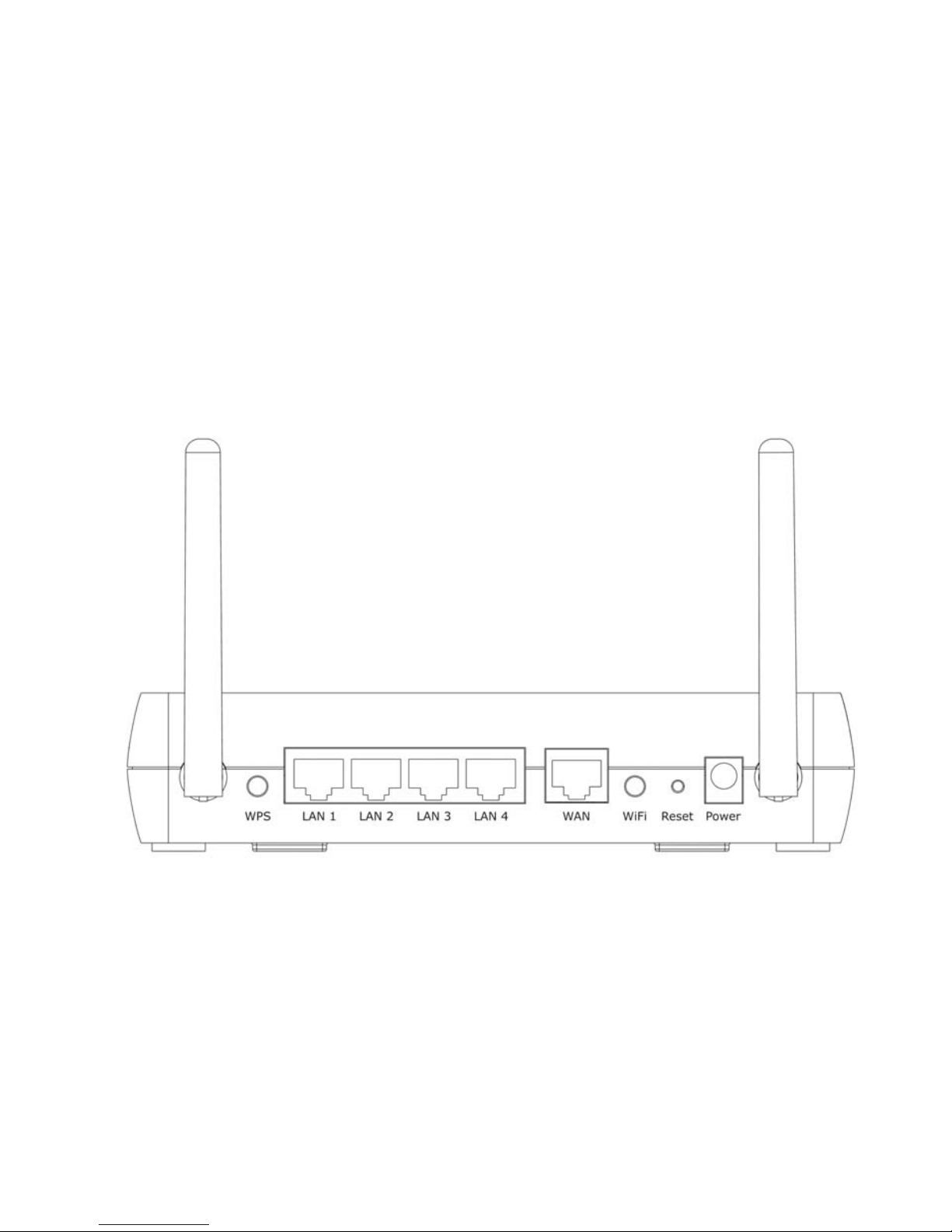

The rear panel of the Router contains one WPS button, four LAN ports, one WAN port, one WiFi button, a

reset button and a power adapter socket

1. Wireless Antenna

The two external antenna should be placed in a ‘V’ position when initially installed. Note that there is

an internal antenna. In some installations it may be beneficial to move the router to ensure optimum

wireless range.

2. WPS Button

Press this button in for at least 3 seconds to start the WPS setup.

3. Ethernet Ports (4 ports)

Using suitable RJ-45 cables, you can connect your Router to a computer, or to any other piece of

equipment that has an Ethernet connection (for example, a hub or a switch). These ports have an

automatic MDI/MDIX feature, which means either straight-through or a crossover cable can be

used.

4. WAN Port

RJ-45 port used to connect the router with a Cable/DSL modem. This port has an automatic

MDI/MDIX features which means either straight through or a crossover cable can be used.

5. WiFi On/Off Button

Use this button to enable or disable the wireless function. Hold the button in for at least 3 seconds to

change the WiFi setting. Confirm the settings by checking on the WiFi LED on the front panel.

6. Reset Button

This button has two functions: reboot and return to factory defaults.

Press the Reset button momentarily. The Router will reset and restart without having lost any

configuration parameters.

Press the Reset button for 5 seconds then release it. All settings of the Router will reset to factory

defaults, including the username and password, and the IP address.

POSITIONING YOUR ROUTER

When positioning your Router, ensure:

•The unit is centrally located to the wireless computers that will connect to the Router. A suitable

location might be on top of a high shelf or similar furniture to optimize wireless connections to

computers in both horizontal and vertical directions, allowing coverage throughout.

•In order to meet FCC radiation exposure regulations the Router should be located in a position that

maintains a minimum distance of 20 cm (8 inches) from any personnel (refer to the User Guide for

details).

•It is out of direct sunlight and away from sources of heat.

•Cabling is away from power lines, fluorescent lighting fixtures, and sources of electrical noise such as

radios, transmitters and broadband amplifiers.

•Water or moisture cannot enter the case of the unit.

•Air flow around the unit and through the vents in the side of the case is not restricted. We recommend

you provide a minimum of 25 mm (1 in.) clearance.

1. INSTALLING YOUR ROUTER

1. Connect the power adapter to the Router and wait for the Alert LED to stop flashing.

2. Ensure that your modem and computer are both switched on.

3. Insert one end of the supplied Ethernet (RJ-45 Category 5) cable into the Cable/DSL port on the rear

panel of the Router.

4. Insert the other end of the cable into the RJ-45 port on your cable or DSL modem. Check that the

Cable/DSL status LED lights on the Router.

5. Connect the cable or DSL modem to the Internet.

6. Connect your computer to one of the four LAN ports on the Router using an Ethernet cable. Check

that the corresponding LAN status LED on the Router lights.

To share your Router with more than four users you will need an additional Switch. Connect a LAN port of

your Router to the Switch, e.g. 3Com Switch 8 (3CFSU08).

]

3Com Wireless 11n

ADSL Firewall Router

Wireless

Users

Your PC

Power

Supply Unit

Your Cable/DSL

Modem

]

Example Network with 3Com Wireless 11n cable/DSL Firewall Router

2. CHANGING YOUR COMPUTER'S CONFIGURATION

You may need to make some changes to the configuration of your computers in order to communicate

with the Router.

DSL users with PPPoE or PPTP Client Software.

If you have PPPoE or PPTP client software installed on your computer, you will need to disable it. To do this:

1. From the Windows Start menu, select Settings > Control Panel.

2. Double click on Internet Options.

3. Select the Connections Tab.

4. Select the Never Dial a Connection option and click OK.

You may wish to remove the PPPoE client software from your computer to free resources, as it is not

required for use with the Router.

Obtaining an IP Address automatically.

Follow the instructions below for your particular operating system to ensure that your computers are

configured to obtain an IP address automatically.

For computers using Windows Vista.

1. From the Windows Start menu, select “Control Panel”.

2. Click on “View Network and task” which is under “Network and Internet Connections”.

3. Click on “Manage Network Connections”.

4. Right click on “Local Area Connection Status” and select “Properties” from the pull down menu.

5. Select “Internet Protocol version 4 (TCP/IPv4)” and click on “Properties”.

6. Ensure that the options Obtain an IP Address automatically”, and “Obtain DNS servers automatically”

are both selected. Click OK.

7. Restart your computer.

For computers using Windows XP.

1. From the Windows Start menu, select Control Panel.

2. Click on Network and Internet Connections.

3. Click on the Network Connections icon.

4. Double click on LAN or High Speed Connection icon. A screen titled Local Area Connection Status will

appear.

5. Select Internet Protocol TCP/IP and click on Properties.

6. Ensure that the options Obtain an IP Address automatically, and Obtain DNS servers automatically are

both selected. Click OK.

7. Restart your computer.

For computers using Windows 2000.

1. From the Windows Start Menu, select Settings > Control Panel.

2. Double click on Network and Dial-Up connections.

3. Double click on Local Area Connection.

4. Click on Properties.

5. Select Internet Protocol TCP/IP and click on Properties.

6. Ensure that the options Obtain an IP Address automatically, and Obtain DNS servers automatically are

both selected. Click OK.

7. Restart your computer.

For computers using Windows 95, 98 and ME.

1. From the Windows Start Menu, select Settings > Control Panel.

2. Double click on Network. Select the TCP/IP item for your network card and click on Properties.

3. In the TCP/IP dialog, select the IP Address tab, and ensure that Obtain IP address automatically is

selected. Click OK.

4. Restart your computer.

3. ISP CONNECTION METHODS

Before you can configure the Router you need to know the IP information allocation method used by your

ISP. There are four different ways that ISPs allocate IP information, as described below:

1. Dynamic IP Address (DSL or Cable)

Dynamic IP addressing (or DHCP) automatically assigns the Router IP information. This method is

popular with Cable providers. This method is also used if your modem has a built in DHCP server.

2. PPPoE (DSL only)

If the installation instructions that accompany your modem ask you to install a PPPoE client on your

PC then select this option. Note that when you install the Router, you will not need to use the PPPoE

software on your PC. To configure the Router you will need to know the following: Username,

Password, and Service Name (if required by your ISP).

3. Static IP Address (DSL or Cable)

The ISP provides the IP addressing information for you to enter manually. To configure the Router you

will need to know the following:

4. PPTP (DSL or Cable)

PPTP is only used by some European providers. If the installation instructions that accompany your

modem ask you to setup a dialup connection using a PPTP VPN tunnel then select this option. Note

that when you install the Router, you will not need to use the dialup VPN on your PC anymore. To

configure the Router you will need to know the following: Username, Password, Service Name (if

required by your ISP), and VPN Server address (usually your modem).

You will be asked for the IP Allocation Mode when you run the Setup Wizard.

4. RUNNING THE SETUP WIZARD

1. If you haven’t already done so, restart your computer.

2. Launch your web browser and attempt to contact the Router by typing the following URL in the

location bar: http://192.168.1.1. If you can access the Login page, then your computer has correctly

received an IP address from the Router.

3. Login using the default password admin. The Wizard will attempt to launch automatically, but if it

fails, select the Wizard tab and click on the Wizard button.

4. Where possible, the Wizard will recommend settings for most parameters. However, there are some

settings which you must provide. Most of these will have been provided to you by your ISP when you

set the account up.

5. 3Com recommends that you leave the LAN IP address for the router at the factory set default address

of 192.168.1.1. However, if you should choose to change it; make a note of the new address:

6. When the DHCP Server Settings page is displayed, make sure that the Enable the DHCP Server with

the following settings option is selected.

Connecting to the Internet

When the Wizard has completed, attempt to browse to an Internet web site, such as www.3com.com. If

you can successfully access this site, then your computer, Router and Cable/DSL modem have been

correctly configured. Refer to the Problem Solving section if you cannot make contact with the Router or

the Internet.

5. CONNECTING TO THE WIRELESS LAN

1. After you have configured the Router via the wired computer, you can connect to the Router via a

wireless computer.

The Router and wireless clients must have both the same SSID and the same encryption settings. All

wireless clients must use Infrastructure mode.

The default wireless settings for the Router are:

2. If you do not have a Wireless LAN you can use the Router’s default settings. Ensure that your wireless

clients have the default SSID, channel and encryption as detailed above.

If you have an existing Wireless LAN, configure the Router to use the same SSID and encryption

settings to be compatible with your existing wireless network.

3. If your computer has both a wired and wireless NIC installed, you must ensure that only one NIC is

used to communicate with the LAN. To use the wireless NIC, unplug the Ethernet cable and reboot

your computer.

4. Launch your web browser and attempt to browse to an internet web site such as www.3com.com.

If you can successfully access this site, then your wireless computer, Router and Cable/DSL modem

have been successfully configured.

5. 3Com strongly recommends that you enable WPA encryption to improve the security of your wireless

network and you change the SSID to something other than the default. Consult the on line help or

the User Guide for details.

PROBLEM SOLVING

If you are experiencing difficulties with your installation, try the following:

•Ensure all networking equipment is switched on. The Router should be showing a white Power

LED. If it is not, check the power adapter connection. Do not use any power adapter with your Router

other than the one supplied.

•Ensure the Cable/DSL Modem is connected. The Router should be displaying a blue Cable/DSL

Status LED. If no LED is displayed, check that your modem is switched on and that it is connected to

the Cable/DSL port with an Ethernet cable.

•Ensure that the computer is connected to the Router. The Router should be displaying a blue LAN

Status LED. If it is not, check that the computer is connected to one of the Router's LAN ports with an

Ethernet cable.

•Ensure that you do not have a web proxy enabled on your computer. Go to the Control Panel

and click on Internet Options. Select the Connections tab and click on the LAN Settings button at the

bottom. Make sure that the Use Proxy Server option is unchecked.

•If you are unable to access the Router's Web interface. Launch a web browser and enter

http://192.168.1.1. If you chose a different IP address, use that instead. Ensure that you include the

http:// prefix.

•Ensure your power adapter is correctly fitted. If the illuminated logo is not lit, check your power

adapter connections. Ensure the adapter is correctly inserted in to the power socket. Try an alternative

outlet. Check that the power cable connecting the power supply to the Router is not damaged, and

that the connector is correctly inserted into the Router. If the problem persists, it is likely that the

power adapter is faulty. Please contact 3Com for a replacement adapter.

Cable Internet Connections

•Some Cable providers authenticate to the user’s computer MAC address. If this is required, go to

Internet Settings and select Clone the MAC Address. This will copy the MAC address of your computer

onto the Internet port of the Router.

•Some Cable providers authenticate to the user’s Host Name. If this is required, go to Internet Settings

and enter the host name of your computer into the Host Name field.

DSL Internet Connections

•If you have an existing DSL line and have PPPoE or PPTP client software installed on your computer, you

will need to disable it. See section 2.

•If your DSL line uses PPPoE or PPTP, go to Internet Settings and ensure that the correct IP Allocation

mode is selected. Check that your Username and Password are correct.

•Some DSL providers require the use of a PPPoE Service Name. If this is required, go to Internet Settings

and enter the PPPoE Service Name in the field provided. If it is not required, you must leave it blank.

Wireless Configuration

•If you are unable to access the wireless LAN:

•Ensure that the wireless client is set to infrastructure mode.

•If you have a wired and wireless NIC in the same computer, ensure that the wired NIC is disabled. See

section 5 for details.

•Ensure that the Service Area Name (SSID) is the same for the wireless client and the Router.

•Ensure that the Router WiFi LED is on. If not, go to the Wireless Settings menu and enable Wireless

Networking, or press the WiFi button for 3 seconds until the WiFi LED is illuminated.

•Ensure that encryption settings are the same for the wireless client and the Router. If there are

problems, turn wireless encryption off in the client and the Router until you have established a wireless

connection.

Andere Handbücher für WL-602

Inhaltsverzeichnis

Sprachen:

Andere 3Com Netzwerk-Router Handbücher

3Com

3Com 3C13886 - Router OC-3 ATM SML Flexible Interface... Bedienungsanleitung

3Com

3Com OfficeConnect Bedienungsanleitung

3Com

3Com NJ90 Network Jack Bedienungsanleitung

3Com

3Com NETBuilder II Bedienungsanleitung

3Com

3Com Router 3030 Bedienungsanleitung

3Com

3Com 3CBLUF26 Bedienungsanleitung

3Com

3Com OfficeConnect 3C840 Montage- und Bedienungsanleitung

3Com

3Com OfficeConnect 3CP4144 Bedienungsanleitung

3Com

3Com MSR 50 Series Originalbetriebsanleitung

3Com

3Com Router 5012 Bedienungsanleitung

3Com

3Com 3C13755-US - Router 5642 Bedienungsanleitung

3Com

3Com 3C13751 Bedienungsanleitung

3Com

3Com 3C6090 - NETBuilder II Dual Processor Engine... Bedienungsanleitung

3Com

3Com 5000/6000 Bedienungsanleitung

3Com

3Com OfficeConnect Remote 812 Bedienungsanleitung

3Com

3Com NJ225 - IntelliJack FX-SC Switch Bedienungsanleitung

3Com

3Com OfficeConnect 3C612 Bedienungsanleitung

3Com

3Com 3CR860-95 - OfficeConnect Secure Router Bedienungsanleitung

3Com

3Com Router 6000 Series Bedienungsanleitung

3Com

3Com 3CBLUG24A Bedienungsanleitung

3Com

3Com OfficeConnect 3CRWDR101A-75 Bedienungsanleitung

3Com

3Com 3CRWE754G72-A Bedienungsanleitung

3Com

3Com Router 3012 Bedienungsanleitung

3Com

3Com 3C6002A - NETBuilder II Extended Router Bedienungsanleitung

Beliebte Netzwerk-Router Handbücher anderer Marken

Allnet

Allnet ALL0333AU Bedienungsanleitung

HomeSeer

HomeSeer HT-SEL Bedienungsanleitung

Sercomm

Sercomm Genesis OC3505D Bedienungsanleitung

Billion

Billion BIPAC 5102 Series Bedienungsanleitung

TP-Link

TP-Link TD-8817 Bedienungsanleitung

Motorola

Motorola MR1900 Bedienungsanleitung

Digi

Digi IX14 Bedienungsanleitung

Cisco

Cisco NCS 540 Handbuch

XAVi

XAVi X8821e Bedienungsanleitung

BEC

BEC 6200WZL Bedienungsanleitung

MikroTik

MikroTik hAP ac3 Series Bedienungsanleitung

Korenix

Korenix JetNet 5428G Series Bedienungsanleitung

NETGEAR

NETGEAR FS526T - Switch Bedienungsanleitung

Korenix

Korenix JetNet 5710G Series Bedienungsanleitung

Automated Logic

Automated Logic ZN551 Betriebsanleitung

Cisco

Cisco ASR 1000 Series Bedienerhandbuch

EnGenius

EnGenius ESR-9710 Bedienungsanleitung

Cisco

Cisco 805 Series Bedienungs- und Sicherheitshinweise
