3Com SuperStack II Switch 1100 Bedienungsanleitung

QUICKINSTALLATIONGUIDEFORTHE

SUPERSTACKII SWITCH1100/3300 ATM

EXPANSIONMODULE

This guide describes how to install the ATM

Expansion Module using the example of a SuperStack

II Switch 3300 device. Installation is similar for all

devices compatible with this ATM Module.

CAUTION: Only hold the ATM Module by the

edges to avoid damage from static. Do not touch

the top or bottom of the circuit board.

Before proceeding make sure you are properly

grounded with a wrist strap. If no grounding

equipment is present, place the switch on a flat

clean, hard, working surface and use the

anti-static bag that the module was shipped in.

WARNING:Installation and removal of the module

must be carried out by qualified personnel only.

Before installing the module into a unit, you must first

disconnect the unit from the mains power supply.

AVERTISSEMENT: Confiez l’installation et la dépose

de ce module a un personnel qualifie. Avant

d’installer ce module dans un group, vous devez au

préalable débrancher ce group de l’alimentation sect-

eur.

WARNUNG:Die Installation und der Ausbau des

Moduls darf nur durch Fachpersonal erfolgen. Vor

dem Installieren des Moduls in einem Gerät muß

zuerst der Netzstecker des Geräts abgezogen werden.

WARNING:Class 1 LED Product. Do not view the LED

through any magnifying device while it is powered

on. Never look directly at the fiber Tx port and fiber

cable ends when powered on.

AVERTISSEMENT: Ce produit est un LED classe 1. Ne

pas regarder le LED Transmit à travers une loupe lor-

sque l'appareil est en marche. Ne regardez jamais

directement le port Tx a fibres optiques et les

embouts de cables a fibres optiques tant qu’ils sont

sous tension.

WARNUNG:LED Produkt der Klasse 1. Schauen Sie

nicht durch ein Vergrößerungsgerät direkt auf das

übertragende LED, wenn der Strom eingeschaltet ist.

Niemals direkt auf den Faser-Tx-Anscluss und auf die

Faserkabelenden schauen, warend diese

eingeschalter sind.

2CHAPTER: QUICKINSTALLATIONGUIDEFORTHESUPERSTACKII SWITCH 1100/3300 ATM EXPANSIONMODULE

Warning: Disconnect the Switch from the network,

power it off and then disconnect the Switch from the

main power supply.

Step 1:

Remove the blank plate that is located at the back of

the SuperStack II Switch, by unscrewing the two Phil-

lips screws as shown in Figure1.

Retain the blank plate and the screws for future use.

Figure1 Removing the Blank Plate

Step 2:

Hold the module with the cutout on your front left

side,without touching the top or bottom of the circuit

board. Use the guide rails within the switch slot to

align the ATM Expansion Module as shown in

Figure2.

Slide the ATM Expansion Module into the slot. Ensure

that the module is fully engaged to the switch. You

should hear a click.

Figure2 Aligning and Inserting the ATM Expansion Module

Blank Plate Cutout

Step 3:

Use the slotted screws attached to the ATM

Expansion Module to fix the module firmly into place

as shown in Figure3.

Figure3 Securing the ATM Expansion Module

Step 4:

Connect the Switch with the installed ATM Expansion

Module, see Figure4, to the ATM network.

Figure4 The Installed ATM Expansion Module

For more information on installation, please

refer to Chapter 7 of the ATM Expanion Module

User Guide.

4CHAPTER: QUICKINSTALLATIONGUIDEFORTHESUPERSTACKII SWITCH 1100/3300 ATM EXPANSIONMODULE

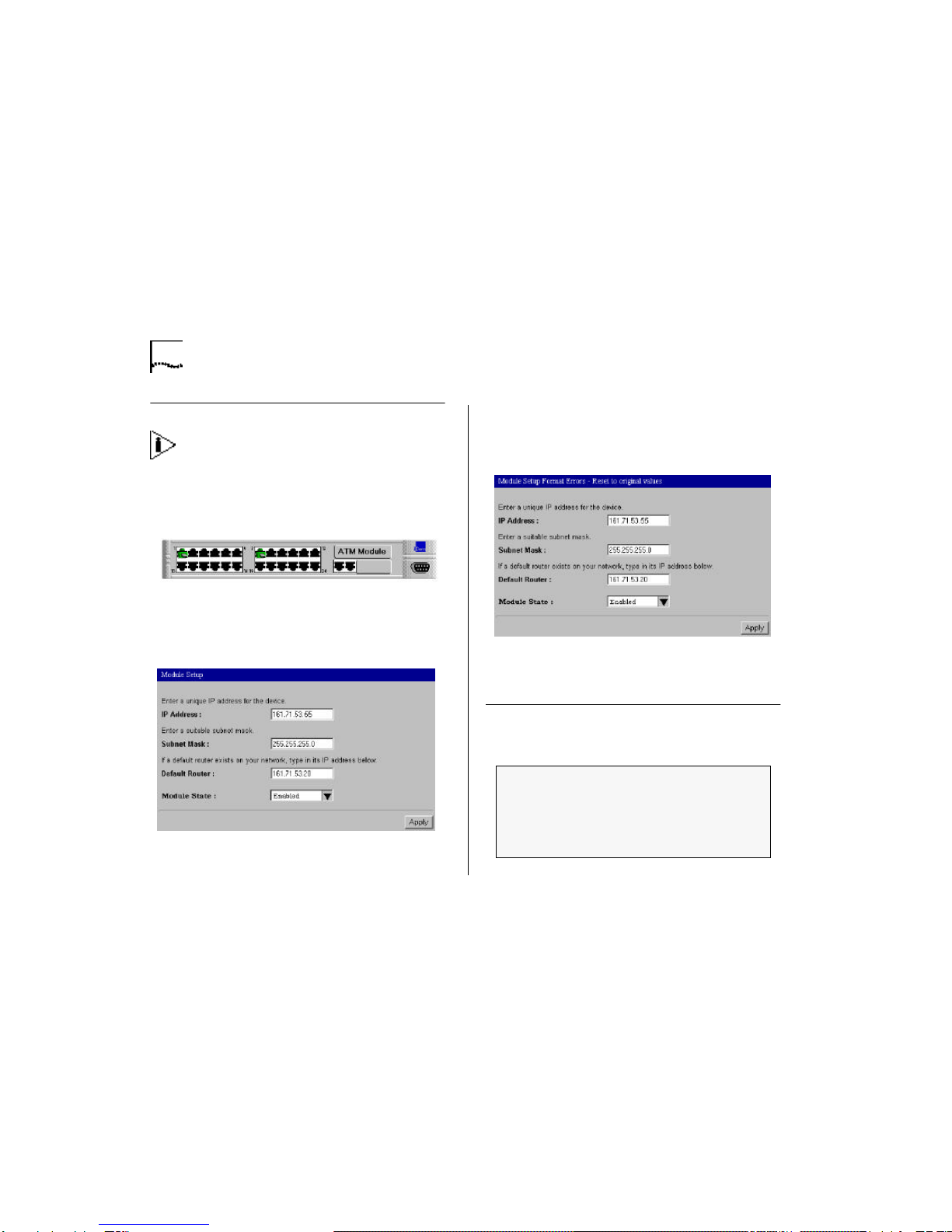

IP Configuration

IP configuration is performed during installation and

does not need to be repeated thereafter.

1Log into the web interface of the Switch.

2Click on the ATM MODULE button of the web mimic

(see Figure5).

Figure5 Web Mimic Incorporating ATM Expansion Module

3Fill in the fields of the IP address setup screen (see

Figure6) generated as a result of step 1 and click

Apply.

Figure6 IP Address Setup Form

4Make sure the values used in step 3 are correct.

Incorrect value(s) generate IP address error message(s)

(see Figure7). Fill in the correct value(s) and click

Apply. The web mimic will reappear.

Figure7 IP Address Setup Error Message

5To change any of the parameters, repeat steps 3 and

4. (After the first log-in, you don’t need the web

mimic, even though it reappears following step 4.)

Logging On

1To begin a TELNET session, open it to the ATM

Module IP address. The following prompt is displayed:

SuperStack II 3300/1100 ATM Expansion Module

Software Version 1.0

Access Level: (read, write, admin)

Velan Configuration Menu 5

2Type in your access level followed by your password.

Note that they are both case-sensitive:

nIf you are logging on for the first time (after

installation or initialization), use a default user

name and password to match your access

requirements and privileges, in accordance with

Table1.

nIf you have been assigned a user name, access level

and password, type in these details.

For access rights to Switch screens, see the user guide

that accompanies your Switch.

When you have logged on, the Main Menu screen is

displayed.

Velan Configuration Menu

The Velan Configuration submenu can be accessed

from the Main Menu. Select thevelan option from the

Main Menu. This generates the Velan Configuration

submenu appearing in Figure8.

Table2explains the operational meanings of the

submenu items.

Table1 Users and their Privileges

User Type

Access

Level/

Default

Password Privilege

junior

operator read Reading everything except

technician displays; no writing

senior

operator write As above, plus writing for Fast

Setup and Velan settings

administrator

/security

official

admin Reading and writing everything

except technician-exclusive

displays.

technician debug Reading and writing everything.

Table2 VLAN/ELAN Configuration Submenu Items and

Operational Meanings

Item Operational

Meaning Option Option Meaning

[1] configure Opens a submenu

which offers options

to create, display, or

modify VLAN/ELAN.

[2] elanState Offers options to

start, stop, or restart

specific VLAN/ELAN

start Connect LEC to its

Emulated LAN

stop Disconnect LEC

from its Emulated

LAN

restart Disconnect and

automatically

reconnect LEC

[3] display Displays information

summary of all

VLAN/ELANs

6CHAPTER: QUICKINSTALLATIONGUIDEFORTHESUPERSTACKII SWITCH 1100/3300 ATM EXPANSIONMODULE

Figure8 Velan Configuration Submenu

Configure Submenu

The Configure submenu appears in Figure9.

Figure9 Configure Submenu

Setting up an ATM VLAN/ELAN

1Go to the Configure submenu.

2Select [2] add.

3Enter ELAN name as configured in the LECS, and the

802.1Q tag as configured in the 1100/3300 VLAN

settings.

4Observe creation and enabling of a new VLAN/ELAN.

Manufacturing default gives this product a single

VLAN/ELAN, i.e. the Admin VLAN/ELAN which cannot

be changed or deleted. The ELAN name is “admin”,

the VLAN/ELAN ID is 1, and the 802.1Q tag is 1.

Unless otherwise indicated, 3Com registered trademarks are registered in the

United States and may or may not be registered in other countries.

3Com, CoreBuilder, SuperStack are registered trademarks of 3Com

Corporation. Other brand and product names may be registered trademarks

or trademarks of their respective holders.

Written and edited by Laura Novich and Marvin Rabinovitch. Formatted by

Debbie Zioni.

Part No. DIA3311-0AAA04

Published June 1999

velan

[1]configure - Configure VLAN/ELAN parameters ->

[2]elanState - Start/Stop/Restart ELAN

[3]display - Display summary VLAN/ELAN information

velan/configure

[1] display - Display VLAN/ELAN information

[2] add - Add VLAN/ELAN

[3] delete - Delete VLAN/ELAN

[4] statistics - Display VLAN/ELAN statistics
