3One data 3011 Bedienungsanleitung

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Model3011

10/100/1000M

Ethernet

SFP

Media

Converter

(SM

MM)

ntroduction

Model3011, 10/100/1000Mbps adaptive Gigabit Ethernet fiber

converter uses the switching technology to conduct media

conversion, which meets the standards of IEEE802.3, IEEE802.3u,

IEEE802.3z and IEEE802.3ab. This kind of media converter

supports two types of media network connections: 10Base-

T/100Base-TX/1000Base-T and 1000Base-SX/LX. Model3011 can

conduct mutual conversion between 10Base-T/100Base-

TX/1000Base-T twisted pair electrical signals and 1000Base-

SX/LX optical signals. This media converter extends the

transmission distance of a network from 100m over copper wires to

1 20 Km. This media converter supports transmission in dual-fiber

multi-mode, dual-fiber single-mode , SFP style fiber-optic

connections.

Packing

ist

Model 3011 is shipped with following items.

1. Model3011 ×1

2. 5VDC power adapter ×1(Media converter/5VDC)

3. User manual ×1

eatures:

1. Accord to IEEE802. 1 10Base-T , IEEE802.3 u 100Base-TX, IEEE

802.3ab 1000Base-TX , IEEE802.3 z 100 0 Base- SX/LX

2. MDI/MDI-X auto negotiation, 10M/100 /1000 M auto negotiation

3. Supports full /half duplex, Point-to-point transparent transfer

4. Power External input

5. Plug-and-play, easy to installation

6. Can insert to 2U 19", 14 slots Rack (power external)

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

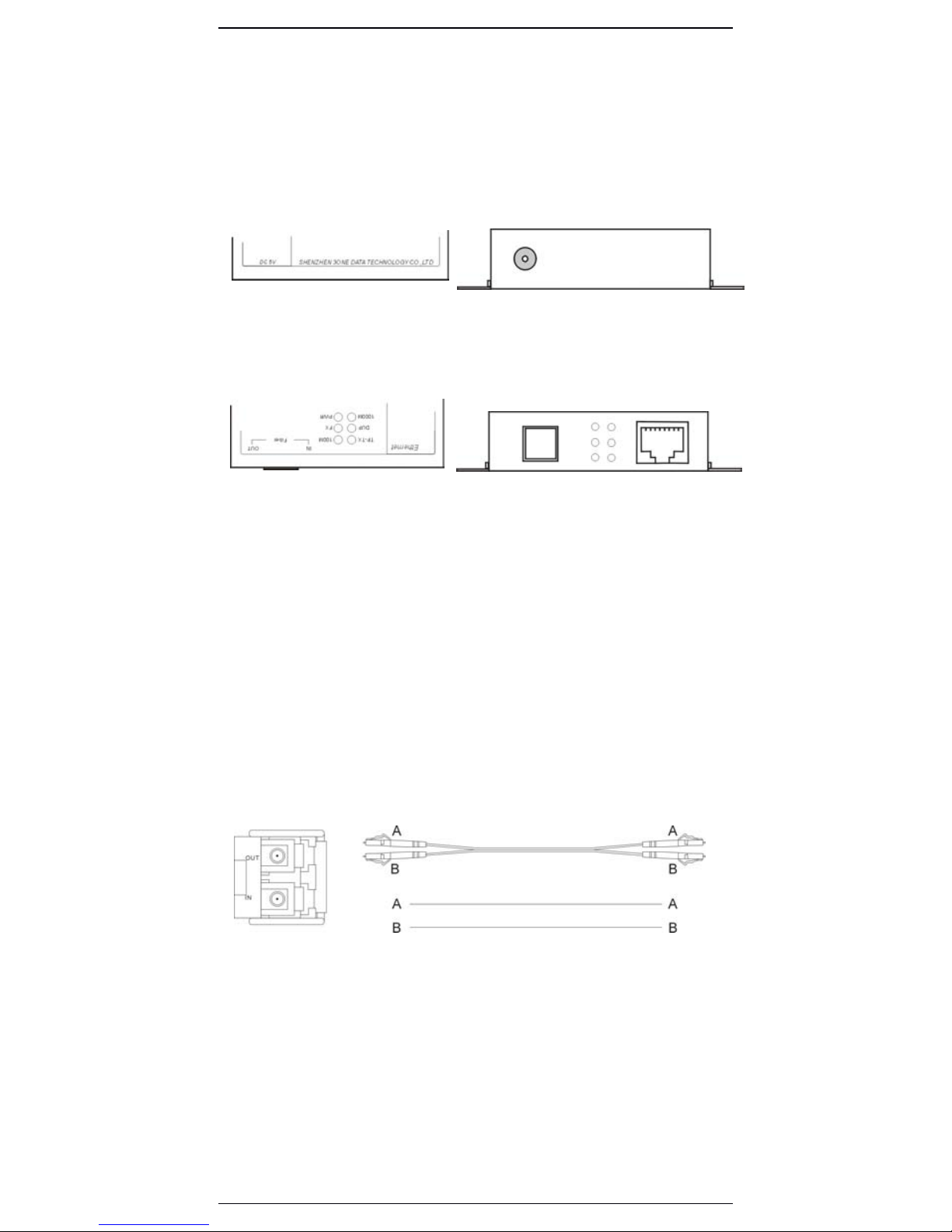

inout

Configuration:

Power

Model3011 adopt the power supply input is 5VDC external.

Ethernet(RJ45),Optical

fiber

interface

Optical

fiber

interface:

Optic fib er interface need use in pairs, OUT port is fiber send side

connect another long-range light of interface fiber receive end IN;

IN port is fiber receive side

connect long-range same fiber send

side :

Optic fib er s spent both ends mark the label (the following picture

show: A-A, B-B, can also mark another: A1-A2, B1-B2), in order to

use.

Ethernet

interface:

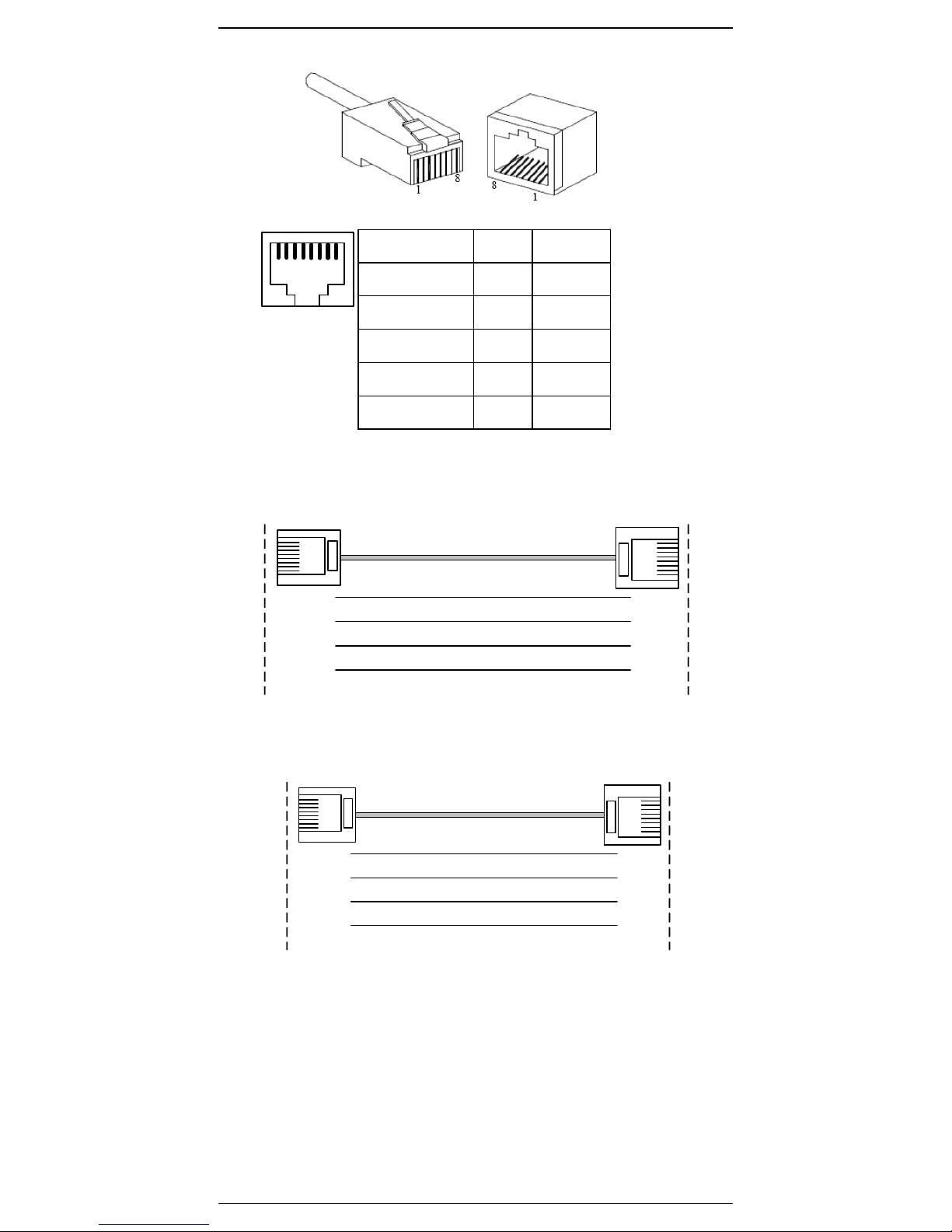

Ethernet( RJ45 ) interface supports MDI/MDI-X auto negotiation,

can use straight- through cable connect PC or server, use across-

over connect cable Switch or HUB.

MDI: PIN 1, 2, 3, 6 connects opposite.

MID-X: 1 → 3

2 → 6

3 → 1

6 → 2

MDI/MDI-X 10Base-T/100Base-TX P IN define as follow:

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Note

：

“TX ±” Transfer data ±

，

“RX ±” Receive data ±

，

“—” None 。

MDI:

MDI-X:

MDI

MDI-X

TX+

RX+

TX-

RX-

RX+

TX+

RX-

TX-

4、5、7、8

—

(

- )

(

- )

(

- )

(

- )

1 8

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

LED

indications:

Specifications:

Standards : comply with IEEE802. 1 10Base-T

IEEE802.3 u

100Base-TX, IEEE 802.3ab 1000Base-TX , IEEE802.3 z

100 0 Base- SX/LX standards

RJ45 port rate: 10/100/1000Mbps auto negotiation

Optic port rate: 1000Mbps

Transfer distance: RJ45port: 100m

Fiber optic:20,40,60,80,120km(SM),

550m(MM) optional

RJ45 port cable: UTP 5E

Fiber connector: 2 ×LC

Fiber optic cables: Single Mode:8.3/125,8.7/125,9/125 or 10/125

LED

STATE

INDICATION

PWR

(Power)

OFF

Power Off

BRIGHT

Power On

(Fiber Link Port)

OFF

Ethernet is not

Connected

BRIGHT

Ethernet is Connected

100M

(10/100M)

OFF

10M Ethernet

BRIGHT

100M Ethernet

1000M

OFF

Not 1000M Ethernet

BRIGHT

1000M Ethernet

DUP

(Duplex Mode)

OFF

Half Duplex

FLASHING

Full Duplex

TP-

(Ethernet Port)

OFF

Ethernet is not

Connected

FLASHING

Transmitting or

Receiving Data

BRIGHT

Ethernet is Connected

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Muti-Mode: 62.5/125, 50/125 um

Wavelength:850nm,1310nm,1550nm

Power supply: External 5VDC input

Dimensions: 94.0mm ×71.0mm ×26.0mm

Installation: support DIN-Rail installation

Operating temp:-10 °

to 65 ° C

Storage temperature: -20 to 70 ° C

Operating humidity : 5% to 95% (no condensation)

Warranty: 5 years

Approvals: FCC,CE, RoHS approvals

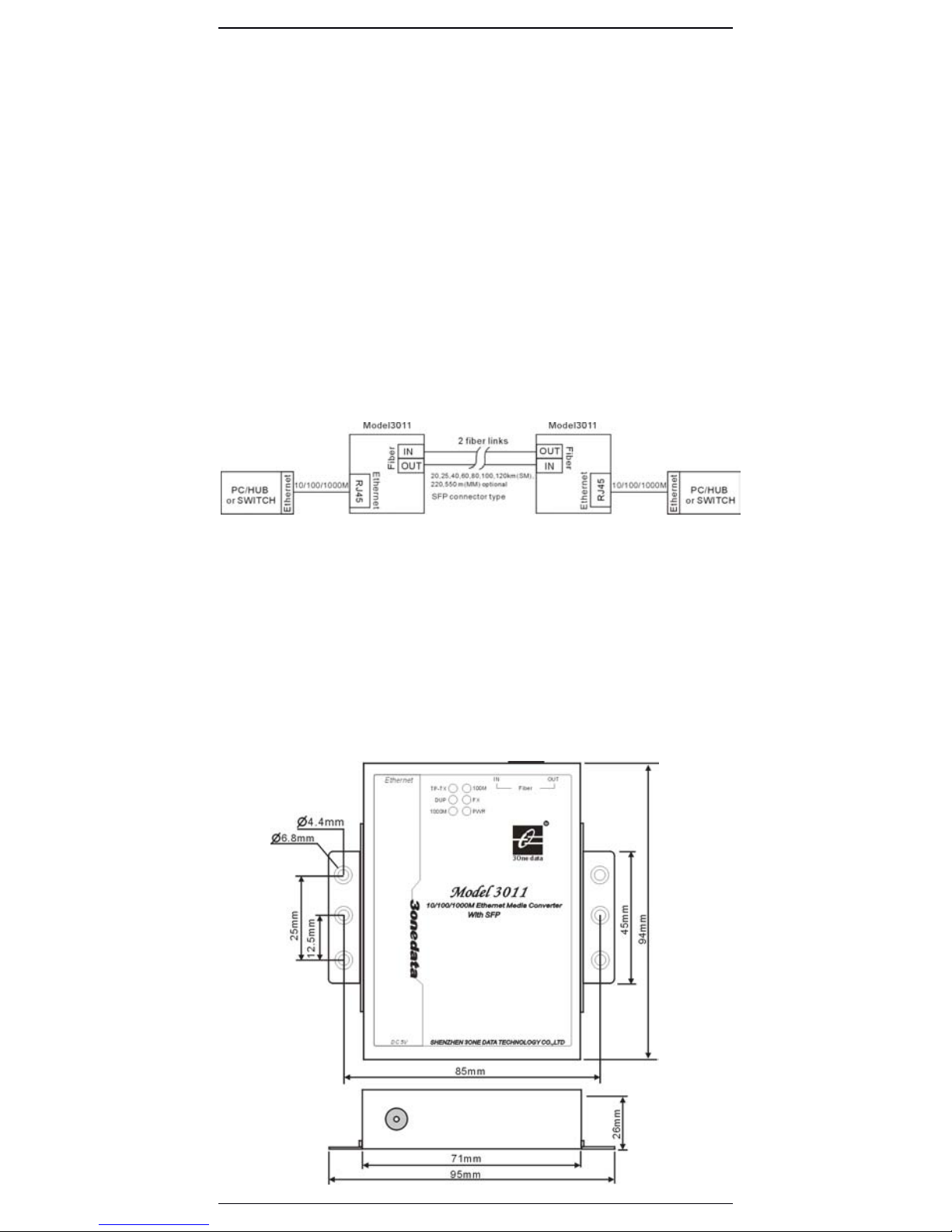

Applications

Extending

10/100M

Ethernet

data

distance

Installation

Model3011 provides DIN-rail and wall mounting two types of

installation.

Wall

mounting

installation

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

DIN-Rail

Installation

Troubleshooting

instructions:

1. Make sure the power is connected and turned on.

2. Make sure the converter Ethernet and fiber optic cables are

connected properly.

3. Check the connections according to the connection diagram.

4. Check the LED Indication status and identify possible problems

from the Indication LED table above.

Note:

1. M ed ia C o n v e r t e r is a s e n s i t i v e e l e c t r on i c i t e m , p l e a s e d o

h a n d l e w i t h e x t r a c a r e o n d e l i v e r y , s h i ft i n g a n d h u m i d i t y .

2. T h is u n i t w i l l b e w a rr a n t y f o r 5 y e a r s .

3. W h ene v e r t he r e is a p r ob l e m r e g a r d i n g t h e q u a l i t y i ss u e w i t h i n

t h e w a rr a n t y pe r i o d , w e w i l l t a k e t h e r e s p on s i b i l i t y t o r e p a i r w i t h

f r e e .

4. A ft e r t h e w a rr an t y p e r i o d , w e w i l l c h a r g e a c c o r d i ng l y

d e pend i n g o n t h e f a u l t o r d a m a g e .

5. W h ene v e r t h e r e is a f au l t , y o u c a n c o n t a c t o u r t e c h n i c a l

s u p p o r t a f t e r y o u i d e n t i f y t h e p r o b l e m a n d t h e a l a r m .

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

Common

Problems

PWR

power

supply

indicator

lamp

not

lighting

Cause:

1. Power supply not properly connected

2. Protector tube damaged

3. P ower input tie-line in reverse connection

4. Internal power supply circuit with failure

Solution

1. Check power switch and jack

2. Replace protector tube

3. Correct power supply line connection

4. Returned to the manufacturer for repair.

FX(Fiber

Link

Port)

indicator

lamp

not

lighting

Cause:

Optic fiber port link is fault.

Solution:

1. Check fiber optic is link or not.

2. Check fiber optic loss is high.

3. Clean the connector of optic interface.

4. Insert the well connector in place.

5. Returned to the manufacturer for repair.

TP-T

Ethernet

Port)

indicator

lamp

not

lighting

Cause:

Ethernet port link is fault.

Solution:

1. Check Ethernet(RJ45) line is link or not.

2. Check Ethernet(RJ45) port is loose.

3. Check the rate of selected media converter

4. Check the rate of Network.

5. Returned to the manufacturer for repair.

Network

packet

loss

Solution:

1. Check Ethernet rate or full/half duplex is matched or not.

2. Ethernet(RJ45) port is loose contact, or optic port is loose

contact and soiled .

Your

Serial and Data Communications Expert

Shen zhen 3onedata Technology Co.,Ltd

3. Ethernet cable not comply with Ethernet standard.

Certifications:

Shenzhen

3onedata

Technology

Co.,Ltd

Tel: +86-755-26702688 Fax: +86-755-26703485

www.3onedata.com
