4IPNET EAP705 Bedienungsanleitung

EAP705 V1.0

Enterprise Access Point

Product Handbook

Product HandbookProduct Handbook

Product Handbook

EAP705 Enterprise Access Point ENGLISH

This document is protected by U A copyright laws and other laws. Besides, the

document is the property of 4IPNET, INC. You may not copy, reproduce, distribute,

publish, display, perform, or modify any part of this publication in any form or by any

means without prior written permission from 4IPNET, INC. You may not alter or remove any

are claimed or registered marks of their respective companies or organizations.

To download up-to-date version, please visit www.4ipnet.com.

Product Handbook

Product HandbookProduct Handbook

Product Handbook

EAP705 Enterprise Access Point ENGLISH

FCC CAUTION

This equipment has been tested and proven to comply with the limits for a class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

---Reorient or relocate the receiving antenna.

---Increase the separation between the equipment and receiver.

---Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

---Consult the dealer or an experienced radio/TV technician for help.

The device contains a low power transmitter which will send out Radio Frequency (RF) signal when

transmitting. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20 centimeters

between the radiator and your body.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

Product Handbook

Product HandbookProduct Handbook

Product Handbook

EAP705 Enterprise Access Point ENGLISH

CE CAUTION

Declaration of Conformity with Regard to the 1999/5/EC (R&TTE Directive) for

European Community, Switzerland, Norway, Iceland, and Liechtenstein

Model: EAP705

For 2.4 GHz radios, the device has been tested and passed the requirements of the following standards, and

hence fulfills the EMC and safety requirements of R&TTE Directive within the CE marking requirement.

• Radio: EN 300.328

• EMC: EN 301.489-1, EN 301.489-17,

• EMC: EN 55022

Class B, EN 55024

+ A1 + A2

including the followings:

EN 61000-3-2, EN 61000-3-3.

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,

EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

• Safety: EN 60950-1 + A11,

Caution:







This declaration is only valid for configurations (combinations of software, firmware, and hardware)

provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by

4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements.

European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range

2.400-2.4835 GHz. This equipment is intended to be used in all EU and EFTA countries. Outdoor use may be

restricted to certain frequencies and/or may require a license for operation. Contact your local regulatory

authority for compliance.

Taiwan NCC Statement

根據

NCC

低功率電波輻射性電機管理辦法

規定

第十二條

經型式認證合格之低功率射頻電機非經許可公司、商號或使用者均不得擅自變更頻率、加大功率或

變更原設計之特性及功能。

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時應立即停用並改善至

無干擾時方得繼續使用。

前項合法通信指依電信法規定作業之無線電通信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之擾。

在5.25 ~ 5.35秭赫頻帶內操作之無線資訊傳輸設備限於室內使用。

Product Handbook

Product HandbookProduct Handbook

Product Handbook

EAP705 Enterprise Access Point ENGLISH

Preface Package Contents

The 4ipnet EAP705 Wall Jack Access Point is an

on-the-wall as well as a ceiling-mounted dual radio

Wi-Fi IEEE 802.11b/g/n + a/n/ac 2 X 2 MIMO

access point, designed to blend into a working or

a living environment practically and elegantly with

its simplistic yet sleek design.

The compact EAP705 in a small form factor lays

snug in a standard wall outlet box. Its side panel

features LED status indicators and two RJ45 ports.

It has the interfaces to serve both wireless and

wired LAN access. The RJ45 pass-through port

allows phone or IP-based devices to pass through

EAP705 without the need for additional outlets.

When coupled with the 4ipnet WHG series

Controller, the EAP705 supports Tunnel-based AP

Management, and comes with all standards

demanded by enterprise applications, including

business-grade security (802.1X, WPA and WPA2),

and multiple ESSIDs with VLAN tags to separate

the traffics of different departments. A centralized

WLAN management allows enterprises and

organizations to support a wide array of value

added applications, such as load balancing,

bandwidth control, and access control. The

patent-pending 4ipWES (Press-n-Connect)

technology bridges multiple EAP705s at the touch

of a button, which enables a quick and automatic

WDS Easy Setup by pressing the WES button on

EAP705. Extending wireless network coverage is a

breeze, be it across conference rooms or along

hallways.

EAP705’s high performance, security and optimal

invisibility make it a perfect choice of wireless

connectivity for your business.

1. 4ipnet EAP705 x 1

2. Quick Installation Guide (QIG) x 1

3. Power Adapter (DC 12V) x 1 (Optional)

4. Mounting Screws x 2

5. Mounting Panel x 1

6. Mounting Plate Lock Tool x 1

It is recommended to keep the original

packing material for possible future shipment

when repair or maintenance is required. Any

returned product should be packed in its

original packaging to prevent damage during

delivery.

Product Handbook

Product HandbookProduct Handbook

Product Handbook

EAP705 Enterprise Access Point ENGLISH

System Overview

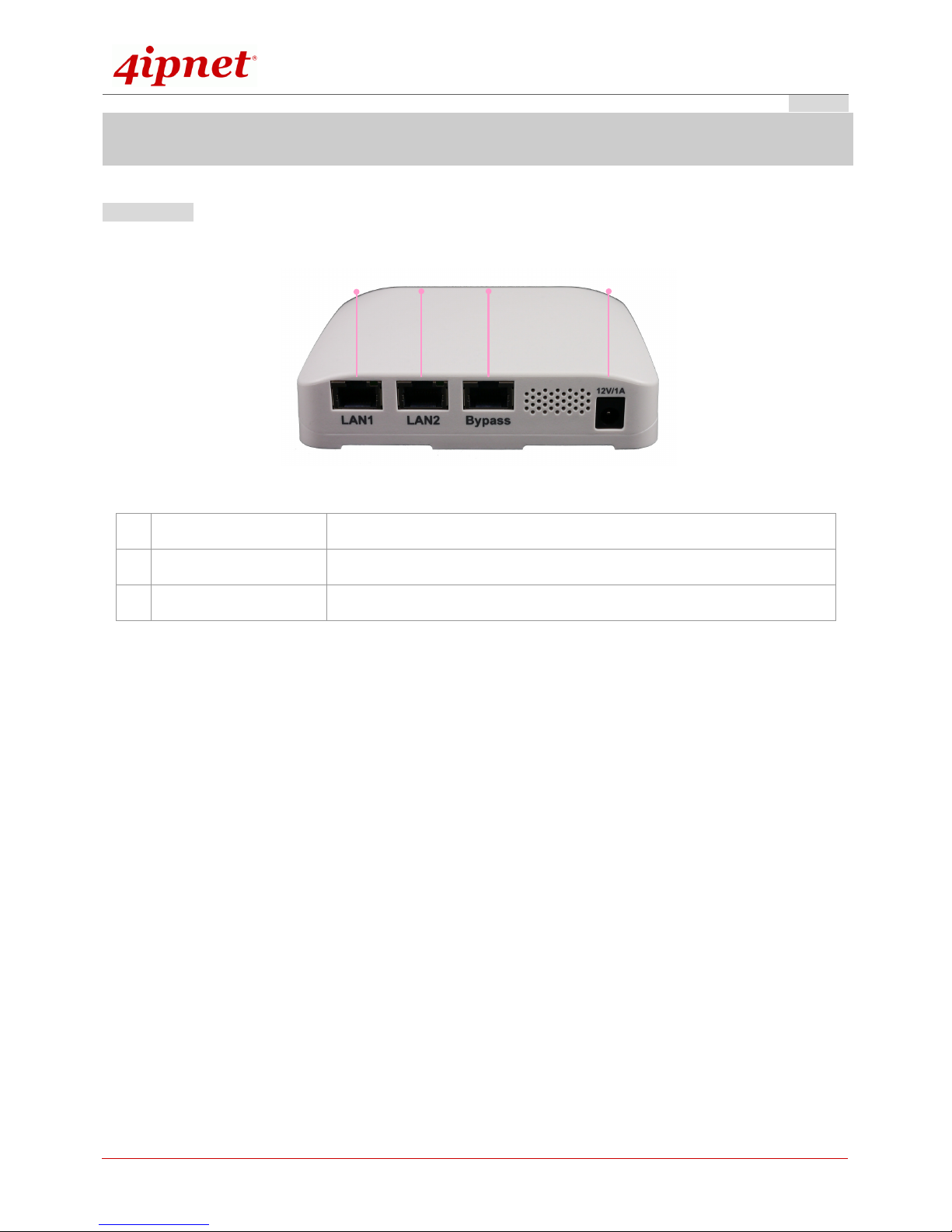

Lower Panel

11 2 3

EAP705 Lower Panel

LAN 1 – 2 Ports Attach Ethernet cables here to connect to the wired local network.

Bypass RJ45 Passthrough for phone or IP devices

DC Jack 12V Attach the power adaptor here.

Product Handbook

Product HandbookProduct Handbook

Product Handbook

EAP705 Enterprise Access Point ENGLISH

Lower Panel

EAP705 back Panel

110 Punchdown Block

(Passthrough)

Copper wire punch down for in-wall application

110 Punchdown Block

(Uplink)

Copper wire punch down f

or Uplink connection. This can be used to

connect to a controller, gateway, or directly to the internet. PoE is

supported.

Uplink (PoE) Port For Uplink conn

ection. This port can be used to connect to a controller,

gateway, or directly to the internet. PoE is supported.

Product Handbook

Product HandbookProduct Handbook

Product Handbook

EAP705 Enterprise Access Point ENGLISH

Hardware Installation

Please follow the steps mentioned below to install the hardware of EAP705:

Step 1. Place the EAP705 at the best location. The best location is usually at the center of your intended

wireless network. The EAP705 can be mounted on wall outlets or on any flat surface;

Step 2. Connect one end of the Ethernet cable to the Uplink port and the other end of the cable to a switch,

a router, or a hub; or use the 110 punchdown block as your uplink connection. The 110 punchdown

block may be connected with the following pin assignment:

Orange Blue

White Orange White Blue

Brown Green

White Brown White Green

The EAP705 is now connected to your existing wired LAN network.

Step 3. There are three ways to supply power to EAP705

a) Connect the DC power adaptor to the power jack socket.

b) The Uplink port is capable of receiving PoE. Connect an IEEE 802.3af-compliant PSE device

(e.g. a PoE-switch) to the Uplink port of EAP705 with the Ethernet cable.

c) Use a standard 110 punchdown tool to punch copper wires onto the punchdown block (pin

assignment 568A)

Step 4. Fasten the Access Point to the mounting plate

a) Align the Access Point to the mounting plate using the arrow printed on the back of the Access

Product Handbook

Product HandbookProduct Handbook

Product Handbook

EAP705 Enterprise Access Point ENGLISH

Point.

b) Align the Access Point to the 4 hooks and snap Access Point to the mounting plate

c) To lock/unlock Access Point from the mounting plate, use the Lock Tool provided.

Now, the Hardware Installation is complete.

•Punch down tools may vary by country. Please contact the 4ipnet Support Team for

recommendations if needed.

•Please use only the power adapter supplied with the package. Using a different power adapter

may damage this system.

•To verify the wired connection between the AP and your switch / router / hub, please also check

the LED status indicator of the respective network devices.

Product Handbook

Product HandbookProduct Handbook

Product Handbook

EAP705 Enterprise Access Point ENGLISH

Getting Started

4ipnet EAP705 supports web-based configuration. When hardware installation is complete, EAP705 can be

configured through a PC by using a web browser such as Mozilla Firefox 2.0 or Internet Explorer version 6.0

and above.

The default values of LAN IP address and subnet mask of EAP705 are:

IP Address: 192.168.1.1

Subnet Mask: 255.255.255.0

Steps:

1. To access the Web Management Interface, connect the administrator PC to the LAN port of EAP705 via

an Ethernet cable. Then, set a static IP address on the same subnet mask as EAP705 in TCP/IP of your

PC, such as the following example:

IP Address: 192.168.1.100

Subnet Mask: 255.255.255.0

2. Launch the web browser on your PC by entering the IP address of EAP705 (http://192.168.1.1) at the

address field, and then press Enter.

3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields,

and then click Login.

Administrator Login Page
