AAXA Technologies LEDandroid Bedienungsanleitung

aaxa

User Guide

TECHNOLOGIES

Quick Start Guide

Step 4: Settings Button

Step 2: Power Button

Step 3: Adjust Focus

Step 1: Power Adapter Port

Step 1: Connect the power adapter

Step 2: Press the Power button once, the fan should start

spinning and the projector engine shoud light up

Step 3: Adjust the focus as needed

Step 4: Enter the “OSD” Menu to change brightness or to

select inputs. The OSD Menu can be accessed via the“Set

tings”button on the projector or the “Menu” button on the

remote control

Caution!

WARNING: Please use this product as instructed. Misuse may cause

injury or death.

DO NOT expose to water or wet

surfaces. Electric shock may occur.

DO NOT expose the projected LED

image to your eyes or the eyes of

others

DO NOT block or restrict airow

from ventilation holes as this may

cause the projector to overheat

Keep the projector charger away

from any heat sources

Caution for Headphone Use

• Prolonged use at high volume may

impair your hearing.

Table of Contents

Chapter 1: Projector at a glance

Main Unit Front/Back

Remote & Keypad

Accessories

Chapter 2: Getting Started

Powering On / Off

Focus Adjustment / Throw

Distance

Accessing OSD Menu

Adjusting the Brightness

Picture Settings & Mode

Connecting to Projector

Enabling Video Output

(on a laptop)

Connecting to Composite Video

Connecting to VGA

Connecting to HDMI

Connecting to USB

Connecting to Speakers &

Headphones

Chapter 3: File Playback

Playing Videos

Viewing Pictures

Music Playback

Video Playback FAQ

Chapter 4: Android System

Connecting to Wireless

Quick Launch Buttons

Apps Menu

Ofce Files

Table of Contents (Cont)

Wireless Display (Screen Mirror)

Connecting to Bluetooth

Display Settings

Chapter 5: Settings

Picture Conguration

Keystone Adjustment

Chapter 6: Technical Details

Trouble Shooting

Specications

LED Android at a Glance

Chapter 1

HDMI Input

USB Port

3.5 mm Audio Jack

VGA Input

3.5 mm Composite Jack

Settings Button

Navigation Pad

Back Button

Power Button

Focus Wheel

Lens

Power Adapter Receptacle

Mini USB Port

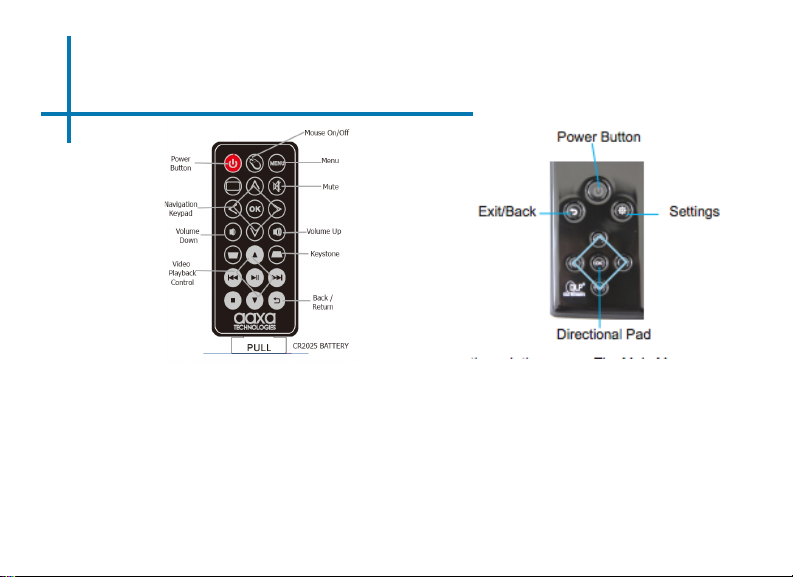

Remote & Keypad

Both the keypad and remote can be used to control the projector. The Main Menu Navigation on the

remote functions similarly to the keypad on the projector but with additional features that include:

1. Mouse Pointer - The Mouse icon opens a mouse pointer on the screen. To enter “mouse mode” press

the mouse icon on the remote control and press the left or right arrow key. The mouse pointer should

begin to move. To exit “mouse mode” double-click the mouse icon. (Press Right / Left if it does not work im-

mediately)

2. Volume Control - Use the volume keys to adjust the speaker volume

3. Keystone - Adjust the keystone manually with the remote control (vertical only)

Accessories

*Under various circumstances, the actual accessories may be different from

those shown in the pictures above.

Power Adapter A/V Cable

Remote

Getting Started

Chapter 2

1. Connect the power cord to the Projector

2. Connect the opposite end of the power cord into a wall outlet.

3. Press the POWER button on the top of the projector to start the projector or press

the POWER button on the remote control to start the projector.

Powering ON the projector

Powering OFF the projector

* The POWER button’s blue LED light will turn on when the projector is on.

1. Press the button on the keypad or remote twice to turn the projector off. The optical

engine should power off and the fan should stop spinning. The projector can be

turned on using the remote control.

Power Socket

Focus Adjusment / Throw Distance

Focus Adjustment

DIAGONAL SCREEN SIZE

16:9 Aspect Ratio

Throw Distance Chart

Throw Ratio 1.22

*minimum throw distance: 20 inches

Located on top of the projector, turn the

focus ring to the left or right until the image

becomes clear.

150

157

Min

Max

Diagonal inch (“) Distance from

Lens to Screen (“)
