ABB Ability Smart Sensor Bluetooth

ATT-VZN SIM card ready gateway

—

INSTALLATION MANUAL

ABB Ability™ Smart Sensor Bluetooth®

ATT-VZN SIM card ready gateway

—

Table of contents

1 – General 4

2 – Installation 5

2.1 – Prerequisites for installation 5

2.2 – Recommended location 5

2.3 – Obtaining the correct SIM card 6

2.4 – SIM card installation 6

2.5 – Gateway configuration 7

2.6 – AT&T mobile network configuration 10

2.7 – Verizon mobile network configuration 11

2.8 – Gateway configuration confirmation 12

3 – Troubleshooting 13

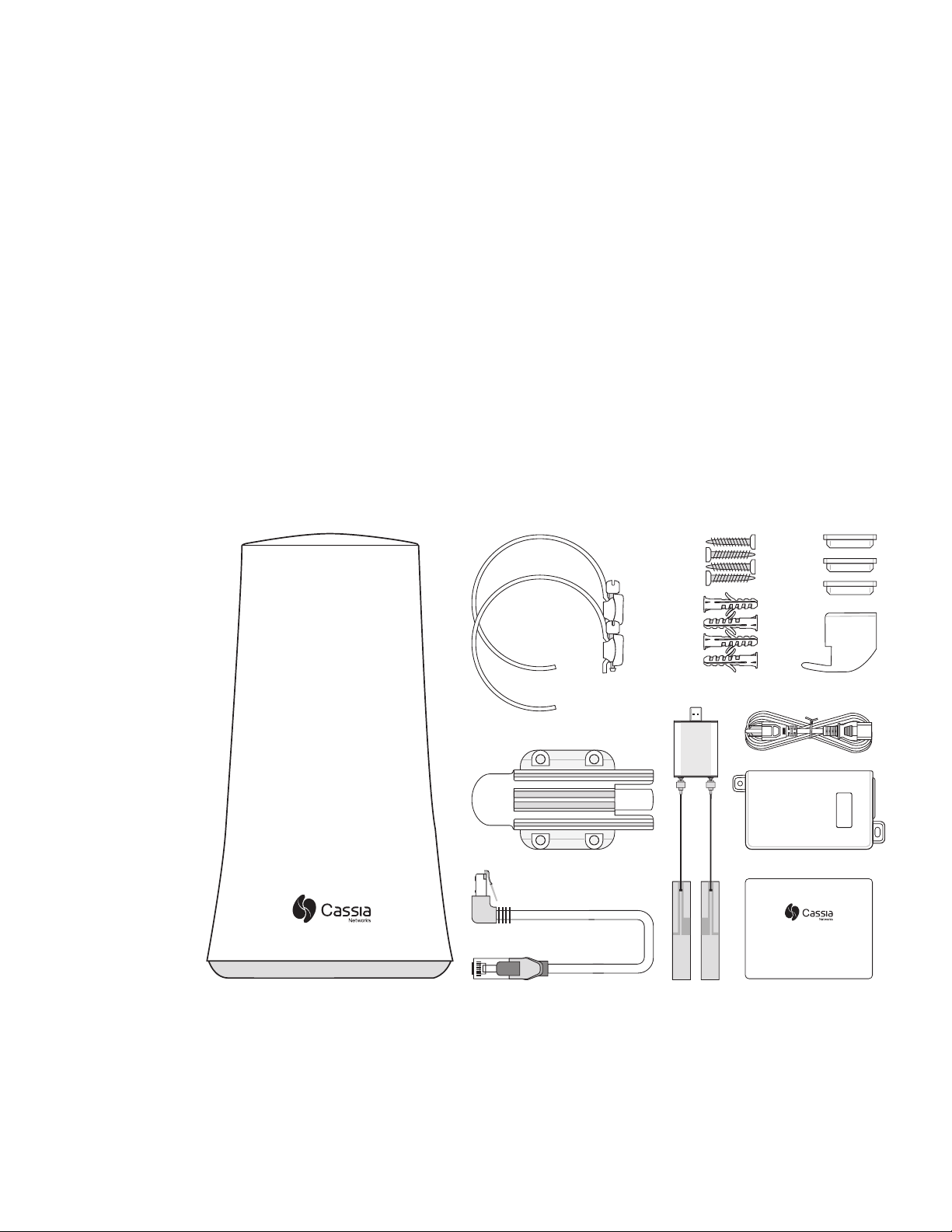

1. X100 router (1)

2. Pole mounting straps (2)

3. Anchors with screws (2x4)

4. Silicon plugs (4)

5. Mounting bracket (1)

6. Power cord (1)

7. Procet PoE injector (1)

8. Ethernet cable (1)

9. MultiTech modem with antennas (1)

10. Quick start guide (1)

9108

5 7

CASSIA X1000 Bluetooth Router

QUICK START GUIDE

For general information about the Cassia gateway, please refer to the Cassia User Manual on

https://www.cassianetworks.com/download/docs/Cassia_User_Manual.pdf

4ABB ABILITY SMART SENSOR BLUETOOTH ATT-VZN SIM CARD READY GATEWAY INSTALLATION MANUAL

—

1 – General

The ABB Ability Smart Sensor ATT-VZN SIM card ready gateway is used to upload the Smart Sensor data

automatically to the Smart Sensor portal. The gateway needs to be configured for Internet access before it

can start reading the Smart Sensors. This gateway uses 3G/4G Mobile network with the included USB

dongle for internet connection.

The sales package includes:

• X1000 Bluetooth router, wall and pole mounting kits and a quick guide.

• MultiTech Modem with antennas.

• PROCET PoE Injector power supply, with power cord.

• 10 Ft. Cat 5 ethernet cable with 90 degree connector.

—

2 – Installation

2.1 Prerequisites for installation

Internet connection:

Mobile network needs to have adequate signal strength.

AC – Access Controller

• Global: gw.smartsensor.abb.com

Smart Sensor Platform

• Global: smartsensor.abb.com

Power supply:

110/115 vac grounded outlet to accept P0E injector power cord.

SIM card:

ATT or Verizon Micro-SIM card (see next page for supported SIM cards)

Computer:

• A computer with WIFI adapter is needed for gateway configuration. A tablet computer or mobile phone

can also be used.

• Google Chrome web browser is recommended to be used.

Mounting:

• Flat head screwdriver for pole mounting.

• Phillips head screwdriver and a drill (if needed) for wall mounting.

• Mounting is not mandatory, but it is recommended to secure the gateway somehow to its intended

place.

2.2 Recommended location

Height:

The recommended height for the gateway is 10-98 feet from ground level. Lower levels are also acceptable,

but the gateway Bluetooth range might be shorter due to obstacles.

Orientation:

The gateway has the best reception in the direction where the Cassia logo is shown on its side. If the

gateway has trouble connecting to a specific Smart Sensor, it is recommended to rotate the gateway to

point in that direction.

INSTALL ATION

6ABB ABILITY SMART SENSOR BLUETOOTH ATT-VZN SIM CARD READY GATEWAY INSTALLATION MANUAL

—

2 – Installation

2.3 Obtaining the correct SIM card

• Determine which of either ATT or Verizon cell service is best for your location.

• Obtain a SIM card that is compatible with CAT-1 devices from your service provider.

- Supported AT&T SIM cards for the MTCM-LNA3 modem can be found in the following sites:

› IoT LTE North America: https://marketplace.att.com/products/att-iot-dataplans-lte-

north-america

› IoT LTE North American (Shared): https://marketplace.att.com/products/iot-share-plan-lte-na

- Supported Verizon SIM cards for the MTCM-LNA3 modem can be found in the following site:

https://thingspace.verizon.com/iot-marketplace/?gclid=CjwKCAiAnvj9BRA4EiwAuUMDf1YGPQyo5

69yrkmxNPatCVn2qtNWJHHShVQF-33hRG6g26yucz0IehoCtYoQAvD_BwE&gclsrc=aw.ds

- Please make sure to select "Cat 1 and above Triple-punch SIM card" to get the Micro SIM (3FF) size

cutout. Do not select the CAT-M options as those may not be compatible.

• Discuss SIM card data plan with service provider (online or retail outlet).

• You will need to provide them with IMEI number of the modem. Each Modem has a unique IMEI number

(sticker of this number is on the packaging box and on the gateway cap).

• The Service provider will provide you with APN (Access Point Name) alpha or numeric number.

The MultiTech Modem uses a Micro-SIM sized sim card, slightly larger than a nano sim card.

2.4 SIM card installation

The sim card is correctly installed when:

• Inserted, it depresses an internal spring until it clicks into place.

• The angled cut of the sim card is facing to the right side of the modem.

• It is facing toward the slot into which it is to be inserted.

• The “logo” side (non-circuit side) of the SIM card is also facing outward toward the operator, same as the

label side of the modem.

INSTALLATION

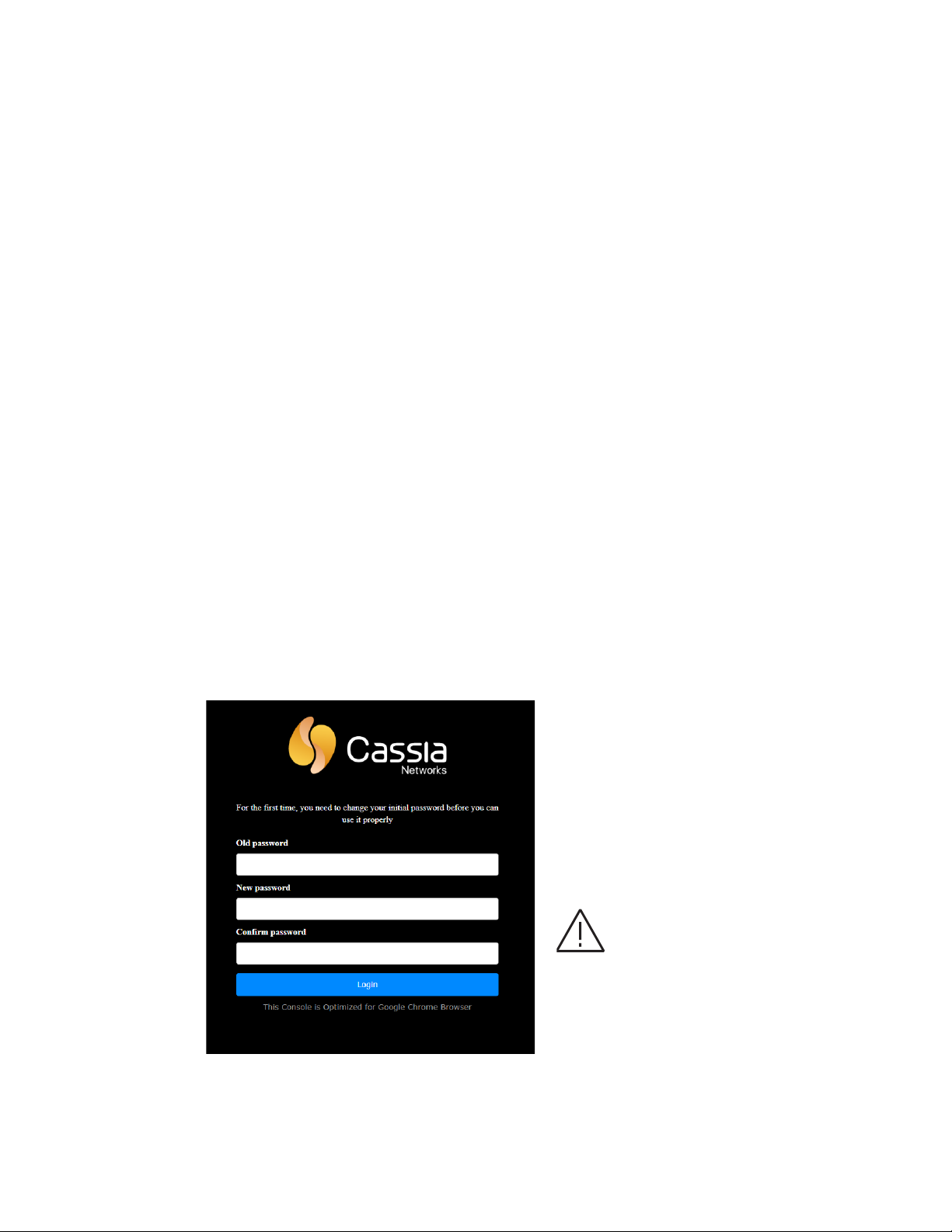

Cassia login page

—

2 – Installation

2.5 Gateway configuration

When the gateway is powered on, the blue LED at the bottom of the gateway turns ON. After bootup, the

gateway will turn on the configuration WIFI hotspot. The bootup takes about 30-60 seconds.

Configuration WIFI hotspot has SSID “cassia-XXXXXX”, where XXXXXX is the last 6 digits of the gateway’s

MAC address. MAC address can be found on the bottom of the gateway. Password for this WIFI hotspot is

the same as the SSID.

Connect to this WIFI hotspot with the device used for configuration (computer, phone, or tablet) and open

the web browser. Type 192.168.40.1 to the web browser’s address field and press enter. Cassia

configuration page will open. During the first login the default password needs to be changed. Default

credentials are:

• Login: admin

• Password: admin

It is recommended to replace the default

credentials.

Once logged in, the Status Page is shown. This

page shows current operation mode and

connection status of the gateway.AC Online Time

shows how long the gateway has been connected

to the AC (Access Controller) server. If no time is

shown, it means that the gateway does not have a

connection to the AC server.

Access Controller server connection is needed for

the Smart Sensor data transfer.

8ABB ABILITY SMART SENSOR BLUETOOTH ATT-VZN SIM CARD READY GATEWAY INSTALLATION MANUAL

—

2 – Installation

Status page

The Basic Page is where the configuration is done. Following values are needed:

• AC Server Address: gw.smartsensor.abb.com

• Remote Assistance: ON

• Router Mode: AC Managed Router

• AC Router Comm. Ports: 5246, 5247

Connection Priority is where a priority connection method is selected.

INSTALLATION 9

—

2 – Installation

Basic page

Smart sensors Gateway PoE injector

USB modem

Mains socket

AT&T mobile network configuration

10 ABB ABILITY SMART SENSOR BLUETOOTH ATT-VZN SIM CARD READY GATEWAY INSTALLATION MANUAL

—

2 – Installation

2.6 AT&T mobile network configuration

The following items are required for AT&T mobile

network configuration:

• PROCET PoE injector as the power supply

(included in sales package)

• MultiTech MTCM-LNA3-B03 USB modem

(included in sales package)

• AT&T SIM card (purchased)

From the Gateway Basic Page:

• Select as Connection Priority: 3G/4G

• Select for USB Dongle Type: MultiTech MTCM-

LNA3-B03 for AT&T

• Type or confirm APN: 10569.MCS

• Type or confirm Service: umts

• Type or confirm Dial Number: *99***1#

• Type or confirm Device: /dev/ttyACM0

• Select Peer DNS: 1

Press Apply at the bottom of the screen.

From the Gateway Other page:

• Scroll down to the Actions section.

• Click on the Reboot button.

• Wait for the reboot to finish.

NOTE! With a USB dongle the gateway needs to be

in place where there is a good network coverage.
