TEC HN ICA L DOCUM ENT

Smart Sensor Gateway

Installation Manual

SMAR T SENSOR GATEWAY

2019-02-08 2/16

Table of Contents

1GENERAL 3

2INSTALLATION 4

2.1 Prerequisites for Installation 4

2.2 Recommended Location 5

2.3 Gateway Configuration 5

2.4 PoE Connection 8

2.5 LAN/Ethernet Cable Connection 9

2.6 WIFI Connection 10

2.7 USB Mobile Dongle Connection 11

2.8 Firewall Configuration 12

3SCANNING BLUETOOTH DEVICES 13

4TROUBLESHOOTING 15

SMAR T SENSOR GATEWAY

2019-02-08 3/16

1General

Smart Sensor Gateway is used to upload the Smart Sensor data automatically to the

Smart Sensor Portal. Gateway needs to be configured for internet access before it can

start reading the Smart Sensors. Following internet connections are supported:

-PoE (Power over Ethernet) network

-LAN/Ethernet network together with PoE injector

-WIFI network

-Mobile network with specific USB dongle

-USB port at the bottom of the Gateway can be used as a power supply for devices

like a USB WIFI modem

Sales package includes:

-X1000 Bluetooth router, wall and pole mounting kits and a quick guide

1. X1000 router 2. Pole mounting straps (2 pcs) 3. Anchors with screws (4 pcs)

4. Mounting bracket 5. Quick start guide

Figure 1 Content of the Sales Package

SMAR T SENSOR GATEWAY

2019-02-08 4/16

2Installation

2.1 Prerequisites for Installation

Internet connection:

-Gateway cannot operate in networks with VPN (Virtual Private Network)

-In case there is a firewall used, TCP and UDP ports 5246 and 5247 need to be

opened for communication with abb.cassia.pro (13.126.172.231)

-Mobile network needs to have adequate signal strength. In most demanding

locations an extension USB cable or external antenna might be needed for USB

modem/dongle.

Power supply:

-In case PoE network is not available, a PoE injector (power supply) is needed

Ethernet cable:

-1 ethernet cable is needed when PoE, WIFI or mobile network is used

-2 ethernet cables when LAN/ethernet network is used

Computer:

-Computer with WIFI adapter is needed for Gateway configuration. Tablet

computer or mobile phone can also be used.

2G/3G USB dongle

-In case a mobile network is used, a specific USB dongle is needed. Gateway has

built in drivers for Huawei MS2131i-8 and the Gateway currently supports the use

of this specific dongle.

-SIM card with sufficient data plan

-Gateway also supports the use of a USB powered WIFI modems such as e.g.

Huawei E8372. WIFI connection is used between the Gateway and the modem.

Mounting:

-Flat head screwdriver for pole mounting

-Phillips head screwdriver and a drill (if needed) for wall mounting

-Mounting is not mandatory, but it is recommended to secure the Gateway

somehow to its intended place

SMAR T SENSOR GATEWAY

2019-02-08 5/16

2.2 Recommended Location

Height:

-Recommended height for the Gateway is 3-30 meters from ground level. Lower

levels are also acceptable but they might have weaker Bluetooth signal levels due

to obstacles.

Orientation:

-Gateway has the best reception to the direction where the Cassia logo is shown

on its side. If the Gateway has troubles connecting to a specific Smart Sensor, it is

recommended to rotate the Gateway to point directly to that direction.

2.3 Gateway Configuration

When the Gateway is powered on, the blue LED at the bottom of the Gateway turns ON.

After bootup the Gateway will turn on the configuration WIFI hotspot. The bootup takes

about 30-60 seconds.

Configuration WIFI hotspot has SSID “cassia-XXXXXX”, where XXXXXX is the last 6 digits

of the Gateway’s MAC address. MAC address can be found from the bottom of the

Gateway. Password for this WIFI hotspot is the same as the SSID.

Connect to this WIFI hotspot with the device used for configuration (computer, phone or

tablet) and open the web browser. Type 192.168.40.1 to the web browser’s address field

and press enter. Cassia configuration page will open. During the first login the default

password needs to be changed. Default credentials are:

-Login: admin

-Password: admin

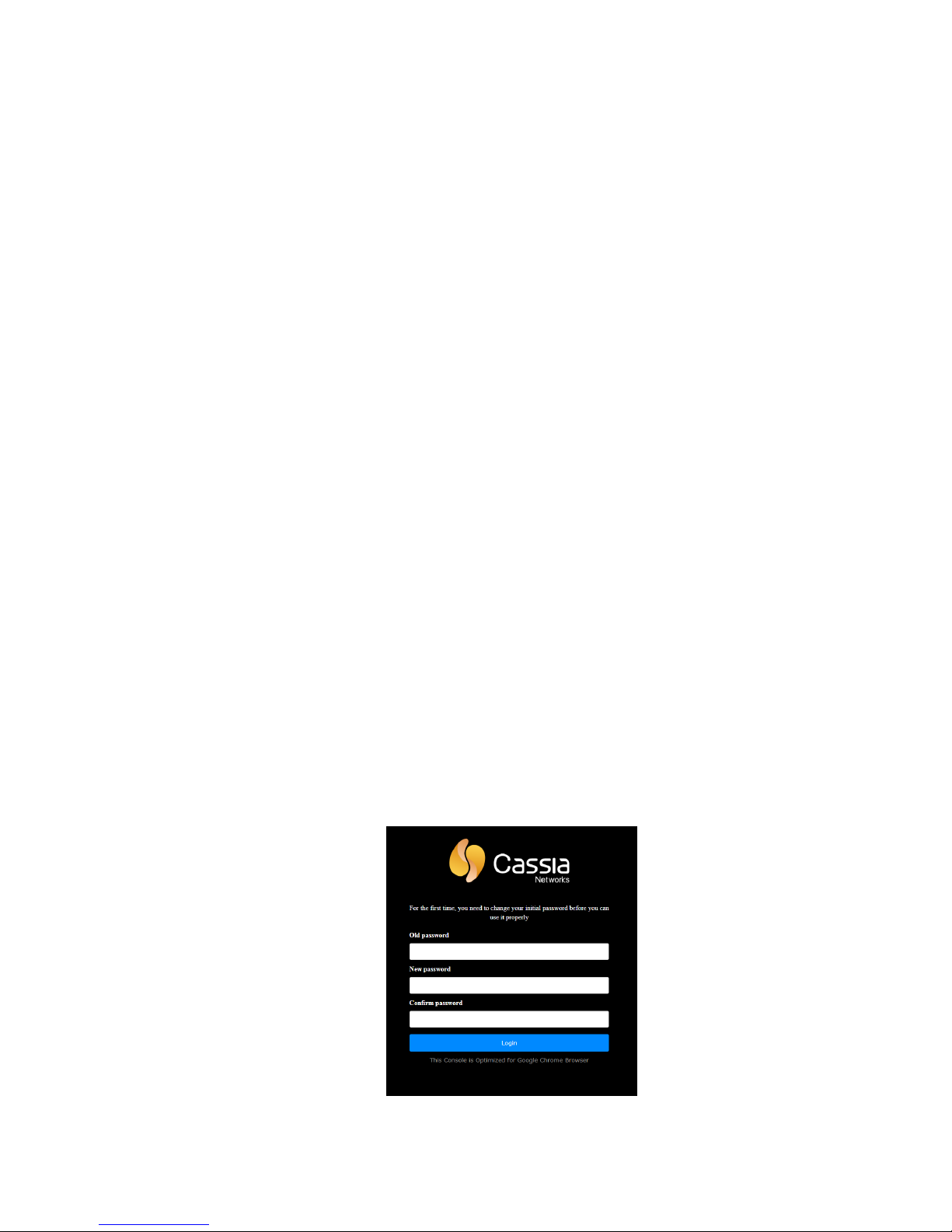

Figure 2 Cassia Login Page

SMAR T SENSOR GATEWAY

2019-02-08 6/16

Once logged in, the Status Page is shown. This page shows current operation mode and

connection status of the Gateway. AC Online Time shows how long the Gateway has been

connected to the AC (Access Controller) server. If no time is shown it means that the

Gateway does not have a connection to the AC server. AC server connection is needed for

the Smart Sensor data transfer.

Figure 3 Status Page

Basic Page is where the configuration is done. Following values are common for all

network configurations (PoE, LAN, WIFI, Mobile):

-Router Mode: Gateway is getting commands and sending data via access

controller (AC). This needs to be selected as “AC Managed Router” (default).

-Tx Power: In some countries Tx power needs to be adjustable. Default value is 20.

-AC Address: Type here the access controller address abb.cassia.pro

-AC-Router Comm. Ports: Ports 5246, 5247 are used (default)

-Remote Assistance: ON (default)

SMAR T SENSOR GATEWAY

2019-02-08 7/16

Connection Priority is where a priority connection method is selected in case there are

several in use. Select the priority according to connection in use:

-Wired for PoE and LAN connections

-Wireless for WIFI connection

-3G/4G for mobile USB dongle connection

Figure 4 Basic Page

SMAR T SENSOR GATEWAY

2019-02-08 8/16

2.4 PoE Connection

If a PoE (Power Over Ethernet) network is available, the Gateway can be configured to use

it without any additional power supply.

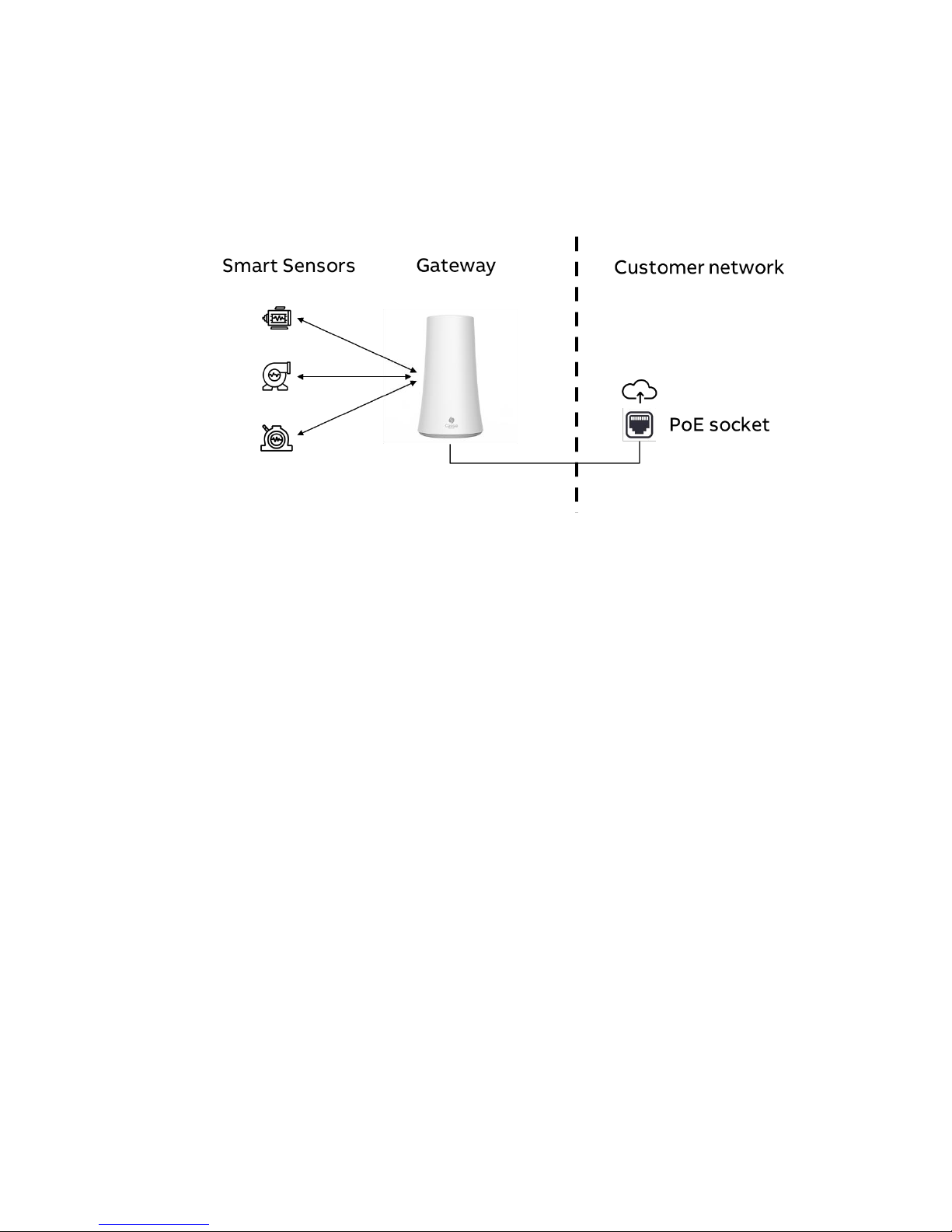

Figure 5 PoE Network Configuration

From the Gateway Basic Page select:

-Connection Priority: Wired

-IP Allocation: DHCP or Static (in case the IP allocation is given)

Press Apply at the bottom of the screen.

SMAR T SENSOR GATEWAY

2019-02-08 9/16

2.5 LAN/Ethernet Cable Connection

If a LAN/Ethernet network is available, the Gateway can be configured to use it. Additional

PoE injector (power supply) is needed.

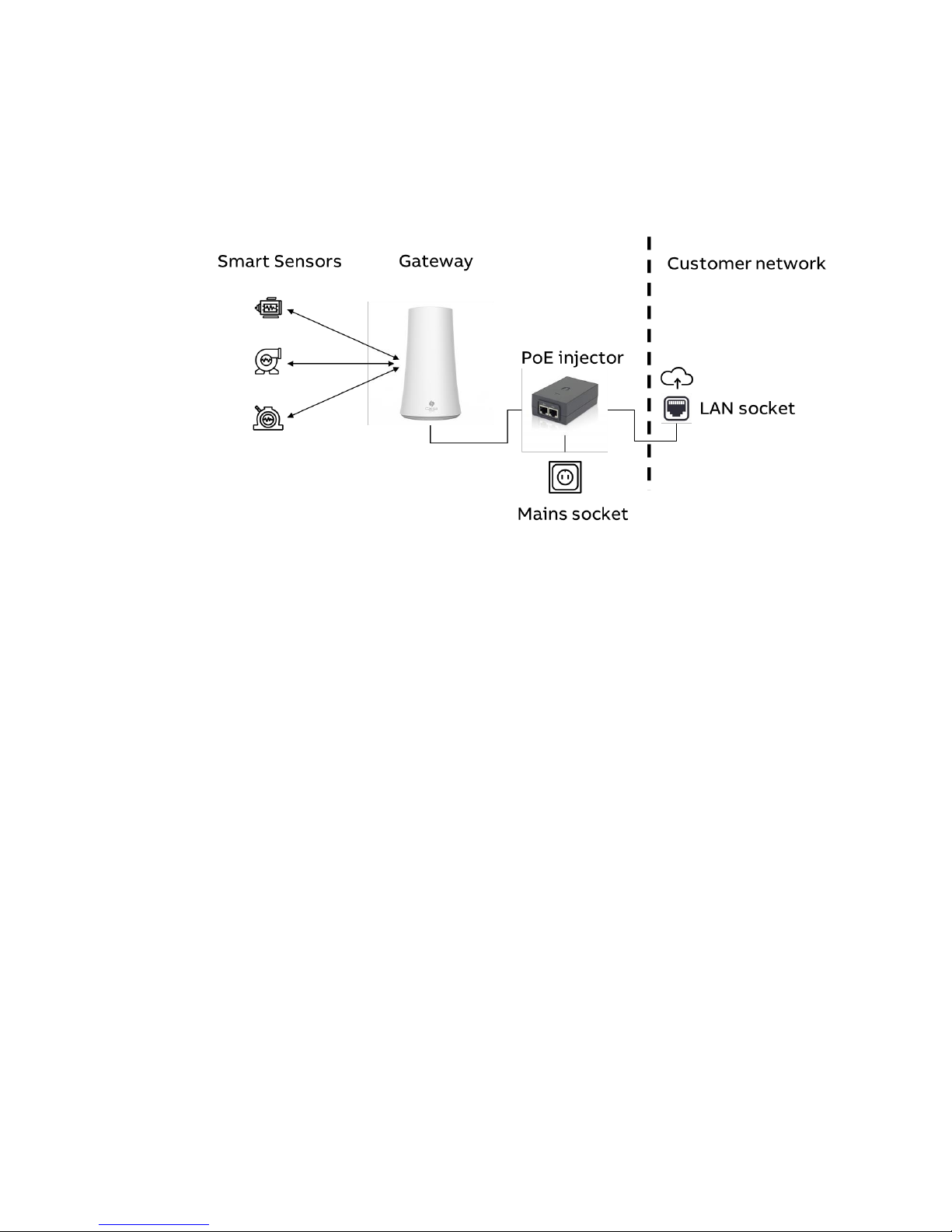

Figure 6 LAN Network Configuration

From the Gateway Basic Page select:

-Connection Priority: Wired

-IP Allocation: DHCP or Static (in case the IP allocation is given)

Press Apply at the bottom of the screen.

SMAR T SENSOR GATEWAY

2019-02-08 10/16

2.6 WIFI Connection

Gateway can be configured to use an existing WIFI network. Additional PoE injector

(power supply) is needed.

Figure 7 WIFI Network Configuration

From the Gateway Basic Page select:

-Connection Priority: Wireless

-Enter the SSID (name) of the WIFI network

-Enter the WIFI network password

-Change the Wireless operation mode from Hotspot to Client

-IP Allocation: DHCP or Static (in case the IP allocation is given)

Press Apply at the bottom of the screen.

NOTE! Once the Apply button is pressed the Gateway WIFI adapter stops sharing the WIFI

hotspot and changes the connection to configured WIFI network. In case the DHCP is

used, the Gateway has now a new IP address. This IP address is needed to reconnect to

the Gateway e.g. to check the Status Page or scan the devices within the Gateway’s range.

Local IT department can find out the Gateway’s IP address by accessing the WIFI router

device list or by performing the network scan for IP addresses. In case a static IP is used,

the address is known.

Connect your computer, tablet or mobile phone to the same WIFI network as the Gateway

is connected. Open a web browser and type the new IP address to the address field and

press enter. Access to Gateway configuration pages is established again.

NOTE! If there was an error in SSID, password or IP address configurations, you cannot

access the Gateway anymore. In this case the Gateway isn’t shown in router device list or

in network scans. Press the reset button at the bottom of the Gateway for 10 seconds to

reset the Gateway to factory default values.
