Abocom UFT128S Bedienungsanleitung

USB LAN ISDN

Quick Installation Guide

M73-APO08-360

Table of Contents

PARTS NAMES AND FUNCTIONS.................1

HARDWARE INSTALLATION........................2

INSTALLING THE USB LAN ISDN.....................2

Connecting the USB Cabling ........................2

Connecting to an ISDN Network...................2

Connecting to the LAN Network....................2

SOFTWARE INSTALLATION .........................3

WINDOWS 98SE INSTALLATION.........................3

WINDOWS 2000 INSTALLATION .........................9

WINDOWS ME INSTALLATION .........................12

WINDOWS XP INSTALLATION ..........................16

Parts Names and Functions

1. USB Cable: connects the USB LAN ISDN

to the USB host port of your computer.

2. USB Port: connects to the USB cable’s

square end.

3. LAN Port: connects to a LAN Cable.

4. ISDN Port: connects to an ISDN Cable.

5. Link Indicator: glows green when

10/100M Fast Ethernet is linked.

6. B1 Indicator: glows green when the

transmitting / receiving data in 64 Kbps

speed mode.

7. B2 Indicator: glows green when the

transmitting / receiving data in 128 Kbps

speed mode.

- 1 -

HARDWARE INSTALLATION

Installing the USB LAN ISDN

Connecting the USB Cabling

1. Insert the USB cable’s square end into the

adapter’s USB port.

2. Insert the rectangular end of the USB cable

into the USB host port on your PC.

Connecting to an ISDN Network

1. Connect one end of an ISDN cable into the

adapter’s ISDN port.

2. Connect the other end of the ISDN cable

into S/T port on NT1 ISDN device.

Connecting to the LAN Network

1. Connect one end of the LAN cable into the

adapter's LAN port.

2. Connect the other end of the LAN cable to

a Hub.

- 2 -

SOFTWARE INSTALLATION

Windows 98SE Installation

1. Once the device is connected, windows

98SE will automatically detect the device

and appear the following figure. Click Next

to continue.

2. Select Search for the best driver for your

device (Recommended) and click Next.

3. Insert the device driver into your CD-ROM.

Select Specify a location, direct Windows

98SE to the location where the driver stored

(e.g. E:\USB) and click Next. Windows

98SE will search for the suitable driver for

the software installation need.

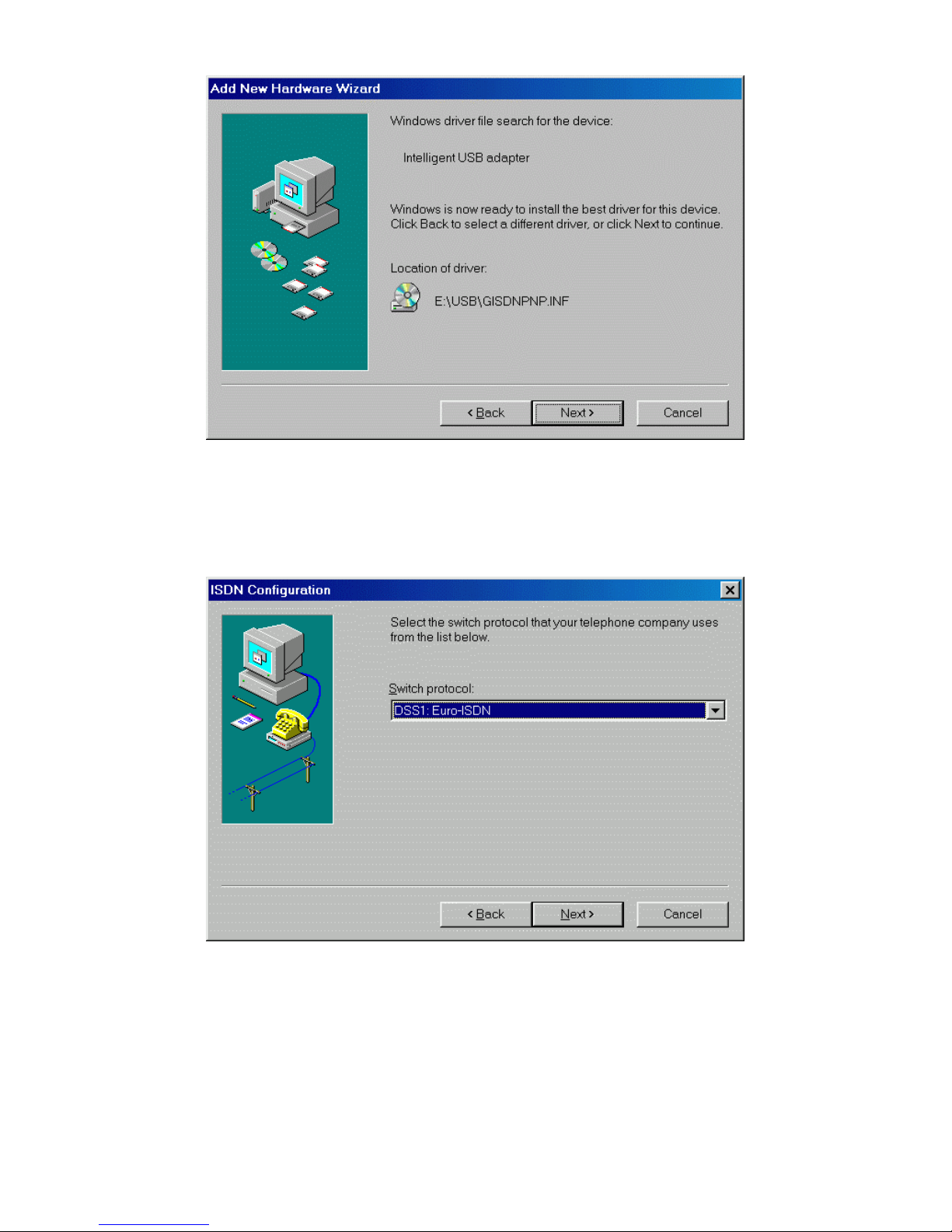

4. Click Next. Windows 98SE will start

copying necessary files onto your system.

- 3 -

5. In ISDN Configuration, click Next.

6. Select the switch protocol that your

telephone company uses and click Next.

7. Enter the telephone numbers that your ISP

provided and click Next.

- 4 -

8. Click Finish.

9. Click Finish to continue the software

installation.

10. Windows 98SE will automatically detect the

device and appear the following figure.

Follow the on-screen instructions.

- 5 -

11. Select Search for the best driver for your

device (recommended) and click Next.

12. Select Specify a location, direct Windows

98SE to the location where the driver stored

(e.g. E:\USB) and click Next. Windows

98SE will search for the suitable driver for

the software installation need.

13. Click Next. Windows 98SE will start

copying necessary files onto your system.

- 6 -

14. The installation program will proceed

automatically. Click Finish.

15. When Windows prompts you to restart your

computer, click Ye s .

16. To verify if your network adapter exists in

your computer and well enabled, you can

perform the following steps.

17. Go to Start ÆSettings ÆControl Panel

ÆSystems ÆDevice Manager.

18. Click Intelligent ISDN Drivers, Network

adapters and Universal Serial Bus

controllers to expand. If Intelligent CAPI

2.0 driver, Intelligent USB adapter,

Intelligent ISDN WAN miniport,

Intelligent USB 10/100 Network Adapter

and Generic USB Hub are found, that

means your network adapter exists and

enabled. If not, consult your distributor for

technical support.

- 7 -

- 8 -
