NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Bedienungsanleitung

202-10339-02

January 2009

NETGEAR, Inc.

350 East Plumeria Drive

San Jose, CA 95134 USA

XAV101 Powerline AV

Ethernet Adapter User

Guide

v2.0, January 2009

Technical Support

See the support information card that shipped with your product. By registering your product at http://www.netgear.com/

NETGEAR, INC. Support Information

Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card.

E-mail: support@netgear.com

website: http://www.netgear.com/support

Trademarks

NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of

NETGEAR. Inc. in the United States and/or other countries. Microsoft, Windows, and Windows NT are registered

trademarks and Windows Vista is a trademark of Microsoft Corporation. Other brand and product names are registered

trademarks or trademarks of their respective holders. Information is subject to change without notice.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to

make changes to the products described in this document without notice. NETGEAR does not assume any liability that

may occur due to the use or application of the product(s) or circuit layout(s) described herein.

Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications

Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic,

building materials and construction, and network overhead, lower actual data throughput rate.

Safety Instructions

Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential

damage.

To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment, observe the following

precautions.

• Observe and follow service markings.

- Do not service any product except as explained in your system documentation.

- Opening or removing covers that are marked with the triangular symbol with a lightning bolt may expose you to

electrical shock. Only a trained service technician should service components inside these compartments.

• If any of the following conditions occur, unplug the product from the electrical outlet and replace the part or contact

your trained service provider:

- The power cable, extension cable, or plug is damaged.

- An object has fallen into the product.

- The product has been exposed to water.

- The product has been dropped or damaged.

- The product does not operate correctly when you follow the operating instructions.

• Keep your system away from radiators and heat sources. Also, do not block cooling vents.

v2.0, January 2009

iii

• Do not spill food or liquids on your system components, and never operate the product in a wet environment. If the

system gets wet, see the appropriate section in your troubleshooting guide or contact your trained service provider.

• Do not push any objects into the openings of your system. Doing so can cause fire or electric shock by shorting out

interior components.

• Use the product only with approved equipment.

• Allow the product to cool before removing covers or touching internal components.

• Operate the product only from the type of external power source indicated on the electrical ratings label. If you are

not sure of the type of power source required, consult your service provider or local power company.

• To help avoid damaging your system, be sure that the voltage selection switch (if provided) on the power supply is

set to match the power available at your location:

- 115 volts (V), 60 hertz (Hz) in most of North and South America and some Far Eastern countries such as South

Korea and Taiwan

- 100 V, 50 Hz in eastern Japan and 100 V, 60 Hz in western Japan

- 230 V, 50 Hz in most of Europe, the Middle East, and the Far East

• Also, be sure that attached devices are electrically rated to operate with the power available in your location.

• Use only approved power cables. If you have not been provided with a power cable for your system or for any AC

powered option intended for your system, purchase a power cable that is approved for use in your country. The

power cable must be rated for the product and for the voltage and current marked on the product’s electrical ratings

label. The voltage and current rating of the cable should be greater than the ratings marked on the product.

• To help prevent electric shock, plug the system and peripheral power cables into properly grounded electrical

outlets.

• The peripheral power cables are equipped with three-prong plugs to help ensure proper grounding. Do not use

adapter plugs or remove the grounding prong from a cable. If you must use an extension cable, use a three-wire cable

with properly grounded plugs.

• Observe extension cable and power strip ratings. Make sure that the total ampere rating of all products plugged into

the extension cable or power strip does not exceed 80 percent of the ampere ratings limit for the extension cable or

power strip.

• To help protect your system from sudden, transient increases and decreases in electrical power, use a surge

suppressor, line conditioner, or uninterruptible power supply (UPS).

• Position system cables and power cables carefully; route cables so that they cannot be stepped on or tripped over. Be

sure that nothing rests on any cables.

• Do not modify power cables or plugs. Consult a licensed electrician or your power company for site modifications.

• Always follow your local and national wiring rules.

• Move products with care; ensure that all casters and stabilizers are firmly connected to the system. Avoid sudden

stops and uneven surfaces.

v2.0, January 2009

Safety and Regulatory Notices

FCC Statement

The XAV101 has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the

FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or devices

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

Canadian Department of Communications Industry Canada (IC) Notice

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à

la norme NMB-003 du Canada.

Europe – EU Declaration of Conformity

A printed copy of the EU Declaration of Conformity certificate for this product is provided in the XAV101 product

package.

Product and Publication Details

Model Number: XAV101

Publication Date: January 2009

Product Family: Powerline AV Ethernet Adapter

Product Name: XAV101 Powerline AV Ethernet Adapter

Home or Business Product: Home

Language: English

Publication Part Number: 202-10339-02

v2.0, January 2009

Contents

XAV101 Powerline AV Ethernet Adapter User Guide

About This Manual

Conventions, Formats, and Scope .....................................................................................i

Chapter 1

Installation and Basic Configuration

Package Contents ..........................................................................................................1-1

How the Powerline AV Ethernet Adapter Fits in Your Network .......................................1-2

Powerline AV Ethernet Adapter ......................................................................................1-3

The Label on the Rear Panel of the XAV101 ..................................................................1-4

Preparing to Install Your Powerline AV Ethernet Adapter ...............................................1-4

Connecting a Powerline AV Ethernet Adapter to the Router ..........................................1-5

Understanding Powerline Network Security ...................................................................1-6

Using the Security Button to Change the Default Encryption Key in Your Network .1-7

Chapter 2

Using the XAV101 Configuration Utility

Installing the XAV101 Configuration Utility (Recommended) ..........................................2-1

Main Tab .........................................................................................................................2-3

Using the Firmware Upgrade Tool ............................................................................2-4

Resetting to Factory Defaults ...................................................................................2-6

Changing the Network Encryption Key ...........................................................................2-8

Adding a Device to a Powerline Network .......................................................................2-9

Adding a Device from a Locally Connected Computer ..........................................2-10

Adding a Device from a Remotely Connected Computer ......................................2-10

Prioritizing Traffic on the Powerline Network ................................................................2-12

Prioritizing by General Application Type ................................................................2-12

Diagnostics Tab ............................................................................................................2-14

v2.0, January 2009

Chapter 3

Troubleshooting

Product Registration, Support, and Documentation .......................................................3-1

Basic Functioning ...........................................................................................................3-1

Troubleshooting Tips ......................................................................................................3-2

Problems After Changing Network Encryption Key ........................................................3-2

Changing the Network Encryption Key for 1 Unit at a Time .....................................3-3

Appendix A

Technical Specifications

v2.0, January 2009

About This Manual

The NETGEAR®XAV101 Powerline AV Ethernet Adapter User Guide describes how to install,

configure and troubleshoot the XAV101 Powerline AV Ethernet Adapter. The information in this

manual is intended for readers with intermediate computer and Internet skills.

Conventions, Formats, and Scope

The conventions, formats, and scope of this manual are described in the following paragraphs:

•Typographical Conventions.This manual uses the following typographical conventions:

•Formats.This manual uses the following formats to highlight special messages:

Italic Emphasis, books, CDs

Bold User input, IP addresses, GUI screen text

italic URL links

Note: This format is used to highlight information of importance or special interest.

Tip: This format is used to highlight a procedure that will save time or resources.

Warning: Ignoring this type of note may result in a malfunction or damage to the

equipment.

XAV101 Powerline AV Ethernet Adapter User Guide

v2.0, January 2009

•Scope.This manual is written for the Powerline AV Ethernet Adapter according to these

specifications:

Product Version XAV101 Powerline AV Ethernet Adapter

Manual Publication Date January 2009

Note: Product updates are available on the NETGEAR, Inc. website at

http://www.netgear.com/support.

1-1

v2.0, January 2009

Chapter 1

Installation and Basic Configuration

This chapter describes the XAV101 Powerline AV Ethernet Adapter and explains how to install it

and to use the Security button to customize the encryption. For information about using the

XAV101 configuration utility to configure Powerline security or to prioritize Powerline network

traffic with Quality of Service (QoS) features, see Chapter 2, “Using the XAV101 Configuration

Utility.

Package Contents

The product package should contain the following items:

• NETGEAR XAV101 Powerline AV Ethernet Adapter

• Installation Guide

• An Ethernet cable

•Resource CD, including:

– The XAV101 Configuration Utility

– This manual

• Warranty and Support information card

If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the

carton, including the original packing materials, in case you need to return the Powerline AV

Ethernet Adapter for repair.

XAV101 Powerline AV Ethernet Adapter User Guide

1-2 Installation and Basic Configuration

v2.0, January 2009

How the Powerline AV Ethernet Adapter Fits in Your Network

You can use Powerline AV Ethernet Adapters to extend your Ethernet network anywhere in your

house using your existing electrical power line. The following figure shows an example of a

Powerline network with two Powerline devices. The Powerline network connects to an Ethernet

network:

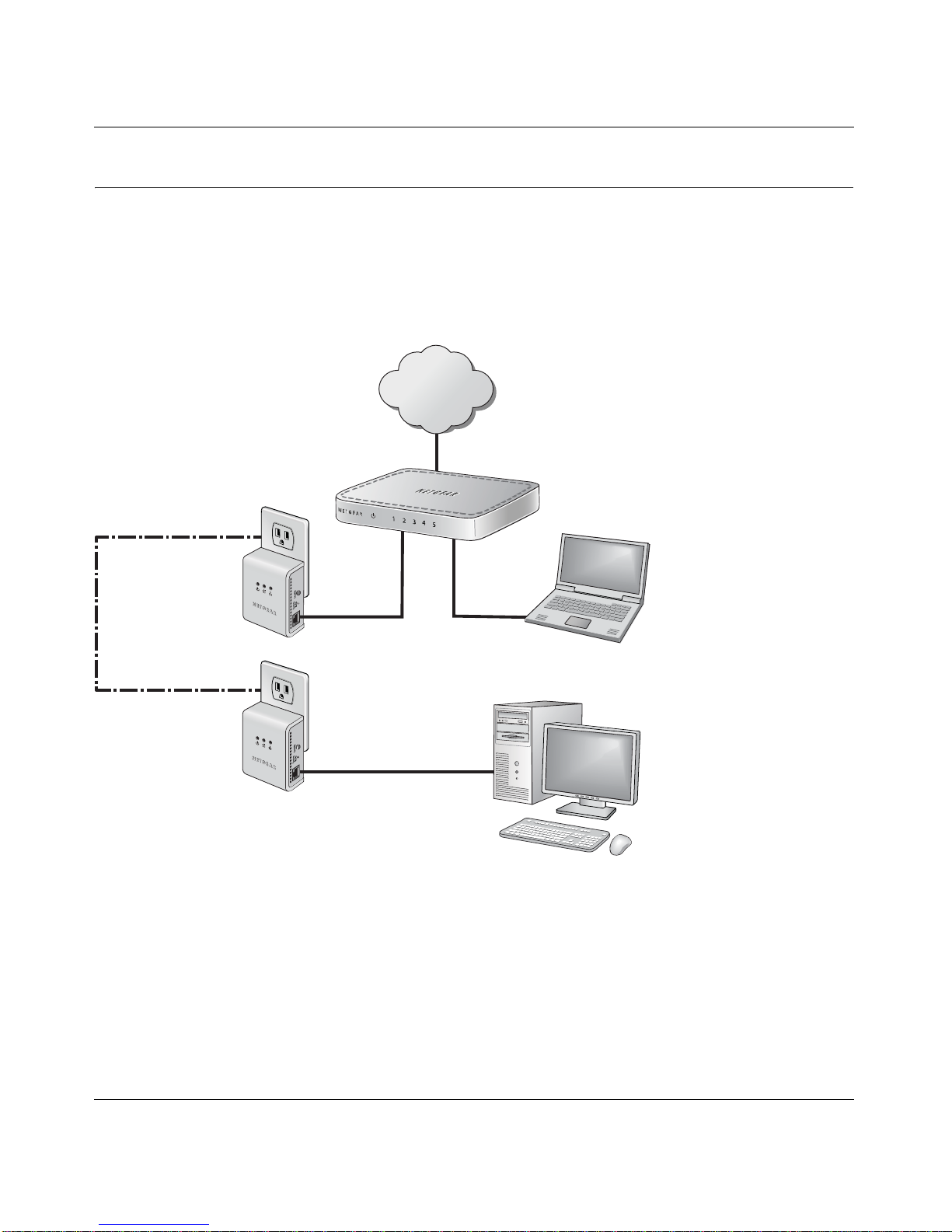

Figure 1-1

Internet

Router

Ethernet network

XAV101

Powerline network

(always encrypted) Notebook PC

Desktop PC

Andere Handbücher für XAV101v1 - Powerline AV Ethernet Adapter

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere NETGEAR Adapter Handbücher

NETGEAR

NETGEAR WG111v1 - 54 Mbps Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR Powerline 500 Bedienungsanleitung

NETGEAR

NETGEAR Wg111v2 - Usb Wifi Card Includes Driver Cd Handbuch

NETGEAR

NETGEAR WG311v3 - 54 Mbps Wireless PCI Adapter Bedienungsanleitung

NETGEAR

NETGEAR XAV1004 - Powerline AV Adapter Bedienungsanleitung

NETGEAR

NETGEAR XAV2602 Bedienungsanleitung

NETGEAR

NETGEAR XAV101 - Powerline AV EN Adapter Bridge Bedienungsanleitung

NETGEAR

NETGEAR PowerLINE 1000 Series Bedienungsanleitung

NETGEAR

NETGEAR XAV2001 - Powerline AV Ethernet Adapter Bedienungsanleitung

NETGEAR

NETGEAR WG121 - 54 Mbps Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR XAV5601 Bedienungsanleitung

NETGEAR

NETGEAR Powerline 1200 Bedienungsanleitung

NETGEAR

NETGEAR WNA1000M Bedienungsanleitung

NETGEAR

NETGEAR WNA1100 - Wireless-N 150 USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR PowerLINE WiFi 1000 Bedienungsanleitung

NETGEAR

NETGEAR XAV5004 - POWERLINE AV 500 ADAPTER Bedienungsanleitung

NETGEAR

NETGEAR GA511 - Gigabit Ethernet PC Card Bedienungsanleitung

NETGEAR

NETGEAR WG111U - Double 108 Mbps Wireless USB 2.0... Bedienungsanleitung

NETGEAR

NETGEAR PA101 Bedienungsanleitung

NETGEAR

NETGEAR AX741 - ProSafe Expansion Module Bedienungsanleitung

NETGEAR

NETGEAR WG111T - 108 Mbps Wireless USB 2.0 Adapter Bedienungsanleitung

NETGEAR

NETGEAR XAV1301v1/XAVB1301v1 Bedienungsanleitung

NETGEAR

NETGEAR RangeMax WNDA3100 Bedienungsanleitung

NETGEAR

NETGEAR 85 Mbps Wall-Plugged Ethernet Adapter XE103 Bedienungsanleitung

Beliebte Adapter Handbücher anderer Marken

PCB Piezotronics

PCB Piezotronics 090B274 Bedienungsanleitung

Auvidea

Auvidea J20 Produkthandbuch

Gossen MetraWatt

Gossen MetraWatt AT3-III E Bedienungsanleitung

Akribis

Akribis ITF-21-BISS-MIT Bedienungsanleitung

Tenda

Tenda W54U Bedienungsanleitung

ROHO

ROHO AGILITY Bedienungsanleitung

PROLiNK

PROLiNK WN2001 Bedienungsanleitung

Hawking

Hawking HUF2 Bedienungsanleitung

Airlink101

Airlink101 AWLC4030 Bedienungsanleitung

Philips

Philips SWA4554S/10 Bedienungsanleitung

JVC

JVC TS-C9D2B Gebrauchsanweisung

D-Link

D-Link DWA-121 Bedienungsanleitung

Philips

Philips SWA2037 Bedienungsanleitung

Basalte

Basalte 0610-20 Bedienungsanleitung

Yealink

Yealink EHS40 Bedienungsanleitung

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Bedienungsanleitung

RCA

RCA AH57R Bedienungsanleitung

Koolatron

Koolatron AC16 Bedienungsanleitung
