Abocom USB ADSL Modem UAM700 Bedienungsanleitung

Doc. No.: 022103-01

REGULATORY STATEMENTS

Part15, Class B

This device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions:

1. This device may not cause harmful interface, and

2. This device must accept any interface received, including

interface that may cause undesired operation. This

equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy, and if not installed and

used in accordance with the instructions, may cause

harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning off and on, the user is encouraged to

try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

*Changes or modifications not expressly approved by party

responsible for compliance could void the user the user

authority to operate the equipment.

DECLARATION OF CONFORMITY

This equipment conforms to the Directive 1999/5/EC (R&TTE

Directive) and is qualified for bearing the CE Marking.

Low Voltage Directive 72/23/EEC

Standard: EN60950

Electromagnetic Compatibility Directive89/336/EEC

Standard: EN55022: Class B

EN61000-3-2

EN61000-3-3

EN 55024

Table of Contents

HARDWARE INSTALLATION........................1

Precaution......................................................1

SOFTWARE INSTALLATION.........................2

Windows 98/98SE.......................................2

Windows ME...............................................5

Windows 2000.............................................7

Windows XP .............................................10

- 1 -

HARDWARE INSTALLATION

Before the installation, make sure the USB port exists in

your computer and is enabled. Go to My Computer

Control Panel

System. Open the Device Manager tab,

check if the Universal Serial Bus controller device is

found.

1. You can connect this modem without powering

down your PC.

2. Connect the USB connector on the modem to the

USB port of your PC.

3. Connect the phone line to the phone jack on your

modem.

4. Windows will detect the new hardware

automatically. You are ready to start software

installation. (Please go to below sections for more

details).

- 2 -

SOFTWARE INSTALLATION

As you perform the installation, have your Windows disk

at hand. You may need this disk to refresh or replace

some Windows software.

Also, make sure you have the existing Telephone

Network Service and an ISP (Internet Service Provider)

offered you ADSL service.

After the device has been connected to your computer,

Windows will detect the new hardware automatically.

1. Click Next.

2. Select the Recommended option, and then click

Next.

- 3 -

3. Insert the supplied CD into the CD-ROM drive.

Click Specify a location then click Browse to

provide the appropriate path (e.g. E:\Lan). Click

Next.

4. Click Next.

5. Click Finish.

- 4 -

- 5 -

1. Select Automatic search for a better driver

(Recommended), and then click Next.

2. Insert the supplied CD into the CD-ROM drive.

3. Click Finish.

- 6 -

- 7 -

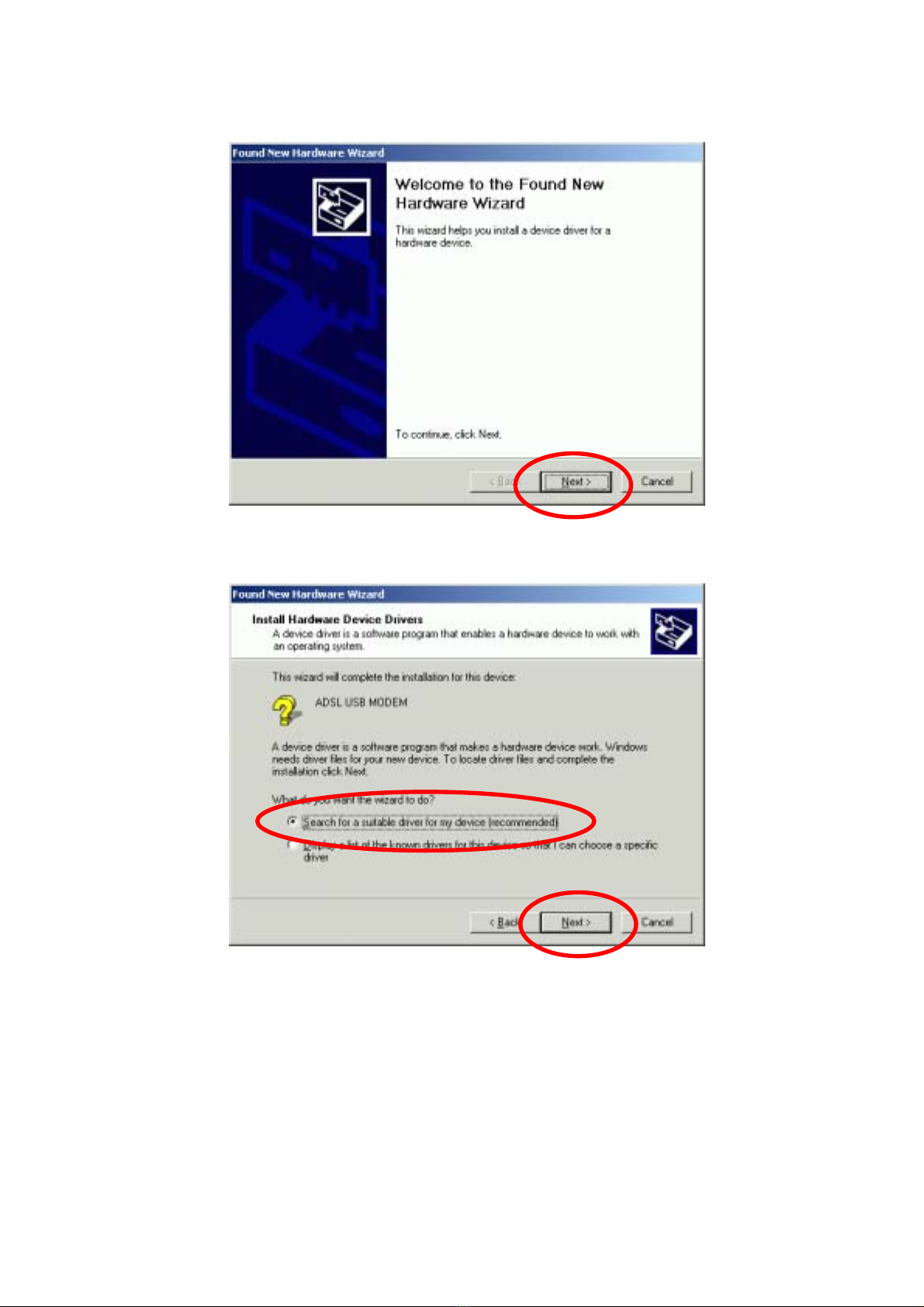

1. Click Next.

2. SelectSearch for a suitable driver for my device

(recommended), and then click Next.

3. Insert the supplied CD into the CD-ROM drive.

Select CD-ROM then click Next.
