ABSCO SHEDS 30372RK Installationsanleitung

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 1

Download the Absco

Sheds Assembly App

for instructional videos

MANU FA CT URED

IN A US TR ALIA

SNAPTiTE

Assemb ly

AU: 1800 029 701

N Z: 0800 466 444

[email protected]

www.abscosheds.com.au

When laying concrete slab, ensure there

is a rebated edge 25mm deep around the

perimeter. This will help water egress from

the base of the shed.

For construction in non-cyclonic areas

Wind rating: N2 as per AS4055-2012

ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: 23151GK 21-11-2017

CONCRETE SLAB

2360mm

1620mm

FRONT: 2.26m

SIDE: 1.52m

HEIGHT: 1.95m

We thank you for choosing an Australian made

shed. For further assistance please visit our detailed

instructional video library at

Http://www.abscosheds.com.au/watch-videos

At ABSCO Industries we are always looking to be

number ONE, so please let us know what you think

of our instructions. Feedback makes us better.

[email protected]

CONCRETE

REBATED EDGE

BOTTOM CHANNEL

CONCRETE SLAB

75mm WIDE REBATE

100mm

WHEN LAYING YOUR CONCRETE

SLAB, ENSURE THERE IS A

REBATED EDGE 25mm DEEP

AROUND THE PERIMETER

THIS WILL HELP WATER EGRESS

FROM THE BASE OF THE SHED

Absco Industries

Premier Shed Model: 23151GK

PAGE 01

CONCRETE SLAB

3100mm

3760mm

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 2

GENERAL INSTRUCTIONS

• Before commencing any assembly, read through these instructions in detail to gain a thorough

understanding of assembly methods and associated details.

• Unpack the carton and carefully identify and check off all the parts against the parts described

and illustrated on "COMPONENTS PACKING LIST" pages.

SITE PREPARATION

• The site for the shed must be level. An uneven surface may result in misalignment of parts.

• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately

illustrated on “FINAL CONSTRUCTION” page.

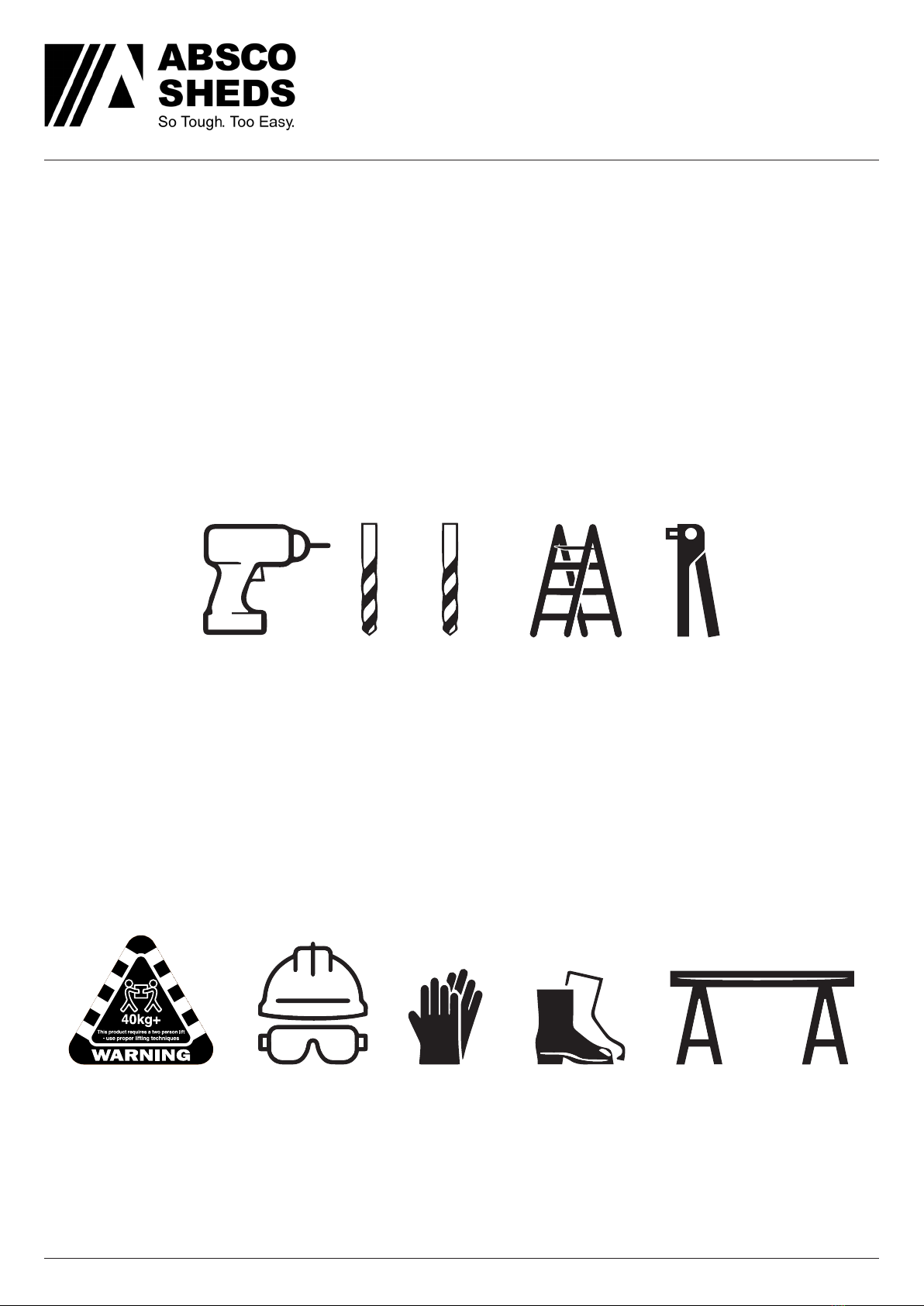

TOOLS REQUIRED

SAFETY NOTES

• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and

safety glasses if drilling holes. Sensible shoes are highly recommended.

• Do not erect your shed in windy conditions.

• Ensure that the shed is securely anchored to a solid foundation immediately after construction is

completed.

• It is highly recommended to erect the shed with two or more people.

RECOMMENDED

3mm drill bit

10mm drill bit

metal/masonry

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 3

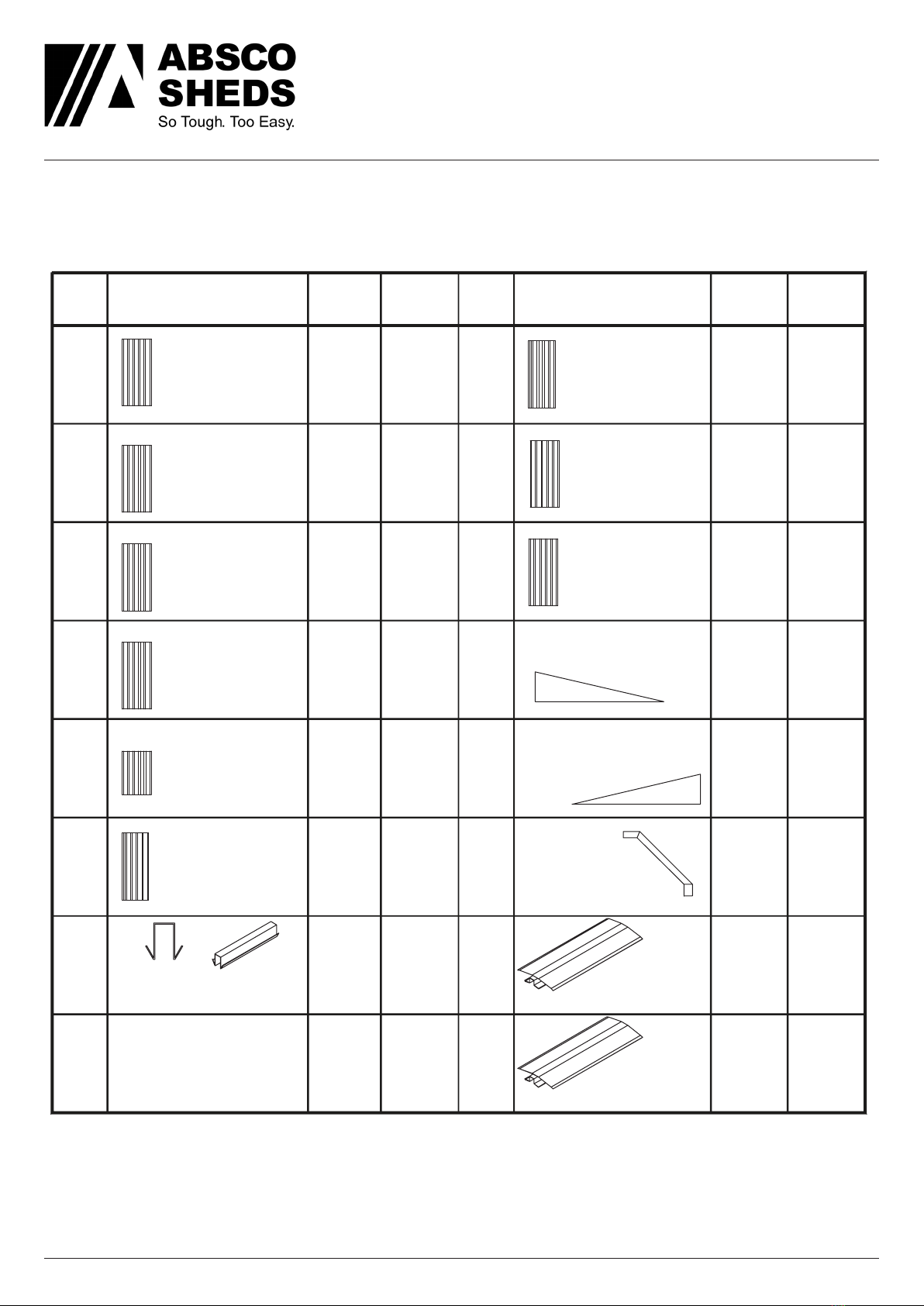

COMPONENT PACKING LIST

Check off all components.

COMPONENT

DESCRIPTION

PART

No. CHECK COMPONENT

DESCRIPTION

PART

No. CHECK

QTY QTY

STEEL SHEET

1785mm X 711mm 34A

STEEL SHEET

1785mm X 731mm 32A

STEEL SHEET

1725mm X 773mm A

STEEL SHEET

1725mm X 773mm B

GABLE L/H

L=1475mm 16L

GABLE R/H

L=1475mm 16R

13A

BRACE

L: 393mm

97DL

1RIDGE

BEAM

L = 1866.5mm

97DR

RIDGE

BEAM

ZARSP

1RIDGE BEAM JOINER

L: 450mm

L = 1866.5mm

1785mm X 773mm 30A

STEEL SHEET

1785mm X 773mm 31A

STEEL SHEET

1546mm X 773mm 44L

STEEL SHEET

1546mm X 773mm 44R

STEEL SHEET

1546mm X 773mm 45A

2 2

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 4

COMPONENT PACKING LIST

1 4

79A

CHANNEL

L = 1568mm

58A

CHANNEL WITH HINGES

L = 1725mm

58B

CHANNEL

L = 1725mm

58C

CHANNEL

L = 773mm

77AL

55CL

77BL

81BL

81LL

62BL

55CR

CHANNEL

L = 1496.5mm

CHANNEL

L = 1496.5mm

CHANNEL

L = 1496.5mm

CHANNEL

L = 1496.5mm

CHANNEL

L = 1866.5mm

CHANNEL

L = 1866.5mm

77BR

81BR

81LR

62BR

77AR

CHANNEL

L = 1496.5mm

CHANNEL

L = 1496.5mm

CHANNEL

L = 1496.5mm

CHANNEL

L = 1496.5mm

CHANNEL

L = 1866.5mm

CHANNEL

L = 1866.5mm

COMPONENT

DESCRIPTION

PART

No. CHECK COMPONENT

DESCRIPTION

PART

No. CHECK

QTY QTY

81KL

2 2

CHANNEL

L = 1829.5mm

81KR

CHANNEL

L = 1829.5mm

62AL

2 2

CHANNEL

L = 1829.5mm

62AR

CHANNEL

L = 1829.5mm

58C

58B

58A

79A

77AL

JOIN>>

55CL

JOIN>>

77BL

JOIN>>

81BL

JOIN>>

81LL

JOIN>>

62BL

JOIN>>

81KL

JOIN>>

62AL

JOIN>>

62AR

JOIN>>

81KR

JOIN>>

62BR

JOIN>>

81LR

JOIN>>

81BR

JOIN>>

77BR

JOIN>>

55CR

JOIN>>

77AR

JOIN>>

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 5

COMPONENT PACKING LIST

12A

DOOR

STRAP

L: 6.5"

14A

2CAP GABLE

L: 170mm 1ASSEMBLY

INSTRUCTIONS

COMPONENT

DESCRIPTION

PART

No. CHECK COMPONENT

DESCRIPTION

PART

No. CHECK

QTY QTY

INSTRUCTIONS & FITTINGS PACKET

289A

JAMB L= 1785mm

90A

JAMB L= 1568mm

91A

JAMB L= 1120mm

89C

JAMB L= 1725mm

87B

LIP TRIM L= 1546mm

CSJ

12 CHANNEL JOINER

L= 200mm

Part No. Here

87B

CSJ

DOOR

PADBOLT

HASP

SELF TAPPING SCREWS

PACKET CONTAINING 220

DOOR

PADBOLT

3/16 COUNTERSUNK

SCREWS & NUTS

3/16 ROUND HEAD

BOLTS & NYLOCK NUTS

83.2 x 8mm

BLIND POP RIVETS

PSTKDBL - DOUBLE DOOR FITTINGS PACK

PACK12P - SCREW PACK 12

PACK12P

SCREW PACK 12

PHILLIPS DRIVER BIT

3mm DRILL BIT DRILL FAST038

FAST007FAST006

10 16mm TEK

SCREWS FAST014

SELF TAPPING SCREWS

PACKET CONTAINING 100

PSTKDBL

DBL DOOR FITTINGS PACK

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 7

SNAPTiTE ASSEMBLY GUIDE

The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for

tools and fasteners.

To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.

Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.

Each perimeter channel must ﬁnish ﬂush with the edges of the sheets. Simply tap the channel along

the sheets until each end is neatly ﬂush. If you need to remove channels from the panels, slide it off

from the side.

Channel locks the shed panel into

position without the need for screws!

FASTENING SYMBOLS

Secure channel to sheeting by SNAPTiTE

fastening method.

Join components together with one

screw at this location only, as some

channels have extra holes that are not

required for this model of shed.

Do not join components together at

this location yet, as the screws may

obstruct further assembly of the other

components.

Join components together by pre-drill-

ing the holes ﬁrst. Use one component as

template to mark where the holes are and

drill with a 3mm drill bit.

3mm pop rivet

4mm nut and bolt set.

SNAP

T TE

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 8

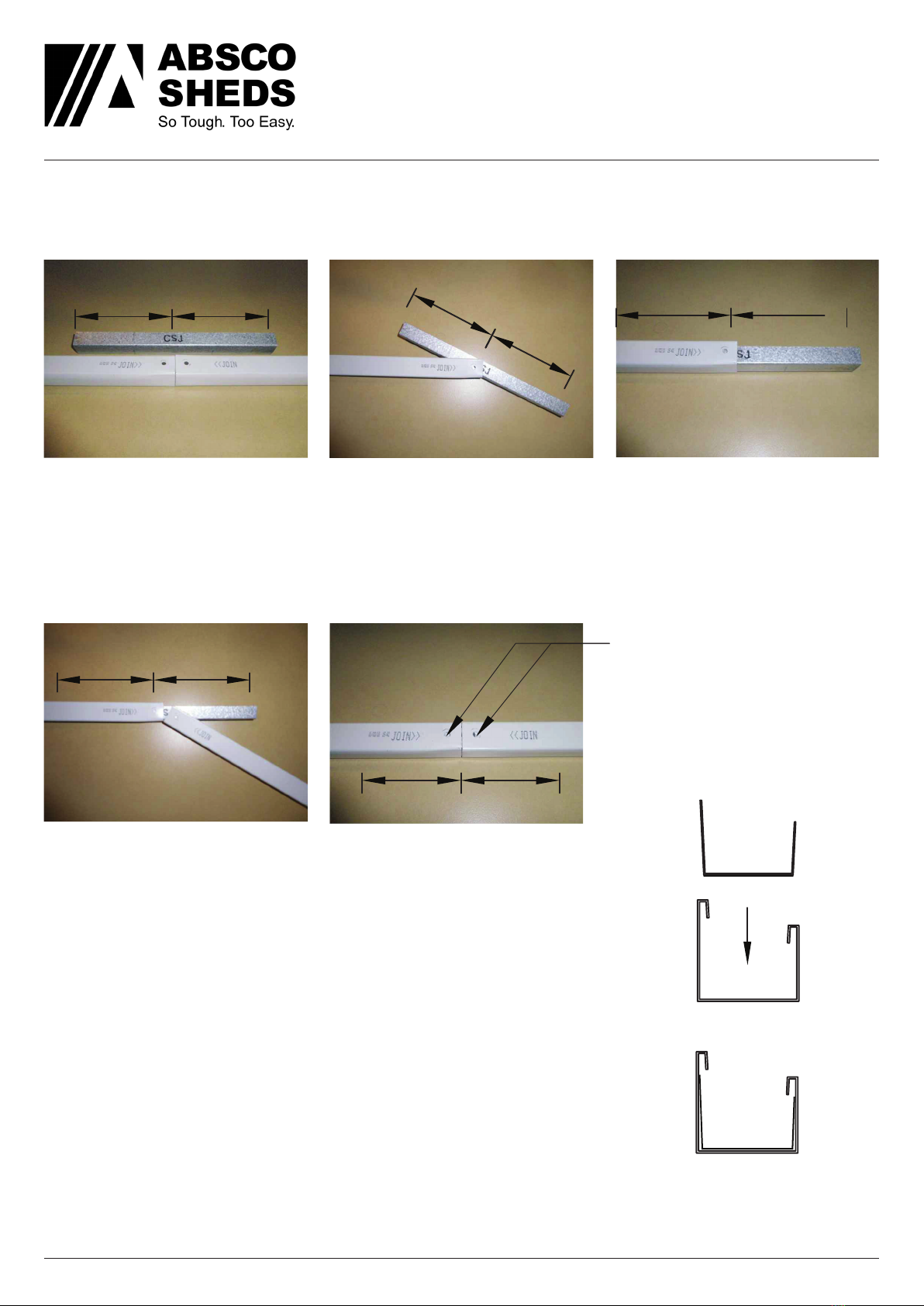

Guide on Joining Spliced Channels

The text marked on all parts must be shown on the same side as each other

Step 1.

Position the channels and the

CSJ joiner so the centre of

the CSJ is in line with the end

of each channel to be joiner

together.

Step 2.

Join the ﬁrst channel to the CSJ

by inserting the centre of the

CSJ, on an angle, to the end of

the channel where the JOIN>>

text is marked.

Push down one side of the CSJ

until you hear a ‘click’.

Step 3.

Join the second channel to the

CSJ by positioning the <<JOIN

of the channel at the centre of

the CSJ, on an angle. Push the

CSJ into the channel until you

hear a ‘click’.

Finished Channel.

The joined channels should

now look like the picture with

the CSJ positioned equally

inside of the joined channels.

Drill out holes with 3mm drill

bit in CSJ to match the holes

in channel and secure with the

screws supplied.

These may have to be

temporarily removed during

assembly.

= =

JOIN>> <<JOIN

CSJ

JOIN>>

JOIN>> SJ

= =

JOIN>>

<<JOIN

= =

JOIN>> <<JOIN

Finished Spliced

Channel

Push

20mm 15mm

CSJ

...

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 9

PRE-ASSEMBLY OF SPLICED CHANNELS

NOTE: Some channels may have holes in them - You will

need to redrill holes where CSJ joining channel covers

them.

Join together 24 x channel sections using 12 x channel joiners (Part CSJ)

1 X 77BR

2993mm

1 x 77A

1 x 77B

1 x 55C

2 x 62B

1 x 81B

81BR

81BL

62BL

62BR

55CR

55CL

77AR

1 X 77AR

1 X 77AL

1 X 77BL

1 X 55CR

1 X 55CL

2 X 62BR

2 X 62BL

1 X 81BR

1 X 81BL

2 X 81LR

2 x 81L

81LR

81LL

2 X 81LL

3733mm

77BL

77BR

77AL

=2 x 62A

62AL 62AR

2 X 62AR

2 X 62AL

2 X 81KR

2 x 81K

81KR

81KL

2 X 81KL

3659mm

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 10

Tek screw driver bit

Push

Guide on Joining a Spliced Ridge Beam

Follow these three steps to assemble a ridge beam.

Step 1.

Place two ridge beams as

shown and push them together.

Slide the cap of one under the

other.

NOTE.

There is a 50mm overlap of the

ridge caps when the beams are

in position.

Step 2.

Use the ZARSP to connect at

the centre of the two ridge

beams. Be sure it is pushed in

fully.

Step 3.

Turn over the ridge beam.

Measure 250mm from the

middle along the centre of one

ridge beam, mark spacings of

50mm. Fasten with a Tek screw

at each marking.

Repeat to the other side of the

ridge beam assembly.

TIP: Predrilling each hole with

the 3mm drill bit makes it easier

to fasten.

50mm

225mm

ZARSP

Finished Spliced Ridge Beam

Finished

Spliced Ridge Beam

ZARSP

Ridge Beam

Self drilling Tek screw

Absco Industries Assembly Instruction Manual

ABSCO REGENT SHED

MODEL: 30372RK

3.00mW x 3.66mD x 2.10mH

Model: 30372RK 19/09/18 1.4 11

PRE-ASSEMBLY OF SPLICED RIDGE BEAM

1x 97DL

1x 97DR

= 1x 97D

3733mm Overall length

ZARSP

225mm

97DL 97DR

16mm

Inhaltsverzeichnis

Andere ABSCO SHEDS Außenlagerung Handbücher

ABSCO SHEDS

ABSCO SHEDS 30082SECOK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 1508WBCK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 15081SK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 15231FK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 15081SECOK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 3060HG Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS J30082SECO Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 30153BK-PTX Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 30082E Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 30232GK Installationsanleitung

ABSCO SHEDS

ABSCO SHEDS 30302GK Installationsanleitung

ABSCO SHEDS

ABSCO SHEDS CHICKEN COOP Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS Premier 23231GK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS BUSH RANGER 3023BRK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS J30232G Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 60303WK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 45232WK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 30232GK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS A15301FKFD-PTX Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS J30232G Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS CYC15 Installationsanleitung

ABSCO SHEDS

ABSCO SHEDS 15151SK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 2308WBCK Bedienungsanleitung

ABSCO SHEDS

ABSCO SHEDS 1508WBCK Installationsanleitung

Beliebte Außenlagerung Handbücher anderer Marken

USP

USP DURAMAX 10 Ft x 8 Ft StoreMax Plus Bedienungsanleitung

TYGO

TYGO Nyland Bedienungsanleitung

Duratuf

Duratuf GL105 Bedienungsanleitung

Viking

Viking SD5300SS Technisches Handbuch

USP

USP DURAMAX Apex Pro 10.5 Ft x 8 Ft 40116 Bedienungsanleitung

ModuLaro

ModuLaro Lojo WC202200 Bedienungsanleitung

Lifetime

Lifetime 6418 Bedienungsanleitung

rollaway container

rollaway container ARPCA24 Bedienungsanleitung

Duratuf

Duratuf Havelock Bedienungsanleitung

X-METAL

X-METAL 4065 Bedienungsanleitung

Outdoor Life Products

Outdoor Life Products FP2030 F Bedienungsanleitung

Royalcraft

Royalcraft Faro 295L Storage Box Bedienungsanleitung

Riverlea

Riverlea Duratuf KIWI KS3 Bedienungsanleitung

OLT

OLT GS84D-FJ-Plywood Bedienungsanleitung

Rubbermaid

Rubbermaid 5L45 Bedienungsanleitung

garofalo

garofalo TUSCANY EVO Bedienungsanleitung

Duratuf

Duratuf Kiwi MK1 Bedienungsanleitung

Eden

Eden CA2988 Bedienungsanleitung
