ABSTRACTA Plenty Pod Bedienungsanleitung
2(37)
Abstracta AB Mounting Instruction Plenty Pod Small Mobile 2021-05-24
Including the following screws and fasteners for
Plenty Pod small mobile modul
Pos
Art.nr
Pcs
Description
1
543 421 40
4
Screw 5,0 x 90
2
543 424 34
10
Screw 5,0 x 50
3
575 046 04
26
4,2 x 25 screw with drill bit
4
575 045 04
12
4,2 x 14 screw with drill bit
5
543 101 41
9
Wood plug
6
543 410 10
4
Magnet
7
543 410 65
4
Washer for magnet
8
575 020 04
8
Screw for magnets and washer
9
377 001 01
3
UP-bracket (pairs, right-left)
10
1
Carpet set
11
543 422 10
1
Tabletop
12
543 422 94
2
Table bracket
13
543 410 09
4
Screw cap washer
14
543 410 08
4
Screw cap
15
570 048 04
4
Screw M6 x 25
16
570 008 04
4
Screw M4 x 12
3(37)
Abstracta AB Mounting Instruction Plenty Pod Small Mobile 2021-05-24
Required tools
•Spirit-level
•Screwdriver
•Ratchet
•Bit set, Ph, Torx, Insex
•Rubber hammer
4(37)
Abstracta AB Mounting Instruction Plenty Pod Small Mobile 2021-05-24
5(37)
Abstracta AB Mounting Instruction Plenty Pod Small Mobile 2021-05-24
Mounting.
Start with evening out the floor module which you want to
set up your pod on.
(An uneven floor can especially complicate mounting the glaswalls
and fitting in the door)
6(37)
Abstracta AB Mounting Instruction Plenty Pod Small Mobile 2021-05-24
Start by placing the floor module on the floor.
Mount the magnet (543 410 10) and washer (543 410 65) on
the MDF parts with screw (575 020 04).
7(37)
Abstracta AB Mounting Instruction Plenty Pod Small Mobile 2021-05-24

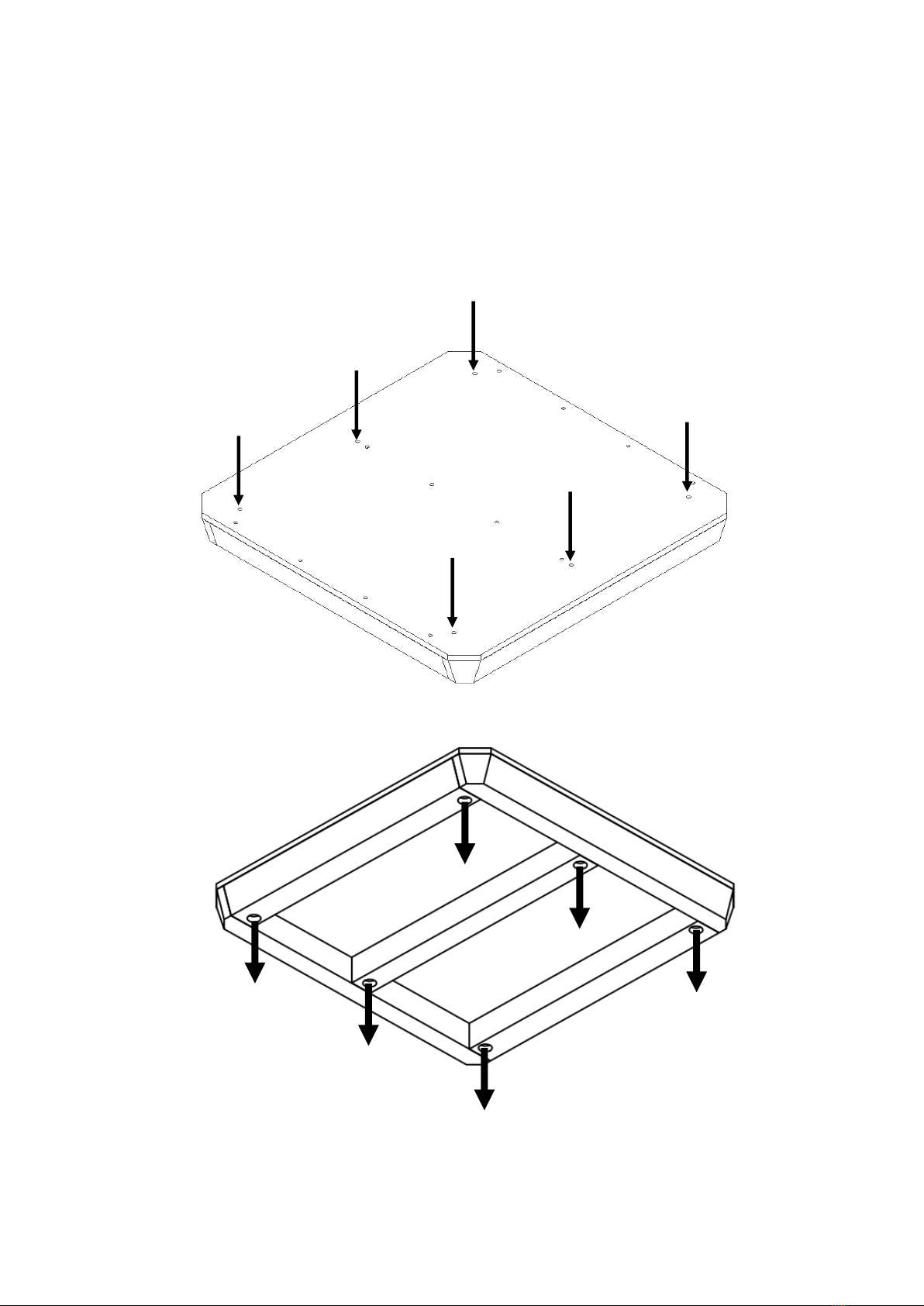

Insert the wood plugs (543 101 41) into the MDF
floor board with a rubber hammer, not a hard
hammer!
Place the floor board on the MDF parts with the
wood plugs.
8(37)
Abstracta AB Mounting Instruction Plenty Pod Small Mobile 2021-05-24
9(37)
Abstracta AB Mounting Instruction Plenty Pod Small Mobile 2021-05-24
Fix the board with screws (543 424 34). Note, only in
the holes marked below.
10(37)
Abstracta AB Mounting Instruction Plenty Pod Small Mobile 2021-05-24
Adjust the support legs
Adjust the support legs by screwing them vertically. The adjustment
is performed from above. Make sure that the floor is straight and flat,
the floor should not be able to wobble.
