SMARTOUCH DIGITAL

USER

MANUAL

SmarTouch Digital

SmarTouch & SmarTouch Digital are trademarks of Applied Computer Controls.

This manual may not be copied or reproduced without permission, in part or in total.

Rev. 05/2017-ACC

APPLIED

COMPUTER

CONTROLS

2.5” X 5.5"

3.25” X 7.25"

SAVE THIS MANUAL

Make it available or other spa users.

You should also have a spa user’s manual which ex-

plains how to care for your spa. Please read and follow

all instructions in your spa user’s manual. Maintaining

the proper levels of pH and the sanitizer will extend the

life of your spa equipment. Improper chemical levels

in the spa are sure to cause premature heater failure

as well as failure of other components in the system.

Failures caused by chemical imbalance are not cov-

ered by warranty.

NO Check for the following:

1- Voltage at the Heater Contactor Coil Relay. Across the White and Yellow wires. 120V or 240V depending on

power rating on contactor relay.

If power is present and contactor does not engage, replace contactor.

If there is no power replace PCBoard

2- Check power at load / output (right) side of contactor . If there is power go to next step. If not go back to step one.

Check power at Heater L M NT. If no power then High Limit relay on PCBoard is NOT -- closing. Remove plastic

dust cover off and inspect relay contacts. Replace PCBoard.

OVERHEAT ERROR CODES ( OH or HLEr) but spa water temperature is not.

Allow enough time for the sensors to cool down. Then clear the error code by pressing the S T button.

1-Turn temperature down to lowest setting & press the S T key

2- Press S T a second time and allow the low speed Jets to run for 2-3 minutes

3-Is temperature reading dropping? Does it match the thermometer reading in the spa ?

4-If Y S . there is flow restriction. Clean / inspect or remove filter cartridge. Or secondary bypass intake to the pump is

blocked or not installed.

5-Raise the temperature setting to 4 degrees above water temperature. Average heat gain is about 30 minutes. If there is

rapid heat gain go back to step #4.

QRC- 215A

Micro-processor technology is becoming a familiar name in the spa in-

dustry. Here, at Applied Computer Controls, we produced our first intelli-

gent microprocessor based spa control system, in 1981-82. The SC-100

and SC-200; the forerunners of intelligent electronic spa controls.

Today, SmarTouch Digital includes more than 30 years experience.

SmarTouch Digital, is a fourth generation microprocessor-based control

system. A reliable energy efficient spa controller, so advanced but easy

to operate, is conveniently located at your fingertips. A high intensity,

oversized characters, L D display or our multi colored LCD display, keeps

you informed of the spa temperature, time-of-day and elapsed time and

a list of error codes, to inform and identify a malfunction.

Safety and reliability are built-in to meet or exceed the most stringent,

up to date requirements set by (UL) Underwriters Laboratories.

SmarTouch Digital is the culmination of proven designs and extensive

testing… from Applied Computer Controls.

Page 26

T CH TALK......TROUBL SHOOTING GUID

For SmarTouch Digital

RROR COD S

COLD Water temperature below 40 F. OH Water temperature above 108 F.

S SH Temperature sensor shorted. S OP Temperature sensor open or disconnected

HLer Overheat condition or overheat sensor disconnected PSOL Pressure-switch open with low speed jets ON.

PSOH Pressure-switch open with high speed jets ON PSOC Pressure-switch open with circulating pump ON

Error code PSOL? PSOH? PSOC?

XPLANATION:

No water pressure. Pressure Switch Open.

-Check if circulation /filtration pump is running.

-Check for the following symptoms:

PUMP running but no water low

-Check for possible airlock. Pump is not primed. Check for a closed gate valve.

PUMP does not run.

-Is primary pump connected.

Only a trained or qualified technician can perform the following procedure

-Measure, using a voltmeter, INCOMING POW R.

-240 VOLTS. Across L1 & L2 at Terminal Block ( 240V installations only)

-Check pump power rating.

Measured voltage at pump connector MUST match power rating at pump motor label.

-Measure 240 or 120 Volts @ primary pump connector (pump 1) across WHIT and R D for low speed (PSOL) and WHIT

& BLACK for high speed jets.(PSOH)

NO POWER READING AT PUMP CONNECTOR:

Replace PCBoard. Possible burnt fuse or pump relay circuit defective, provided incoming power is verified at main Terminal

Block.

POWER O.K.: Replace pump.

PUMP runs and there is low:

- Heater manifold must be plumbed to pump discharge or output side to activate pressure switch.

-Check Pressure Switch connections at Pressure Switch.

-Jumper across pressure switch terminals. If error code goes away check Pressure Switch calibration or P/S is defective.

Spa will not heat.

Check for error codes ‘OH’ or “HL r”. If Y S then check for the following:

-Good water flow.

-Possible air pocket inside Heater Manifold or an Air Lock

1- Is Heater indicator light ON at spaside control panel?

Yes Go to next step.

2- Is Red indicator light located at equipment enclosure “ON”?

YES -Burnt element. Replace heater element.

Page 25

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

T MP RATUR S TTING . . . . . . . . . . . . . . . . . . . . . . . . 4

S TTING TIM -OF-DAY. . . . . . . . . . . . . . . . . . . . . . . . . . 5

COOL-DOWN TIM R . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

US R TIM R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SPA-SID CONTROL PAN L 2020 . . . . . . . . . . . . . . . . . 6

SPA-SID CONTROL PAN L 1000 . . . . . . . . . . . . . . . . . 7

US R & SYST M OPTIONS

S LF-DIAGNOSTIC RROR COD S . . . . . . . . . . . . . . . . 8-9

START-UP PROC DUR . . . . . . . . . . . . . . . . . . . . . . . . . . 10

WAT R PR SSUR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

FILT R CARTRIDG S . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

IMPORTANT SAF TY INSTRUCTIONS . . . . . . . . . . . . . 11

PROGRAMMING (OPTIONAL) . . . . . . . . . . . . . . . . . . . . 12-16

L CTRICAL INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . 17-19

FCC R GULATORY APPROVAL . . . . . . . . . . . . . . . . . . . . 20

WIFI F ATUR (OPTIONAL) . . . . . . . . . . . . . . . . . . . . . . 21

WIRING DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-23

XPLOD D VI W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

TROUBL SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26

TABLE OF CONTENTS

INTRODUCTION

Thank you for buying a spa equipped with a SmarTouch Digital con-

trol system. Many years of experience went into the design of this

family of controls. You can be assured your spa control system is the

most advanced, it is highly reliable and will serve you for many years

to come.

The control system has been designed with you, the user in mind. It

is very easy to operate and requires a minimal effort on your part.

You may use it just as it comes to you and without any programming.

Yet you have the option of getting deeply involved in the inner work-

ings of the control if you so choose. You can custom tailor it to fit

your needs.

Please take the time to read at least the first section (next page) “IN

A HURRY – R AD THIS” portion of the manual before starting to use

your spa for the first time. You can familiarize yourself with the rest

of the manual at your leisure.

The more e icient the system is the

less energy it uses.

The concept behind SmarTouch Digital is to maintain the desired

temperature setting and water filtration with the least amount of en-

ergy consumption.

Temperature and Overheat sensors are located at the Stainless Steel

heater manifold, the coldest and hottest spot where true tempera-

ture is measured and to detect Freeze and Overheat conditions.

Considering the large volume of cooler water in the plumbing, pump

and heater manifold, low speed primary pump is activated for five

minutes every three hours to stabilize spa temperature, prior to ac-

tivating the heater. stimated 102F water temperature drop at 55F

ambient air temperature is about half a degree Fahrenheit in a well

insulated spa. Heater will not start at this point until next cycle. Tem-

perature must drop by 1F before heater is activated.

Page 3 Page 24

WIRING DIAGRAM FOR SC-1100 (JR.)

WIRING DIAGRAM FOR SC-3000

IN A HURRY - READ THIS

SmarTouch Digital comes to you with a universal set o de ault

settings. I you choose to keep these settings, then you only

need to remember 2 things: how to set the spa temperature and

to press the SET key whenever you are done using the spa.

Setting Temperature

The UP(T MP) & DOWN(TIM ) arrows.

Press and hold for 2 sec. the UP (T MP) arrow key.

Controller will display current spa temperature.

Use the UP or DOWN arrow keys to select

desired temperature.

*To enter new temperature press → S T key.

The controller will:

- Lock-in the new temperature.

- Display current spa temperature.

IMPORTANT: Always turn down the heat before you drain the spa.

*Note:

Once you select the T MP or TIM and the S T key is not pressed within

30 seconds the controller reverts to the previous setting and the change

will not take effect.

The SET Key

After using the spa, press the S T key to tell the micro controller you are

done using the spa. It will then take over the spa’s management, including

the different filtration cycles, heat maintenance, economy modes and

protection against freezing.

Both buttons are used to select, increase

or decrease temperature or time setting.

Note: Both keys are active when pressed

individually and held down 2 seconds, to

eliminate accidental changes.

Page 23 Page 4

SETTING TIME-OF-DAY

Setting Time-O -Day

Press and hold for 2 sec. the DOWN (Time) arrow key.

Controller will display 12:00 noon. Use OR to set the

correct time-of-day.

*After every selection “Hours , Minutes” press → S T key.

Cool-Down Timer

A 30-second timer keeps the low speed jets, ON, after the heater turns

OFF, to remove all residual heat from the heater element.

User Timer

A built-in, 20 minutes elapsed-time clock switches off any active function.

Economy mode. Water & Energy Management.

The Economy mode manages water temperature, filtration and energy

consumption knowing “when” to heat to maintain water temperature.

The conomy mode starts when the heater is turned off and the spa is

not in use.

Upon entering the CONOMY mode the message “ECON” is displayed.

During the conomy mode the spa controller is in stand-by, three hours

at a time, monitoring and sampling the water temperature.

At the end of every conomy period which is 3 hours the controller ac-

tivates the low jets only for 5 minutes to perform the following:

1-Filter and sanitize the water. Check your spa manual for the type of

sanitizer in your spa.

2- Stabilize the water temperature and heat if necessary, in that case the

low jets run more than 5 minutes for the duration of the heating cycle.

Important: Tie down your spa cover to minimize heat loss and to con-

serve energy.

Note: The message “ECON” is not an error code.

WIRING DIAGRAM FOR SMTD 1000

WIRING DIAGRAM FOR SMTD 2000

COM2 J14

Page 5 Page 22

Switch OFF power to the spa.

Disconnect spaside control panel / keypad.

Open WIFI box and reconnect keypad to the WIFI board.

Connect WIFI board to the spa controller then turn power back ON.

Select “Settings” on your smart phone. Choose Wireless Networks / WIFI.

Scan Available networks.

Select AGI_BOARD XXX.

Your phone should connect to the Board.

GO to your phone Browser and enter //192.168.1.3.

Touch “Display Scan Results”.

Select your home network (Router).

nter the router PASSWORD or (W P Key) if password is not recognized.

nter your e-mail.

Re-enter your e-mail.

Touch “ACC PT”.

Touch “Join”.

Page should exit or Time out.

Check your e-mail on your phone. Depending on the phone service this may take

1-2 minutes. You can also check for the same email on your home computer.

nter a US R name (6 characters, NO spaces).

Click “Register”.

Bookmark this page and add it to your phone home page.

**You can forward the link or the registration email up to nine more spa users.

Use different spa name every time.

WIFI CONNECTIVITY PROCEDURE

Page 21 Page 6

SPA-SIDE CONTROL PANEL 2020

FUNCTIONS

If primary pump is dual Speed. Press once to

activate the low jets. Press again for high jets.

A third depression turns the jets OFF, if the

heater is off.

Press, for third or fourth pump. If auxillary pump

is dual speed the AUX button functions

as above.

Press, for air bubbles or second pump

single speed.

Light switch ON/OFF

*Optional

• T MP RATUR

• TIM OF DAY

TO INVERT THE TEMPERATURE DISPLAY:

PRESS THE SET & UP ARROW KEYS TOGETHER AT THE SAME TIME

FCC REGULATORY APPROVAL

U.S.A.

Contains FCC ID: W7OMRF24WG0MAMB

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference,

and (2) this device must accept any interference received, including interfer-

ence that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy, and if not installed and used in accordance with the instructions may

cause harmful interference to radio communications. However, there is no guar-

antee that interference will not occur in a particular installation. If this equip-

ment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

To satisfy FCC RF xposure requirements for mobile and base station transmis-

sion devices, a separation distance of 20 cm or more should be maintained be-

tween the antenna of this device and persons during operation. To ensure

compliance, operation at closer than this distance is not recommended.

The antenna(s) used for this transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

CANADA

Contains transmitter module IC: 7693A-24WG0MAMB

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not

cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux

appareils radio exempts de licence. L’exploitation est autorisée aux deux con-

ditions sui vantes: (1) l’appareil ne doit pas produire de brouillage, et

(2) l’utilisateur de l’appareil doit accepter tout brouillage radioelctrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

Page 7 Page 20

SPA-SIDE CONTROL PANEL 1000

FUNCTIONS

Press once to activate the low jets. Press again

for high jets. A third depression turns the jets

OFF, if the heater is off.

Press, for air bubbles or second single

speed pump if applicable. Button will be

marked “AUX”.

Light switch ON/OFF.

TO INVERT THE TEMPERATURE DISPLAY:

PRESS THE SET & UP ARROW KEYS TOGETHER AT THE SAME TIME.

BRANCH CIRCUIT BREAKER REQUIREMENTS

240 Volts 4 Wire System 30/50 Amp 2 Pole Breaker

USE COPPER CONDUCTOR ONLY. #6 AWG WIRE

120 Volts 3 Wire System 20 Amp 1 Pole Breaker

CAUTION: A new breaker must be used for a new spa installation. Do not use

an existing or used breaker.

GFCI: All spa installations must be protected by a GFCI. If your spa control box

does not include an integrated GFCI then you must use a GFCI breaker per Na-

tional lectrical Code requirements.

120/240 Volt Conversion. All spas are shipped configured for 240 volt (4

wire systems). Please check the nameplate on the control enclosure to identify

the type of system in your spa. If the nameplate indicates a 120/240 Volt type

system, then it is possible to convert the spa to 120 volt operation.

30/50 Amp Conversion. Some homes may have limited power service. It is pos-

sible to operate a 240 volt spa system using a 30 amp breaker. Connect 240 volt

power to the system as previously described, then set it to operate in the low

power mode.

120 or LOW POWER CONVERSION

-Press the UP and DOWN arrows simultaneously.

-Press UP arrow and go to Code U7 press S T. U7 will change to ‘1’

-Press UP arrow and go to Code U8 press S T. U8 will change to ‘1’

-Press UP arrow and go to Code P3 press S T. P3 will change to ‘1’

-Press UP arrow and go to Go to code S ND and press S T (Ignore and do not

change the rest of the codes as the can alter the spa settings).

If P3 is “0” = High power

If P3 is “1” = Low power

120V CONVERSION ONLY

Install jumper wire across “Neutral Terminal” and “Line 2 Terminal” at the main

Terminal Block.

Note: Only experienced service personnel should perform conversions.

Improper modifications may cause damage to the control system

and/or the attached heater and pump motors.

USER OPTIONS

Error Messages

SELF DIAGNOSTIC CODES

To Save Changes And Exit Go To Code SEnd

To Exit Without Saving Changes Go To Code CAnC

Page 19 Page 8

Error Messages

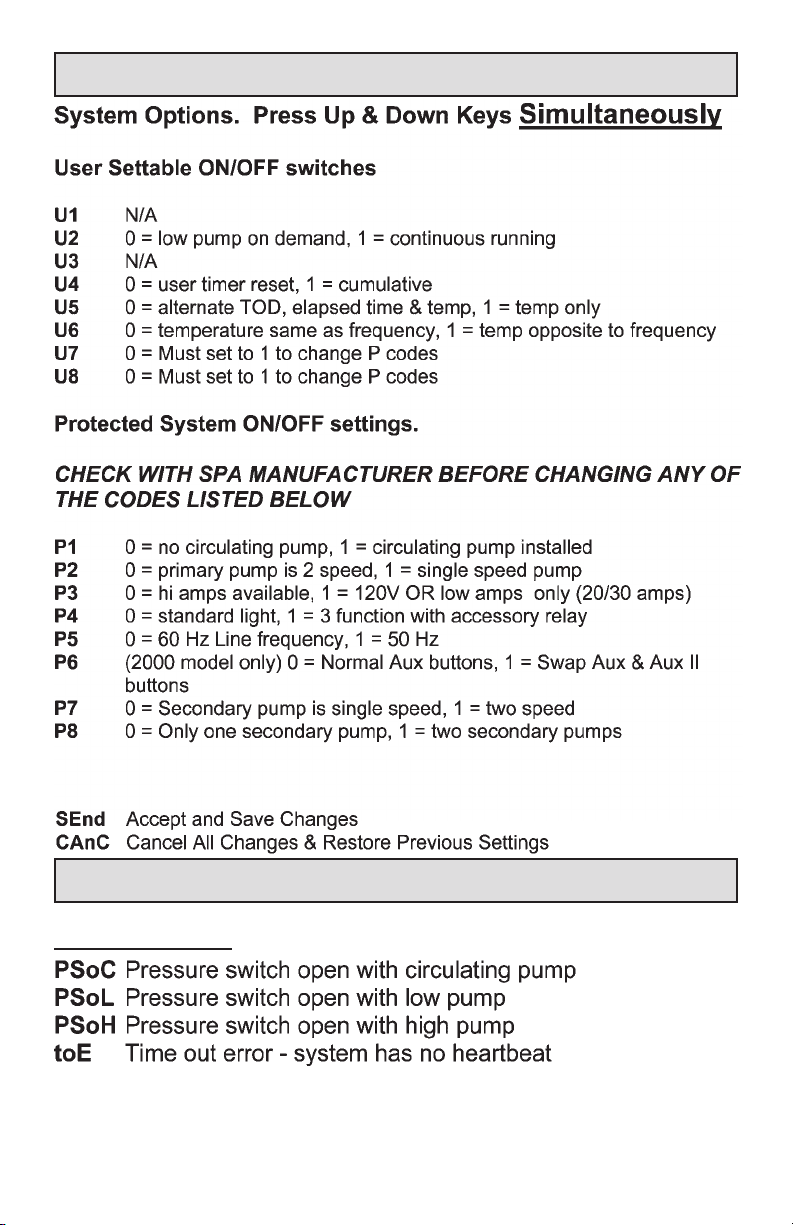

SYSTEM OPTIONS

SELF DIAGNOSTIC CODES

To Save Changes And Exit Go To Code SEnd

To Exit Without Saving Changes Go To Code CAnC

ELECTRICAL INSTALLATION INSTRUCTIONS

Page 9 Page 18

Inhaltsverzeichnis

Andere ACC Steuerungssystem Handbücher

ACC

ACC SmarTouch Digital series Bedienungsanleitung

Beliebte Steuerungssystem Handbücher anderer Marken

Pentair Pool Products

Pentair Pool Products Compool Bedienungsanleitung

ComfortNET

ComfortNET CTK04 Bedienungsanleitung

Fireye

Fireye InSight II 95DSS3 Bedienungsanleitung

CAME

CAME G3000 Bedienungsanleitung

Idemia

Idemia MorphoAccess VP MD Bedienungsanleitung

Axis

Axis P1445-LE-3 Bedienungsanleitung

HEIDENHAIN

HEIDENHAIN TNC 150 B Bedienungsanleitung

CNC-Step

CNC-Step High-Z T-Series Bedienungsanleitung

Doosan

Doosan DVF Series Bedienungsanleitung

Honeywell

Honeywell KAP 140 Bedienungsanleitung

Honeywell

Honeywell vk41 series Bedienungsanleitung

AirBench

AirBench FPW Installationsanleitung

Cypress

Cypress HHR-3160 Bedienungsanleitung

CAME

CAME GLT40AOS Bedienungsanleitung

Zonex

Zonex GEN II -VVT Benutzerhandbuch

Altronics

Altronics K 9650 Bedienungsanleitung

micro-trak

micro-trak RoadMaster Bedienungsanleitung

micro-trak

micro-trak Calc-An-Acre II Bedienungsanleitung
