Veriton L670G

Product End-of-Life Disassembly Guide

PRINTED IN TAIWAN

Service guide files and updates are available

on the AIPG/CSD web; for more information,

please refer to http://csd.acer.com.tw

2

Machine Disassembly and Replacement

To disassemble the computer, you need the following tools:

zWrist grounding strap and conductive mat for preventing electrostatic discharge.

zWire cutter.

zPhillips screwdriver (may require different size).

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws

with the corresponding components to avoid mismatches when putting back the components.

3

General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1. Turn off the power to the system and all peripherals.

2. Unplug the AC adapter and all power and signal cables from the system.

4

Disassembly Procedure

This section tells you how to disassemble the system when you need to perform system service.

CAUTION: Before you proceed, make sure you have turned off the system and all peripherals

connected to it.

5

Standard Disassembly Process

1. Opening the computer:

1.1 Remove the screw fixed in the cover_stand.

1.2 Remove the screw fixed in the cover_top.

1.3 Drag the cover_top rearward removal.

6

2. Removing the CPU

2.1 Release the four screws fixed in the thermal_module.

2.2 Remove the CPU.

3. Removing the Memory

3.1 Release the two latches shownbellow then remove the Memory.

7

4. Removing the HDD

4.1 Remove the two screws fixed in the chassis.

4.2 Removethe HDD.

5. Removing the WLAN mini pci-e card

5.1 Remove the screw fixed in the cover_bottom.

8

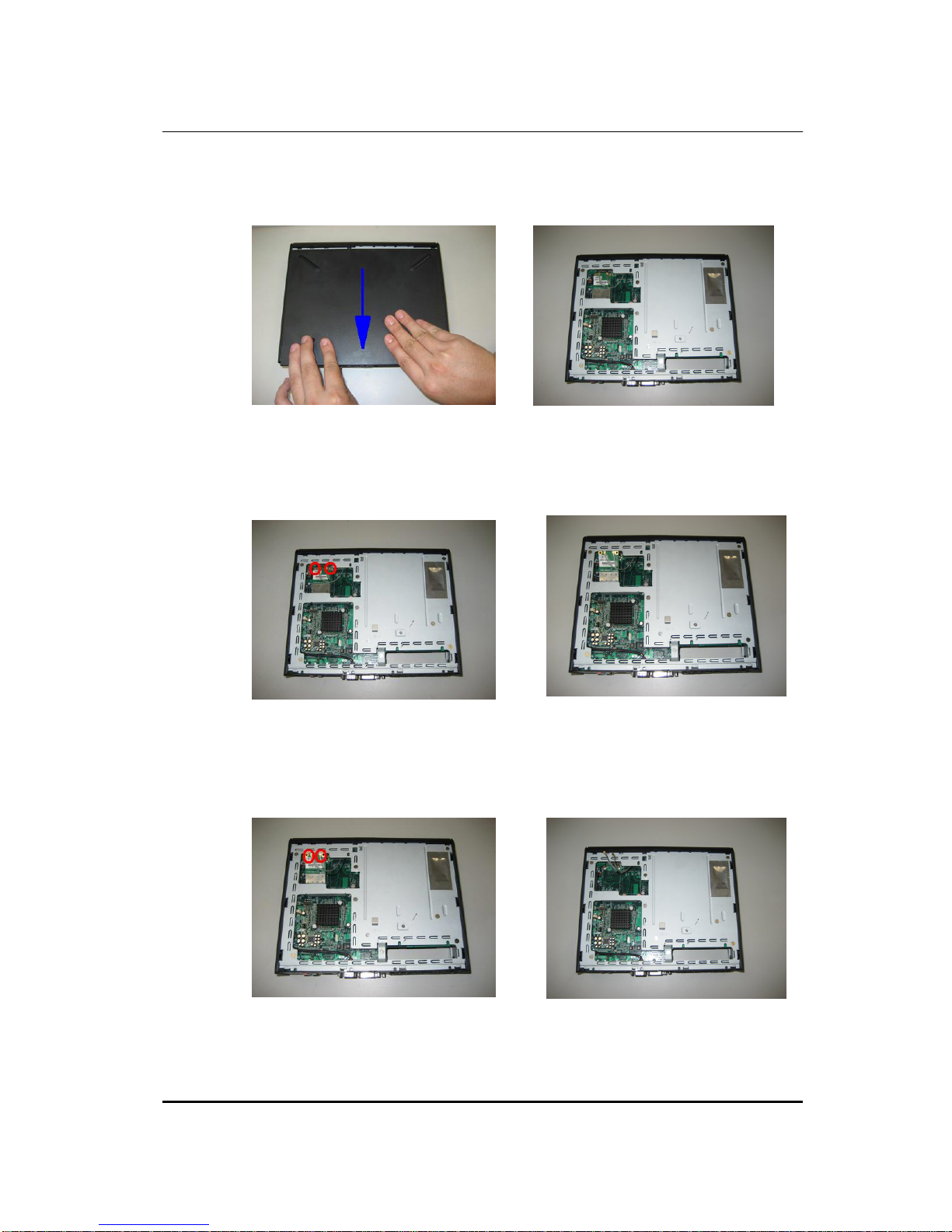

5.2 Drag the cover_bottom rearward removal.

5.3 Remove the two screws fixed in the WLAN mini PCI-E card.

5.4 Disconnect the main & aux antenna cable from the WLAN mini PCI-E card .

9

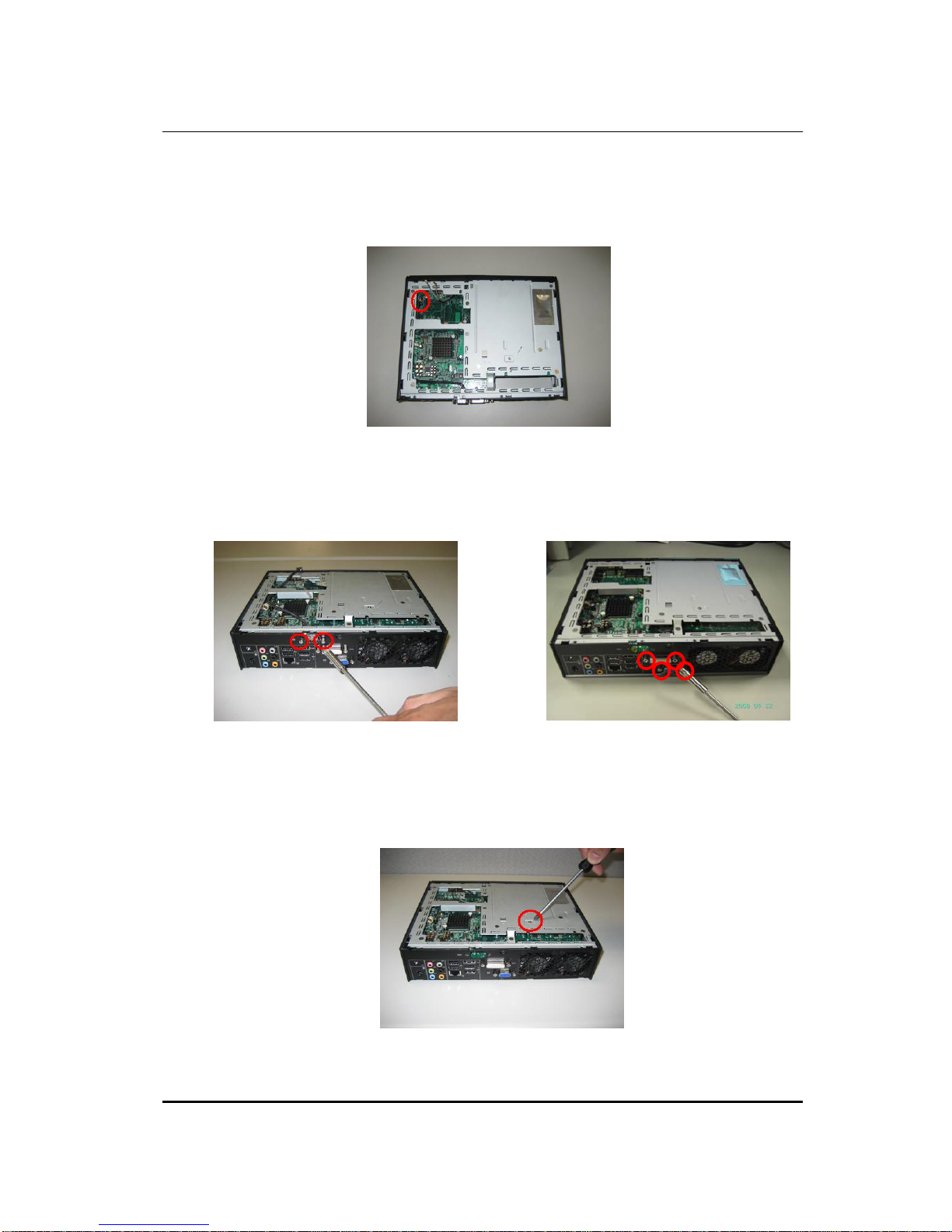

6. Removing the Serial port cable

6.1 Disconnect the serial port cable.

6.2 Remove the six screws fixed in the chassis.

7. Removing the ODD

7.1 Remove the one screw fixed in the chassis.

10

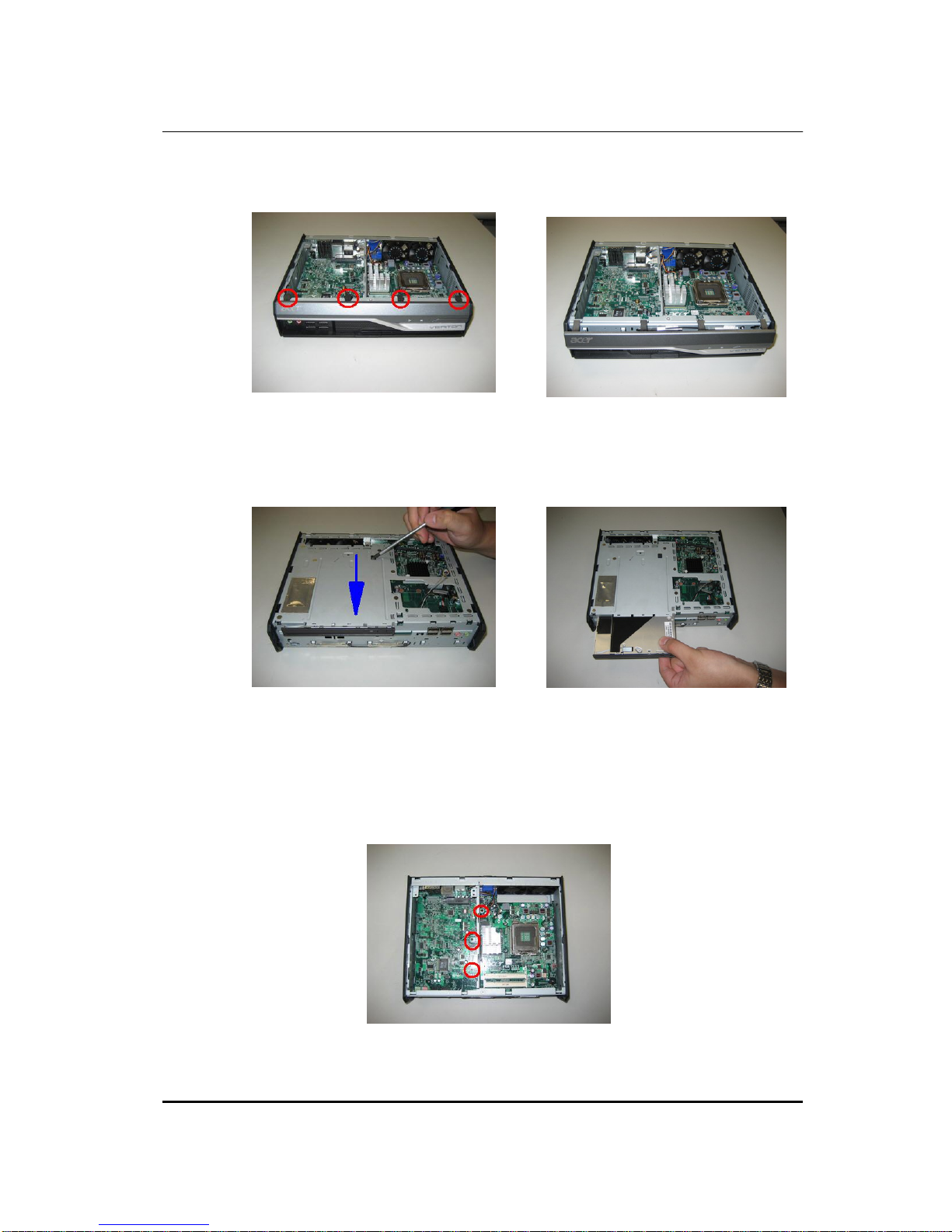

7.2 Remove the four cover Front IO Latches.

7.3 RemovetheODD.

8. Removing the Main Board

8.1 Remove the three screws fixed in the Bracket_Front_IO.
