Acer Chromebook Spin 11 Bedienungsanleitung

Acer Chromebook Spin 11 R751T/ R751TN

LIFECYCLE EXTENSION

GUIDE

Self-Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Disassembly Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24

FRU (Field Replaceable Unit) List . . . . . . . . . . . . . . . . . . . . . . . . . . 1-28

Check for updates yourself. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-31

Factory reset your Chromebook. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-32

Self-Repair 1-1

Self-Repair

This chapter highlights the limited self-repair capabilities of the product.

Prior performing self-repair, familiarize yourself with the Safety Guidelines and

Recommended Equipment sections first as described in the chapter "Disassembly

Procedures".

Depending on model, the following key components are eligible for self-repair (if

applicable);

Battery pack

HDD / SSD module

DIMM module(s)

WLAN module

LTE module

If a particular key component is listed and thus would be eligible for self-repair, but is

not described in the "Disassembly Procedures" section, then this component is either not

present on the respective model, or it is present but embedded on the motherboard and

therefore not eligible for self-repair.

NOTE:

Do not attempt to replace other components than those listed above.

NOTE:

For replacement parts, always use only Acer certified components in order to

safeguard quality, optimum system performance, stability and reliability of the

product.

NOTE:

Any damage to the product that occur during self-repair, or which has occurred as

a result of a careless or unsuccessful self-repair attempt, is not covered by the

standard product warranty.

Software Recovery 0

This product has embedded software recovery tools which can be used to either perform

a partial or full software recovery, but also to create a Factory Default recovery media.

For more information about the software recovery options, how to perform a software

recovery or creating a Factory Default recovery media, please refer to the chapter

"Recovery" which is available in the User Manual of the product.

NOTE:

In the event of not being able to create a Factory Default recovery media, it is

possible to obtain a copy of the recovery media through Acer Customer Service

(http://www.acer.com/support)

This is not a free of charge service.

1-2 Disassembly Procedures

Disassembly Procedures

Safety Guidelines 0

This chapter contains step by step procedures on how to remove and de-install

components from the computer. Use the following safety guidelines to ensure your

personal safety. Each procedure included in this chapter assumes that you are preparing

your computer for recycling and disposal. By performing any of these procedures you

acknowledge that any remaining warranty applicable to your computer will be voided.

Before you start any of the procedures in this chapter, make sure to read the following

safety guidelines and the respective instructions within the chapter.

CAUTION!

Turn off your computer and disconnect all power sources before opening the

computer cover or panels.

To avoid electrostatic discharge, ground yourself by using a wrist grounding strap

or by periodically touching an unpainted metal surface at the same time as

touching a connector on the back of the computer.

Take off any metal objects on your arms or fingers such as bracelets, rings or

watches and make sure your hands are completely dry. Even if your unit is

unplugged, there may still be some remaining electric charge.

If a component does not come out easily, do not forcefully remove it. Instead,

check that you are removing it correctly and that no wires or other parts are in the

way.

When you disconnect a cable, pull on its connector or on its pull-tab, not on the

cable itself. Some cables have connectors with locking tabs; if you are

disconnecting this type of cable, press in on the locking tabs before you disconnect

the cable.

Recommended Equipment 0

The following equipment are recommended to do the following maintenance

procedures:

Wrist grounding strap and conductive mat

Philips screwdriver

Plastic tweezers

Flat plastic pry

Disassembly Procedures 1-3

WEEE Annex VII Component 0

These components are classified as requiring selective treatment:

Battery pack

WLAN module

Touchpad module

Mainboard

USB board

LCD panel

1-4 Disassembly Procedures

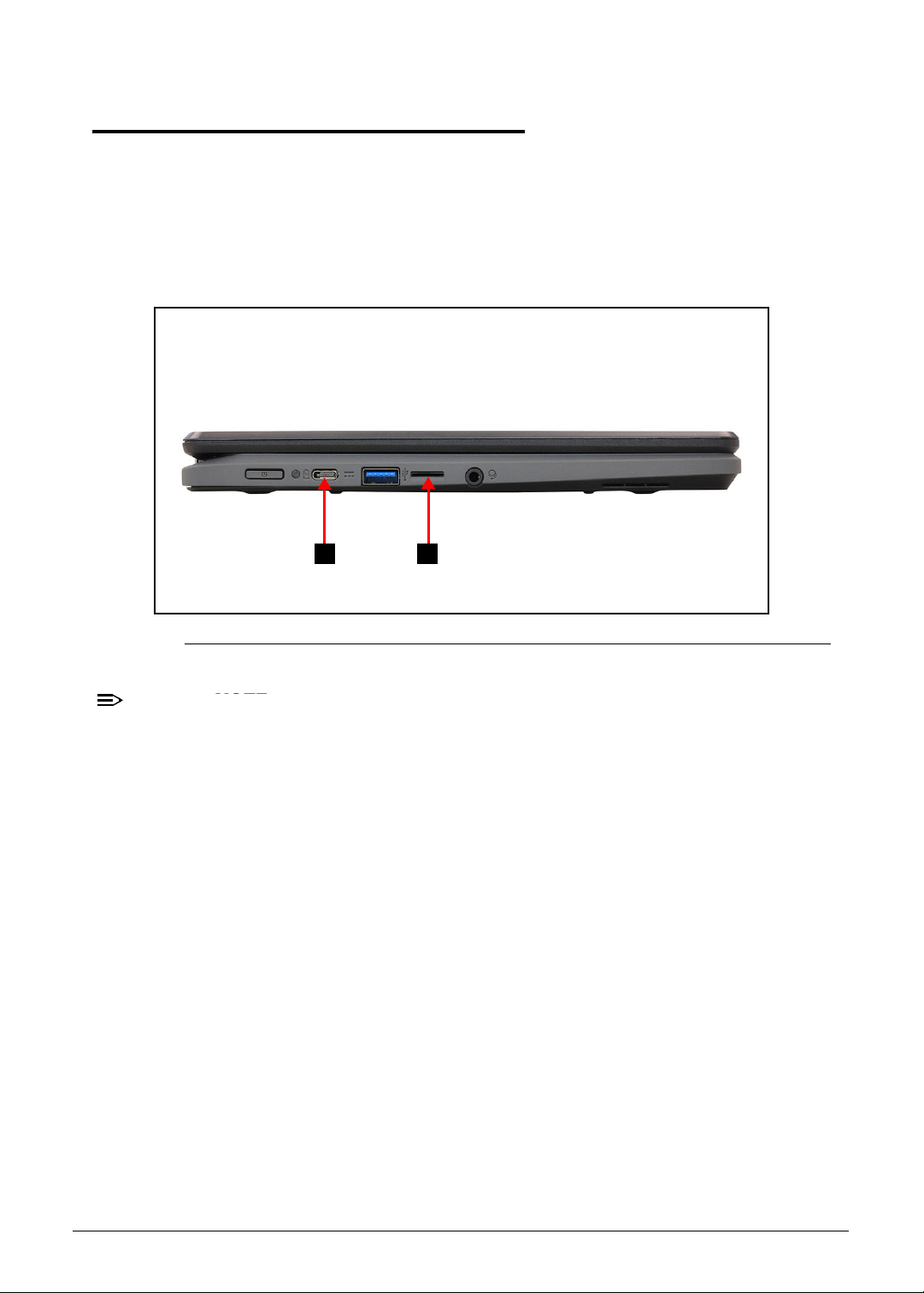

Pre-disassembly Instructions 0

Do the following prior to starting any maintenance procedures:

1. Place the system on a stable work surface.

2. Remove AC adapter (A) from the system and peripherals (Figure 1-1).

3. Remove the SD card from the SD card slot (B) (Figure 1-1).

4. Remove all cables from system.

Figure 1-1. AC Adapter Outlet & SD Card Removal

NOTE:

Make sure the system is completely powered off.

Disassembly Procedures 1-5

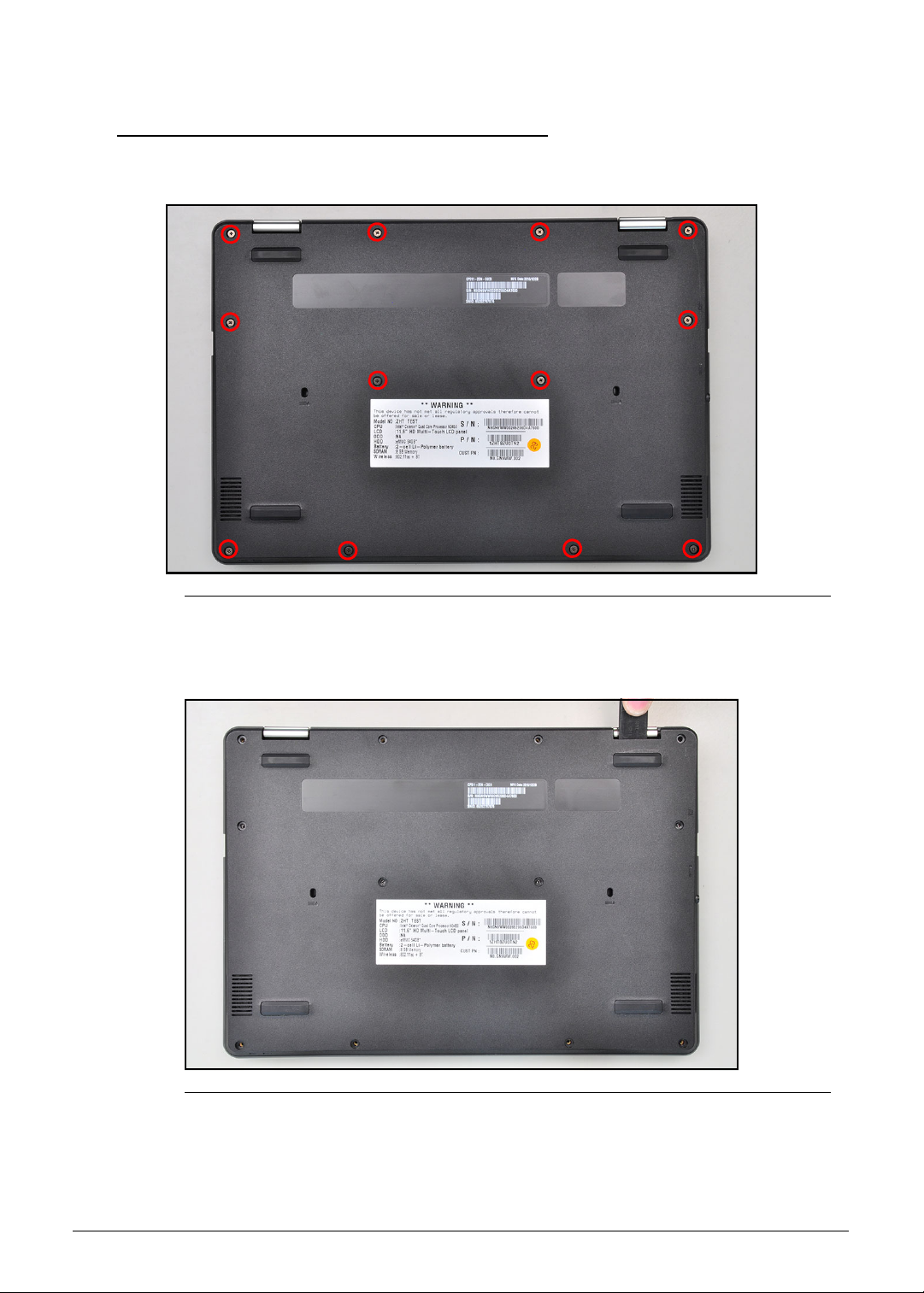

Base Cover Removal 0

1. Remove twelve (12) screws from the base cover (Figure 1-2).

Figure 1-2. Base Cover Removal

2. Using a flat headed tool, carefully pry open the base cover starting from the gap

between the left LCD hinge compartment and the base cover (Figure 1-3).

Figure 1-3. Base Cover Removal

1-6 Disassembly Procedures

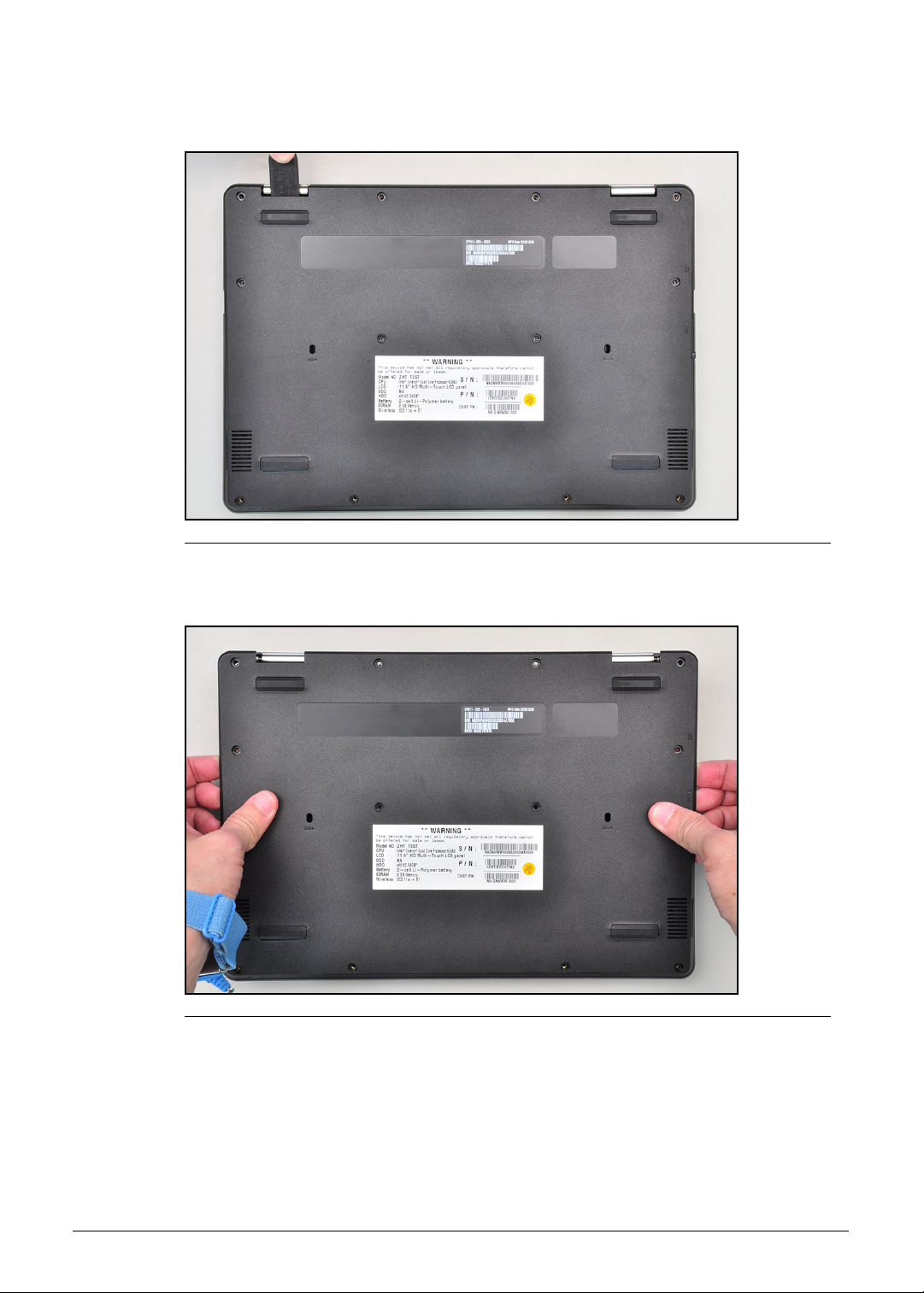

3. Continue prying open the base cover from the gap between the right LCD hinge

compartment and the base cover(Figure 1-4).

Figure 1-4. Base Cover Removal

4. Remove the base cover from the system (Figure 1-5).

Figure 1-5. Base Cover Removal

Disassembly Procedures 1-7

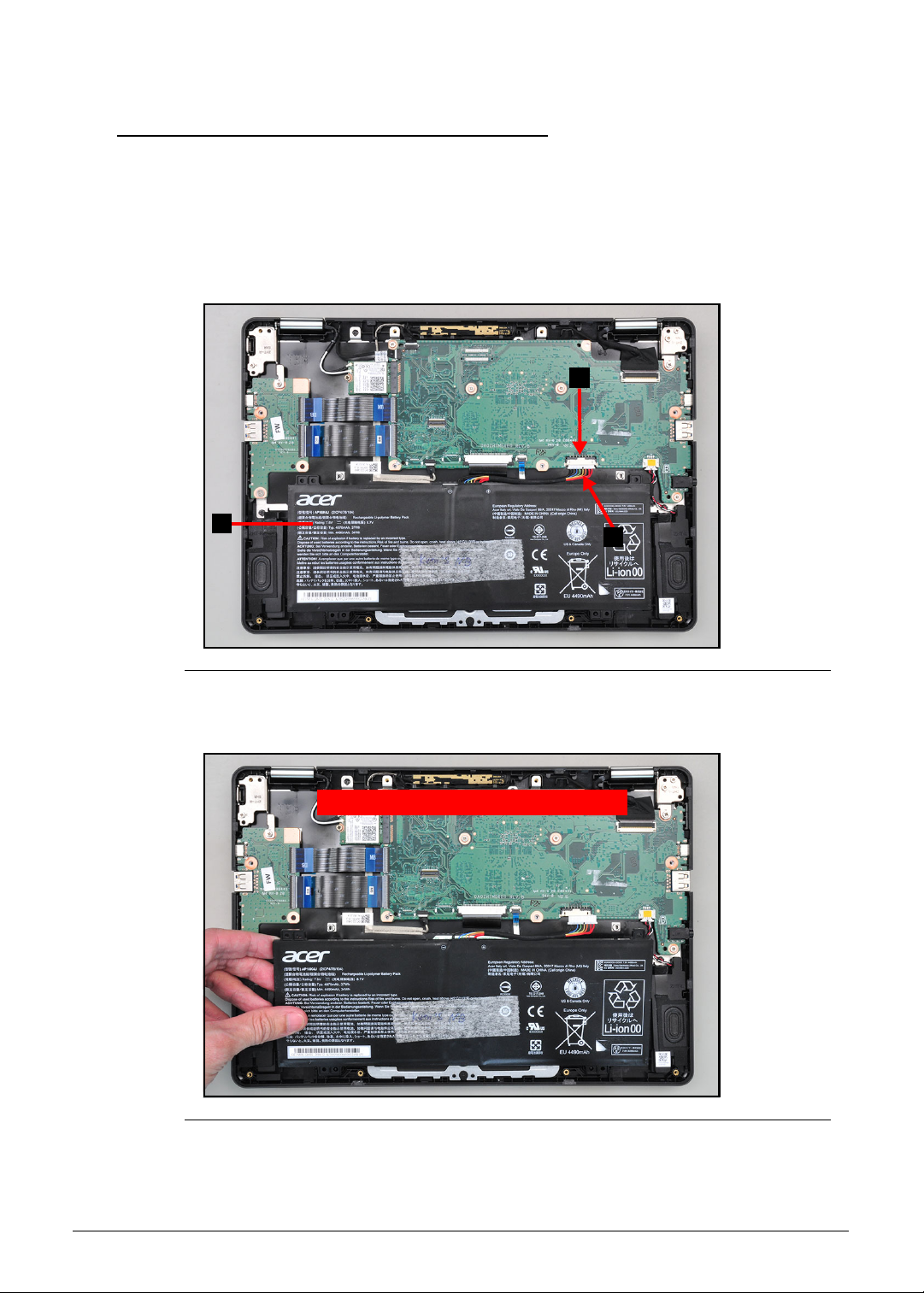

Battery Pack Removal 0

Prerequisite:

Base Cover Removal

1. Find the battery (A) on the top assembly (Figure 1-6).

2. Disconnect the battery cable (B) from the mainboard connector (C) (Figure 1-6).

Figure 1-6. Battery Pack Removal

3. Remove the battery pack from the system (Figure 1-7).

Figure 1-7. Battery Pack Removal

IMPORTANT:

Follow local regulations for battery disposal.

WEEE Annex VII Component: Battery

1-8 Disassembly Procedures

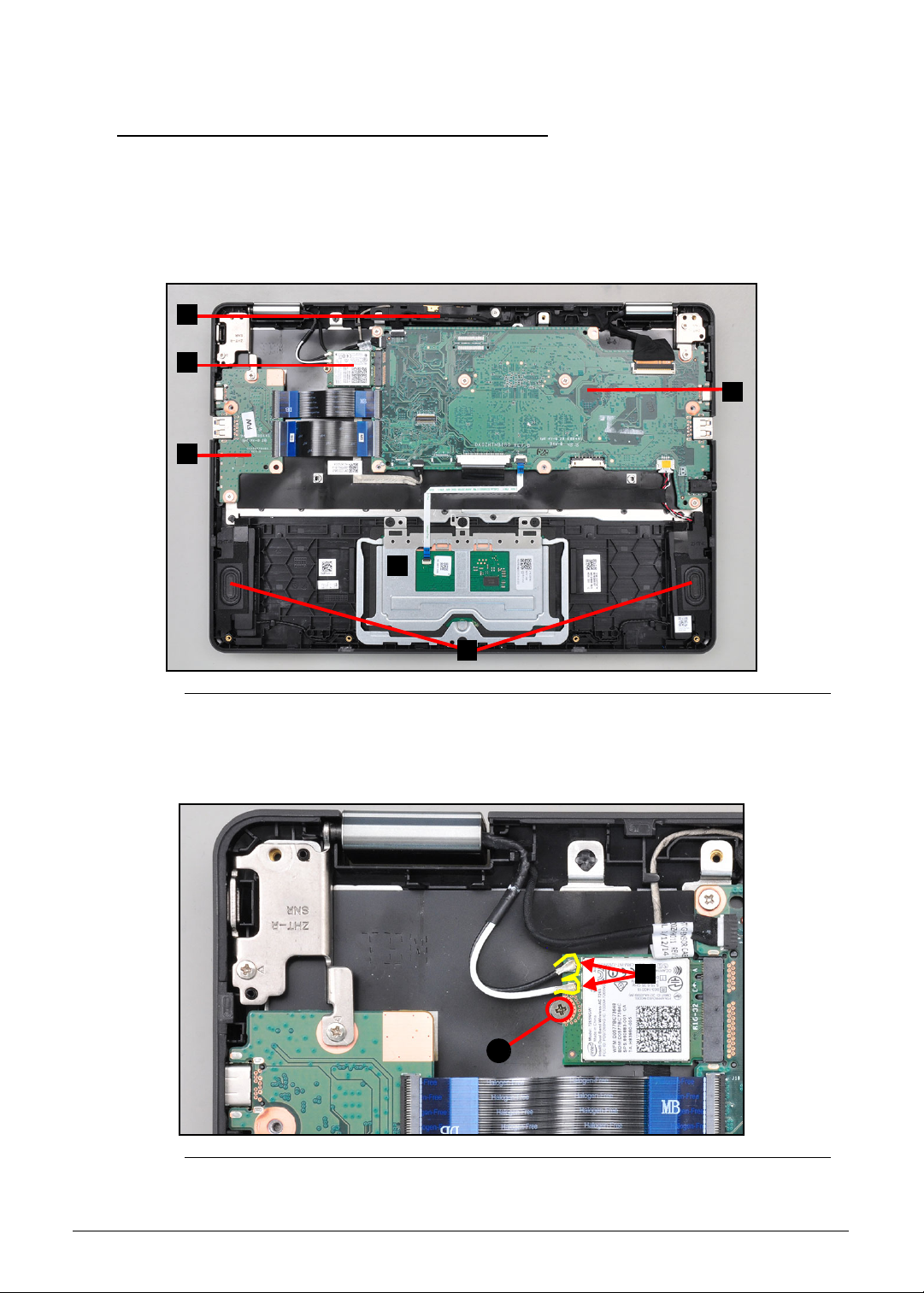

WLAN (Wireless Local Area Network) Module Removal 0

Prerequisite:

Battery Pack Removal

1. Find the WLAN module (B) on the top assembly (Figure 1-8).

Figure 1-8. Component Location

2. Disconnect WLAN antenna cables (A) from the WLAN module (Figure 1-9).

3. Remove one (1) screw (C) securing the WLAN module in place (Figure 1-9).

Figure 1-9. WLAN Module Removal
