Acer ConceptD 3 Ezel Bedienungsanleitung

English

ConceptD 3 Ezel / ConceptD 3 Ezel Pro

Covers: CC314-72 / CC314-72G / CC314-72P / CC315-72 / CC315-72G / CC315-72P

This revision: June 2020

This manual contains proprietary information that is protected by copyright laws. The

information contained in this manual is subject to change without notice. Some features

described in this manual may not be supported depending on the Operating System

version. Images provided herein are for reference only and may contain information or

features that do not apply to your computer. Acer Group shall not be liable for technical

or editorial errors or omissions contained in this manual.

Model number: ________________________________________

Serial number: _________________________________________

Date of purchase: ______________________________________

Place of purchase: _____________________________________

ENVIRONMENT

Temperature:

- Operating: 5 °C to 35 °C

- Storage: -20 °C to 60 °C

Humidity (non-condensing):

- Operating: 20% to 80%

- Storage: 20% to 60%

English

First things first

We would like to thank you for making this ConceptD notebook your choice for

meeting your mobile computing needs.

Your guides

To help you use your ConceptD notebook, we have designed a set of guides:

First off, the Setup Guide helps you get started with setting up your computer.

The Quick Guide introduces you to the basic features and functions of your new

computer.

For more on how your computer can help you to be more productive, please refer to

the ConceptD 3 Ezel / ConceptD 3 Ezel Pro User’s Manual. The ConceptD 3 Ezel

/ ConceptD 3 Ezel Pro User’s Manual contains useful information applying to your

new computer. It covers basic topics such as using the keyboard and audio, etc.

This guide contains detailed information on such subjects as system utilities, data

recovery, expansion options and troubleshooting. In addition it contains warranty

information and the general regulations and safety notices for your notebook.

The User’s Manual can be downloaded from the Acer support website by going to:

http://go.acer.com/?id=17883

Software installation

The first time you turn on your computer, it will automatically install software and set

up for use. This may take some time, please do not turn off your computer; wait until

the installation has finished.

Recovery

You should create recovery backups as soon as you can. The Acer Care Center

program allows you to create recovery backups and then to restore or reinstall

applications and drivers provided by Acer.

Having trouble?

Acer provides several options to support your purchase.

Acer support

Make sure you write down your computer serial number, date and place of purchase

and model name on the area provided in this guide; save your proof of purchase.

Before you call us, please write down any error message that accompanies the

English

problem, and have the computer in front of you and switched on if possible. Having

these items to hand when contacting us will ensure better and quicker service.

Acer website

Remember to visit www.acer.com and refer to the support section for up-to-date

information, help, drivers and downloads.

Warranty and contact information

You can find information about the warranty for your computer and how to contact

technical support in your computer’s Warranty.

Your ConceptD notebook tour

English

Your ConceptD notebook tour

After setting up your computer as illustrated in the Setup Guide, let us show you

around your new ConceptD computer.

Screen view

#Icon Item Description

1 Microphones Internal stereo digital microphones for sound

recording.

2Webcam

Web camera for video communication.

A light next to the webcam indicates that the

webcam is active.

3Touchscreen Displays computer output, supports multi-touch

input.

Battery indicator

Indicates the computer’s battery status.

Blinking Amber when the battery is charging or

reaches the low battery level.

Amber when fully charged (with the AC adapter

plugged in).

Power indicator Indicates the computer’s power status.

English

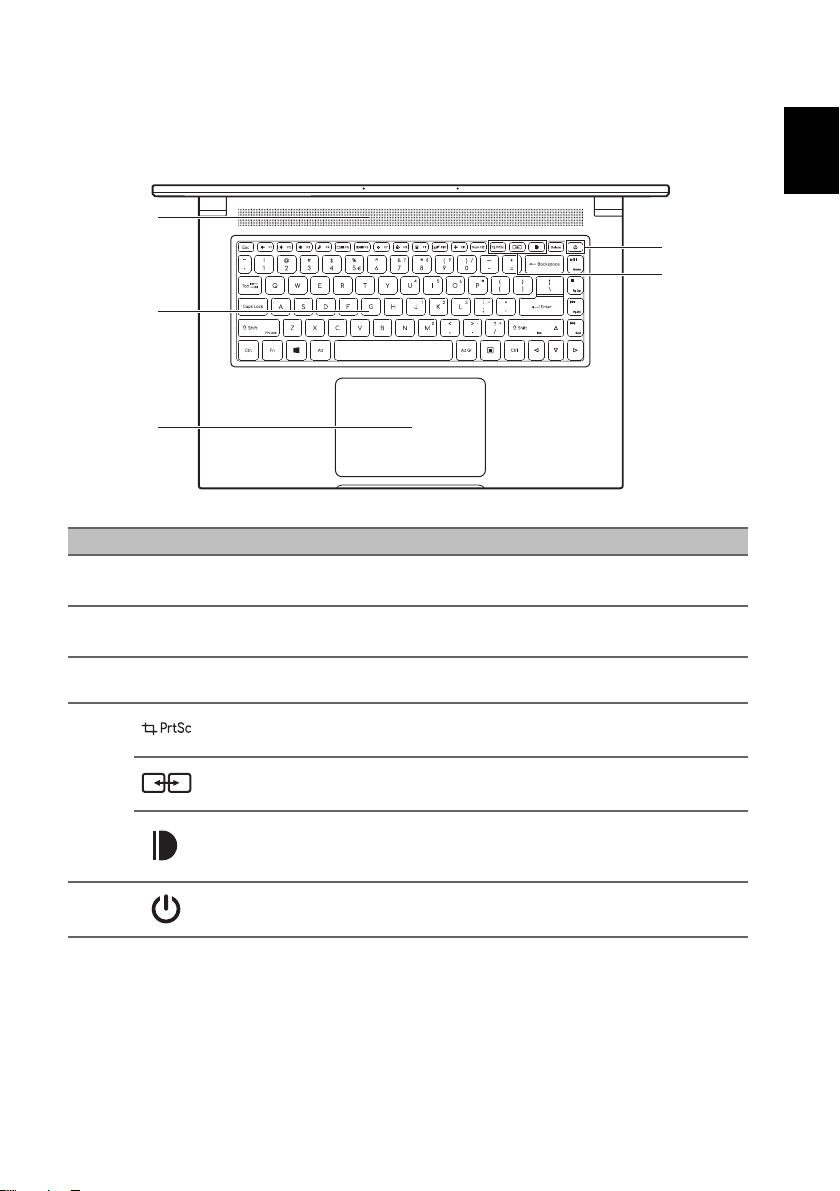

Keyboard view

#Icon Item Description

1Ventilation Allows the computer to stay cool.

Do not cover or obstruct the openings.

2Backlit keyboard For entering data into your computer.

See "Using the keyboard" on page 9.

3Touchpad Touch-sensitive pointing device.

Snipping tool key Snips a rectangle, freeform, window or full screen

to your clipboard.

Swapping apps key Switches to current and previous windows quickly.

ConceptD key

Opens the Color Picker window (Default). You can

change the setting in the ConceptD Palette

application.

5Power button Turn the computer on and off.

Your ConceptD notebook tour

English

Right view

12 5463

#Icon Item Description

1Headset/speaker jack Connects to audio devices (e.g., speakers,

headphones)

2SD card reader

Accepts one Secure Digital (SD, SDHC or SDXC)

card.

Only one card can operate at a time.

3USB port with power-

off charging Connects to USB devices.

4USB port Connects to USB devices.

5Ethernet (RJ-45) port

(selected models only)

Connects to an Ethernet 10/100/1000-based network.

Pull the lip down to open the port fully.

6Ventilation and cooling

fan

Allows the computer to stay cool.

Do not cover or obstruct the openings.

USB 3.2 Gen 1 information

• USB 3.2 Gen 1 compatible ports are blue.

• Compatible with USB 3.2 Gen 1 and earlier devices.

• For optimal performance, use USB 3.2 Gen 1-certified devices.

• Defined by the USB 3.2 Gen 1 specification (SuperSpeed USB).

English

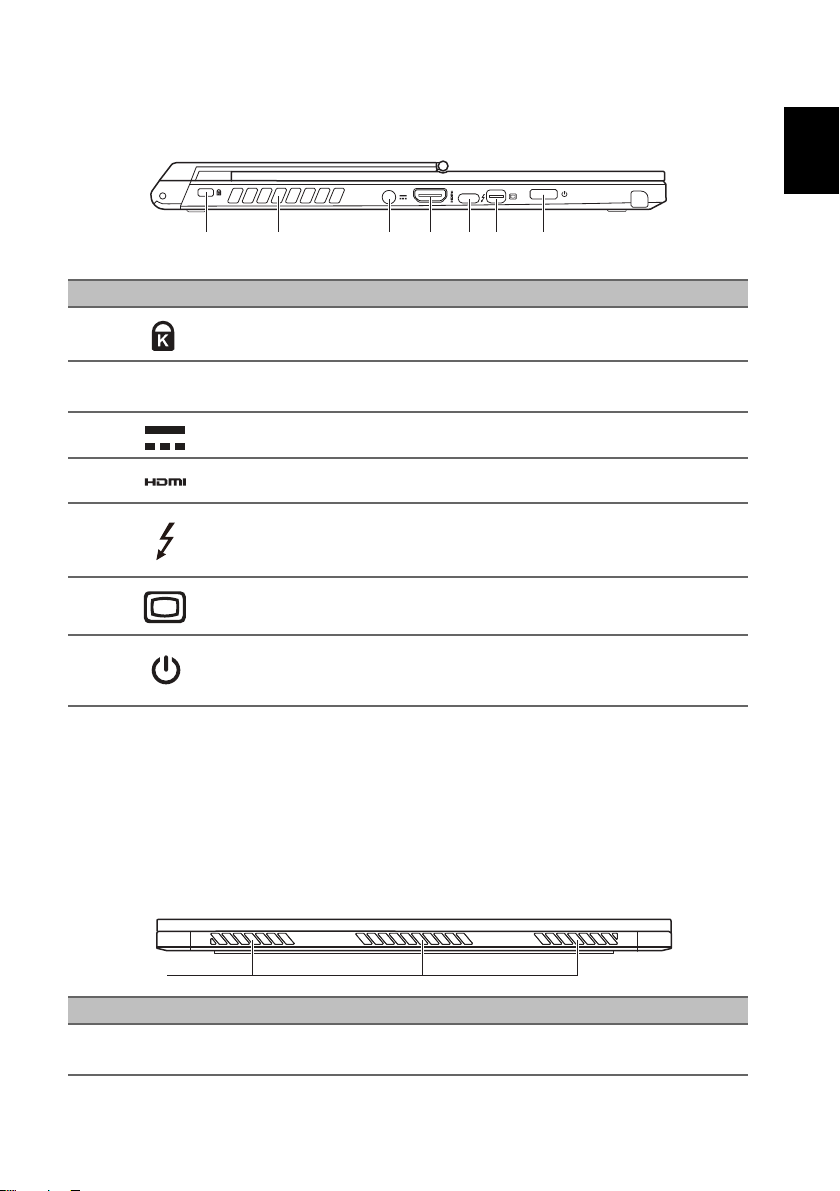

Left view

2134567

#Icon Item Description

1Kensington lock slot Connects to a Kensington-compatible security lock.

2Ventilation and cooling

fan

Allows the computer to stay cool.

Do not cover or obstruct the openings.

3DC-in jack Connects to an AC adapter.

4HDMI port Supports high-definition digital video connections.

5USB Type-C /

Thunderbolt 3 port

Connects to USB devices with a USB Type-C

connector.

Supports Thunderbolt™ 3 and displays.

6Mini DisplayPort Connects to an external display device.

7Power button with

fingerprint reader

Press to turn the computer on and off.

Touch lightly to use fingerprint reader for Windows

Hello and security.

USB Type-C information

• USB 3.2 Gen 2 with transfer speeds up to 10 Gbps.

• Supports DisplayPort™ audio/video output.

• Compatible with Thunderbolt™ 3.

Rear view

#Icon Item Description

1Ventilation Allows the computer to stay cool.

Do not cover or obstruct the openings.

Your ConceptD notebook tour

English

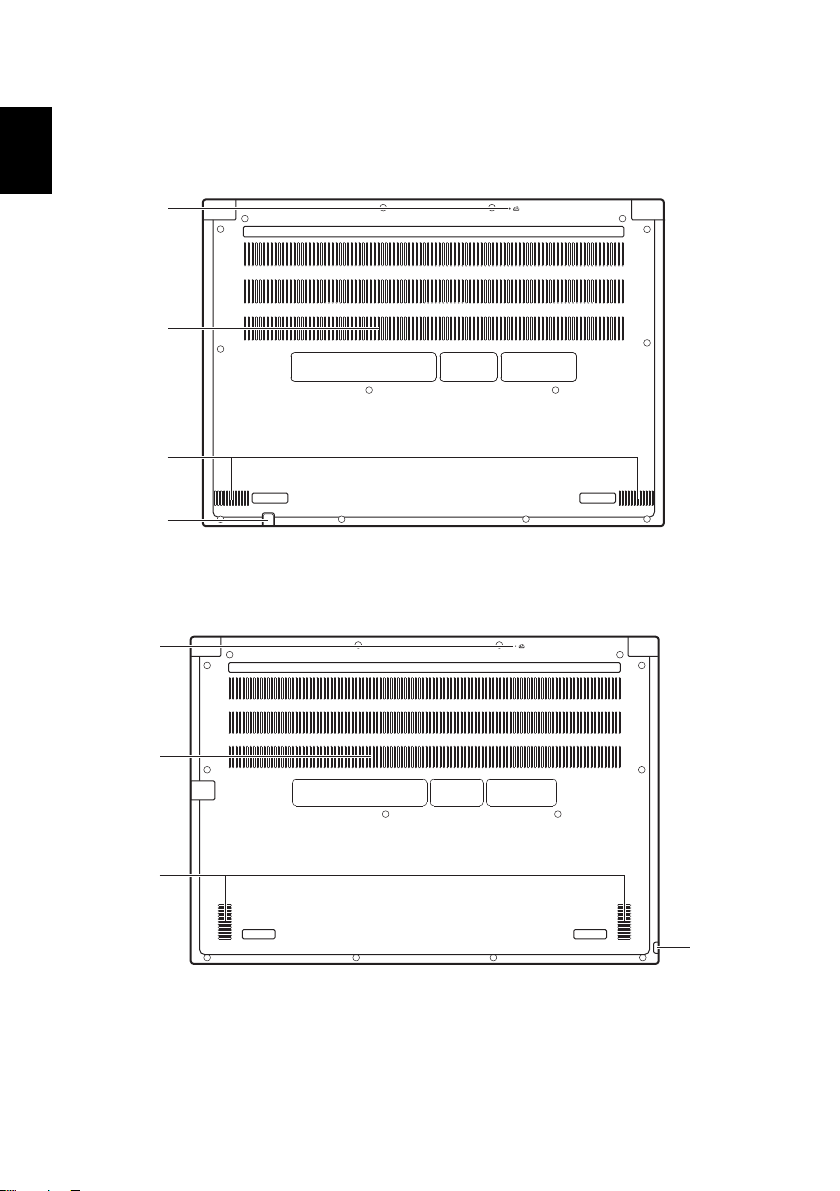

Base view

CC314-72 / CC314-72G / CC314-72P

CC315-72 / CC315-72G / CC315-72P

English

Using the keyboard

The keyboard has full-sized keys, a numeric keypad, separate cursor, lock, Windows,

special keys and hotkeys.

Special keys

Your computer’s keyboard includes keys that activate special functions. The function

of each key is clearly marked with an icon. You can press Fn + Shift (FnLock) to

swap the hotkey and special function of the F1 to F12 keys

#Icon Item Description

1 Battery reset pinhole

Simulates removing and reinstalling the battery.

Insert a paperclip into the hole and press for four

seconds.

2Ventilation and cooling

fan

Allows the computer to stay cool.

Do not cover or obstruct the openings.

3 Speakers Deliver stereo audio output.

4Rechargeable active

stylus Draws, writes or highlights the text.

Icon Description

Turns the speakers on and off.

Decreases the sound volume.

Increases the sound volume.

Turns the microphones on and off.

Switches display output between the display screen, external

monitor (if connected) and both.

Turns the display screen backlight off to save power. Press any

key to return.

Decreases the screen brightness.

Increases the screen brightness.

Using the keyboard

English

Hotkeys

To activate hotkeys, press and hold the Fn key before pressing the other key in the

hotkey combination.

Turns the keyboard backlight on and off.

Turns the built-in touchpad on and off.

Turns on / off the computer's network devices.

Num Turns the Numeric Lock on or off.

Hotkey Icon Description

Fn + Shift Ins Turns Insert on or off.

Fn + Home Scrolls to the beginning of a document.

Fn + Pg Up Scrolls the page up.

Fn + Pg Dn Scrolls the page down.

Fn + End Scrolls to the end of a document.

Icon Description
