Acer TravelMate 3300/Extensa 3100 Series

Service Guide

PRINTED IN TAIWAN

Service guide files and updates are available

on the ACER/CSD web; for more information,

please refer to http://csd.acer.com.tw

Revision History

Please refer to the table below for the updates made on TravelMate 3300/Extensa 3100 service guide.

Date Chapter Updates

2005/11/25 All Revise TravelMate 3300/Extensa 3100 battery spec. on

page 25 and page 26.

2005/12/15 Chapter 1 Add “WFM” to BIOS support protocols on page 23.

III

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular

purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its

dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current

topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific

actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software

problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of

procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

decided for Acer's "global" product offering. To better fit local market requirements and enhance product

competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.

add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered

in this generic service guide. In such cases, please contact your regional offices or the responsible

personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel. If, for whatever reason, a part number change is made, it will

not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer

office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and

service of customer machines.

Chapter 1 1

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Performance

TIntel®915GM PCI Express chipset

TIntel®Pentium®M processor 740/750/760/770/780 (2MB L2 cache, 1.60/1.73/1.86/2/2.13/2.26

GHz, 533 MHz FSB)

TIntel®Celeron®M processor 360/370/380 (1MB L2 cache, 1.40/1.50/1.60 GHz, 400 MHz FSB)

TCPU Package is uFPGA 478 Package

TIntegrated Intel®PRO/Wireless 2200BG network connection (dual-mode 802.11b/g) Wi-Fi

CERTIFIEDTM solution

Memory

T256MB or 512MB of DDRII 400/533

TUpgradeable to 2GB Memory by Dual channels of SODIMM

T512KB flash ROM BIOS

Display and graphics

T14.1” WXGA Acer Crystallbrite clolor TFT LCD: 1280x 800 resolution

T14.1” WXGA clolor TFT LCD: 1280x 800 resolution

T16.7 million colors

TIntel®915GM integrated 3D graphics, featuring Intel®Graphics Media Accelerator 900 and up to

128 MB of VRAM, supporting Microsoft®DirectX®9.0 and dual independent display

TMPEG-2/DVD hardware-assisted capability

Audio

TAudio system with two built-in speakers

TIntel®AC’97 audio support

TSound Blaster Pro and MS Sound compatible

TBuilt-in microphone

TS/PDIF (Sony/Philips Digital interface)

Storage

T40/60/80/100/12060 GB ATA/100 hard disc drive

TOptical drive options: DVD-Dual double-layer or DVD/CD-RW combo

T5-in-1 card reader (MS/MS PRO/MMC/SD/XD)

Communication

T56Kbps ITU V92 with PTT approval; Wake-on-Ring ready

TLAN: gigabit Ethernet; Wake-on-Ring ready

System Specifications

Chapter 1

2Chapter 1

TWLAN (optional):

TIntegrated Intel®PRO/Wireless 2200BG network connection (dual-band 802.11b/g) Wi-Fi

CERTIFIEDTM solution, supporting Acer SignalUpTM wireless technology, or

TIntegrated Acer InviLinkTM 802.11b/g Wi-Fi CERTIFIEDTM solution, supporting Acer

SignalUpTM wirelss technology

TWPAN (optional): Integrated Bluetooth®

I/O Ports

TThree USB 2.0 port

T5-in-1 card reader (MS/MS PRO/MMC/SD/XD)

TOne Type II PC Card slot

TIEEE 1394 port (6-pin)

TFast infrared (FIR) port

TExternal display (VGA) port

THeadphones/speaker/line-out port with S/PDIF support

TMicrophone-in jack

TLine-in jack

TEthernet (RJ-45) port

TModem (RJ-11) port

TDC-in jack (AC adapter)

TOne external monitor port

T124-pin Acer ezDock connector

Dimensions and weight

T330(W) x 240(D) x 23/31.3(H) mm (12.9 x 9.45 x 10.91/1.23 inches)

T1.9Kg (4.23 lbs)

Environment

TTemperature

TOperating: 5oC ~ 35oC

TNon-operating: -20oC ~ 65oC

THumidity ( non-condensing)

TOperating: 20% ~ 80% RH

TNon-operating: 20% ~ 80% RH

Chapter 1 3

Mainboard Layout

Top View

1 Fan Connector (FAN1) 6 5-in-1 Card Reader Slot (CARD1)

2 LCD Cable Connector (LCD1) 7 RTC Battery Connector (RTC1)

3 IEEE 1394 Connector (SKT1) 8 Bluetooth Module Connector (BT1)

4 USB Port (SKT2) 9 Touchpad FFC Connector (TPAD1)

5 PC Card Slot (PCH1 or U22) 10 Keyboard Connector (KB1)

4Chapter 1

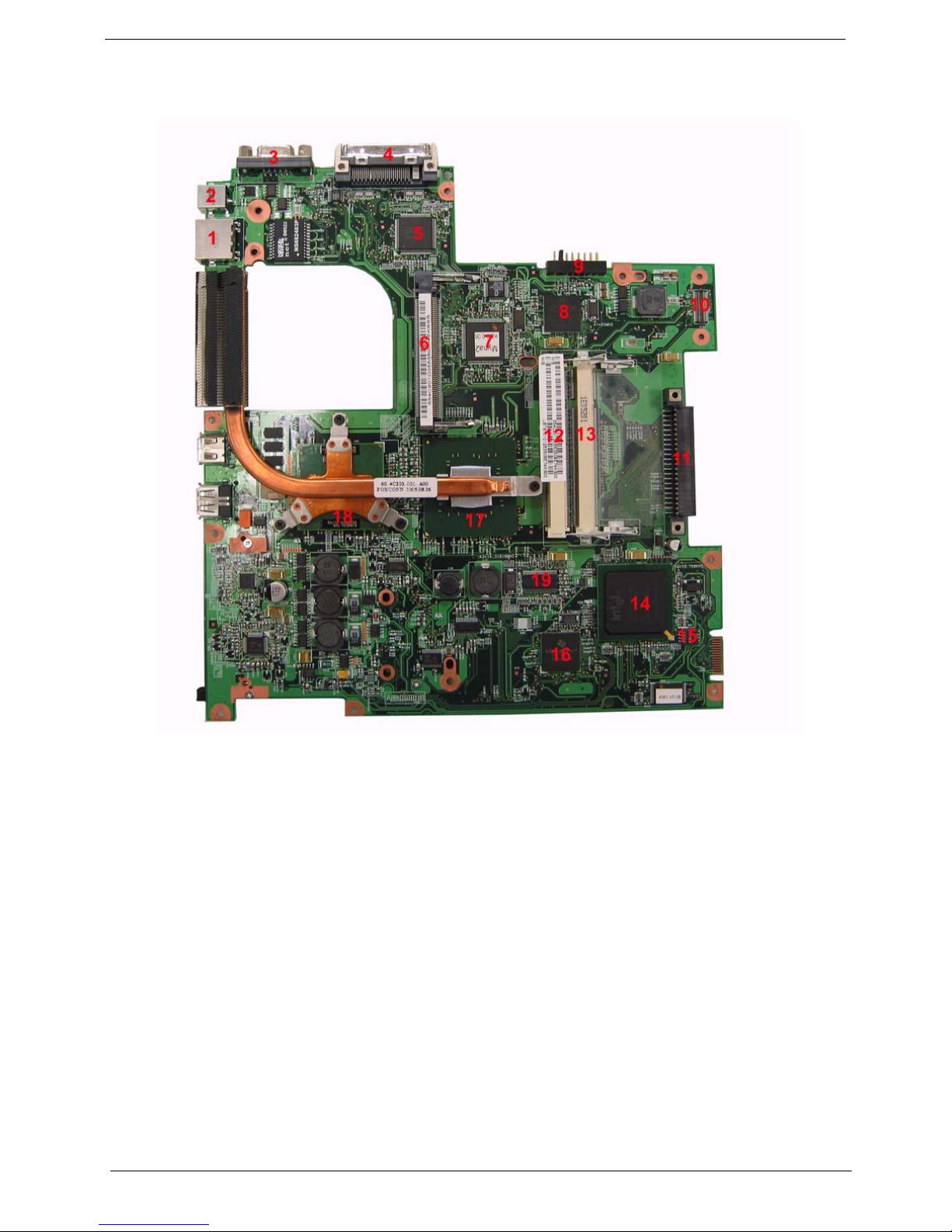

Bottom View

1 Giga LAN Port (JK1) 10 Main Board to IO Board Connector

(IOB1)

2 Power Jack (DCIN1) 11 HDD Connector (HDD1)

3 VGA Port (CRT1) 12 DIMM Slot (DM2)

4 ezDock Port (DOCK1) 13 DIMM Slot (DM1)

5 IO Controller-PC 87392 (U27) 14 South Bridge-Intel ICH6-M (U44)

6 Wireless LAN Card Slot (WIN1) 15 Switch (SW8)

7 Keyboard Controller (U32) 16 Cardbus/1394/Card Reader

Controller-UltraMedia PCI 7411

(U52)

8 LAN Controller-BROADCOM

BCM5788M (U31)

17 North Bridge (U34)

9 Battery Connector (BAT1) 18 CPU (U33)

19 Power Generator-IDT CV125PA

(U41)
