Extensa 4630/4630Z/4230/

4230Z Series

Quick Guide

This company makes no representations or warranties, either express or implied, with respect

to the contents hereof and specifically disclaims the implied warranties of merchantability or

fitness for a particular purpose. Although care has been taken to ensure accuracy, this

company shall not be liable for any errors (including, but not limited to, typos, factual errors,

etc.) contained in this publication.

Changes may be made periodically to the information in this publication without obligation

to notify any person of such revisions or changes. Such changes will be incorporated in new

editions of this manual or supplementary documents and publications. This company makes

no representations or warranties, either expressed or implied, with respect to the contents

hereof and specifically disclaims the implied warranties of merchantability or fitness for a

particular purpose.

Record the model number, serial number, purchase date and place of purchase information in

the space provided below. The serial number and model number are recorded on the label

affixed to your computer. All correspondence concerning your unit should include the serial

number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in

any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,

without the prior written permission of Acer Incorporated.

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

Extensa 4630/4630Z/4230/4230Z Series Quick Guide

Original Issue: 07/2008

Extensa 4630/4630Z/4230/4230Z Series Notebook PC

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'

product names or trademarks are used herein for identification purposes only and belong to

their respective companies.

First things first

We would like to thank you for making an Acer notebook your choice for

meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides:

First off, the Just for Starters...poster helps you get started with setting up your

computer.

The Extensa Series Generic User Guide contains useful information applying to

all models in the Extensa product series. It covers basic topics such as Acer's

Empowering Technology, using the keyboard, audio, etc. Please understand

that due to its nature, the Generic User Guide as well as the AcerSystem User

Guide mentioned below will occasionally refer to functions or features which

are only contained in certain models of the series, but not necessarily in the

model you purchased. Such instances are marked in the text with language such

as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new

computer. For more on how your computer can help you to be more productive,

please refer to the AcerSystem User Guide. This guide contains detailed

information on such subjects as system utilities, data recovery, expansion

options and troubleshooting. In addition it contains warranty information and

the general regulations and safety notices for your notebook. It is available in

Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1 Click on Start, All Programs, AcerSystem.

2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not

installed on your computer, clicking on AcerSystem User Guide will run the

Adobe Reader setup program first. Follow the instructions on the screen to

complete the installation. For instructions on how to use Adobe Reader,

access the Help and Support menu.

English

Your Acer notebook tour

After setting up your computer as illustrated in the Just for Starters... poster,

let us show you around your new Acer notebook.

Top view

#Icon Item Description

1 Microphone Internal microphone for sound recording.

English

2 Acer Crystal Eye Web camera for video communication

(only for certain models).

3 Display screen Also called Liquid-Crystal Display (LCD),

displays computer output.

4 Empowering key Launch Acer Empowering Technology.

5 Status indicators Light-Emitting Diodes (LEDs) that light up

to show the status of the computer's

functions and components. Please refer

to the Generic User Guide for more

details.

6 Speakers Left and right speakers deliver stereo

audio output.

7 Keyboard For entering data into your computer.

8 Palmrest Comfortable support area for your hands

when you use the computer.

9 Click buttons (left,

center* and right)

The left and right buttons function like

the left and right mouse buttons.

*The center button serves as Acer

BioProtect fingerprint reader supporting

Acer FingerNav 4-way control function

(only for certain models).

10 Touchpad Touch-sensitive pointing device which

functions like a computer mouse.

11 Power button Turns the computer on and off.

12 Easy-launch buttons Buttons for launching frequently used

programs. Please refer to the Generic

User Guide for more details.

13 Productivity keys Three productivity keys give users one-

touch access to protection and

manageability features for a more secure,

smarter and easier way to work. Please

refer to the Generic User Guide for more

details.

#Icon Item Description

English

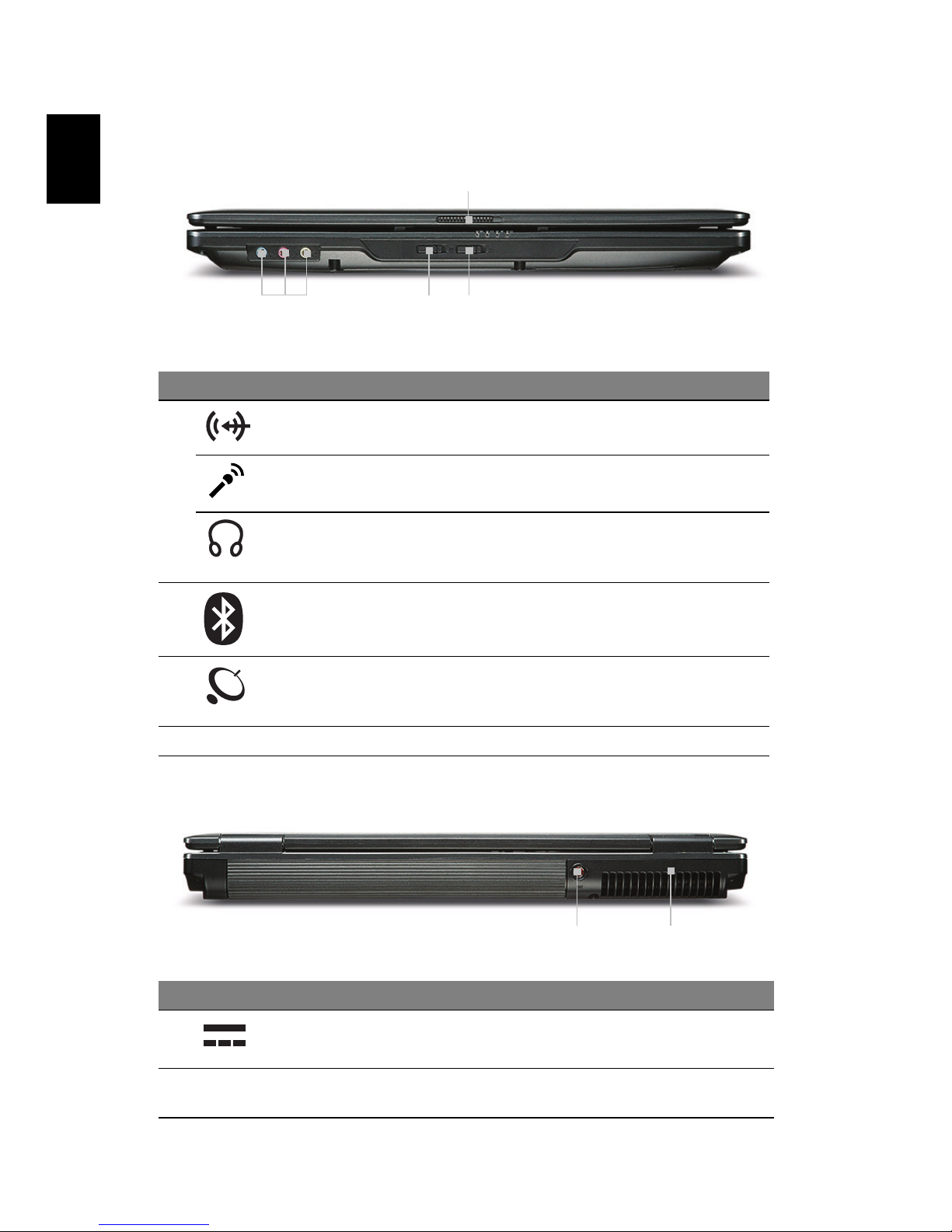

Closed front view

Rear view

#Icon Item Description

1 Line-in jack Accepts audio line-in devices (e.g., audio

CD player, stereo walkman, mp3 player)

Microphone jack Accepts inputs from external microphones.

Headphones/

speaker/line-out

jack.

Connects to audio line-out devices

(e.g., speakers, headphones).

2Bluetooth

communication

switch

Enables/disables the Bluetooth function.

(only for certain models)

3 Wireless LAN

communication

switch

Enables/disables the wireless LAN function.

4 Latch Locks and releases the lid.

#Icon Item Description

1 DC-in jack Connects to an AC adapter.

2 Ventilation slots Enable the computer to stay cool, even after

prolonged use.

123

English

Left view

#Icon Item Description

1 Acer EasyPort IV

connector

Connects to Acer EasyPort IV

(only for certain models).

2 Ethernet (RJ-45)

port

Connects to an Ethernet 10/100/1000-

based network.

3 External display

(VGA) port

Connects to a display device (e.g.,

external monitor, LCD projector).

4 HDMI HDMI port Supports high definition digital video

connections (only for certain models).

5 USB 2.0 port Connect to USB 2.0 devices (e.g., USB

mouse, USB camera).

6 5-in-1 card reader Accepts Secure Digital (SD),

MultiMediaCard (MMC), Memory Stick

(MS), Memory Stick Pro (MS PRO), and

xD-Picture Card.

Note: Push to remove/install the card.

Only one card can operate at any given

time.

7 PC Card slot Accepts one Type II PC Card.

8 PC Card slot eject

button

Ejects the PC Card from the slot.

12 3 4 5 678

English

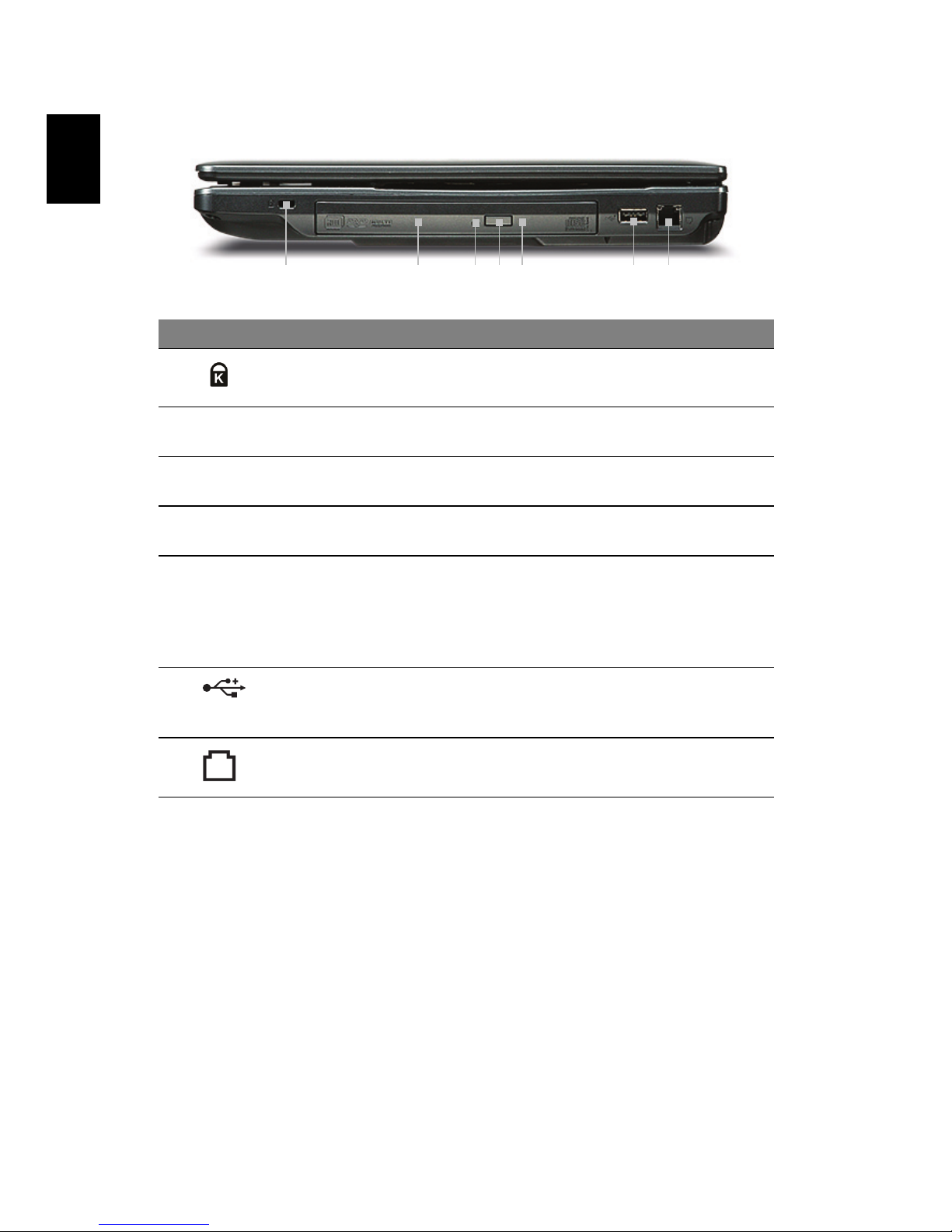

Right view

#Icon Item Description

1 Kensington lock

slot

Connects to a Kensington-compatible

computer security lock.

2 Optical drive Internal optical drive; accepts CDs or

DVDs.

3 Optical disk

access indicator

Lights up when the optical drive is active.

4 Optical drive

eject button

Ejects the optical disk from the drive.

5 Emergency eject

hole

Ejects the optical drive tray when the

computer is turned off.

Note: Insert a paper clip to the emergency

eject hole to eject the optical drive tray

when the computer is off.

6 USB 2.0 port Connects to USB 2.0 devices

(e.g., USB mouse, USB camera)

(only for certain models).

7Modem

(RJ-11) port

Connects to a phone line.

1234567

English

Base view

#Icon Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery lock Locks the battery in position.

3 Memory compartment Houses the computer's main memory.

4 Hard disk bay Houses the computer’s hard disk

(secured with screws)

5 Ventilation slots Enable the computer to stay cool, even

after prolonged use.

6 Battery release latch Releases the battery to remove the

battery pack.

English

Specifications

Operating

system • Genuine Windows Vista™

Platform •Intel

®Centrino®2 processor technology*, featuring:

•Intel

®Core™2 Duo processor*

• Mobile Intel®PM45/GM45 Express Chipset*

•Intel

®Wireless WiFi Link 5100/5300*

•Intel

® Wireless WiFi Link 5150/5350

(Subject to availability)

•Intel

®Pentium®dual-core processor*

•Intel

®Celeron®processor*

• Mobile Intel®GL40 Express Chipset*

• Acer InviLink™Nplify™802.11b/g/Draft-N*

• Acer InviLink™802.11b/g*

System memory • Dual-Channel SDRAM support

• Up to 2 GB of DDR2 667 MHz memory, upgradeable

to 4 GB using two soDIMM modules

Display • 14.1" WXGA 1280 x 800

Graphics • Mobile Intel®GL40 Express Chipset*

• Mobile Intel®GM45 Express Chipset*

•NVIDIA

®GeForce®9300M GS*

Storage

subsystem

• 2.5" hard disk drive

•Intel

®Turbo Memory supported*

• Optical drive options:

• Blu-ray Disc™/DVD-Super Multi double-layer

drive*

• DVD-Super Multi double-layer drive*

• DVD/CD-RW combo drive*

• 5-in-1 card reader

Audio • Two built-in Acer 3DSonic stereo speakers

• High-definition audio support

• MS-Sound compatible

• Built-in microphone
