This chapter provides some basic information on

options available for your Extensa computer.

For more detailed information, please refer to

the installation instructions that come with your

option.

To get the most up to date list of options

available with your Extensa computer, please

call 1-800-TI-TEXAS, option 2, then 1, in the

United States or Canada. Outside of the United

States or Canada, please contact your local

Texas Instruments dealer. A listing of local

dealers is available at the end of this User’s

Guide.

Contents

AC Adapter

................................

...................

4-2

PC Cards

................................

......................

4-3

PS/2 Devices

................................

................

4-4

External Monitor

................................

..........

4-5

External Mouse

................................

............

4-6

Memory

................................

........................

4-7

Audio Options

................................

..............

4-8

External Floppy Disk Drive

...........................

4-9

Miscellaneous Options

................................

4-10

AC Adapter

4-2

Your Extensa uses a small lightweight external

AC adapter to charge and power the computer.

The AC adapter can be operated anywhere

between 100 - 240 volts AC and has a

detachable AC power cord.

Caution: Use only the AC adapter

recommended in this document (TI Part No.

9813497-0004). Another adapter may damage

your computer.

AC Adapter

DC Connector

AC Adapter

Female Connector

Male Plug

PC Cards

4-3

Your Extensa computer supports all PCMCIA PC

Cards. These PC cards are used to add

functionality to your computer, such as

communicating over a telephone or connecting

to a network.

The computer has built-in slots that support one

Type III or two Type II/I PC Cards. Type III PC

Cards must be inserted into the lower slot.

PS/2 Devices

4-4

Your Extensa computer supports external

devices that connect to a PS/2 port. Such

devices include an external numeric keypad,

external keyboards, or external mouse.

External Monitor

4-5

You can connect the computer to external

monitors, many of which can display resolutions

higher than 640 x 480.

When the computer is connected to an external

monitor, you can use the computer with the

display closed.

You can also display images on the external and

internal display at the same time. This feature

is called SimulSCAN™. To enable this feature,

set the DISPLAY parameter in Setup to Both. You

can also easily switch between the displays LCD,

CRT or both by using the Fn+F12 hot key.

External Mouse

4-6

Although your Extensa computer comes with a

pointing device already installed, you may use

an external PS/2 or serial mouse.



To connect a PS/2 mouse, insert the

connector into the the PS/2 port in the rear

of the Extensa.



To connect a serial mouse, attach the

connector to the 9-pin serial port in the rear

of the Extensa.

To detect a serial mouse once plugged in,

use the Add New Hardware icon in the

Control Panel.

Memory

4-7

Your computer is equipped with 8 MB of random

access memory (RAM), occupying one memory

upgrade slot. There is another memory upgrade

slot on the computer. You can increase memory

by installing an upgrade module into this slot.

You can expand RAM from 8 MB up to 64 MB.

Caution: TI does not warrant the use any

memory other than that supplied by TI

specifically for the Extensa computer. TI will

not be held responsible for problems or

degradation of performance incurred by using

any memory other than TI memory described

in this document.

Audio Options

4-8

Your system comes with a set of built-in stereo

speakers, but if you wish to use other stereo

equipment and/or use a microphone, the

computer comes with three audio jacks — Line-

out, Line-in and Microphone-in.

Connecting Audio Devices

Line Out allows you to use a headset or external

speakers. The computer’s internal speakers are

disabled when a headset or external speakers

are plugged in.

Line In connects to an external stereo source.

This allows you to play an external CD through

the system speakers, for example, or make a

recording if you have the correct software.

Microphone-in allows you to record input into

the computer through an external microphone.

External Floppy Disk Drive

4-9

To connect the external floppy disk drive to your

computer you will need the floppy disk drive

cable that was included in the accessory box

with the floppy disk drive.

Follow these steps.

1. Plug the 25-pin end of the floppy disk drive

cable into the parallel port on the rear panel

of the computer.

2. Attach the other end of the cable to the floppy

disk drive.

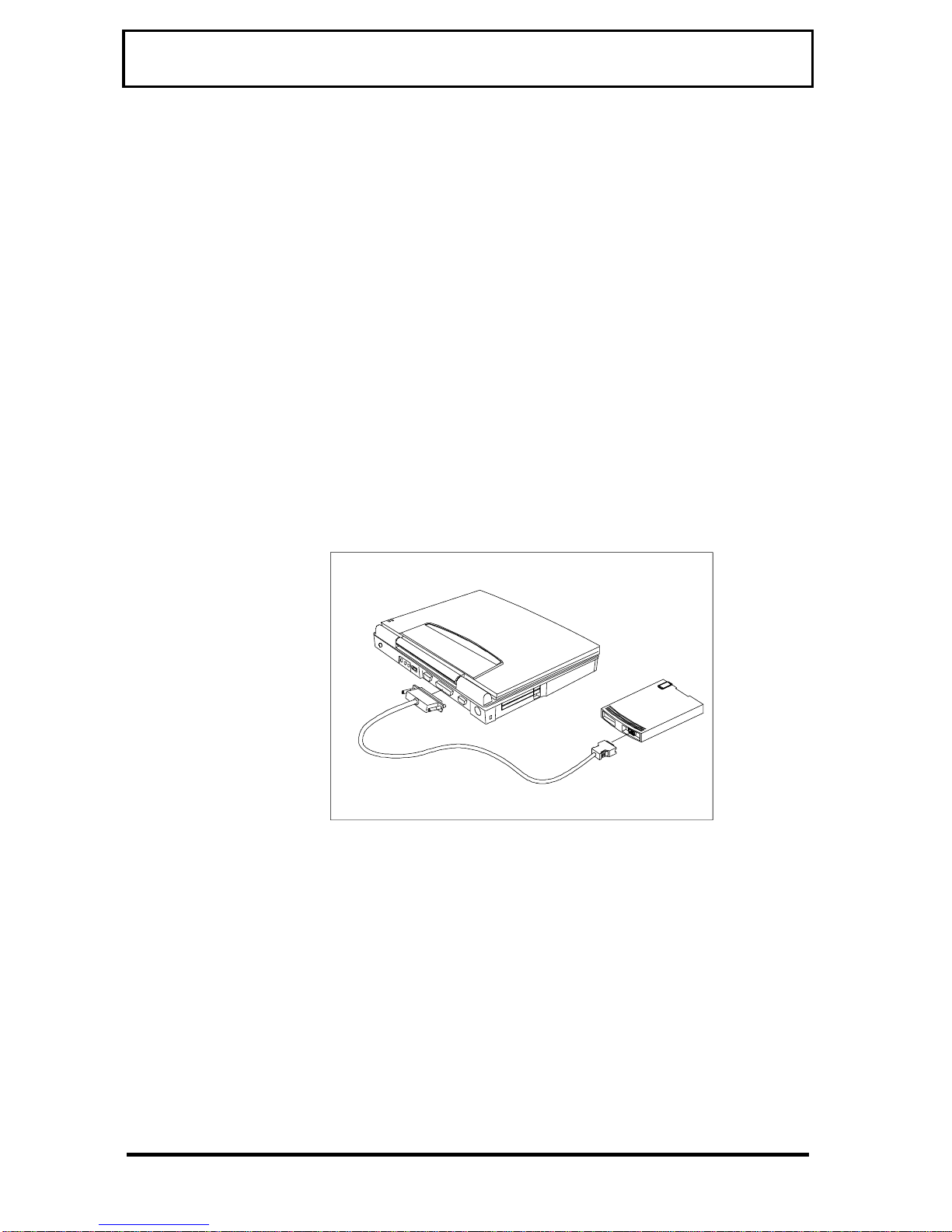

Connecting an External Floppy Disk Drive

Miscellaneous Options

4-10

Your Extensa computer can accept many

additional options, and Texas Instruments is the

best source for these options. Some of the

additonal options include:

Batteries You can purchase spare batteries —

Duracell NiMH or Li-Ion — from your

local computer store or directly from

Duracell. A list of phone numbers to

call to order the Duracell batteries is

listed in your system. Simply click on

the Duracell icon to view the directory.

For information on these batteries, refer

to Chapter 3, Using Battery Power.

Carrying

Case Helps protect the computer and

accessories during transport.

Several carrying cases are available

including leather cases, accessory

cases, portfolios and backpacks.

Printers You can connect a parallel printer to

the parallel port or a serial printer to

the serial port connectors.
