ACOM1000 TOP COVER REMOVAL and INSTALLATION

SAFETY FIRST!

W A R N I N G HIGH VOLTAGE!

===========================

The amplifier works with high voltages up to 3000V which is LETHAL! For your

safety pull the amplifier power plug out of the mains wall outlet and WAIT AT

LEAST 30minutes EACH TIME BEFORE you remove the cover of the amplifier.

Disconnect all cables from the amplifier (grounding last). Do not touch any

part inside while the amplifier is open because some residual voltages may

still be present!

1. Removing the top cover.

Using a Philips-2 screwdriver, unscrew 9 pcs of "eco-fix" flange-button head

screws to release the top cover (2x3 pcs on each bottom-side edge, and three

more on the rear-top edge of the box). Don't unscrew four screws that hold the

grid above the tube.

Lift the rear edge of the cover slightly (to 2-3cm) and then pull the cover

backwards, in order to release it from front-panel's chutes. Remove the top

cover.

2

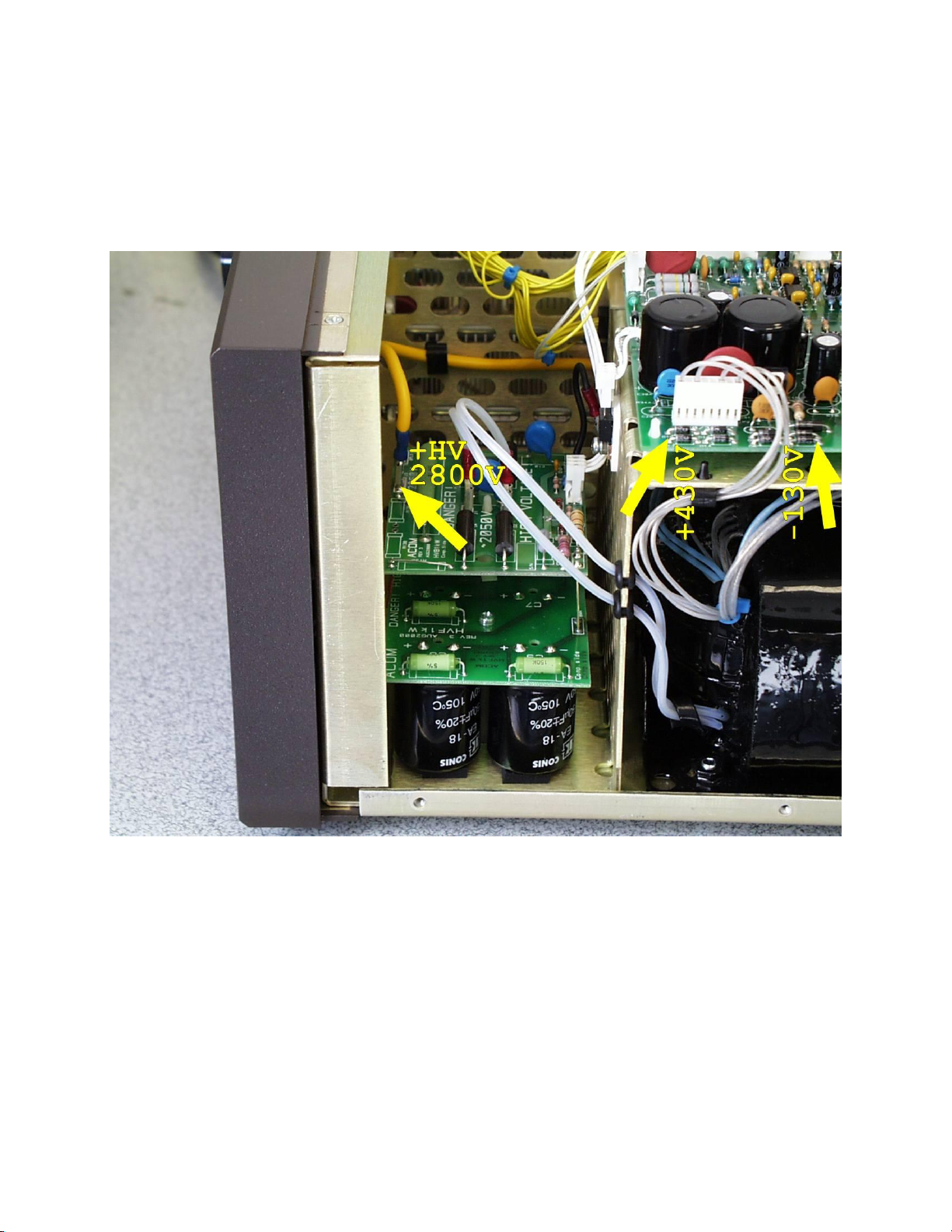

2. Discharging HV capacitors.

Using a piece of wire connected to the rear-panel grounding stud, DISCHARGE

residual charges from THE HV CAPACITORS (if any) by short-circuiting the three

points shown in the picutre below.

3. Installing the top cover.

a) Using a Philips-1 screwdriver, unscrew 15 countersunk-head screws and

remove the RF screen from RF deck. Put the cover on the chassis while

holding its rear edge lifted slightly (to 2-3cm) above the chassis.

Align its horizontal and two vertical front edges to the respective

chutes in the front panel. Then push gently the cover forwards, in order

to insert its front edges into the chutes. Take care especially to the

bottom corners.

b) Screw in loosely all 9 pcs of "eco-fix" flange-button head screws. Use a

Philips-2 screwdriver.

3

c) Pressing continuously the cover towards front and to the bottom, tighten

all 9 screws properly.

- E N D -
