OPERATION MANUAL
FOLDABLE FLOOR FAN
AFF10A
2
3
CONTENTS
1.0
Introduction
3
2.0
Product Overview
4
3.0
Operation Guideline
7
4.0
Safety Instruction
13
5.0
Maintenance
15
6.0
Troubleshooting
17
DISCLAIMER
In complying with the policy for continuous improvement of Acson
Malaysia Sales & Service Sdn Bhd (herein after referred to as
“Acson”), the information contained in this document is subjected to
change without prior notice.
While Acson makes no commitment to update or provide current
information automatically to the manual owner, that information (if
applicable) can be obtained by contacting the nearest Acson office,
distributors or dealers network.
It is the responsibility of the operator or service personnel to verify the
applicability of these documents, then prior to working on the
equipment. They should verify with the owner whether the equipment
has been modified and if current literature is available.
Any and/ or all colours depicted in the marketing materials for this
product are onlyrepresentation of the product and should not betaken
as accurate. Whilst every effort is made to ensure product
consistency, we could not be held responsible for variations between
batches.
4
INTRODUCTION
Acson foldable floor fan helps to circulate the air of your space and
provide ventilation within its proximity.
Product
Foldable Floor Fan
Model Name
AFF10A
Power Supply
220-240V, 50/60Hz
Rated Voltage
DC12V, 1A
Rated Power
14 W
Number of Blade
9 blades
Speed Control
8 levels
Battery Capacity
6600 mAh

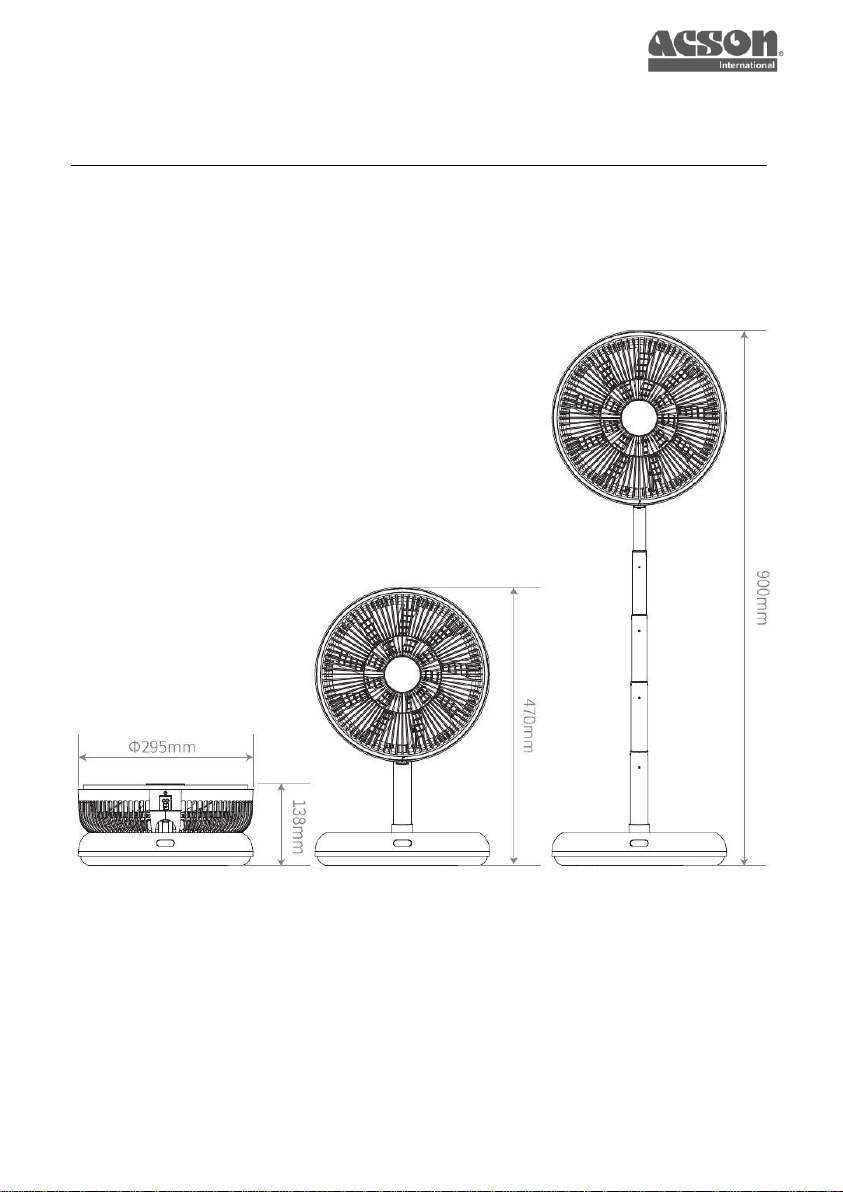

Unit Dimension
(HxWxD)
138 x 300 x 295 mm (Folded)
470 x 300 x 295 mm (Table Fan)
900 x 300 x 295 mm (Floor Fan)
Net Weight
2.1 kg
Material
ABS
5
PRODUCT OVERVIEW
6
Remote Control
Adapter
1
2
3
4
5
6
7
8
9
10
11
12
13
Display Panel
14
15
16
17
18
7
PRODUCT OVERVIEW

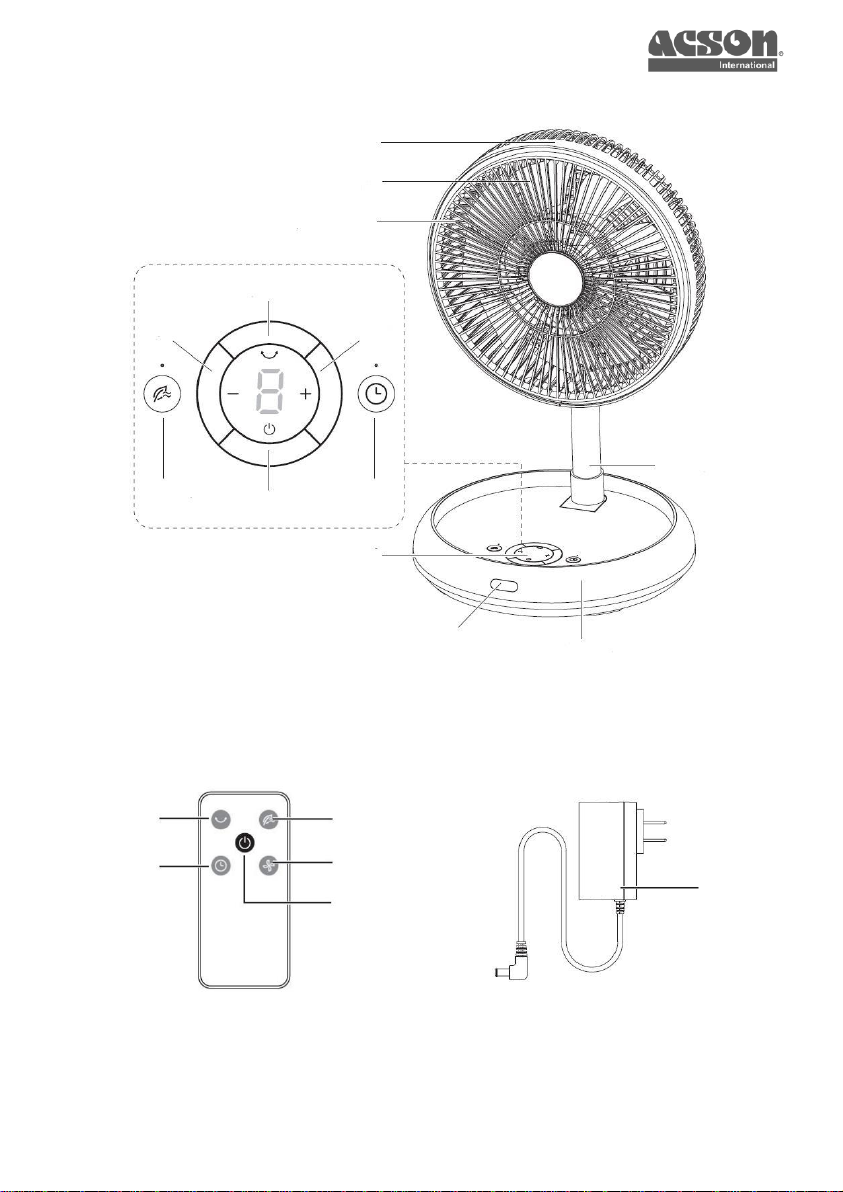

8 levels of airflow control powered by DC brushless motor which
provide high airflow and low noise operation.
1
Front grille (detachable)
2
Fan blade
3
Rear grille
4
Telescopic rod
5
Display panel
6
Infrared receiver
7
Rotating base
8
Swing
9
Fan speed (-)
10
Fan speed (+)
11
Nature Breeze Mode
12
On / Off button
13
Timer
14
Swing
15
Timer
16
Nature Breeze Mode
17
Fan speed
18
On / off button
⚠WARNING: For first time use, please pull out the battery insulation
sheet attached at the back of remote control. Please only use the default
adapter for this fan.
8
OPERATION GUIDELINE
The control panel of this fan is located at the rotating base panel.

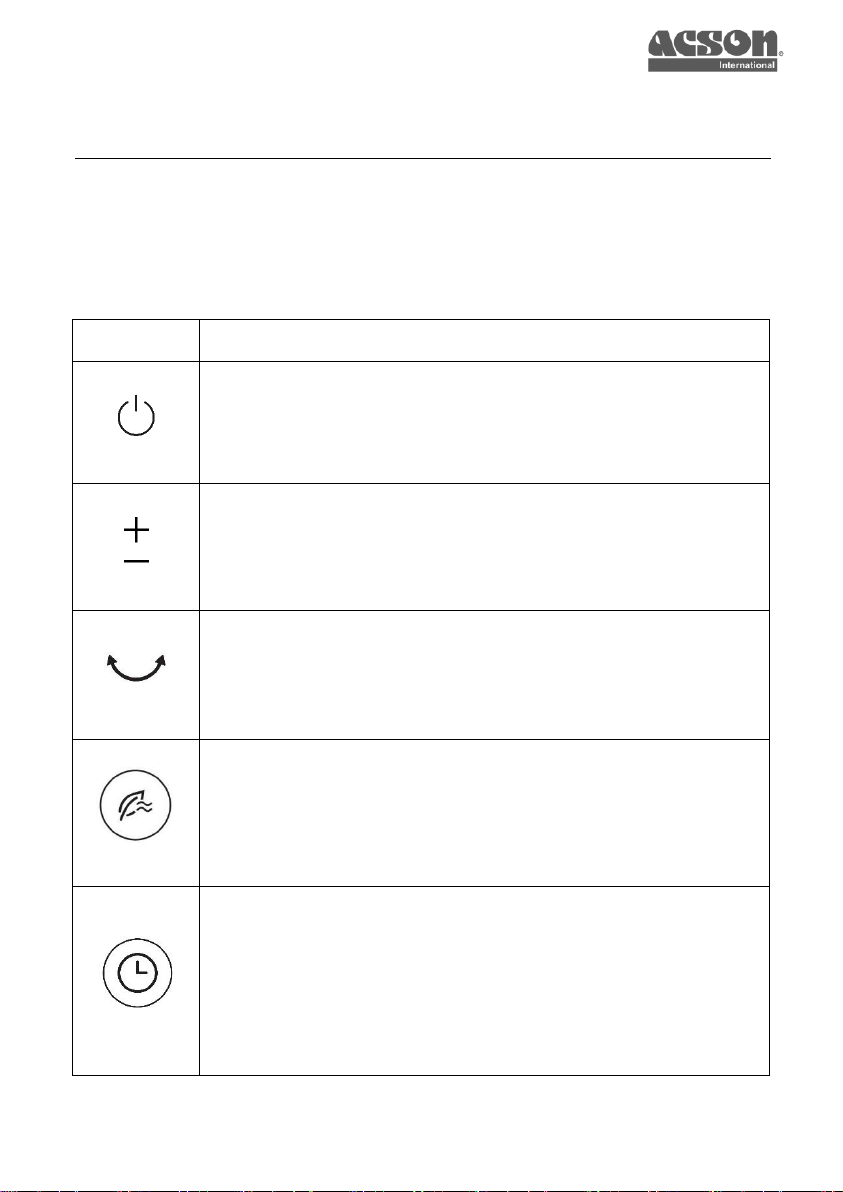

For display panel located on the fan:
Button
Function
On/Off Button
Press this button to turn on the fan.
The fan will automatically run at previous fan speed.
Press again to turn off the fan.
Fan Speed
Press “+/-”to adjust the fan speed by one level.
The display panel will show the corresponding fan
speed based on your selection from 1st to 8th level.
Swing
When the fan is operating, press this button to enable
swing function.
Press again to disable swing function.
Nature Breeze Mode
Press this button, LED lights up indicating Nature
Breeze Mode.
Press again to exit this mode. The fan will return to
its original fan speed.
Timer
Press this button to activate timer.
Press the “+/-” to adjust the timer setting by 1 hour.
The display panel will show the corresponding timer
setting based on your selection from 1 to 8 hours.
When reaching its maximum (8 hours), press this
button to disable timer.
9
OPERATION GUIDELINE
The remote control which come together with this fan serve as an
option to control the fan conveniently.
For remote control:
Button
Function
On/Off Button
Press this button to turn on the fan.
The fan will automatically run at previous fan speed.
Press again to turn off the fan.
Fan Speed
Press each time to increase the fan speed by one
level.
When the fan reached 8th level (highest fan speed),
press again to return to 1st level (lowest fan speed).
Swing
When the fan is operating, press this button to enable
swing function.
Press again to disable swing function.
Nature Breeze Mode
Press this button, LED lights up indicating Nature
Breeze Mode.
Press again to exit this mode. The fan will return to
its original fan speed.

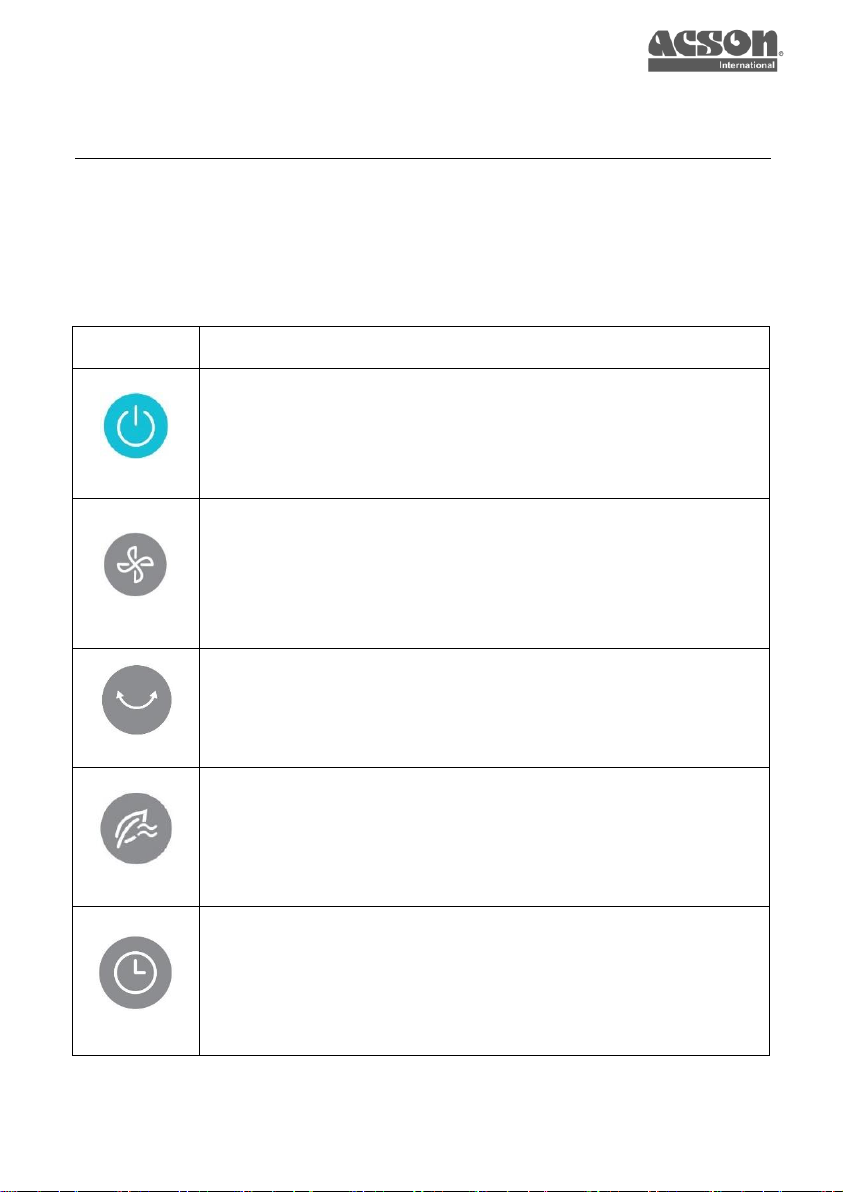

Timer
Press each time to increase the timer setting by one
hour.
When reaching its maximum (8 hours), press again
to turn off timer function.
10
OPERATION GUIDELINE
Before operating this floor fan, please make sure the unit is placed on
a flat surface.

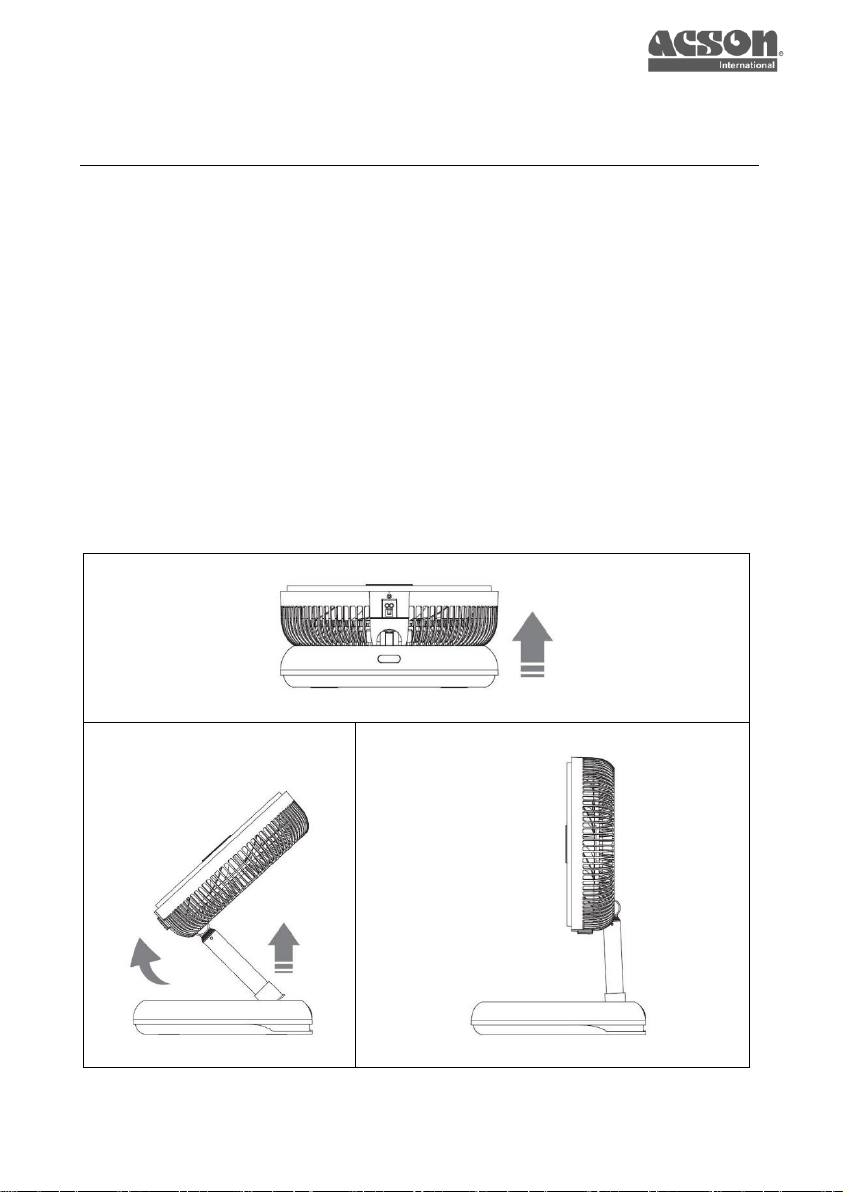

How to setup the fan:
The fan is in a folding state by default.
Open the fan vertically from the head (Figure 1).
Pull the fan head according to the direction of arrow (Figure 2).
When the fan grille reach 180° and parallel to the telescopic
rod, the rod is locked automatically by indicating a click sound
(Figure 3).
You can now start to turn on your fan.
Figure 1
Figure 2
Figure 3
