ActionTec GT701WRU Bedienungsanleitung

Solutions for the Digital Life™

User Manual

54 Mbps

Wireless

Cable Router

Model #: GT701WRU

Table of Contents

1 Introduction 1

Package Contents 1

Minimum System Requirements 2

Features 2

Getting to Know the Router 3

2 Setting Up the Router 7

Connecting the Router

to a Computer and Cable Modem 7

Connecting the Router

to a Computer and Set Top Box 23

3 Performing a Basic Setup 35

Basic Setup 35

Changing the User Name and Password 38

4 Using Advanced Setup 39

Accessing Advanced Setup 39

WAN IP Address 41

Wireless Settings 44

Wireless MAC Authentication 47

Wireless Advanced Settings 48

LAN IP Address 49

DHCP Server 49

Services Blocking 51

Website Blocking 52

Remote Management 53

Port Forwarding 54

DMZ Hosting 55

Firewall 56

Dynamic Routing 56

Static Routing 57

UPnP (Universal Plug and Play) 57

MAC Address Cloning 58

5 Viewing the Router’s Settings 59

Status 59

Routing Table 61

WAN Status 61

LAN Status 62

Active User List 62

Actiontec 54 Mbps Wireless Cable Router User Manual

iii

Table of Contents

6 Using Utilities 63

Web Activity Log 63

Restore Default Settings 64

Upgrade Firmware 65

7 Setting Up a Network 67

Ethernet 67

USB 72

Wireless 77

8 Troubleshooting 83

Troubleshooting 83

Frequently Asked Questions 84

A Reference 91

Locating Computer Information 91

Locating Windows Operating System Files 92

B Setting Up Static IP on the Computer 95

Windows 98 SE 95

Windows Me 98

Windows 2000 101

Windows XP 105

C Computer Security 109

Comparing Broadband

Service with a Dial-Up Modem 109

Router Security 110

Computer Security 110

Electronic Security 111

D Specifications 113

General 113

Wireless Operating Range 114

LED Indicators 114

Environmental 114

E Glossary 115

F Firewall Security Level Services Table 119

High Security Level 119

Medium Security Level 120

Low Security Level 120

Basic Security Level 121

Service Acronym Definitions 121

Actiontec 54 Mbps Wireless Cable Router User Manual

iii

Table of Contents

G Non-Windows System Setup 123

Classic 123

OS X 125

Notices 127

Regulatory Compliance Notices 127

Modifications 127

Miscellaneous Legal Notices 128

Limited Warranty 129

Actiontec 54 Mbps Wireless Cable Router User Manual

This page left intentionally blank.

Introduction

Thank you for purchasing the Actiontec 54 Mbps Wireless Cable Router. The

Router is the simplest way to connect computers to a high-speed broadband con-

nection using a Ethernet cable modem or set top box. This easy-to-use product is

perfect for the home office or small business. If you want to take your computing

to the next level, the Actiontec 54 Mbps Wireless Cable Router is sure to be one of

the keys to your success.

Package Contents

s Actiontec 54 Mbps Wireless Cable Router

s Black Power cord

s Yellow Ethernet cable

s Purple USB cable

s Installation Buddy™ CD

s Quick start guide

Actiontec 54 Mbps Wireless Cable Router User Manual

Chapter 1 Introduction

Minimum System Requirements

s Active DSL service with Ethernet cable/DSL modem

s Computer with a 10/100 Mbps Ethernet connection

s Microsoft Windows 98 Second Edition (SE), Millennium Edition (Me), NT 4.0,

2000, or XP; Mac OS 7.1 and above

s Internet Explorer 4.0 or higher (5.x recommended) or Netscape Navigator

4.0 or higher (4.7 recommended)

s TCP/IP network protocol installed on each computer

Features

s Plug-and-Play installation support for systems with Windows operating

systems (98SE, Me, 2000, and XP)

s Ethernet WAN port (RJ-45)

s IP packet routing and transparent bridge

s Routing protocol (RIP-1, RIP-2) and static routing support

s Built-in NAT, DHCP server

s DNS relay support

s PAP/CHAP authentication, administrative passwords through Telnet

s 64-, 128-, and 256-bit WEP/WPA wireless LAN security

s 802.1x, WPA, and WPA-PSK for additional security wireless LAN security

s Compliant with IEEE 802.3 Ethernet standard

s 10/100 Base-T Ethernet ports (4)

s Flow control support for Fast Ethernet

s Web-based configuration setup

s Default configuration backup restore

Actiontec 54 Mbps Wireless Cable Router User Manual

Chapter 1 Introduction

s FTP firmware upgradeable

s Web download support

s 802.11b/g support

Getting to Know the Router

This section contains a quick description of the Router’s lights, ports, etc.

The Router contains several indicator lights (LEDs) on its front panel and a series

of ports on its rear panel.

Front Panel

The front panel of the Router features six lights: Power, WAN, Internet, Ethernet,

USB, and Wireless.

Power

Internet

Ethernet

Wireless

Power

Internet

Ethernet

Wireless

WAN

USB

Power Light

The Power light displays the Router’s current status. If the Power light glows

steadily green, the Router is receiving power and fully operational. When the

Power light flashes rapidly, the Router is initializing. If the Power light is not

illuminated when the power cord is plugged in, the Router has suffered a critical

error and technical support should be contacted.

Actiontec 54 Mbps Wireless Cable Router User Manual

Chapter 1 Introduction

WAN Light

When the WAN light glows steadily, the Router is connected to the cable modem

or set top box.

Internet Light

When the Internet light glows green, the Router is connected to the Internet

through the ISP (Internet Service Provider). When it glows red, the Router is not

connected to the Internet.

Ethernet Light

The Ethernet light illuminates when the Router is connected via its

Ethernet port.

USB Light

When the USB light glows, the Router is connected via its USB port.

Wireless Light

The Wireless light illuminates when the Router is connected wirelessly.

Actiontec 54 Mbps Wireless Cable Router User Manual

Chapter 1 Introduction

Rear Panel

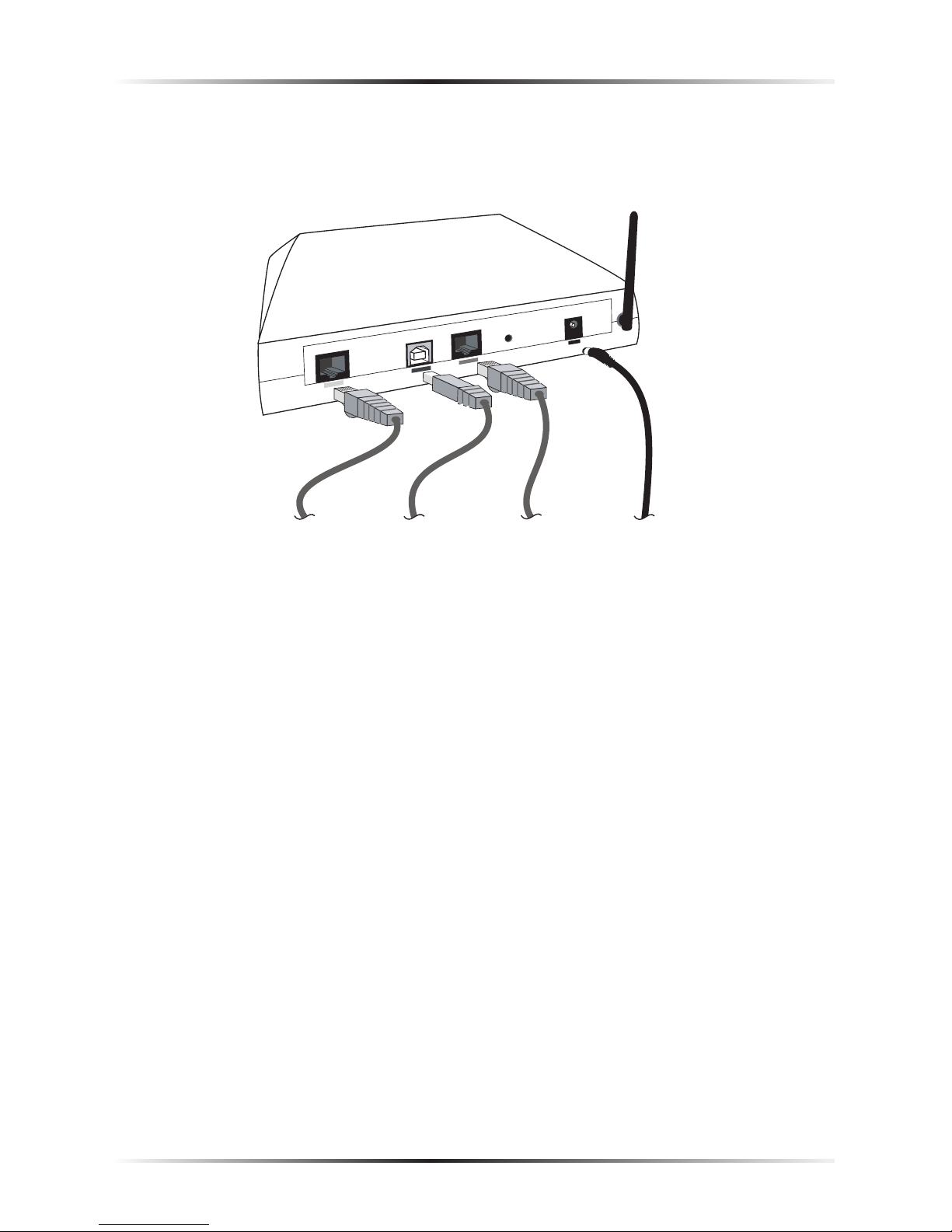

The rear panel of the Router contains four ports (Ethernet, USB, Cable/DSL, and

Power), as well as a Reset switch.

Power

Reset

Cable/DSL

Ethernet

Antenna

USB

Power Adapter

(from Power port

to power outlet)

USB Cable

(from USB port

to computer)

Ethernet Cable

(from Ethernet port

to computer)

Ethernet Cable

(from Cable/DSL port

to cable modem or

set top box)

Ethernet Port

The Ethernet port is used to connect a computer to the Router via Ethernet

cable. The Ethernet port is a 10/100 Mbps auto-sensing port, and either a

straight-through or crossover Ethernet cable can be used when connecting to the

port.

USB Port

The USB port is used to connect the Router to an computer via USB cable.

Cable/DSL Port

The Cable/DSL port is used to connect the Router to an Ethernet cable modem

or set top box.
