Active Audio StepArray+ Series Bedienungsanleitung

User Manual

L ' a c o u s t i q u e a c t i v e

StepArray+

CONTENTS

Contents

Contents 3

1 Introduction 4

2 System components 5

3 Assembling 6

4 Wiring 7

5 StepArray+ control software 8

6 Installation of the columns 11

7 Speciﬁcations 13

8 Acoustical data 15

List of Figures 22

Last update: March 29, 2016 3

1 Introduction

StepArray+ column speakers ensure perfect speech intelligibility and optimal acoustic comfort, even in noisy and

reverberant venues. They are based on the DGRC (Digital & Geometric Radiation Control) principle patented by

Active Audio.

Compared with a classic sound system in which each loudspeaker is controlled independently, the DGRC method

makes it possible to decrease the number of channels to be controlled, thereby enhancing economic efﬁciency.

StepArray+ also allows the use of existing network cables and helps to achieve signiﬁcant savings in wiring, with up

to 64 channels on a single Ethernet cable. StepArray+ combines the features of Dante™ and StepArray to achieve

ever higher levels of efﬁciency and ﬂexibility.

The StepArray+ range includes 6 models of column speakers, from 1.50m to 4.50m high.

SA150P+ SA230P+ SA230S+ SA300P+ SA300S+ SA450P+

1.50m high

flat area

21m range

3 channels

2.30m high

flat area

40m range

3 channels

2.30m high

10° area

29m range

3 channels

3.00m high

flat area

45m range

6 channels

3.00m high

12° area

36m range

6 channels

4.50m high

flat area

90m range

6 channels

2 System components

StepArray+ columns are made of two parts: a standard StepArray passive column, and its companion StepArray+

ampliﬁer module.

StepArray+

amplifier module

StepArray

passive column

Last update: March 29, 2016 5

3 Assembling

1. Remove the back

plate of the amplifier

module.

2. Place the amplifier

module at the top of

the passive column.

3. Secure the amplifier

module using the

supplied M8 nut.

4. After wiring, close

the connection box by

mounting the back

plate.

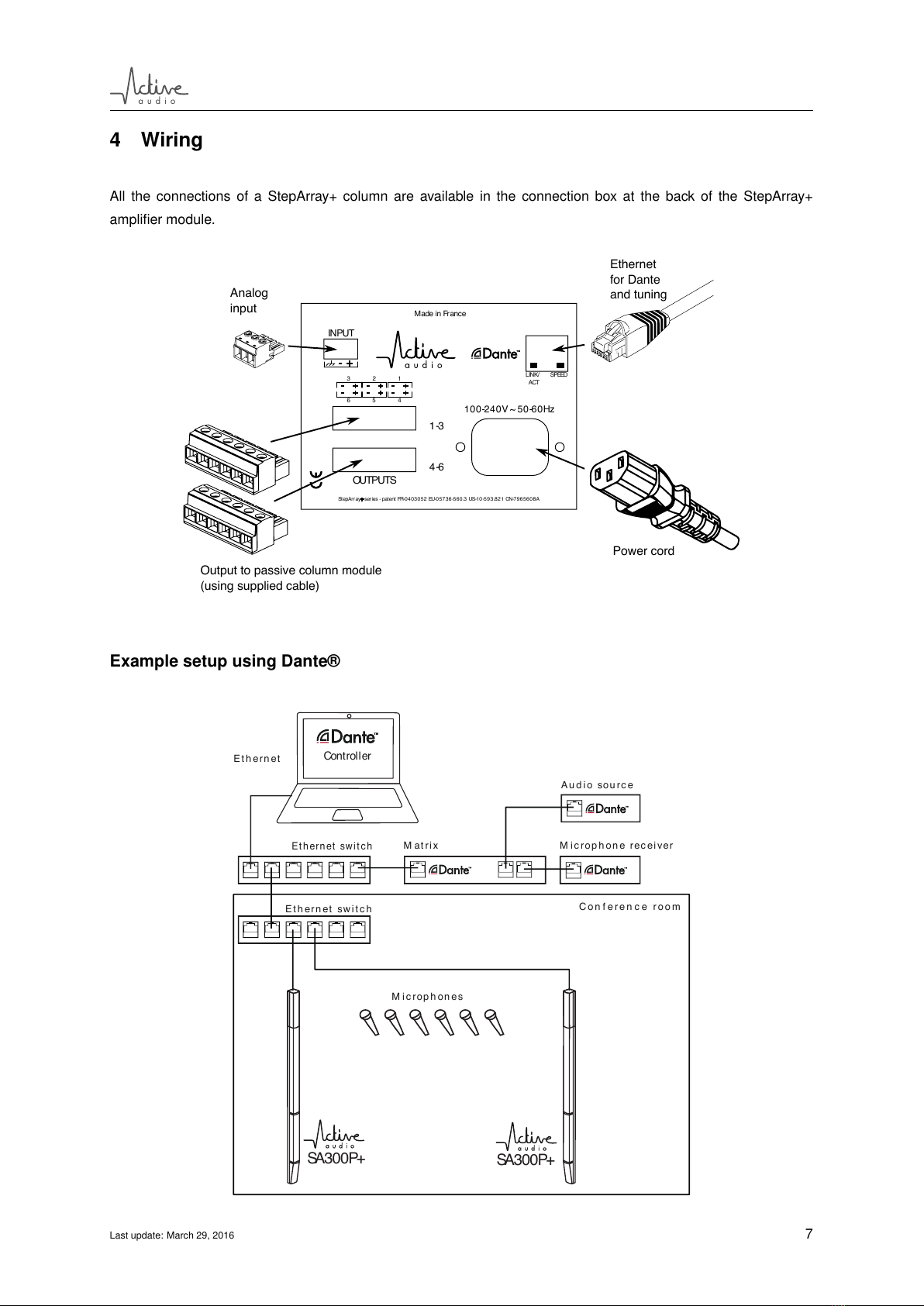

4 Wiring

All the connections of a StepArray+ column are available in the connection box at the back of the StepArray+

ampliﬁer module.

INPUT

OUTPUTS

LINK/

ACT

SPEED

4-6

1-3

StepArray series - patent FR-0403052 EU-05736-560.3 US-10-593 .821 CN-7965608A

123

100-240V ~ 50-60Hz

Made in France

Ethernet

for Dante

and tuning

Power cord

Analog

input

Output to passive column module

(using supplied cable)

Example setup using Dante®

Et h ern et sw i t c h

E t h er n et Controller

A u d i o sou r ce

M i c ro p h o n e r ec e i ver

M i c ro p h on e s

M a t r i x

E t h er n et sw it ch C o n f e r e n c e r o o m

SA300P+ SA300P+

Last update: March 29, 2016 7

5 StepArray+ control software

The StepArray+ control software is available for Windows and OSX operating systems. Installers can be found on

the supplied USB key or on Active Audio’s website by following this link: http://www.activeaudio.fr/

downloads.

5.1 System requirements

Processor 1Ghz or better

Memory 512Mbyte of RAM

Network Standard wired Ethernet network interface (100Mbps or Gigabit).

Wireless LAN (Wi-Fi) Ethernet interfaces are not supported

Operating System Windows 7 SP1 or newer

Mac OS X 10.7.5 or newer

5.2 Installation on Windows

Start the installer package by double-clicking on it, then follow the instructions

5.3 Installation on OSX

Start the installer package by double-clicking on it, then follow the instructions.

5.4 Using the StepArray+ software

The installation program needs

your permission to install the Dante service.

5.4 Using the StepArray+ software

The StepArray+ control software gives access to the following functions:

• input selection: Dante or analog input

• general output volume

• steering parameters for directivity control

Last update: March 29, 2016 9

5.4 Using the StepArray+ software

The StepArray+ control software does not include Dante routing functionality.

When using Dante to transmit audio, you will need the Dante Controller software to assign Dante channels

to StepArray+ columns. Dante Controller is available free of charge from the Audinate website: https:

//www.audinate.com/products/software/dante-controller.

When launching the StepArray+ control software, the ﬁrst screen lists all the StepArray+ columns it can ﬁnd on the

network. The ﬁrst connection to a StepArray+ column can take up to 1 minute: this is the time needed to initiate the

communication.

Figure 1 – StepArray+ control software: main screen.

A click on a StepArray+ box leads to the settings screen of that speciﬁc column. All the parameters of the column

can be changed within that screen.

Figure 2 – StepArray+ control software: column settings screen.
