Full HD Real-time Compact IP Dome Camera
Indoor/Rugged
User Manual
Ver1.3
1
Table of Contents
1. Introduction.................................................................................................................3
1.1 Features........................................................................................................................3
1.2 Package Contents......................................................................................................... 4
1.3 Camera Overview.......................................................................................................... 4
2. Preparations for IP Camera Setup ............................................................................6
2.1 System Requirements................................................................................................... 6
2.2 Ethernet Connection...................................................................................................... 6
2.2.1 Indoor Camera............................................................................................... 6
2.2.2 Rugged Camera ............................................................................................ 7
3. Deleting the Existing DC Viewer ...............................................................................9
4. Accessing Camera ...................................................................................................12
5. Configuration & Operation.......................................................................................19
5.1 Browser-based Viewer Introduction ............................................................................ 19
5.2 Home Page ................................................................................................................. 21
5.3 System Related Settings............................................................................................. 23
5.3.1 Host Name and System Time Setting.......................................................... 24
5.3.2 Security........................................................................................................ 25
5.3.3 Network........................................................................................................ 28
5.3.4 DDNS........................................................................................................... 33
5.3.5 Mail.............................................................................................................. 34
5.3.6 FTP.............................................................................................................. 35
5.3.7 Motion Detection.......................................................................................... 36
5.3.8 Storage Management.................................................................................. 40
5.3.9 Recording .................................................................................................... 42
5.3.10 File Location ................................................................................................ 43
5.3.11 View Log File...............................................................................................44
5.3.12 View User Information .................................................................................45
5.3.13 View Parameters ......................................................................................... 47
5.3.14 Factory Default ............................................................................................ 48
5.3.15 Software Version ......................................................................................... 49
5.3.16 Software Upgrade........................................................................................ 50
5.3.17 Maintenance................................................................................................ 53
5.4 Video and Audio Streaming Settings........................................................................... 54
5.4.1 Video Resolution and Rotate Type.............................................................. 54
5.4.2 Video Compression ..................................................................................... 57
5.4.3 Video OCX Protocol..................................................................................... 59
5.4.4 Video Frame Skip........................................................................................60
5.4.5 Video Mask.................................................................................................. 61
2
5.4.6 Audio Mode and Bit Rate Settings............................................................... 62
5.5 Camera Settings.......................................................................................................... 63
5.5.1 Exposure Setting ......................................................................................... 64
5.5.2 White Balance Setting ................................................................................. 65
5.5.3 Brightness Setting........................................................................................ 66
5.5.4 Sharpness Setting ....................................................................................... 66
5.5.5 Contrast Setting........................................................................................... 66
5.5.6 Saturation Setting........................................................................................ 66
5.5.7 Hue Setting.................................................................................................. 67
5.5.8 TV System Setup......................................................................................... 67
5.6 Logout .........................................................................................................................68
6. CMS Software Introduction......................................................................................69
Appendix A: Technical Specifications...........................................................................70
Appendix B: Internet Security Settings .........................................................................72
Appendix C: DC Viewer Download Procedure ..............................................................75
Appendix D: Install UPnP Components.........................................................................77
3
1. Introduction
Following high standard of Megapixel IP Camera, the Full HD Compact IP
Dome Camera is capable of serving real-time streaming and makes image
quality more smoothly.
In addition to MJPEG real time streaming, the Full HD Compact IP Dome
Camera develops superior H.264 codec to apply for high resolution digital
broadcast. Attributing to the IP Camera’s flexible platform, the camera can be
applied in various installation locations including shops, stores, banks, parking
lots, factories and building surveillance.
With Power over Ethernet (IEEE 802.3af) feature, the need of power outlets
could be totally eliminated; likewise installation and cabling cost would be
significantly reduced. Additionally, its light weight and compact size offer quick
and simple installation on the ceilings or walls of houses and vehicles.
1.1 Features
•Progressive Scan CMOS Sensor
•Full HD 1080p / HD 720p real-time at dual streaming
•H.264 and MJPEG compression
•f = 4 mm, F1.5
•Power over Ethernet (802.3af)
•Motion Detection
•Privacy Masks
•Weatherproof Dongle Cable*
•Weatherproof (IP66 international)
•Micro SD support*
•Security Torx against tampering
Note: Items marked with an asterisk (*) are optional
4
1.2 Package Contents
Please check the package contains the following items listed below.
Indoor Camera/
Rugged Camera (with Cable)
Self-tapping
screws (×3)
Plastic Anchors
(×3)
Security Screw
(×1)
Rubber Washer (×1, Casing)
Rubber Washers (×3, Baseplate)
(Rugged Camera only)
Security Torx
Quick Guide
CD
1.3 Camera Overview
Designation Description
1 Reset Button Restore to default setting; press the
button with a proper tool
2 Lens Rotate the lens right/left to adjust focus
3 Focus Fixed Screw Loosen the screw to adjust the lens
4 Tilt Fixed Screw Loosen the screw to adjust tilt angle
5
Dimensions
6
2. Preparations for IP Camera Setup
This chapter provides information about system requirements for IP Dome
Camera operation, power and Ethernet connection for Indoor/Outdoor IP Dome
Camera and ways to access to the camera.
2.1 System Requirements
To perform the IP Camera via web browser, please ensure your PC is in good
network connection, and meet system requirements as described below.
Items System Requirement
Personal Computer
1. Intel○
RPentium○
RM, 2.16 GHz or Intel○
RCoreTM2 Duo,
2.0 GHz
2. 2 GB RAM or more
Operating System Windows VISTA or Windows XP
Web Browser Microsoft Internet Explorer 6.0 or later
Network Card 10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation
Viewer ActiveX control plug-in for Microsoft IE
2.2 Ethernet Connection
Please follow the instructions below to connect Indoor/Rugged IP Dome
Camera’s Ethernet cable.
2.2.1 Indoor Camera
The Ethernet connector, which is located in the rear of the camera, is shown
below:
PoE Connection
Connect the one end of the Ethernet cable to the network port on the camera,
and the other end to Power Sourcing Equipment (PSE) like hubs or routers.
7

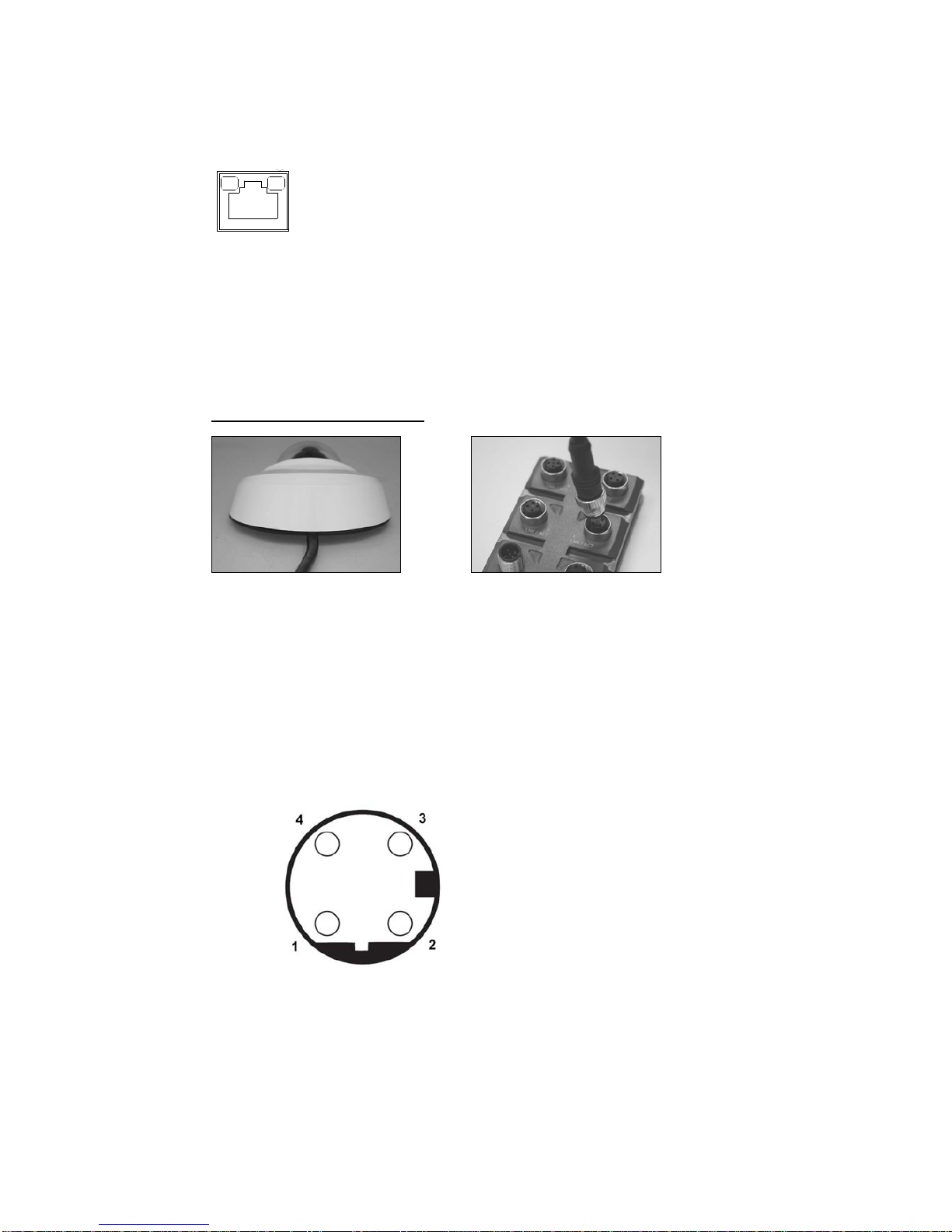

Check the status of the link indicator and activity indicator LEDs; if the LEDs are
unlit, please check the connections.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
2.2.2 Rugged Camera
The Rugged IP Dome Camera supports two kinds of Ethernet cable; one is M12
D-Coded Cable, and the other is RJ-45 Dongle Cable.
M12 D-Coded Connection
M12 D-Coded Cable M12 PSE
zM12 D-Coded Connection
Connect the Rugged IP Dome Camera’s M12 D-coded cable to a M12
power source equipment (PSE) as shown above.
zM12 D-Coded Connector’s Pin Definition
Pin 1: Rx＋
Pin 2: Tx＋
Pin 3: Rx－
Pin 4: Tx－
8
RJ-45 Dongle Cable Connection
RJ-45 Dongle
zRJ-45 Dongle Cable Connection
Run the Ethernet cable through the Waterproof RJ-45 Screw-On Plug.
Then connect one end of the Ethernet cable to the RJ-45 dongle,
tightening the sealing nut of the Waterproof RJ-45 Screw-On Plug
completely. Later on connect the other end of the Ethernet cable to
Power Sourcing Equipment (PSE) like hubs or routers.
NOTE: Please use a PoE waterproof switch/hub so that the
camera can work.
9
3. Deleting the Existing DC Viewer
For users who have installed the DC Viewer in the PC previously, please first
delete the existing DC Viewer from the PC before accessing to the IP Camera.
Deleting the DC Viewer
Click “Control Panel”, and then double click “Add or Remove Programs.” In the
“Currently installed programs” list, select “DCViewer” and click the button
“Remove” to uninstall the existing DC Viewer as shown in the figure below.
Deleting Temporary Internet Files
To improve browser performance, it is suggested to clean up the all the files in
the Temporary Internet Files. The procedure is as follows:
