User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 1 di 49

User Manual

Revision 1 100

English

DALI / Modbus TCP - Converter

(Order Code: HD67845-B2-Y, HD67845-B2-N)

for Website information:

www adfweb com?Product=HD67845

for Price information:

www adfweb com?Price=HD67845-B2

Benefits and Main Features:

Very easy to configure

Electrical isolation

Temperature range: -40°C/85°C (-40°F/185°F)

For others DALI products, see also the following links:

Converter DALI to

www adfweb com?Product=HD67822 (KN )

www adfweb com?Product=HD67831 (RS485)

www adfweb com?Product=HD67832 (BACnet/IP Master)

www adfweb com?Product=HD67833 (BACnet/IP Slave)

www adfweb com?Product=HD67834 (CAN)

www adfweb com?Product=HD67835 (CANopen)

www adfweb com?Product=HD67836 (DeviceNet Master)

www adfweb com?Product=HD67837 (DeviceNet Slave)

www adfweb com?Product=HD67838 (DM )

www adfweb com?Product=HD67839 (Ethernet)

www adfweb com?Product=HD67840 (EtherNet/IP)

www adfweb com?Product=HD67842 (Modbus Master)

www adfweb com?Product=HD67843 (Modbus Slave)

www adfweb com?Product=HD67844 (Modbus TCP Master)

www adfweb com?Product=HD67848 (PROFINET)

www adfweb com?Product=HD67849 (SNMP Manager)

www adfweb com?Product=HD67850 (SNMP Agent)

Do you have an your customer protocol?

www adfweb com?Product=HD67003

Do you need to choose a device? do you want help?

www adfweb com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 2 di 49

INDE :

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

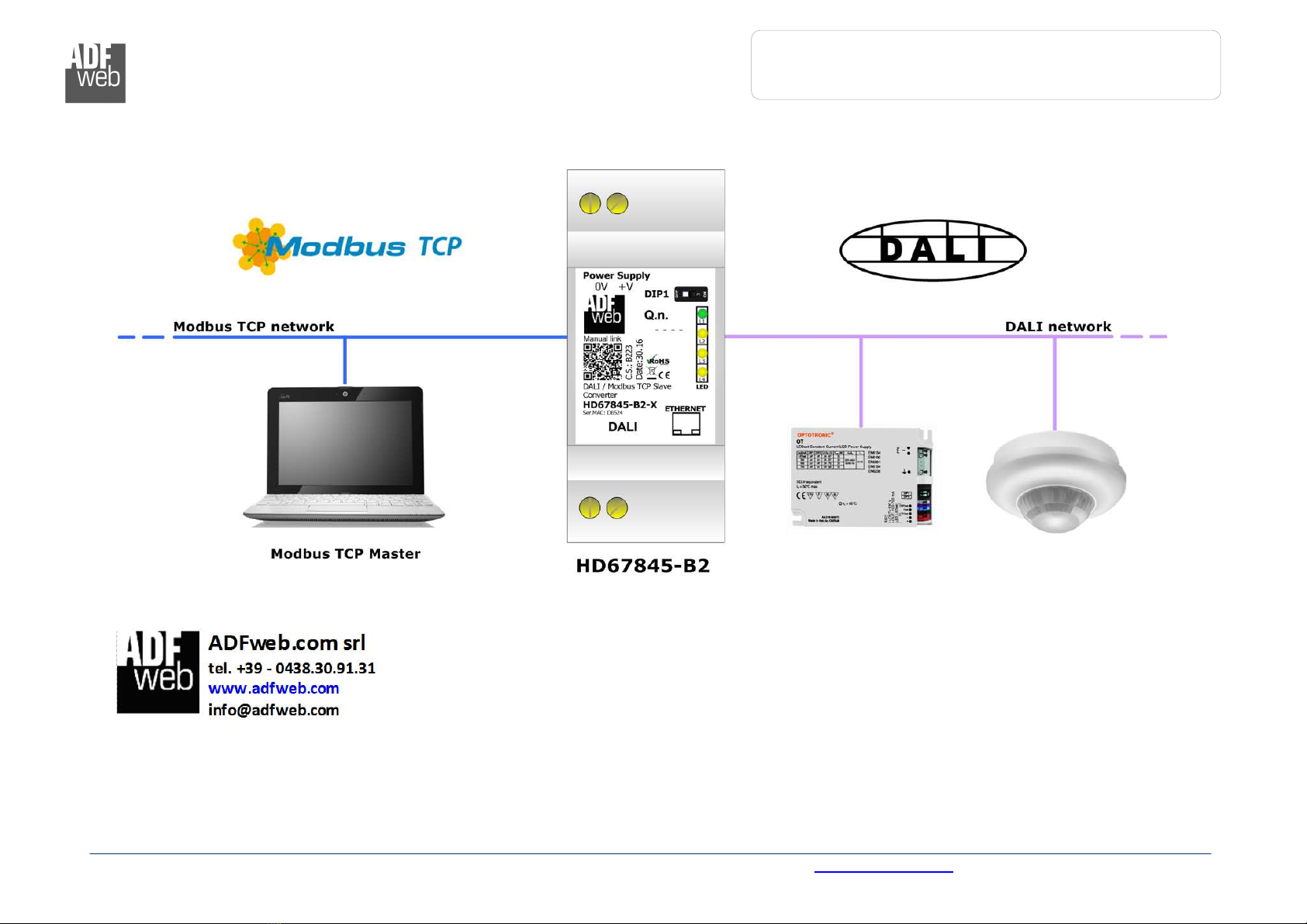

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

DALI 10

ETHERNET 11

USE OF COMPOSITOR SW67845 12

NEW PROJECT / OPEN PROJECT 13

SOFTWARE OPTIONS 14

SET COMMUNICATION 16

DALI ACCESS 17

UPDATE DEVICE 21

USE OF DALI CONSOLE SOFTWARE 23

STRUCTURE OF THE SOFTWARE 24

SETUP 25

SEARCH 26

TEST DALI 2 26

NETWORK SETTING 27

MODBUS MAP 33

MECHANICAL DIMENSIONS 46

ORDERING INFORMATIONS 47

ACCESSORIES 47

DISCLAIMER 48

OTHER REGULATIONS AND STANDARDS 48

WARRANTIES AND TECHNICAL SUPPORT 49

RETURN POLICY 49

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document

With this “Document Code” go to web page www adfweb com/download/

and search for the corresponding code on the page Click on the proper

“Document Code” and download the updates

REVISION LIST:

WARNING:

ADFweb com reserves the right to change information in this manual about

our product without warning

ADFweb com is not responsible for any error this manual may contain

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners

Revision

Date Author Chapter

Description

1 000 15/06/2016

Ff All First Release

1 100 29/04/2020

Ff All Added DALI 2 tables

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 3 di 49

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual When using the device, legal and

safety regulation are required for each individual application The same applies also when using accessories

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i e

independent limit switches, mechanical interlocks, etc )

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job

ESIDUAL

ISKS

The device is state-of-the-art and is safe The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage

CONFORMITY

The declaration is made by our company You can send an email to support@adfweb com or give us a call if you need it

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 4 di 49

E AMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 5 di 49

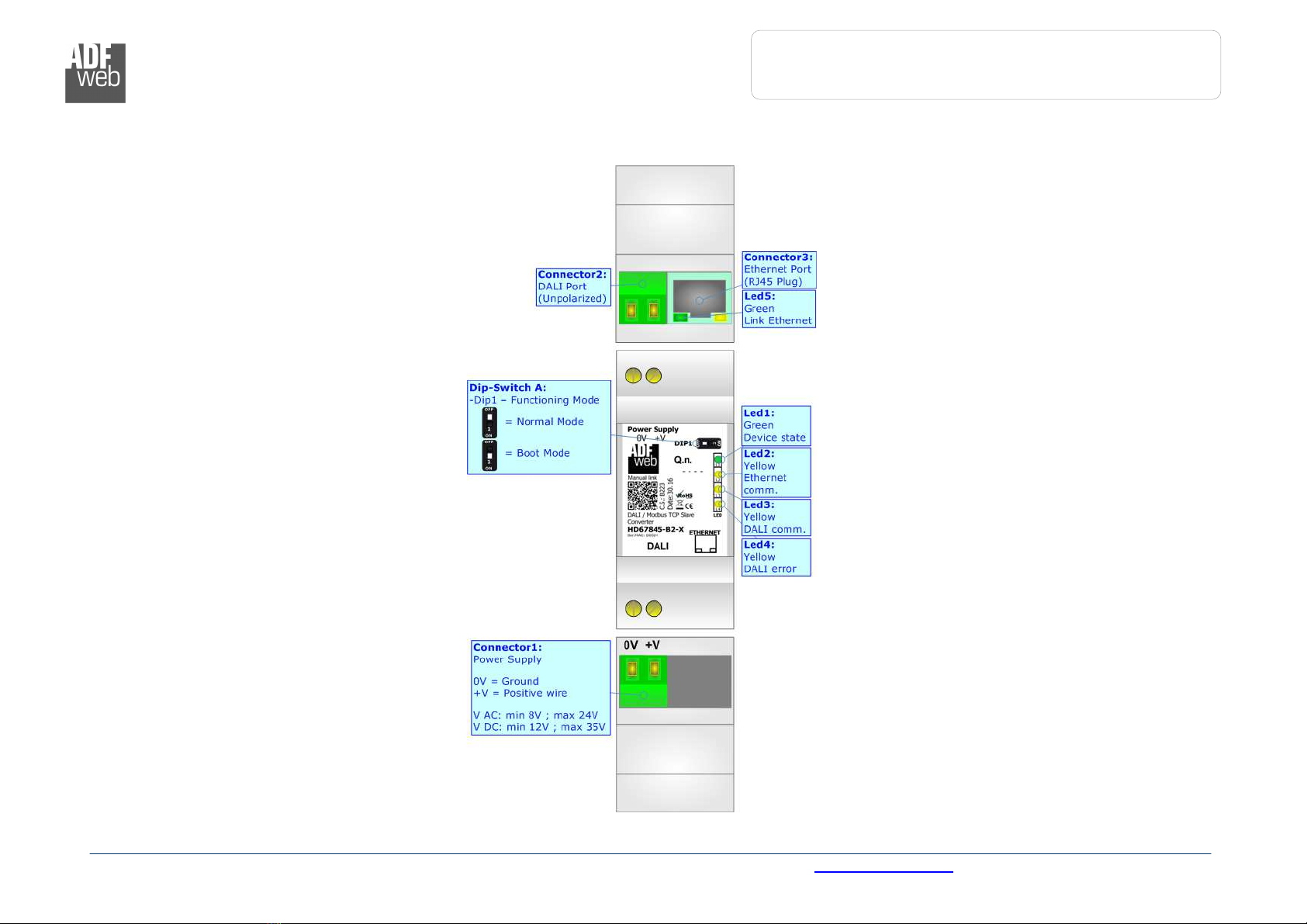

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67845-B2

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 6 di 49

CHARACTERISTICS:

The HD67845 is a DALI / Modbus TCP Slave - Converter

It has the following characteristics:

Up to 64 devices on DALI bus;

Configurator for DALI network/devices;

Isolation between DALI – Ethernet, Power Supply - Ethernet Additional isolation Power Supply – DALI for HD67845-B2-N version;

Two-directional information between DALI bus and Modbus TCP bus;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -40°C / 85°C [-40°F / +185°F]

CONFIGURATION:

You need “DALI Console” software on your PC in order to perform the following:

Configure the DALI network;

Setup the DALI devices (groups, scenes, IDs, …);

Test DALI communication

You need Compositor SW67845 software on your PC in order to perform the following:

Define the parameter of Modbus TCP line;

Define the parameter of DALI line;

Update the device

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 7 di 49

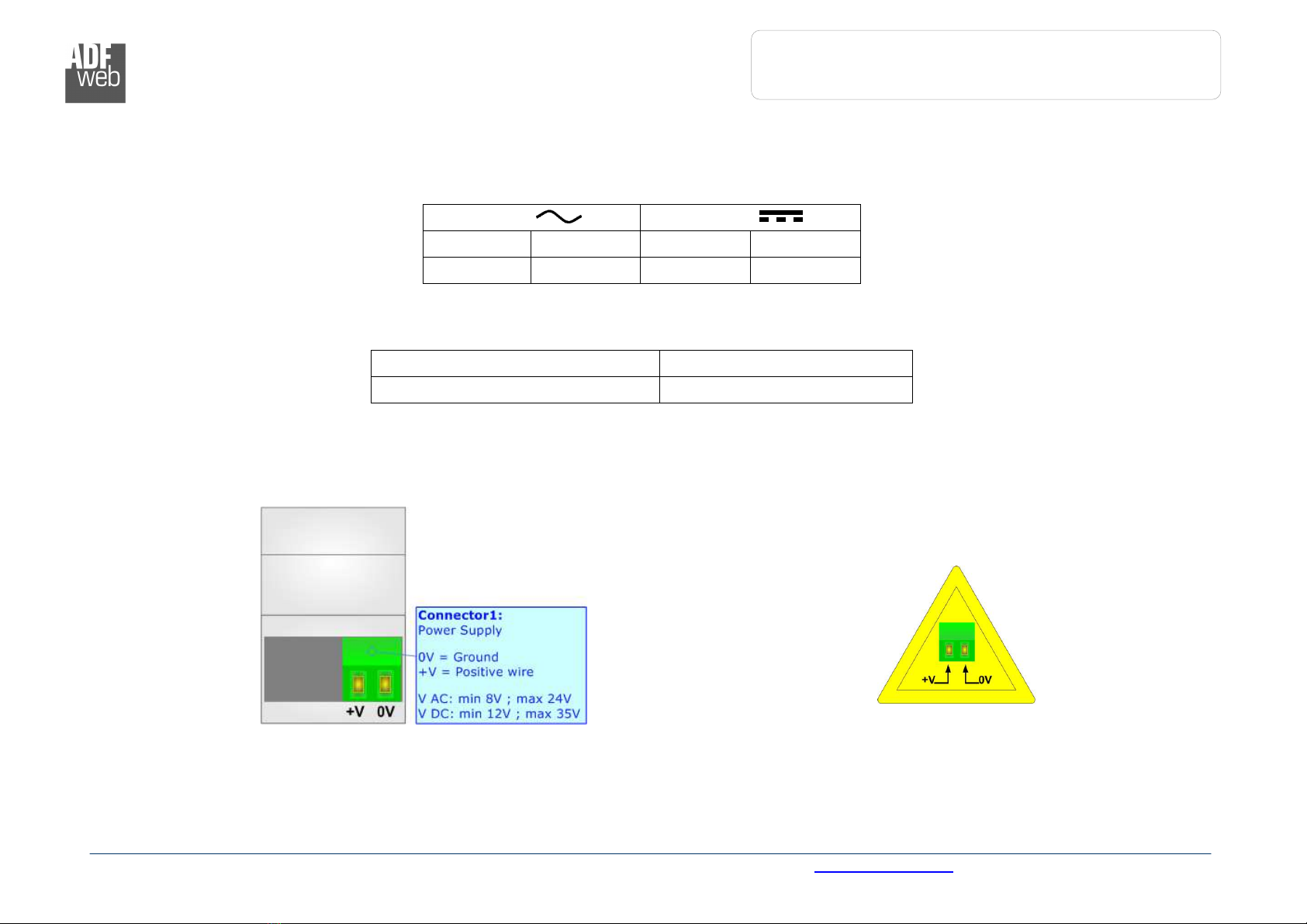

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC For more details see the two tables below

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67845-B2 3 5

HD67845-B2

Caution: Not reverse the polarity power

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 8 di 49

FUNCTION MODES:

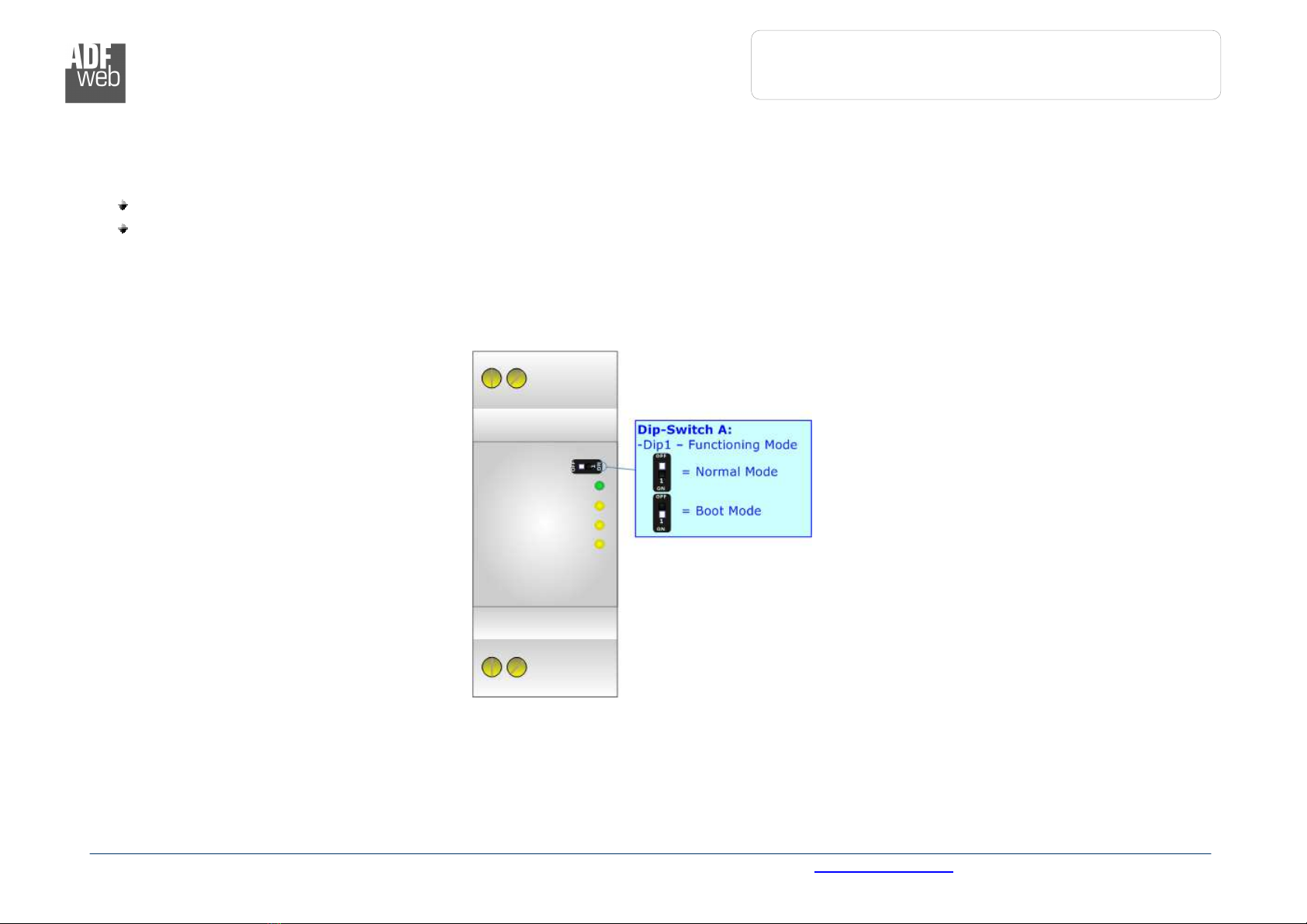

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 9 di 49

LEDS:

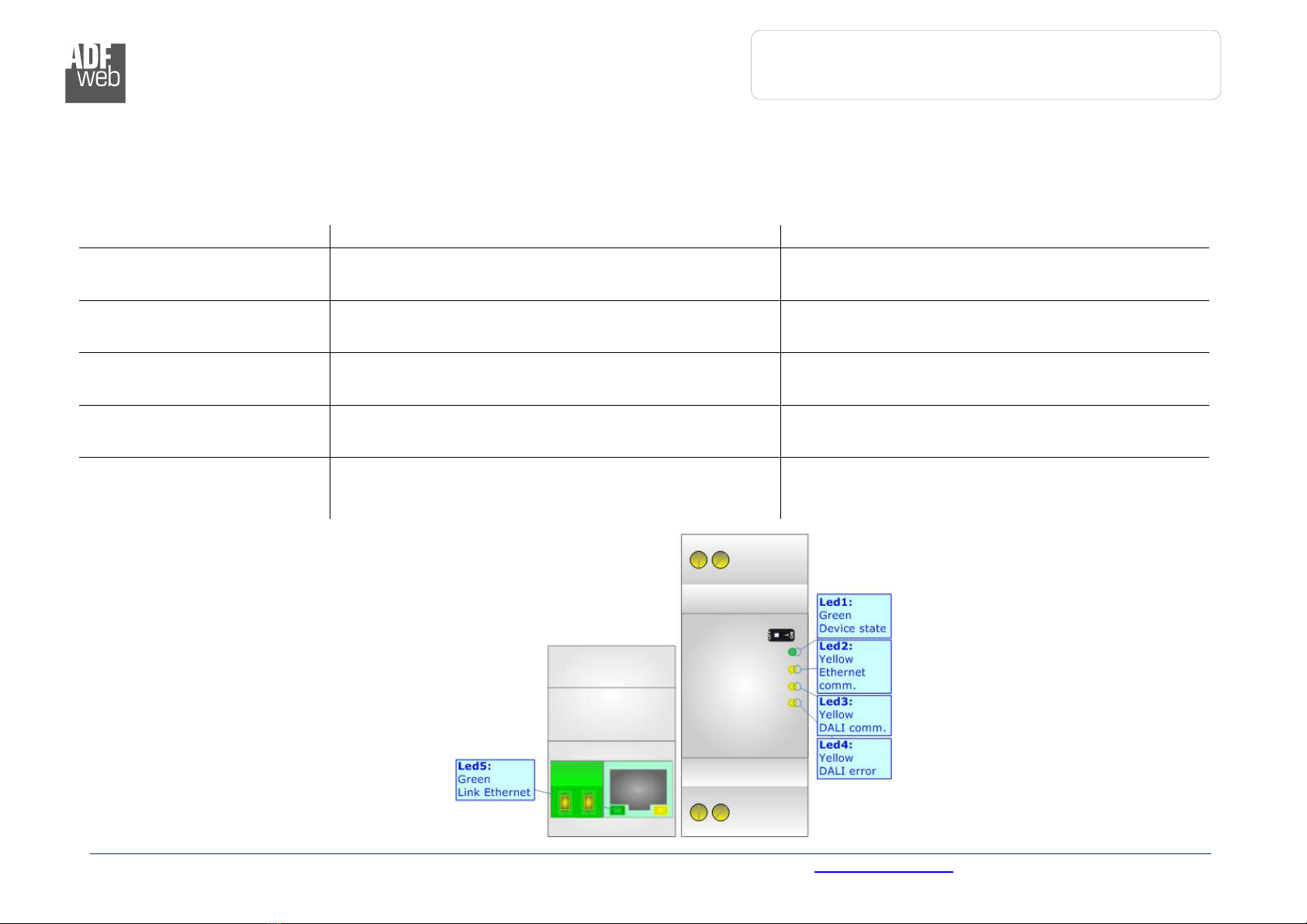

The device has got five LEDs that are used to give information of the functioning status

The various meanings of the LEDs are described in the table below

LED Normal Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: Ethernet communication

(yellow) Blinks when Ethernet communication is running Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: DALI communication

(yellow) Blinks when DALI communication is running Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: DALI error (yellow) Turns ON when the DALI device is not present Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Ethernet Link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ Modb

us TCP Slave

Document code: MN67845_ENG Revision 1 100 Pagina 10 di 49

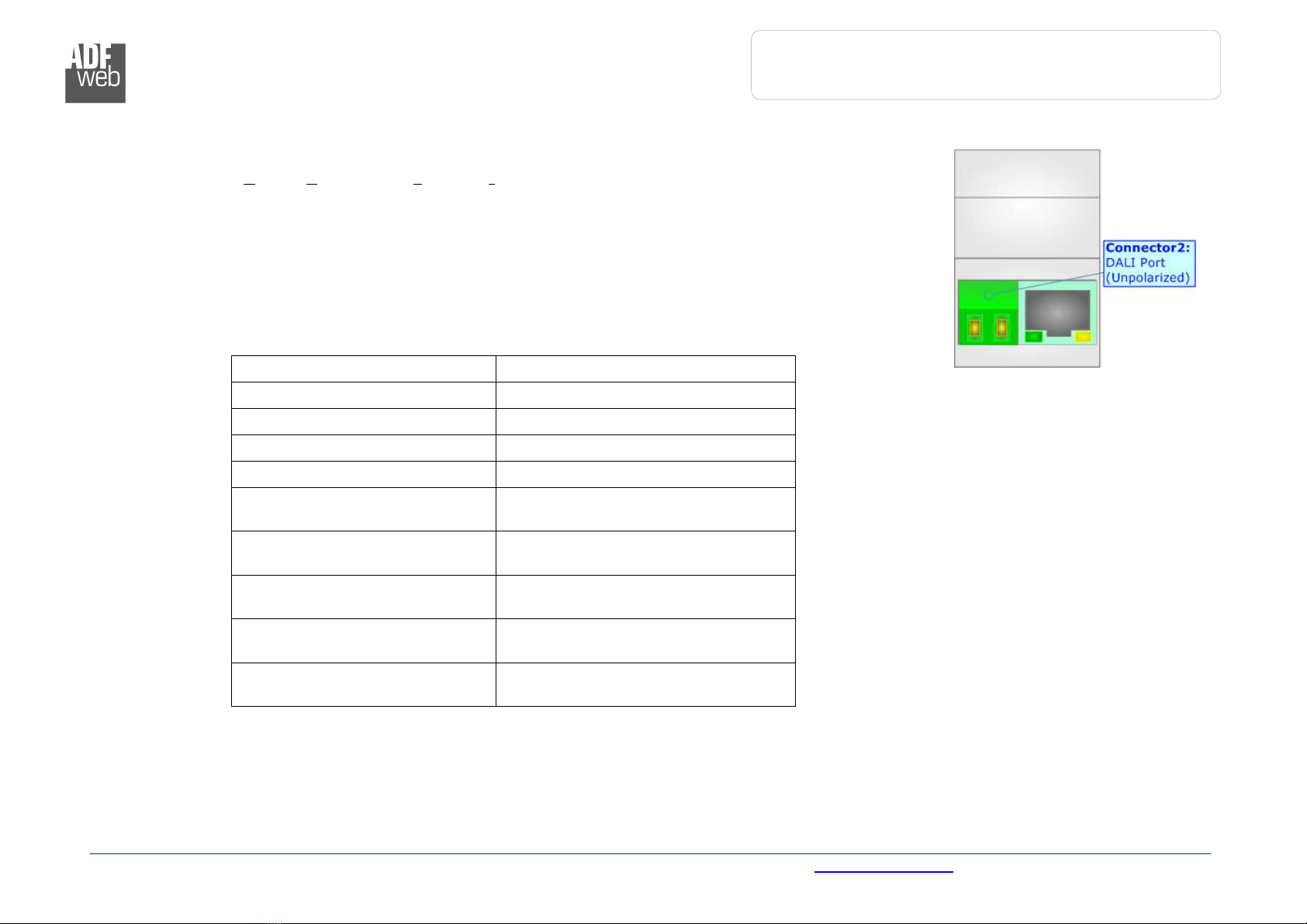

DALI:

DALI stands for “Digital Addressable Lighting Interface” and it is an interface protocol for digital

communication between electronic lighting equipment (electronic ballasts, transformers, etc )

With the right choice of individual DALI components an extremely wide range of requirements can be met,

from operating the lighting system from a simple light switch to lighting management systems for entire

office complexes with thousands of light sources Using ADFweb com’s DALI converters, any light source,

including incandescent lamps, fluorescent lamps, high-intensity discharge lamps and even LEDs, can be

controlled irrespective of whether they are installed in an office, a restaurant or a street light

Characteristics Description

Medium Shielded Twisted Pair

Topology Linear, Star or mixed

Device power consumption Max 250 mA

DALI voltage 9 5 V – 22 5 V (typical 16 V)

Maximum cable length 300 m (1 5 mm2 wire)

Maximum number of DALI

devices 64

Baud rate 1200 bps

Maximum number of DALI

groups 16

Maximum number of DALI

scenes 16
