ADF Web HD67863-A1-2A Bedienungsanleitung

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 1 of 36

User Manual

Revision 1.

English

IO-Link / Modbus TCP Slave - Converter

(Order Code: HD67863-A1-2A, HD67863-A1-4A,

HD67863-A1-2B, HD67863-A1-2A-2B)

for Website information:

www.adfweb.com/?Product=HD67863

for Price information:

www.adfweb.com/?Price=HD67863-A1-2A

www.adfweb.com/?Price=HD67863-A1-4A

www.adfweb.com/?Price=HD67863-A1-2B

www.adfweb.com/?Price=HD67863-A1-2A-2B

Benefits and Main Features:

Triple electrical isolation

Two Ethernet ports

Temperature range: -4 °C/+85°C (-4 °F/+185°F)

For others IO-Link devices, see also the following links:

IO-Link from/to …

www.adfweb.com?Product=HD6786 (Modbus Master)

www.adfweb.com?Product=HD67861 (Modbus Slave)

www.adfweb.com?Product=HD67862 (Modbus TCP Master)

www.adfweb.com?Product=HD67864 (B Cnet Master)

www.adfweb.com?Product=HD67865 (B Cnet Slave)

www.adfweb.com?Product=HD67866 (C N)

www.adfweb.com?Product=HD67867 (C Nopen)

www.adfweb.com?Product=HD67868 (DeviceNet Master)

www.adfweb.com?Product=HD67869 (DeviceNet Slave)

www.adfweb.com?Product=HD6787 (EtherNet/IP Master)

www.adfweb.com?Product=HD67871 (EtherNet/IP Slave)

www.adfweb.com?Product=HD67872 (J1939)

www.adfweb.com?Product=HD67873 (MQTT)

www.adfweb.com?Product=HD67874 (NME 0183)

www.adfweb.com?Product=HD67875 (NME 2000)

www.adfweb.com?Product=HD67876 (PROFINET Slave)

www.adfweb.com?Product=HD67877 (SNMP Manager)

www.adfweb.com?Product=HD67878 (SNMP gent)

Do you have an your customer protocol?

See the following links:

www.adfweb.com?Product=HD67876

Do you need to choose a device? do you want help?

Ask it to the following link:

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 2 of 36

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 9

CONFIGURATION 9

POWER SUPPLY 1

FUNCTION MODES 11

LEDS 12

IO-LINK 13

AUX POWER SUPPLY 14

ETHERNET 15

USE OF COMPOSITOR SW67863 16

NEW PROJECT / OPEN PROJECT 17

SOFTWARE OPTIONS 18

SET COMMUNICATION 2

IO-LINK SET ACCESS 21

UPDATE DEVICE 3

MODBUS MAP 32

MECHANICAL DIMENSIONS 33

ORDERING INFORMATIONS 34

ACCESSORIES 34

DISCLAIMER 35

OTHER REGULATIONS AND STANDARDS 35

WARRANTIES AND TECHNICAL SUPPORT 36

RETURN POLICY 36

Pagina 2 di 36

UPD TED DOCUMENT TION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

Revision

Date uthor

Chapter

Description

1. 13/ 3/2 2 Ff All First release version

W RNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TR DEM RKS:

All trademarks mentioned in this document belong to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 3 of 36

SECURITY LERT:

ENER L

NFORM TION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

U LIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDU L

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 4 of 36

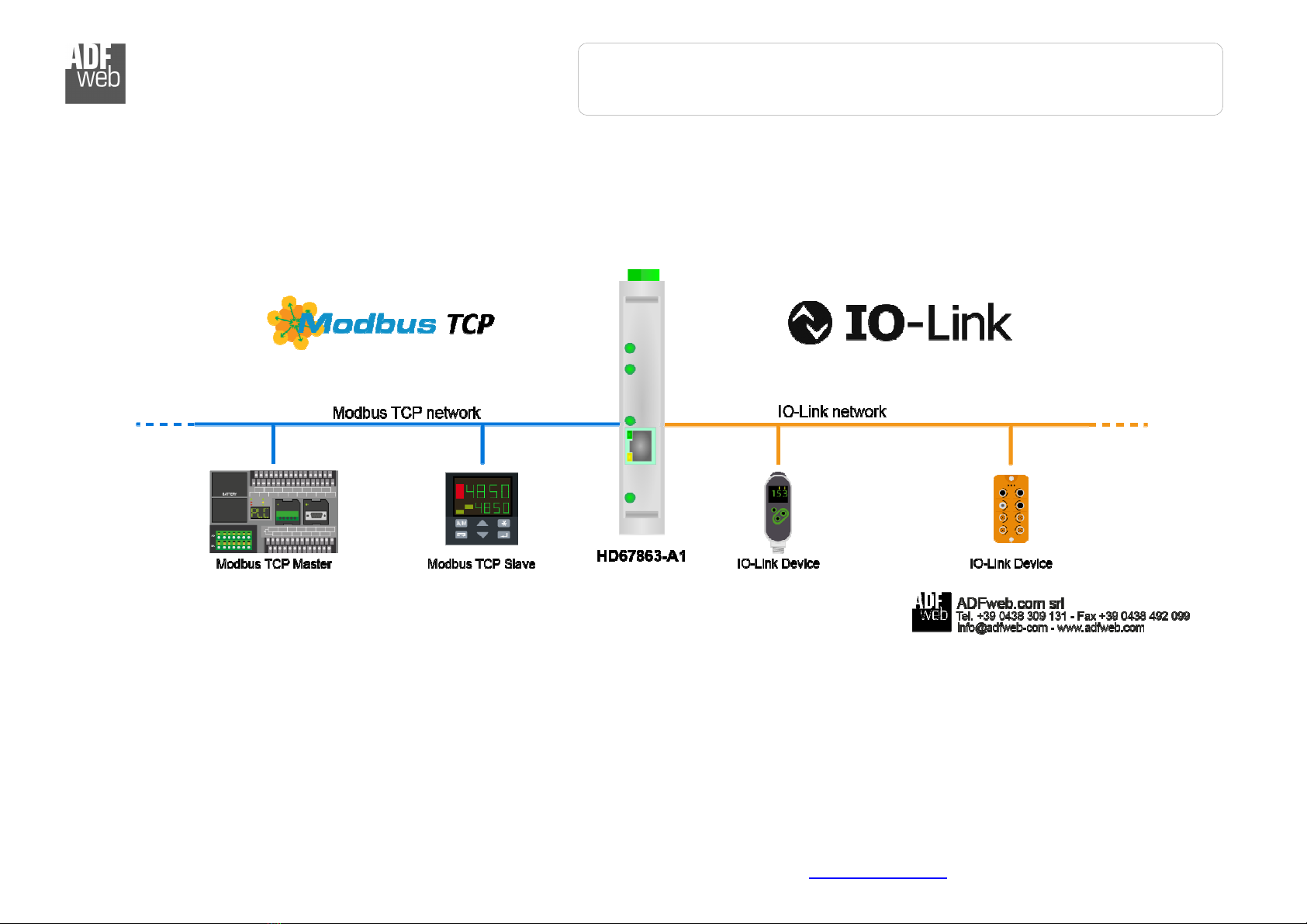

EX MPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 5 of 36

CONNECTION SCHEME:

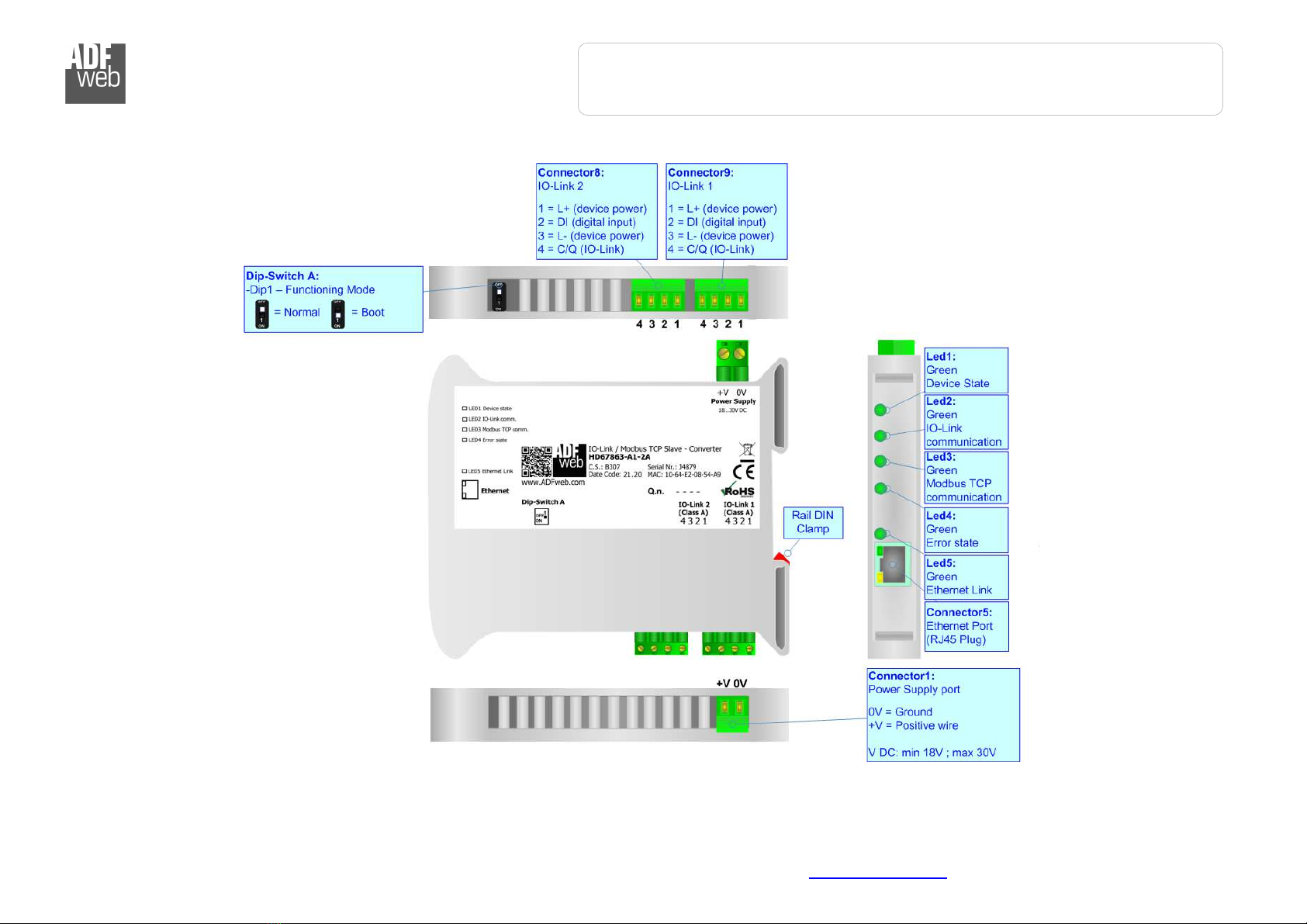

Figure

: Connection scheme for HD67

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 6 of 36

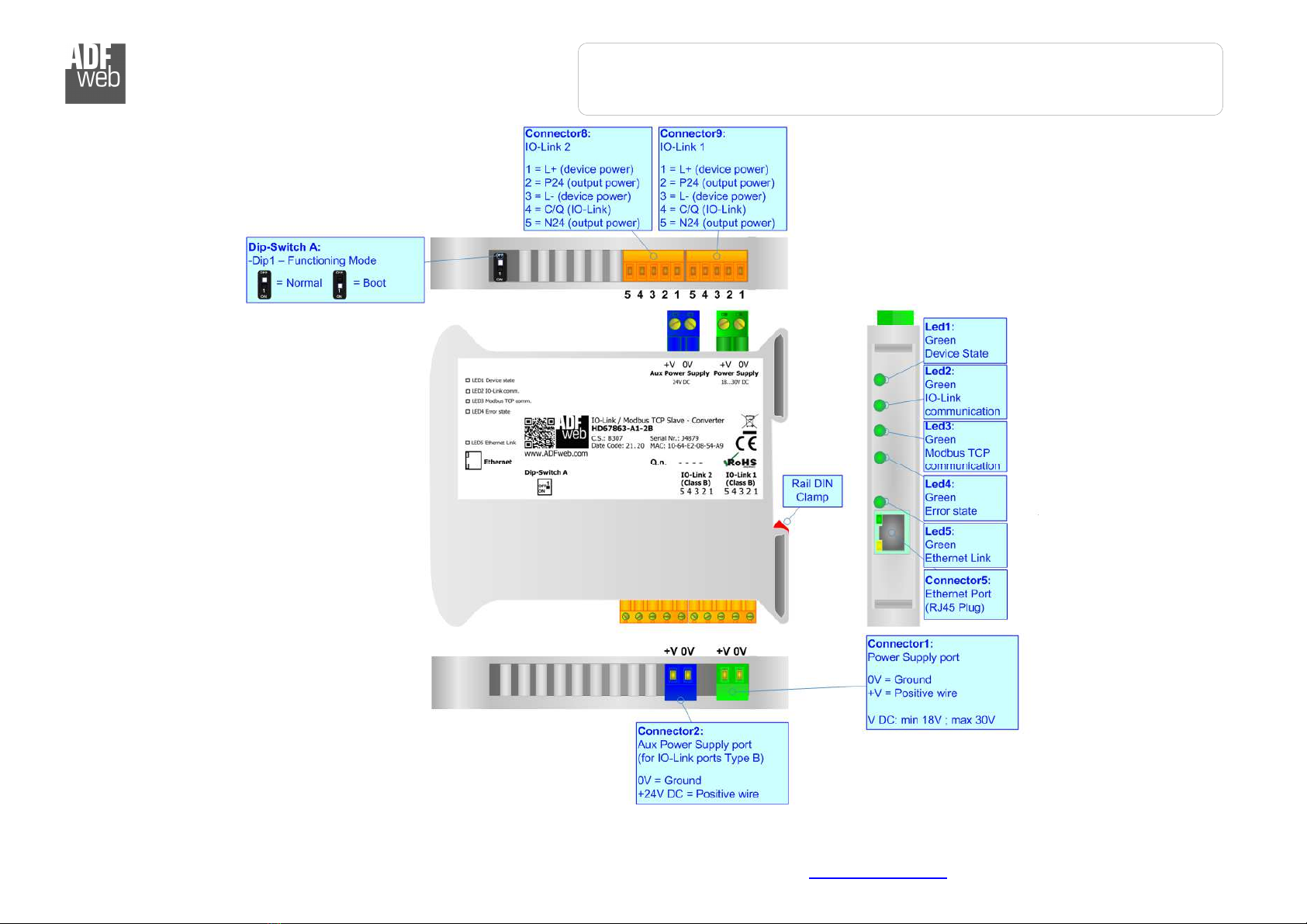

Figure

: Connection scheme for HD67

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 7 of 36

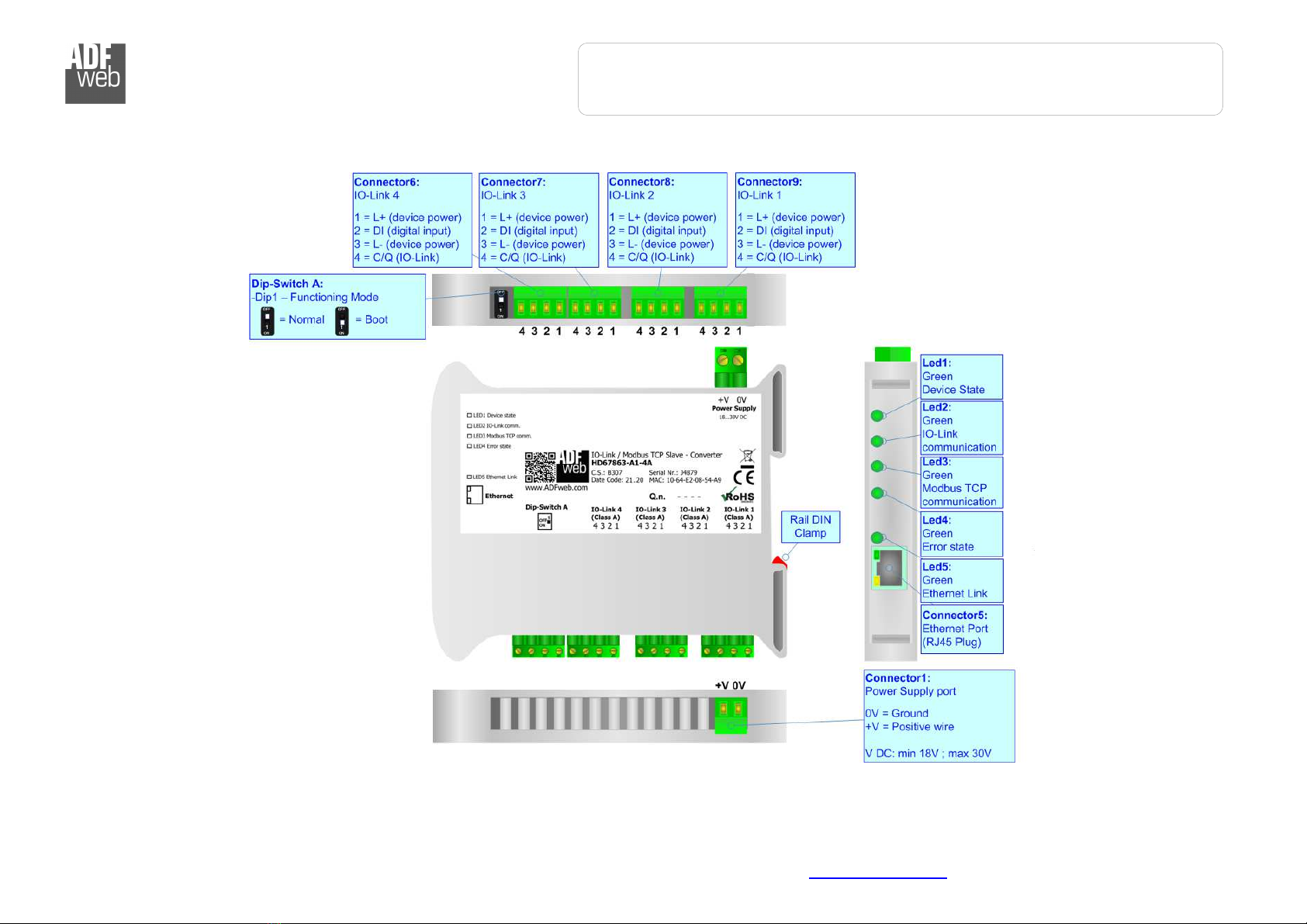

Figure

: Connection scheme for HD67

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 8 of 36

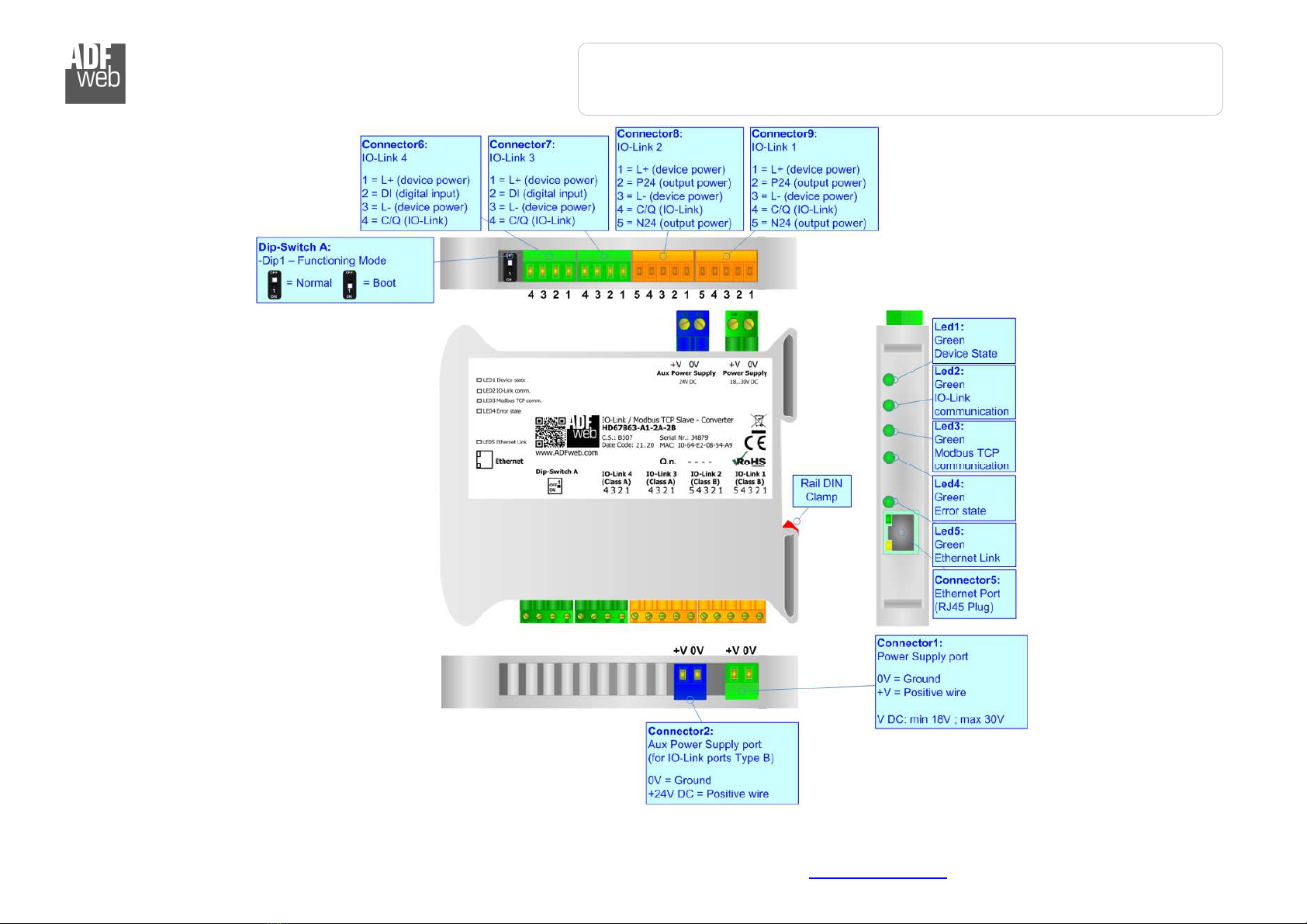

Figure

: Connect

ion scheme for HD67

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 9 of 36

CH R CTERISTICS:

The HD67863-A1 is a IO-Link / Modbus TCP Slave converter.

It allows the following characteristics:

Up to 15 bytes in reading and 15 bytes in writing;

Two-directional information between Modbus TCP and IO-Link;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIGUR TION:

You need Compositor SW67863 software on your PC in order to perform the following:

Define the parameters of IO-Link;

Define the parameters of Modbus TCP;

Define IO-Link variables to be read by the Modbus TCP Master;

Define IO-Link variables to be written by the Modbus TCP Master;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

Link /

odbu

TCP

Slave

Document code: MN67863_ENG Revision 1. Page 1 of 36

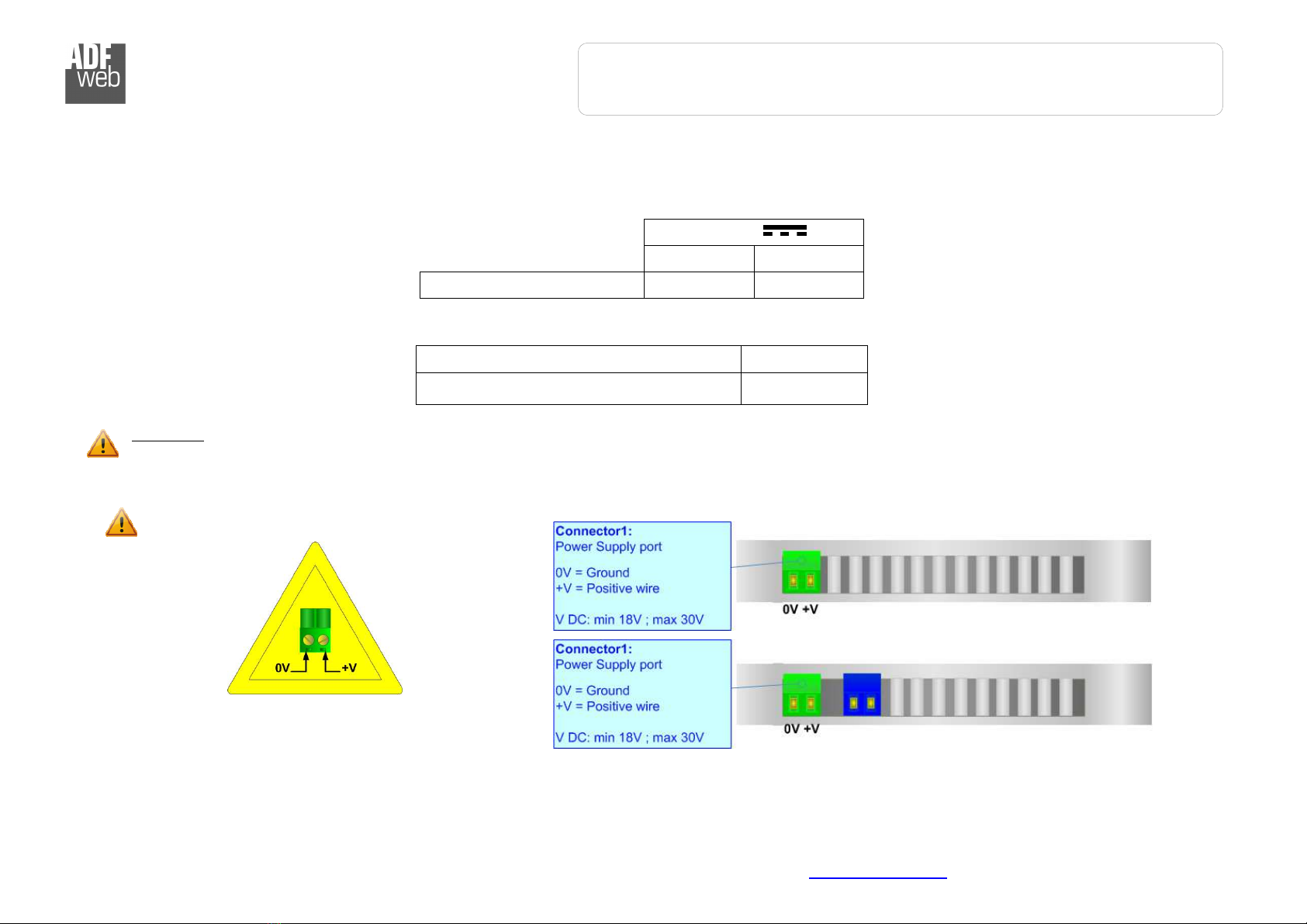

POWER SUPPLY:

The devices can be powered between a wide range of tensions. For more details see the two tables below.

VDC

Vmin Vmax

HD67863- 1-xx 18V 30V

Consumption at 24V DC:

Device W/V

HD67863-A1-xx 4

Warning:

It is necessary to add to this consumption the one required by the IO-Link devices connected to the IO-Link channels.

Caution: Not reverse the polarity power

HD67
