ADInstruments AD-160 Bedienungsanleitung
AD-160
HD Integrated Receiver Decoder
User Manual
AD INSTRUMENTS
Http://www.abacantodigital.com
AD Instruments
2
AD160 HD Integrated Receiver Decoder User Manual
Table of Content
Safety ....................................................................................................................................................3
Reference ............................................................................................................................................. 4
Features ................................................................................................................................................ 5
Introduction .......................................................................................................................................... 6
FRONT PANEL ......................................................................................................................... 6
REAR PANEL ........................................................................................................................... 7
TUNER IN AND ASI OUT .......................................................................................................... 8
TUNER IN AND IP OUT ............................................................................................................. 8
TUNER IN AND CVBS OUT ...................................................................................................... 8
IP IN AND ASI OUT ................................................................................................................. 9
TUNER/IP/ASI IN AND SDI OUT .............................................................................................. 9
TUNER/IP/ASI IN AND HDMI OUT ......................................................................................... 9
Front Panel Control & Operation ........................................................................................................11
INPUT .................................................................................................................................... 13
Sources.................................................................................................................... 13
Params..................................................................................................................... 13
OUTPUT ................................................................................................................................ 14
Program Setup ........................................................................................................ 14
Decoder.................................................................................................................... 14
SDI........................................................................................................................... 15
Ethernet ................................................................................................................... 15
SYSTEM ................................................................................................................................. 16
Local Setup ............................................................................................................. 16
Properties ................................................................................................................ 16
Factory Setting ........................................................................................................ 16
STATUS .................................................................................................................................. 16
Input status .............................................................................................................. 16
Outputs status .......................................................................................................... 16
NMS Control & Operation ………………….................................................................................... 17
LAN PARAMETERS SETTING & CONNECTION ESTABLISHMENT ............................................ 17
Local network setting …......................................................................................... 17
Connection .............................................................................................................. 17
NMS MAIN INTERFACE CONFIGURATION ............................................................................. 18
Troubleshooting ................................................................................................................................. 25
Specifications ..................................................................................................................................... 26
AD Instruments
3
AD160 HD Integrated Receiver Decoder User Manual
Safety
·To avoid electric-shock hazards, do not open the receiver; refer service to
qualified personnel only.
·Keep the receiver away from flower vases, tubs, sinks, etc., in order to avoid
damaging the equipment.
·Do not expose the receiver in the sunlight. And keep it away from the heat
source.
·Do not block ventilation holes of the Receiver so that air can circulate freely.
·When the abnormal phenomenon occurs, cut off the power immediately.
·Do not touch the receiver during thunder. That might create electric shock
hazards.
·Switch the receiver off whenever it remains out of service for an extended
period.
·Be sure to turn the receiver off and disconnect the AC power cord before
cleaning the receiver surface. If the surface is dirty, wipe clean with a cloth that
has been dipped in a diluted soap water solution and wrung out thoroughly, and
then wipe again with a dry cloth.
·Specifications and functions may be changed for improvement without notice in
advance.
AD Instruments
4
AD160 HD Integrated Receiver Decoder User Manual
Reference
l Connect a Antenna
To AD160 IRD, you can connect either a single satellite antenna directly or through
converter box several antennas or LNB of multi-feed equipment.
You can connect a further IRD with the IRD that has common antenna equipment to
receive satellite signals.
l Loop Through
If you wish, you can connect the same LNB to another IRD via the loop through of your
digital receiver decoder. Connect one end of a coaxial cable to the LNB OUT on the
IRD and connect the other end to the LNB IN on your second IRD.
AD Instruments
5
AD160 HD Integrated Receiver Decoder User Manual
Features
·MPEG-4 AVC (H.264) Digital compliant
·DVB-S2/C/T signal input support (optional)
·For DVB-S/S2 model, input Frequency 950-2150 MHz, Symbol Rate 2 ~ 45
Ms/s (2-37Ms/s for 8PSK); for DVB-T model, input Frequency 48-858 MHz,
Symbol Rate 0.87 ~ 6.9 Ms/s; for DVB-C model, input Frequency 50-858 MHz,
Symbol Rate 0.87 ~ 6.9Ms/s
·1 Tuner Input (F-Type) and Loop-through
·2 DVB Common Interfaces (CI ) for descrambling most common CA systems
·1 ASI transport stream input & 2 ASI output capable of working as TS decoder
·IP stream input and output (optional)
·Broadcasting quality video and audio outputs
·VBI Teletext handling
·2 identical SDI outputs for convenient conversion of program format
·AES/EBU digital audio output
·BNC-interfaced CVBS output with the companion of AES/EBU audio output
makes better sense.
·HDMI output with high quality video and audio gives an audiovisual feast
·Full control via front panel or Ethernet port
·Automatic recovery for latest system configuration from unexpected power off
·Software upgrading via NMS
AD Instruments
6
AD160 HD Integrated Receiver Decoder User Manual
Introduction
The AD160 IRD is an advanced MPEG-4 AVC (H.264) HD integrated receiver decoder
with optional TS-IP mutual conversion function. It can receive signal from different
program sources. Its prolific output interfaces such as IP, SDI, AES/EBU, HDMI and
ASI can meet different system requirements. The AD160 also has 2 common interface
slots which can decode multiple scrambled channels. It is an ideal component for either
a standard SD/HD digital video or an IPTV head-end system.

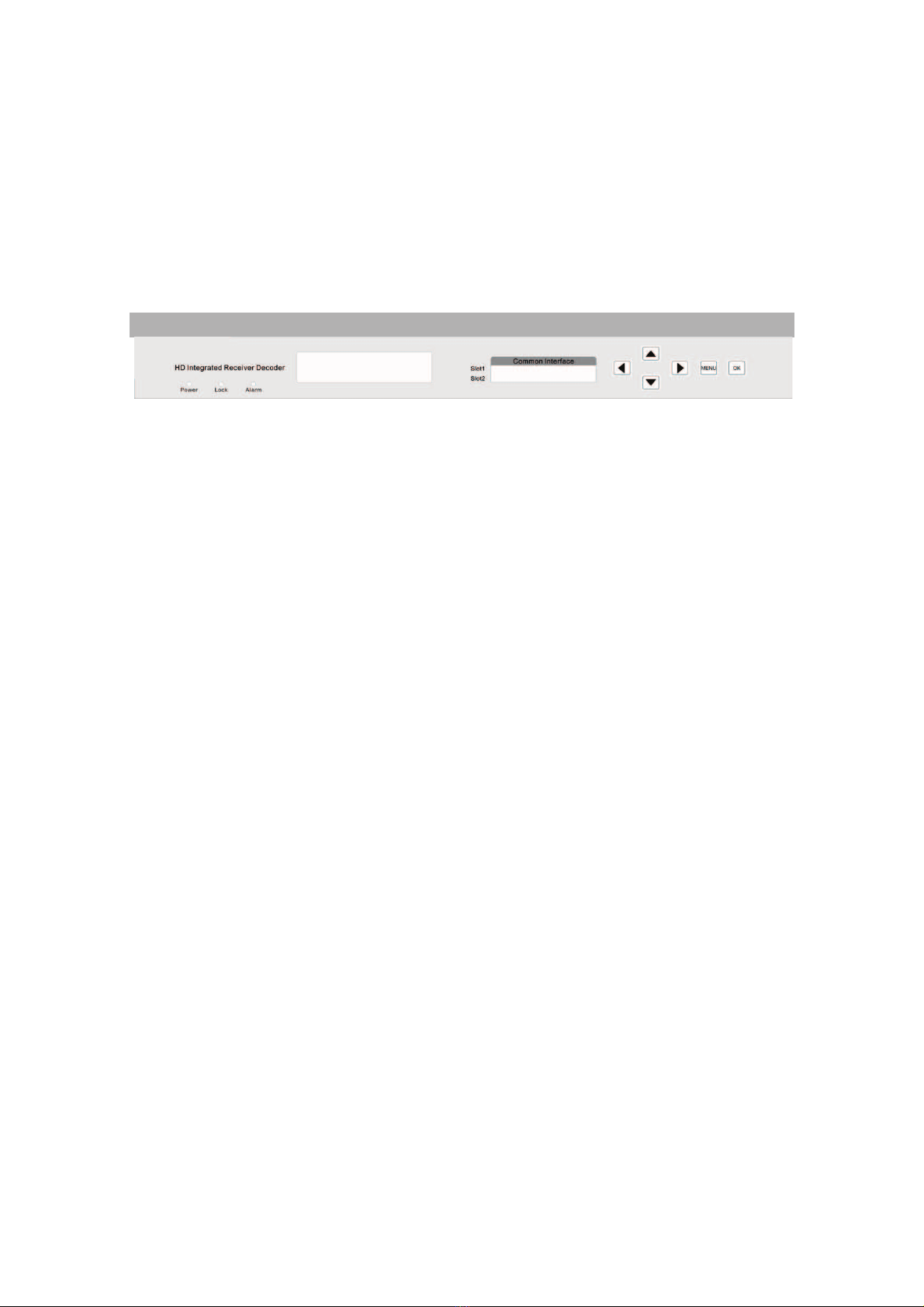

Front Panel
LED Indicator:
·Power: The LED lights on when the STB is power on.
·Lock: The LED lights on when a channel is locked. Otherwise there is no
channel locked.
·Alarm: The LED flickers when there is something abnormal. For example, the
strength of the input signal is too weak.
Display screen: Show the channel name of TV or Radio program and the configuration
information.
CI SLOTS: There are two CI slots for various CAS CAM (PCMCIA) modules.
KEY PADS:
·Select Keys: To change channels, adjust volume and configure the IRD.
·MENU: To enter the menu and the quit function of the sub menus.
·OK: To confirm the operation in the setup.
AD Instruments
7
AD160 HD Integrated Receiver Decoder User Manual

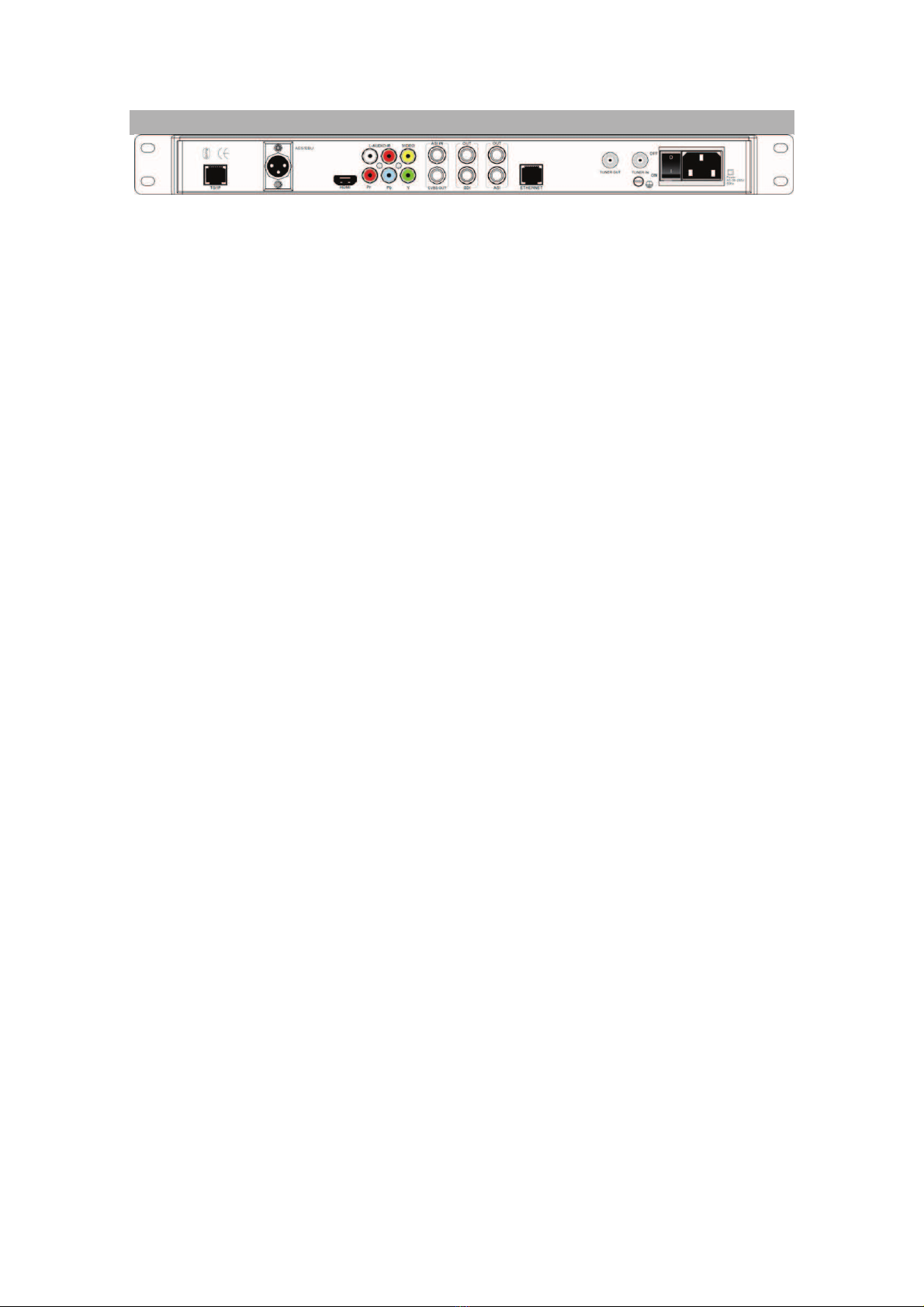

Rear Panel
1. TUNER IN: Connect to a RF or IF signal.
2. TUNER OUT (LOOP OUT): Use it when connecting to another IRD.
3: ETHERNET: Network remote control.
4. ASI OUT: Output MPEG-2 or Mpeg-4 TS.
5. SDI OUT: Output the SDI Video stream.
6. ASI IN: BNC connector for TS input
7. VIDEO /AUDIO: Video signal output jack and Left/right audio output jack.
8. Cr/Cb/Y: Component output
9. HDMI: Output high quality picture and sound with one cable.
10. AES/EBU: Professional digital Audio output with XLR connector
11. TS/IP: TS stream input and output in IP format.
12. POWER SUPPLY and POWER SWITCH: 90~250V AC, 50Hz.
AD Instruments
8
AD160 HD Integrated Receiver Decoder User Manual

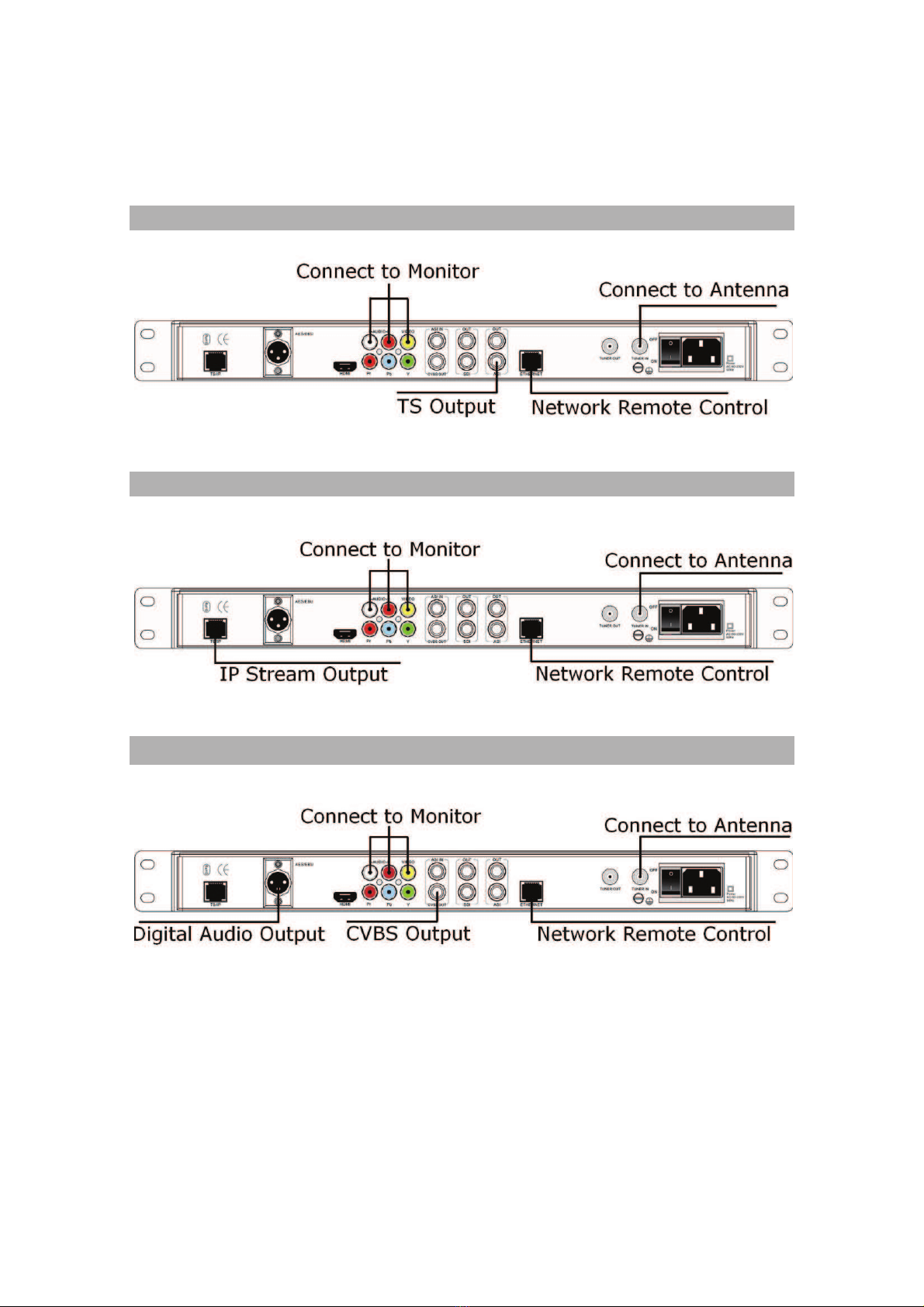

There are several ways of connecting the IRD to your existing Audio/TV system. We
recommend using one of the following set-ups for best results:
Tuner in and ASI out
Tuner in and IP out
Tuner in and CVBS out
AD Instruments
9
AD160 HD Integrated Receiver Decoder User Manual

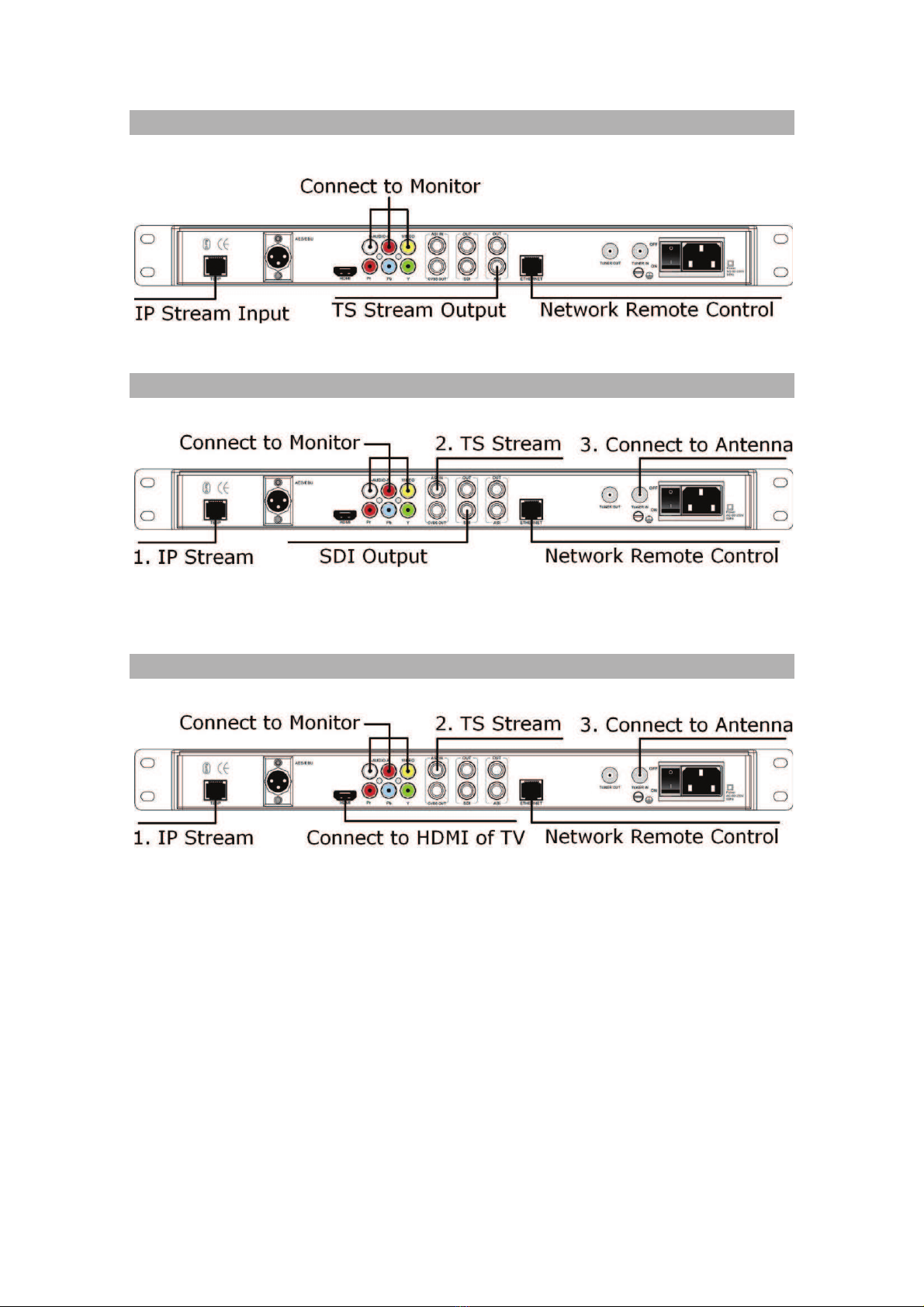

IP in and ASI out
Tuner/IP/ASI in and SDI out
Notice: You should select one signal source from the 1, 2 and 3 option.
Tuner/IP/ASI in and HDMI out
Notice: You should select one signal source from the 1, 2 and 3 option.
AD Instruments
10
AD160 HD Integrated Receiver Decoder User Manual

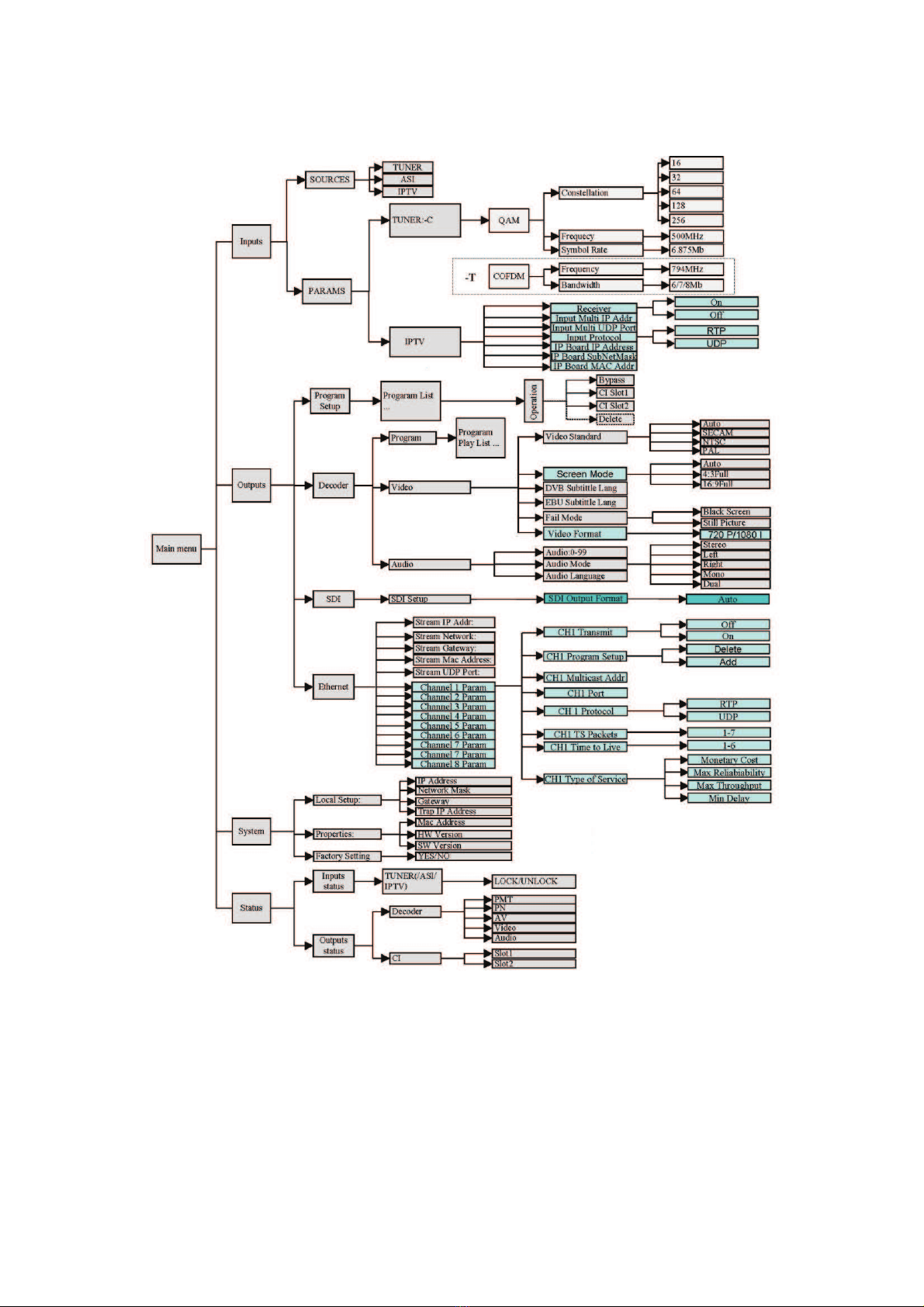

Front Panel Control & Operation
This diagram is for DVB-C and DVB-T IRD
